Ants nest, modular formicarium

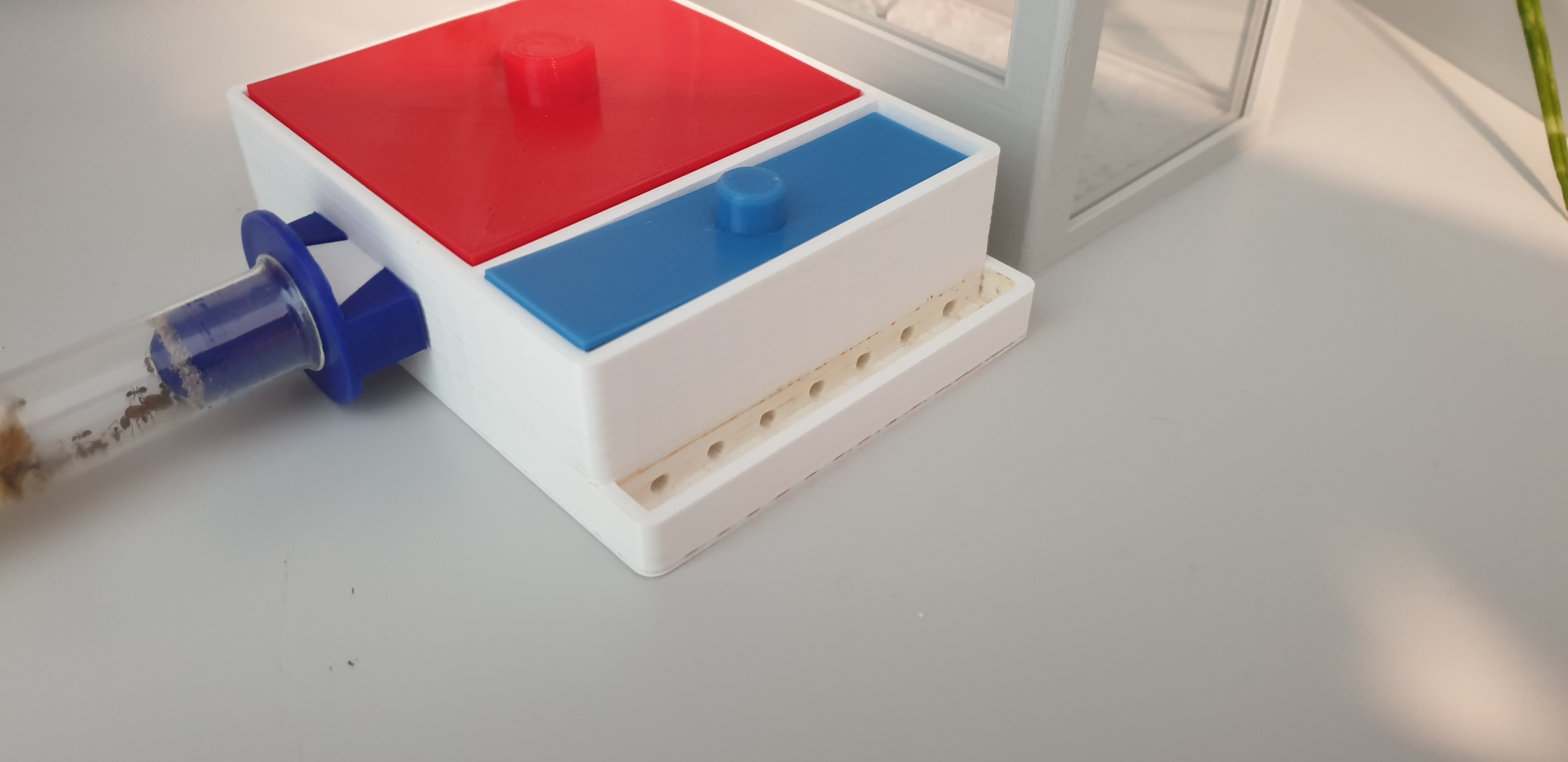

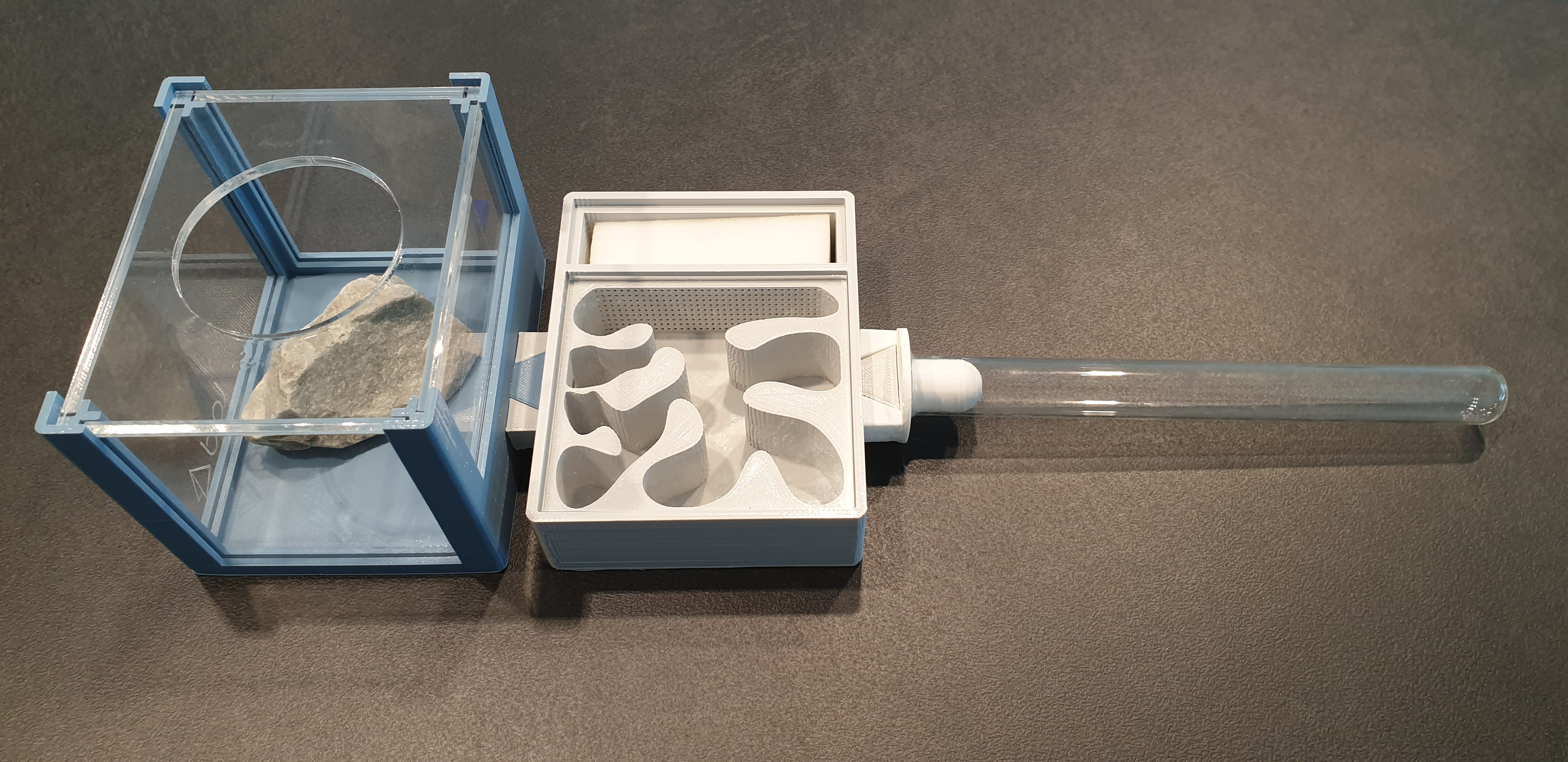

This ants formicarium consists of a nest and a hunting area. Furthermore, there is the possibility of connecting a test tube for the first stages of colony growth or for liquid feeding. The various connections allow to expand the colony. The nest is equipped with a container to insert a sponge to ensure adequate humidity. The sponge can be moistened without opening the nest and the excess water will flow into the drain containment.

Here the files list to print:
- Nest
- Nest lid
- Watering sponge tank lid
- Hunting area
- Test tube holder
- 2 size for hole cover

You also have a svg file. This file can be used to cut acrylic glass parts (3mm) with a laser cutter. The glass will cover the nest and close the hunting area. the top of the hunting area has an opening to ensure cleaning and feeding. Please use anti-escape product.

For other similar project please visit the link of our Lab
https://lad.edu.ti.ch/

Nest size 80x100x30 mm
Hunting area size 80x100x75 mm

Printer: Ultimaker 2+
Layer resolution : 0.2 mm
Infill: 20 %
Support: make sure you put supports only under the connection
