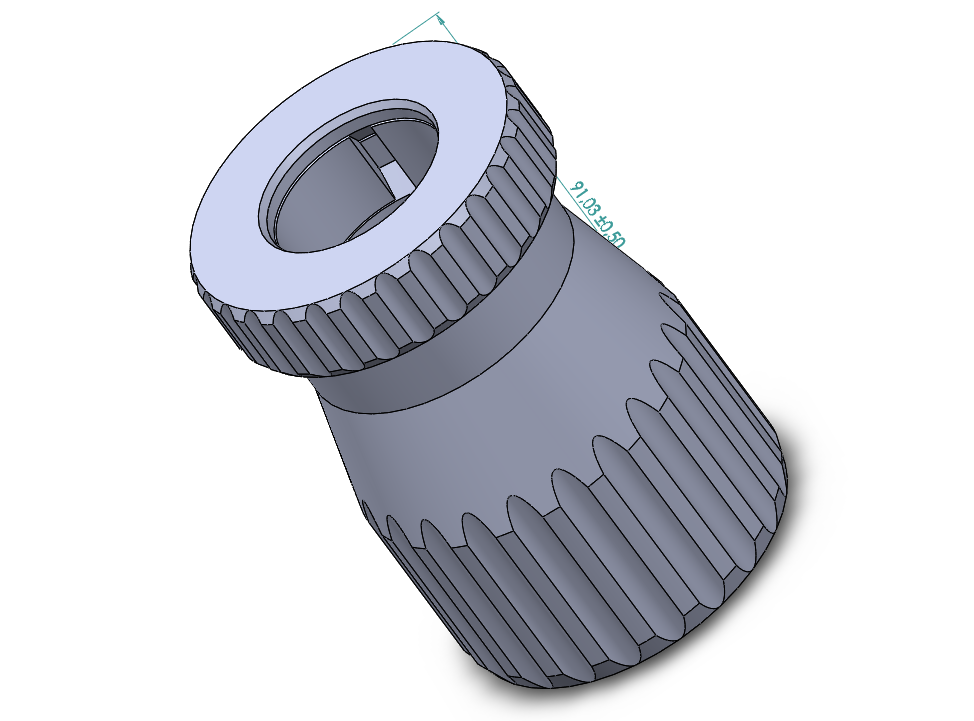

Capture_dΓ©cran_2020-05-03_16.39.17.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
imprimer les pieces une par une! l'anneau !! epaisseur dessu Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF105_ASI-BF12.5_Serrage-Annulaire.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF86_ASI-BF17.5_Serrage-Annulaire.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF105_ASI-BF17.5_Serrage-Annulaire.png Adapter for ASI cameras on f6.3 gearbox with ring clamp

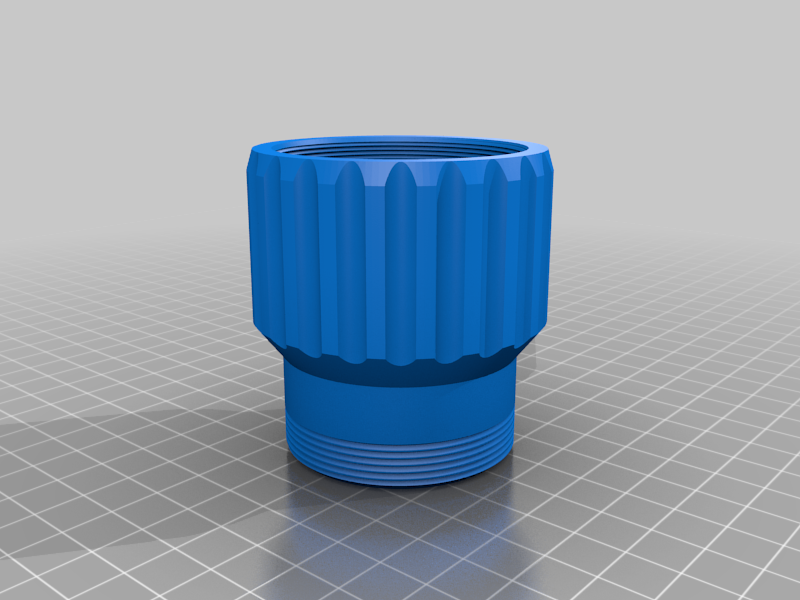

Adaptateur_RDF6.3-BF86_ASI-BF12.5_Serrage-Annulaire.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Anneau_Serrage.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Bague_serrage.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Anneau_Serrage.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF86_ASI-BF17.5_Serrage-Annulaire.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF105_ASI-BF17.5_Serrage-Annulaire.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF105_ASI-BF12.5_Serrage-Annulaire.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF86_ASI-BF12.5_Serrage-Annulaire.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Bague_serrage.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF_6.jpg Adapter for ASI cameras on f6.3 gearbox with ring clamp
Capture_dΓ©cran_2020-05-03_16.40.28.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Capture_dΓ©cran_2020-05-03_16.39.17.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
imprimer les pieces une par une! l'anneau !! epaisseur dessu Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF105_ASI-BF12.5_Serrage-Annulaire.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF86_ASI-BF17.5_Serrage-Annulaire.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF105_ASI-BF17.5_Serrage-Annulaire.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF86_ASI-BF12.5_Serrage-Annulaire.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Anneau_Serrage.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Bague_serrage.png Adapter for ASI cameras on f6.3 gearbox with ring clamp
Anneau_Serrage.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF86_ASI-BF17.5_Serrage-Annulaire.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF105_ASI-BF17.5_Serrage-Annulaire.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF105_ASI-BF12.5_Serrage-Annulaire.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Adaptateur_RDF6.3-BF86_ASI-BF12.5_Serrage-Annulaire.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Bague_serrage.STL Adapter for ASI cameras on f6.3 gearbox with ring clamp
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
6 files Close
  • Adaptateur_RDF6.3-BF105_ASI-BF12.5_Serrage-Annulaire.STL 62.0 Γ— 61.757743 Γ— 82.50000700000001 mm
  • Adaptateur_RDF6.3-BF105_ASI-BF17.5_Serrage-Annulaire.STL 62.000003 Γ— 61.757737999999996 Γ— 77.49999700000001 mm
  • Adaptateur_RDF6.3-BF86_ASI-BF12.5_Serrage-Annulaire.STL 62.0 Γ— 61.757743 Γ— 64.49999899999999 mm
  • Adaptateur_RDF6.3-BF86_ASI-BF17.5_Serrage-Annulaire.STL 62.0 Γ— 61.757743 Γ— 59.500003 mm
  • Anneau_Serrage.STL 39.699318 Γ— 15.150467000000006 Γ— 39.699094 mm
  • Bague_serrage.STL 61.996024 Γ— 61.933536000000004 Γ— 16.000000999999997 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 841186
Design author jamesdedij
jamesdedij

jamesdedij

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

Adapter for ASI cameras on f6.3 ring clamp gearbox

https://youtu.be/gCWmucpA_mo

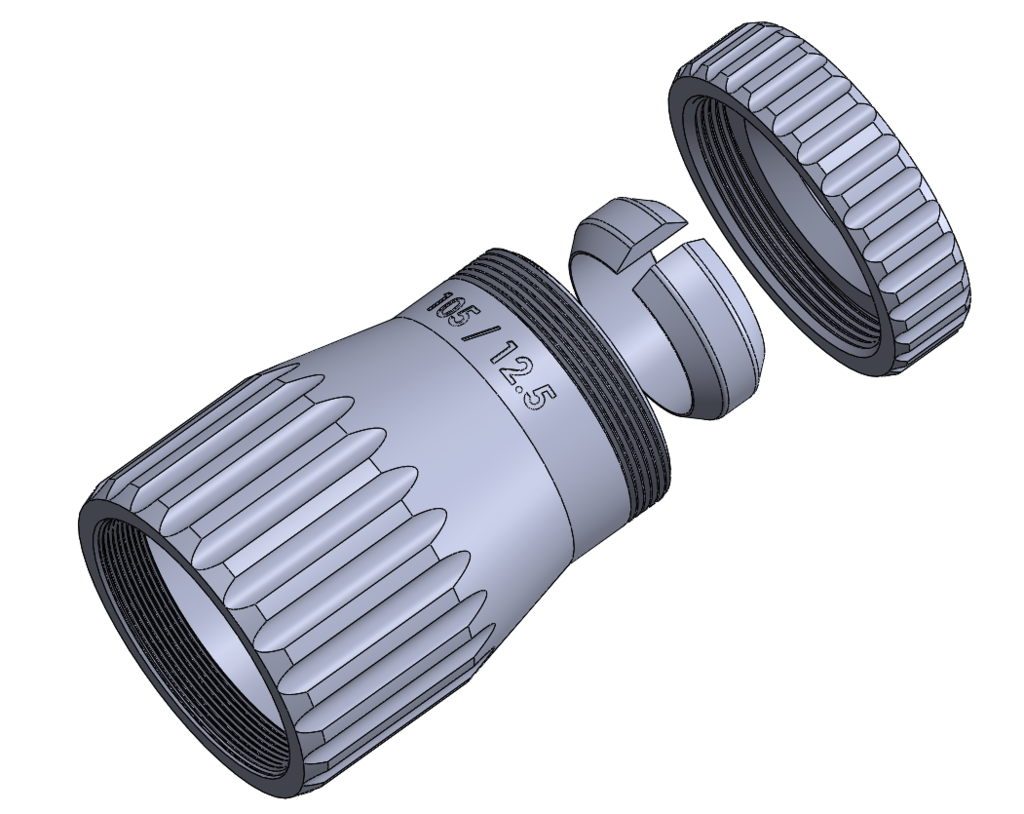

This version has an annular clamp with a rotating ring.

The cameras must be equipped with their adapter to the 31.75 slider provided with.

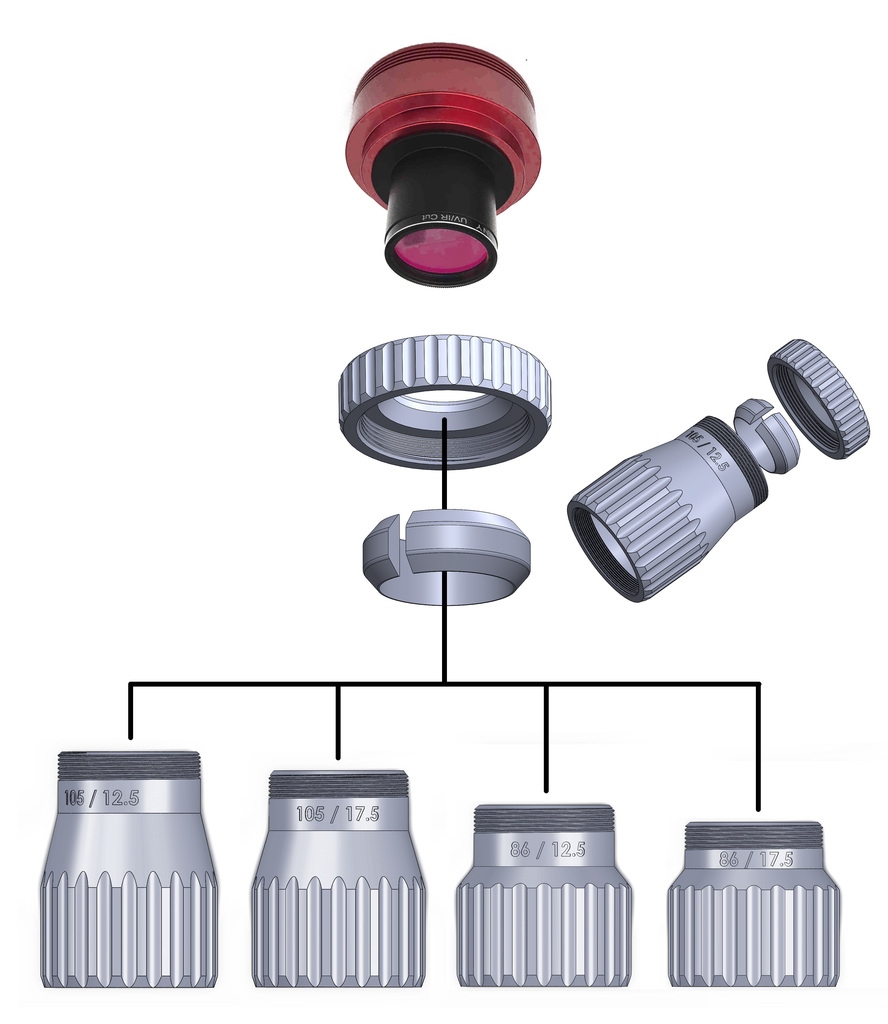

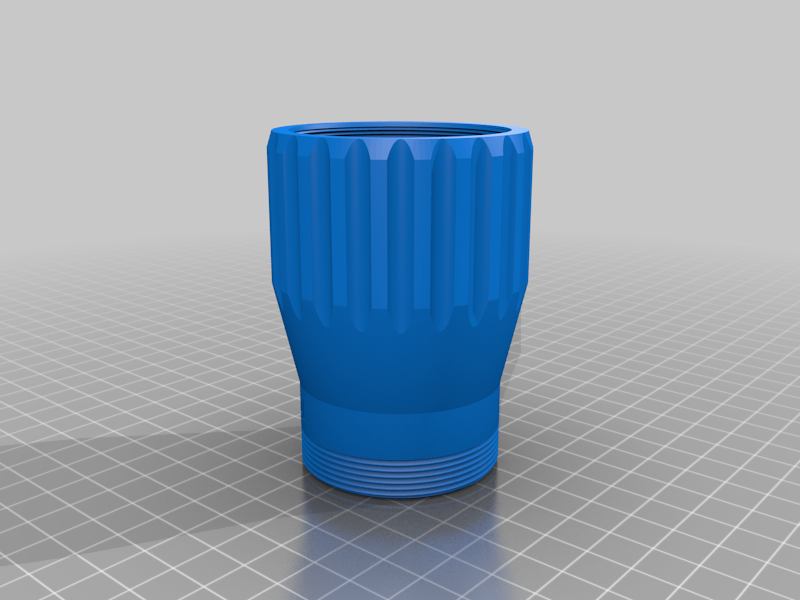

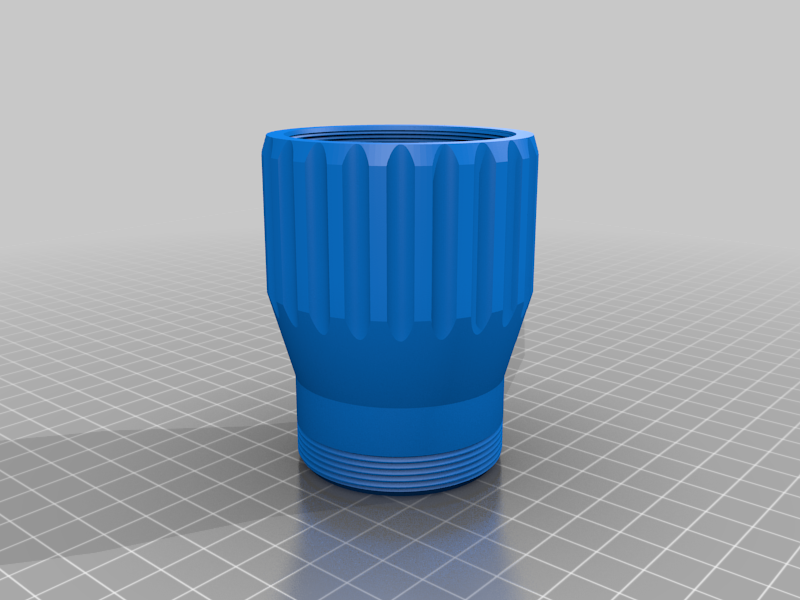

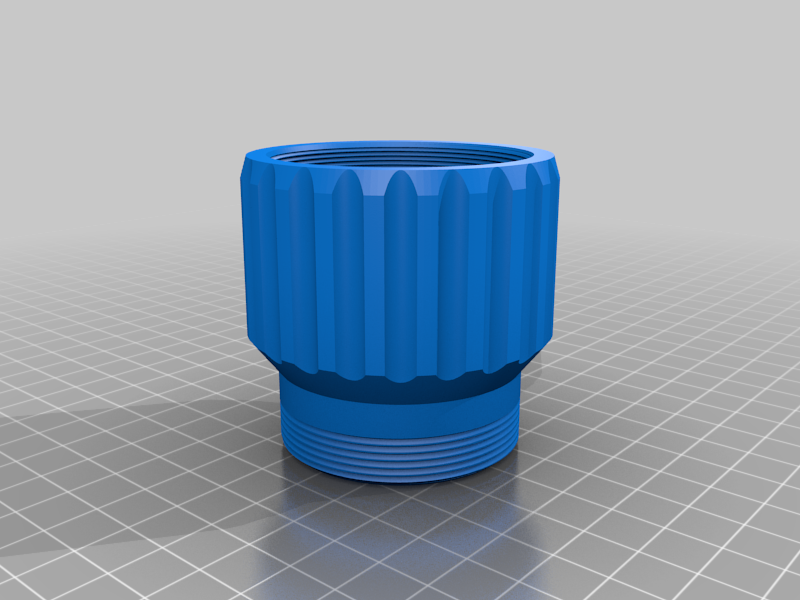

4 bodies are proposed to adapt to different backfocus according to the

brands of gearboxes: 85/86 mm for the Meade and Antares, 105mm for the Celestron ( or 86mm for

the old Made in Japan) and the two backfocus

different backfocus for ASI cameras (12.5 and 17.5mm).

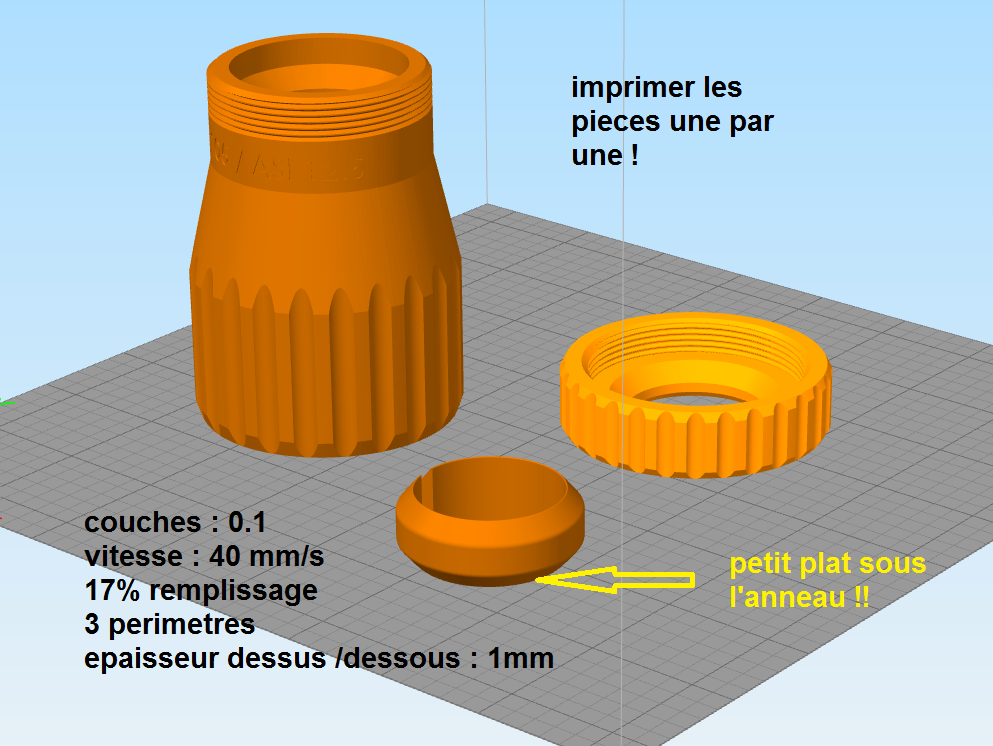

I printed them with a variable profile in Simplify3d: the body was printed in 0.1 for the

thread of the reducer then in 0.2 for the middle

of the piece and then again in 0.1 for the upper thread (clamping ring). If you are

under S3d but you do not know

these variable profiles I invite you to learn to use them. Otherwise, if the printing time

does not bother you, then leave everything in 0.1 !

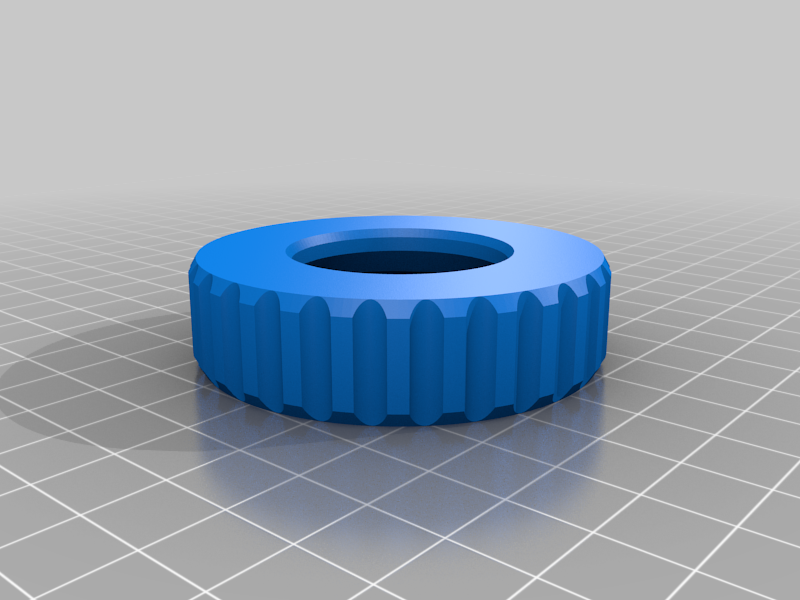

The clamping ring and the ring are in 0.1. All parts have 17% filling.

The threads are the most delicate part to print and I recommend a machine properly

Print at low flow and at 40 mm/s max.

especially for the threads. I drew them wide enough but at the assembly, several

screwing / unscrewing may be necessary for them to "fit" well.

The ring has a small flat on one side to make it easier to hang on the tray.

good heavens to all!

Google translation ( Sorry)

Adapter for ASI cameras on f6.3 reducer with annular tightening

This version has an annular clamping with a rotating ring.

The cameras must be fitted with their 31.75 adapter supplied with.

4 bodies are proposed to adapt to the different backfocus according to the

reducer marks: 85/86 mm for the Meade and Antares, 105mm for the Celestron (or 86mm for the old

Made in Japan models) and the two backfocuses

different for ASI cameras (12.5 and 17.5mm).

I printed them with a variable profile under Simplify3d: the body was printed in 0.1 for the

thread of the reducer then in 0.2 for the middle

of the part then again in 0.1 for the upper thread (clamping ring). If you are on S3d but you do

not know

these variable profiles I invite you to learn how to use them. Otherwise, if the printing time

does not bother you, then leave everything in 0.1 !

The clamping ring and the ring are in 0.1. All rooms at 17% filling.

The threads are the most delicate part to print and I recommend a correctly calibrated machine.

Print rather with reduced flow and at 40 mm / s max

, especially for threads. I have drawn them quite wide but during assembly, several screwing /

unscrewing may be necessary so that they "fit" well.

The ring has a small dish on one side to facilitate its hanging on the tray.

good heavens to all!
