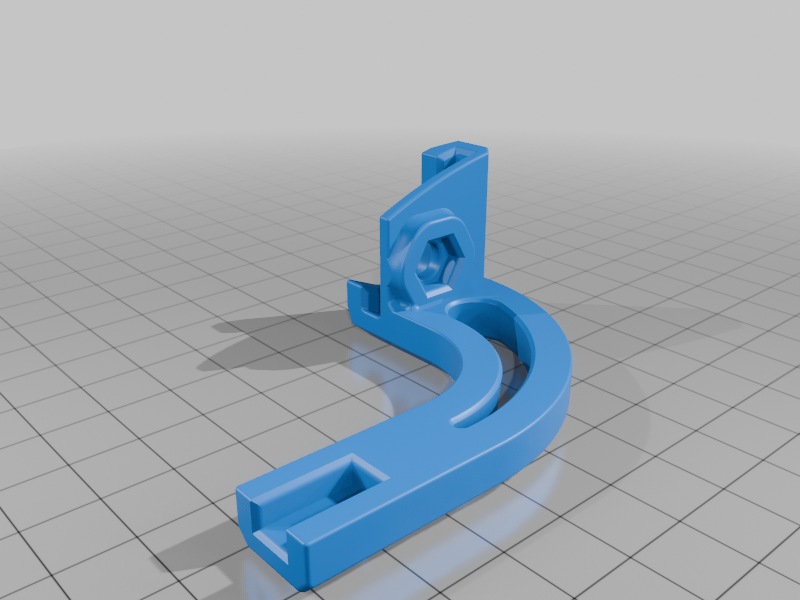

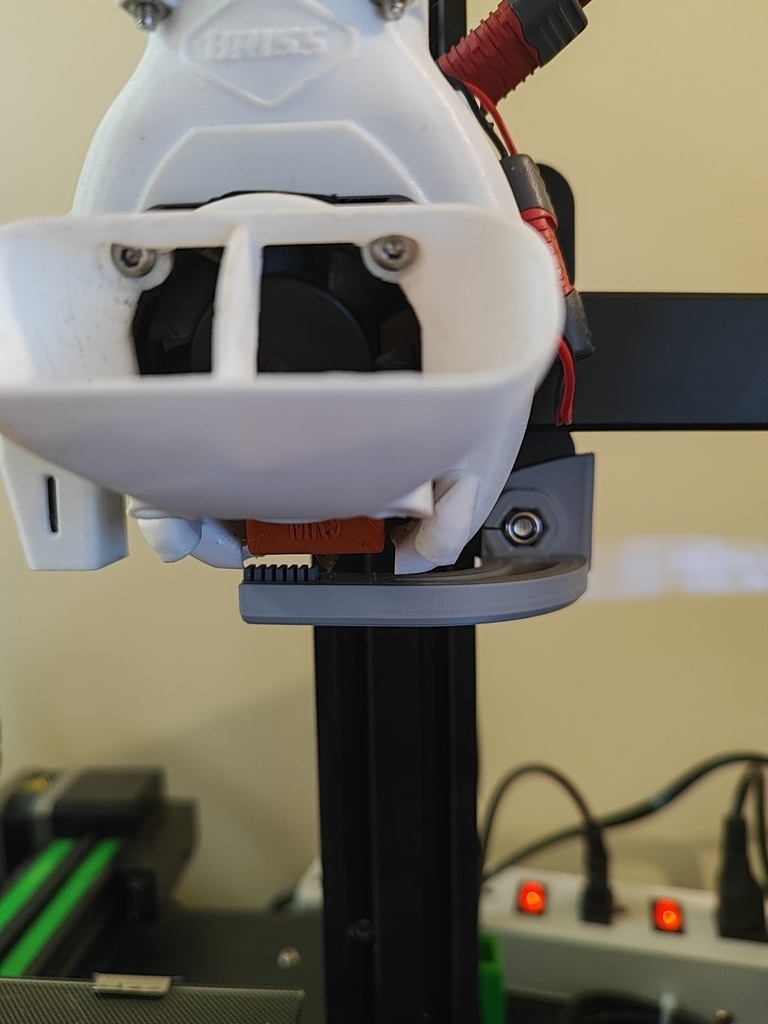

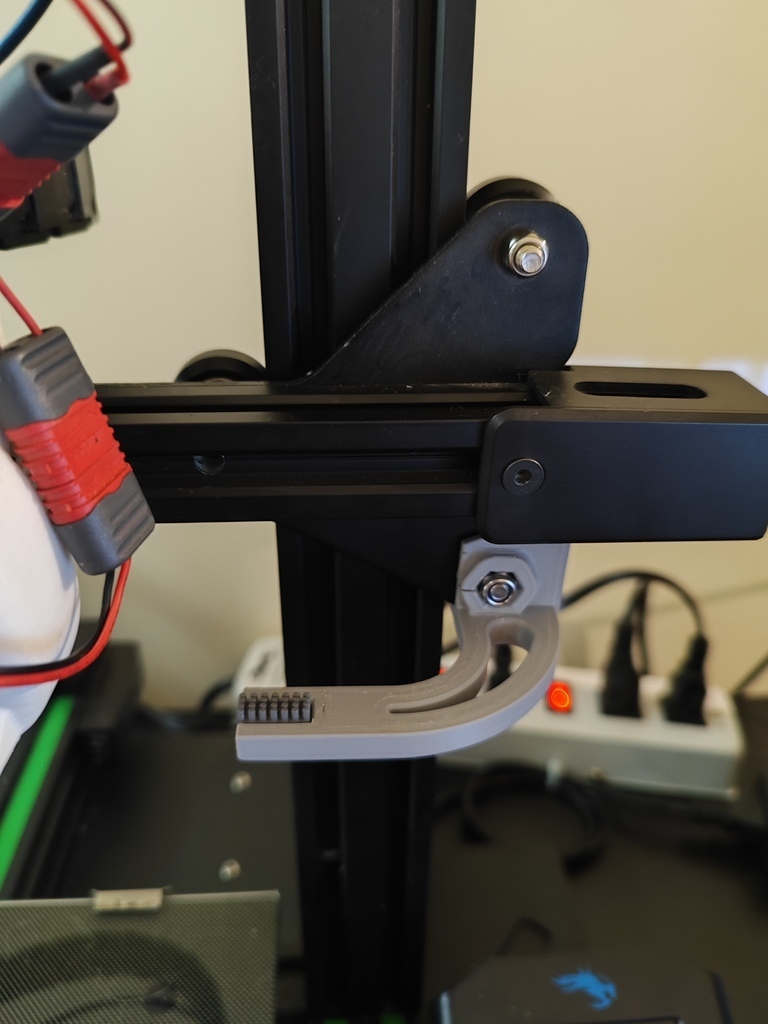

X Axis Nozzle Wiper for Ender 3 v2

I accidently deleted my first post:
was going to update the g-code but alas. This is a remix, anyway here is the original creator: https://makerworld.com/en/models/1608754-nozzle-wiper-for-ender-3-v2?from=search

I'm using Mrisoc firmware UBL version, with a off brand BL-Touch
Suggested Filament: PETG or Higher heat and tensile strength resistance
Perimeter Walls around; 4-6
Top Layer around; 6 (To not get deflected)

EDIT(23/12/2025): I adjusted my nozzle wipe gcode command, because it was having a hard time extruding, and nozzle was more dirty than intended.

EDIT(16/4/2026): Finally decided to fix the orientation of the nut to not make it break easily when tightening, angled the silicon brush cavity to make the nozzle have more surface area to contact to.

(updated) Gcode I'm Using:

; BL Touch (Do not copy if you do not have a probe)
G28 ; HOME AXIS UBL WILL RESET
G29 L0 ; Load Saved Mesh
G29 A ; Activate UBL
G29 J2 ; Probe 4 points and adjust mesh

; Nozzle Priming
G1 X197 Y2 Z50 F9000 ; Prime line
M104 S{first_layer_temperature[0]} ; set final nozzle temp
M190 S{first_layer_bed_temperature[0]} ; wait for bed temp to stabilize
M109 S{first_layer_temperature[0]} ; wait for nozzle temp to stabilize

; Start of reversing beeper G-code
G1 E40 F400 ; (Edit as of March 2026, I changed this to Feedrate of 400 to rid of extruder motor skipping teeths. you can adjust how fast your extruder can safely control)
G4 S10 ; waiting for Ooze 10 Seconds
G92 E0
M300 P250 S1000 ; Beep 1: 1000 Hz for 250ms
G4 P300 ; Dwell/Pause for 300ms
M300 P250 S1000 ; Beep 2
G1 Z5 F9000 ; Move motor
G4 P300 ; Dwell/Pause
M300 P250 S1000 ; Beep 3
G4 P1000 ; Longer pause before repeating or ending

; Purge Line (Slow down Feedrate's if you are dealing with difficult material)
G1 X197 Y0 Z0.28 E-2.5 F600; <- (Edit march 2026, reduced E-5 to E-2.5 to lessen the delay the filament would need to be at the tip)
G92 E0
G1 X233.5 E25 F600; <-
G92 E0
G1 X233.5 Y36.5 Z0.30 E20 F600: <-
G92 E0
G1 Y45 F2000
G1 Z5 F2000

; Nozzle Wipe (Last Entry: 23/12/2025)
G1 X235 F9000
G1 E5 F3000
G92 E0
G1 X250 F9000
G1 X235 F9000
G1 X250 F9000
G1 X235 F9000
G1 X250 F9000
G1 X235 F9000

G1 X250 Z0.30 F9000

Goodluck guys. Apologies for deleting the first post.
