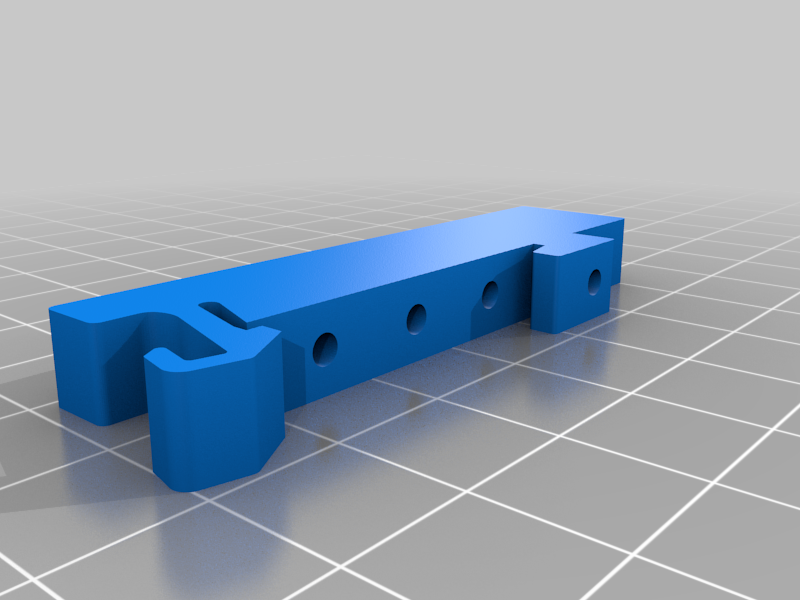

  • WAGO_DIN_Mount.stl 60.541831 ร— 18.615407 ร— 7.0 mm

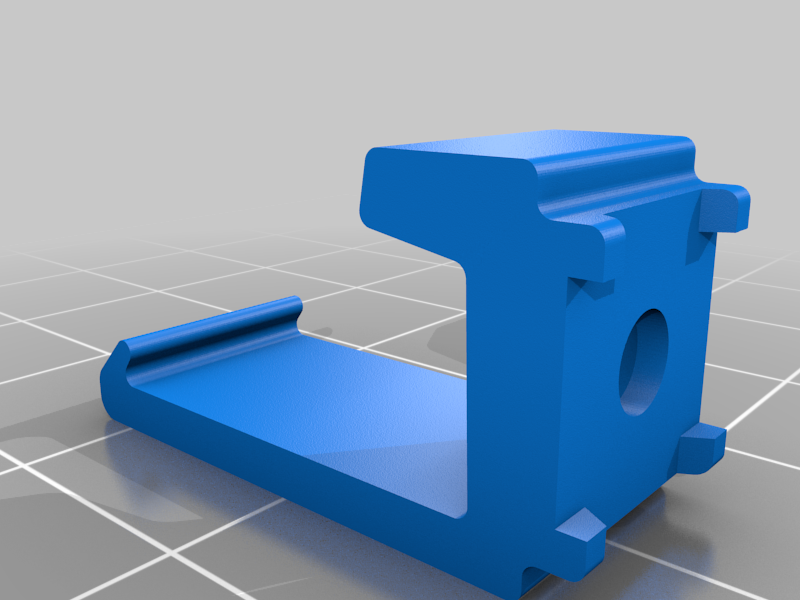

  • WAGO_Halterung_221.stl 10.0 ร— 24.456869 ร— 13.0 mm

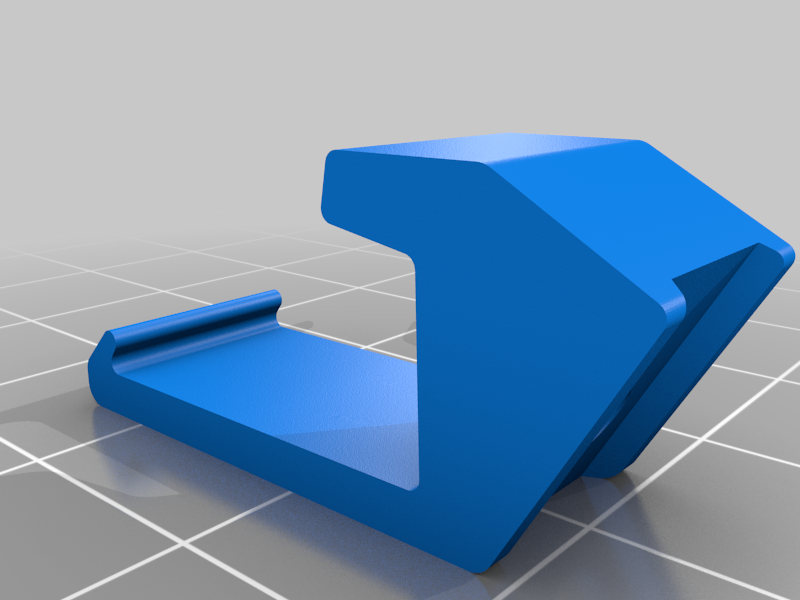

  • WAGO_Halterung_221_30grd.stl 10.0 ร— 28.402713000000002 ร— 13.0 mm

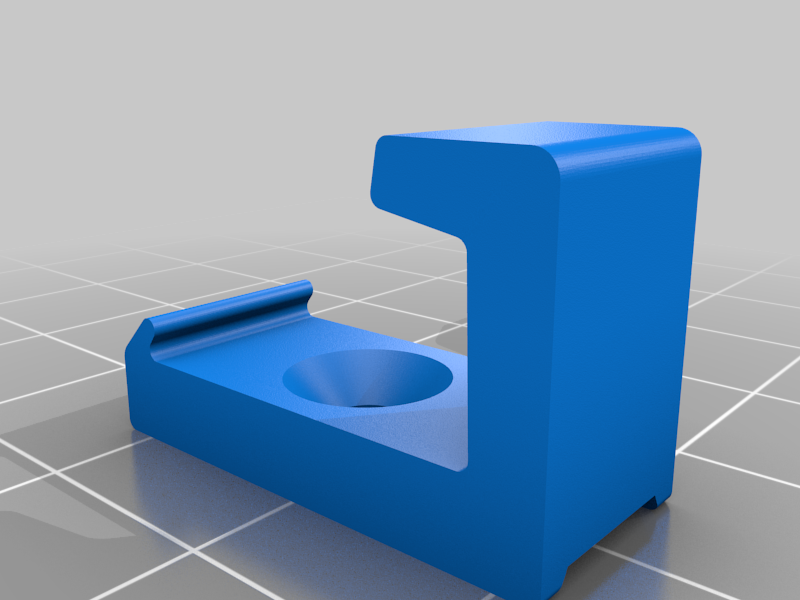

  • WAGO_Halterung_221_90grd.stl 10.0 ร— 23.456869 ร— 15.0 mm

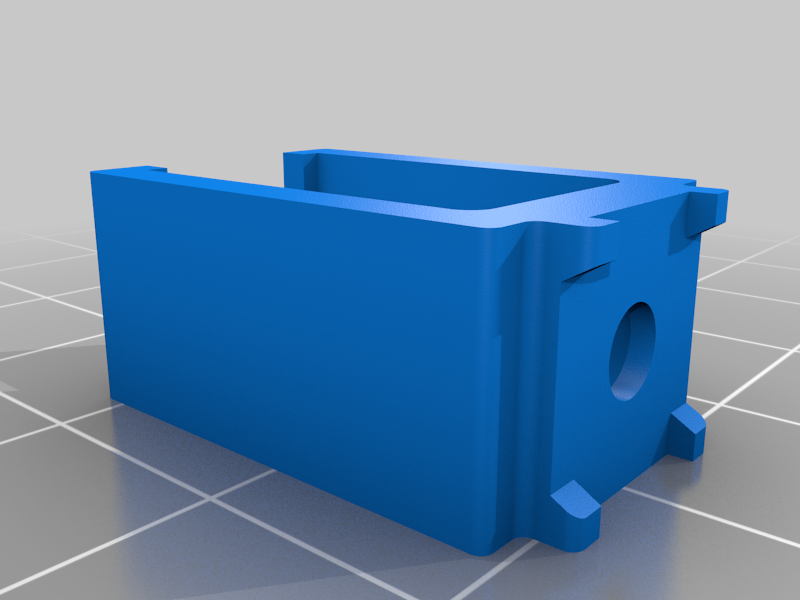

  • WAGO_Halterung_2273-208.stl 14.0 ร— 22.6 ร— 10.0 mm

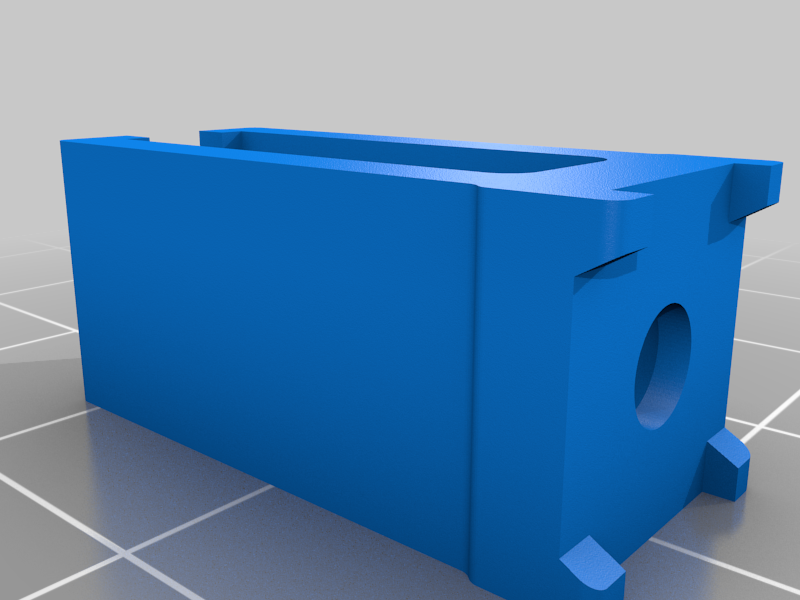

  • WAGO_Halterung_2273.stl 10.0 ร— 22.6 ร— 10.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 847955
Design author maot1985
maot1985

maot1985

Issue with this design? Report a problem.

3D printer file info

3D model description

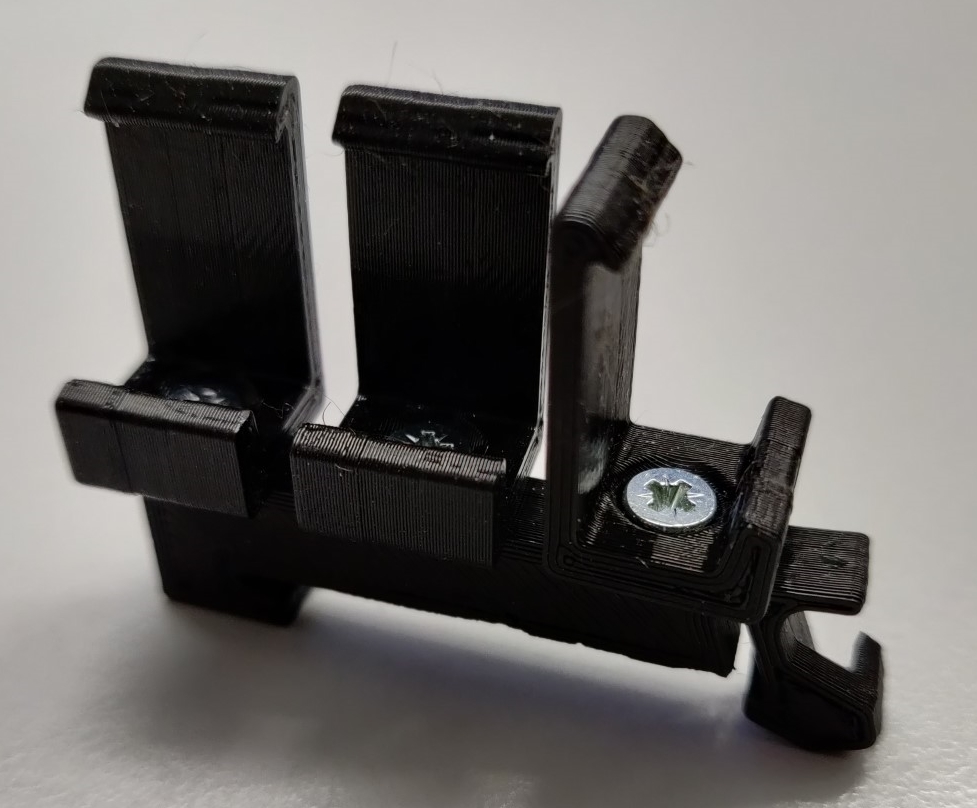

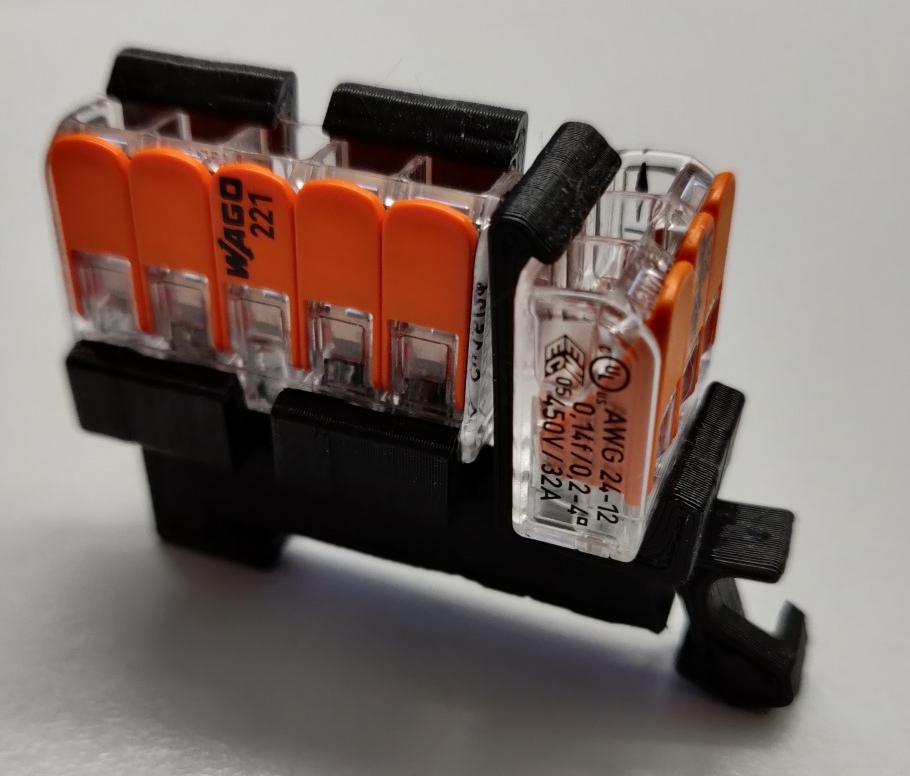

In my subdistribution I had to connect some wires with WAGO clamps. I wanted them to sit on the 35mm DIN rails, but the mounts on Thingiverse did not fit my needings.

I used the Din Rail Mount by Selphb and modified it a little bit. I designed attachable mounts for WAGO 221 and WAGO 2273 connectors, which can be attached by 3x12mm screws.
