Ultimaker 2 temperature torture calibration test

Download free STL file Ultimaker 2 temperature torture calibration test • 3D printing design, B2TM

Did you 3D print this model?

3D model description

If you print this test, please comment below with what material and gcode you used and what the best temperature was.

Description:

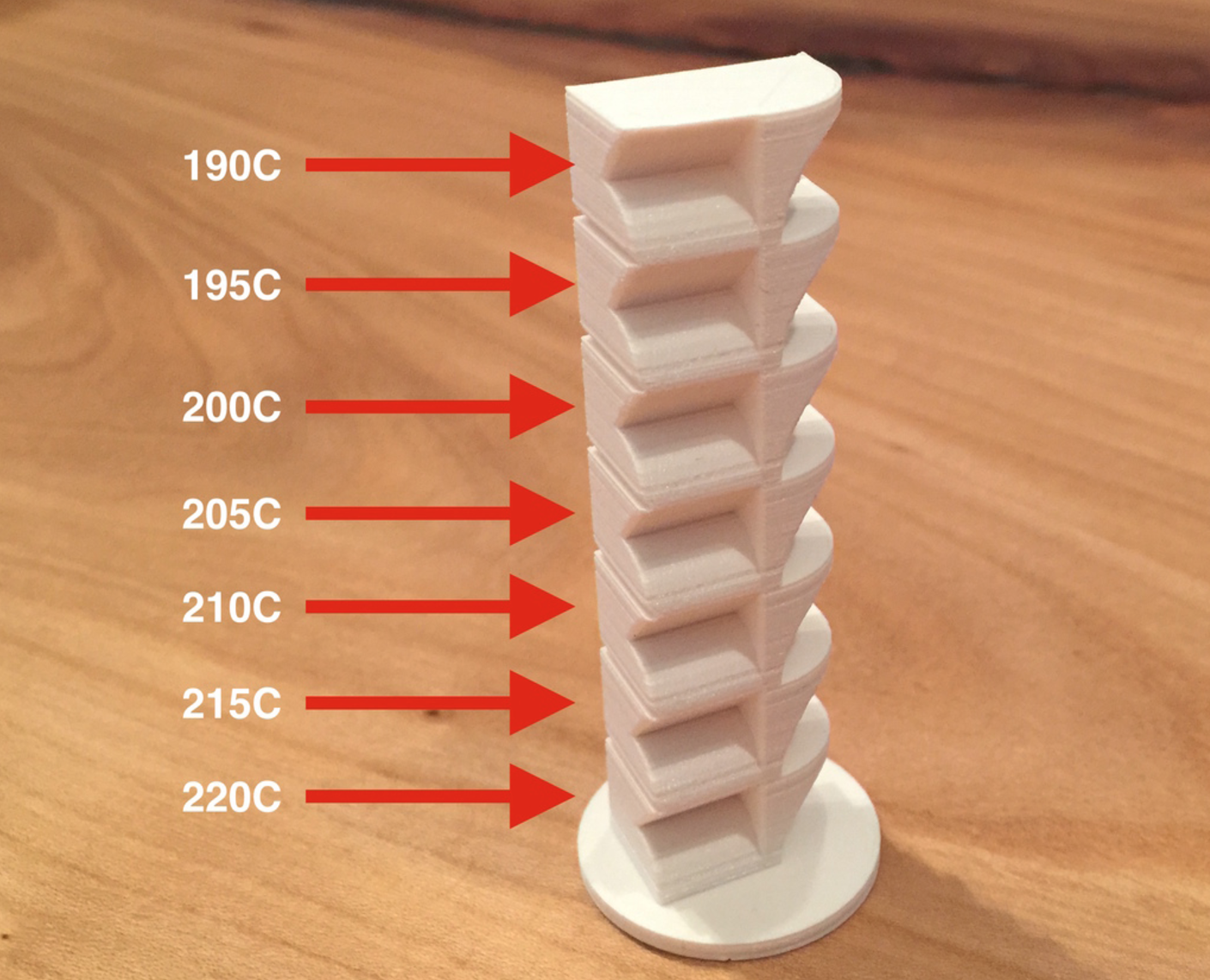

3 + 3 different GCODE files for Ultimaker 2 made with the default CURA settings and temperature range from 220C tot 190C in steps of 5C.

Printing features:
Straight wall
Overhang (circular)
Overhang (45 degrees)
Curved surface
Flat surface
Hole (for small bridge test)
Rounded corner

Fast Print (FP): 0H45, 0.15mm layers
Normal Print (NP): 2H01, 0.10mm layers
High Quality (HQ): 3H21, 0.06mm layers

I left the buildplate on 60C because the base was warping with the buildplate heating off. I also included files where the buildplate temperature is set to 0. This is obviously more accurate for the test, but well, if the base of the print comes loose you sort of have nothing. You can try for yourself.

If you want to make the gcode yourself or for a different printer, you'll have to insert the temperature commands yourself at the appropriate layer.

The base is 2mm high, the rest is 10mm per piece.

Commands:

Set bed temp to 0:
M140 S0

Set nozzle temperature:
M104 S200
(where 200 is the temperature).

3D printing settings

Load the gcode in your UM 2 to start the test. Look at the results and decide what temperature works best for your material.
Different layer heights result in different extrusion rates, so optimal temperatures might be different for the differtent cura print presets.
If you want to print using Cura Fast Print, you need to do the fast print test.

  • 3D file format: STL

Creator

License

CC BY SA

Collection associated with this 3D model


Best sellers of the category Tool


Add a comment

3 comments

I like the idea. It's basically a smaller torture tower. I never liked the big torture towers for the unnecessary amounts of filament they waste.

sorry , i dont find the gcode file , only .stl
