Trek Madone SLR Garmin Varia mount

This is a digital 3D model for a custom Garmin Varia mount that attaches directly to the Bontrager saddle on the Trek Madone SLR Gen 7.
It is designed to work with the original Garmin Varia quarter-turn mount included in the Varia package — giving you the cleanest look and the best OEM-level fit.

What You Get:

STL file ready for 3D printing

Designed around the Bontrager saddle rail geometry

Fully compatible with the original Garmin Varia mount for perfect locking and angle alignment

Features:

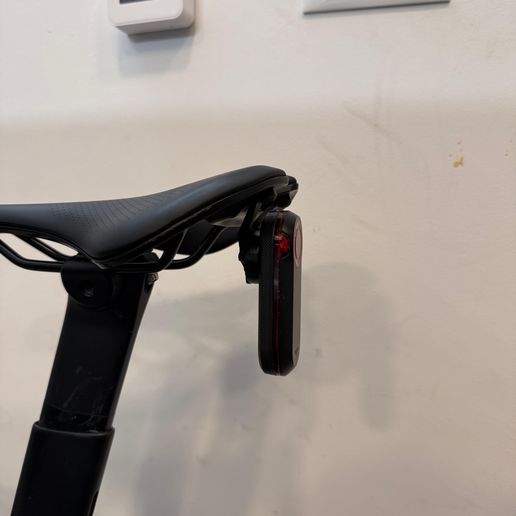

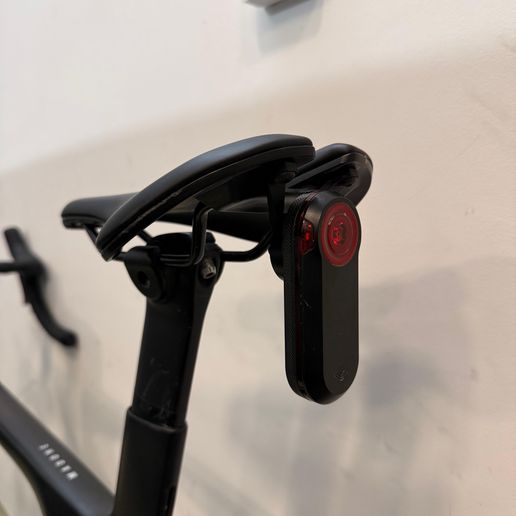

Seat-Mounted Design: Attaches under the Bontrager saddle for a tidy, centered Varia position.

OEM-Level Fit: Uses the original Garmin Varia mount hardware for the most secure and precise installation.

Aero & Clean Look: Keeps the Varia tucked under the saddle for minimal drag and a seamless integration.

Print-Optimized: Suitable for FDM and resin printers; reinforced for durability while keeping weight low.

Easy Setup: Print, attach the OEM Garmin mount, install on the saddle — done.

Print Instructions
Layer Height: 0.08 mm for maximum strength and surface precision.
Nozzle Temperature: Use the higher end of your filament’s temperature range to improve layer adhesion and overall part durability.
Infill: 55% recommended for optimal strength-to-weight balance.
Supports: Use tree supports, but avoid supports inside the screw holes for a clean fit.

Hardware:
Use M5x8 mm aluminum screws (other screws work as well, but M5 is overkill for this so aluminum for weight savings)
Apply Loctite (medium strength) to prevent loosening from road vibration.

Tested Materials:
ABS – Recommended
PETG – Recommended
ASA – Recommended (best for outdoor use)
PLA – Works, but not recommended for outdoor use due to heat sensitivity.
