Technical Drawing Toolkit

This kit contains all the essential tools for technical drawing, of course except pencil, eraser and compass.

The kit contains a total of 12 tools:
- set of 3 triangles with 45 degrees (large, medium and small)
- set of three triangles with angles of 30 and 60 degrees (large, medium and small)
- ruler (255 mm)
- circolograph (mask for circumferences)
- burmester set (3 curved rulers, for ellipses, parabolas and hyperbolas)
- protractor (deg)

Metric units are used (imperial units suck).

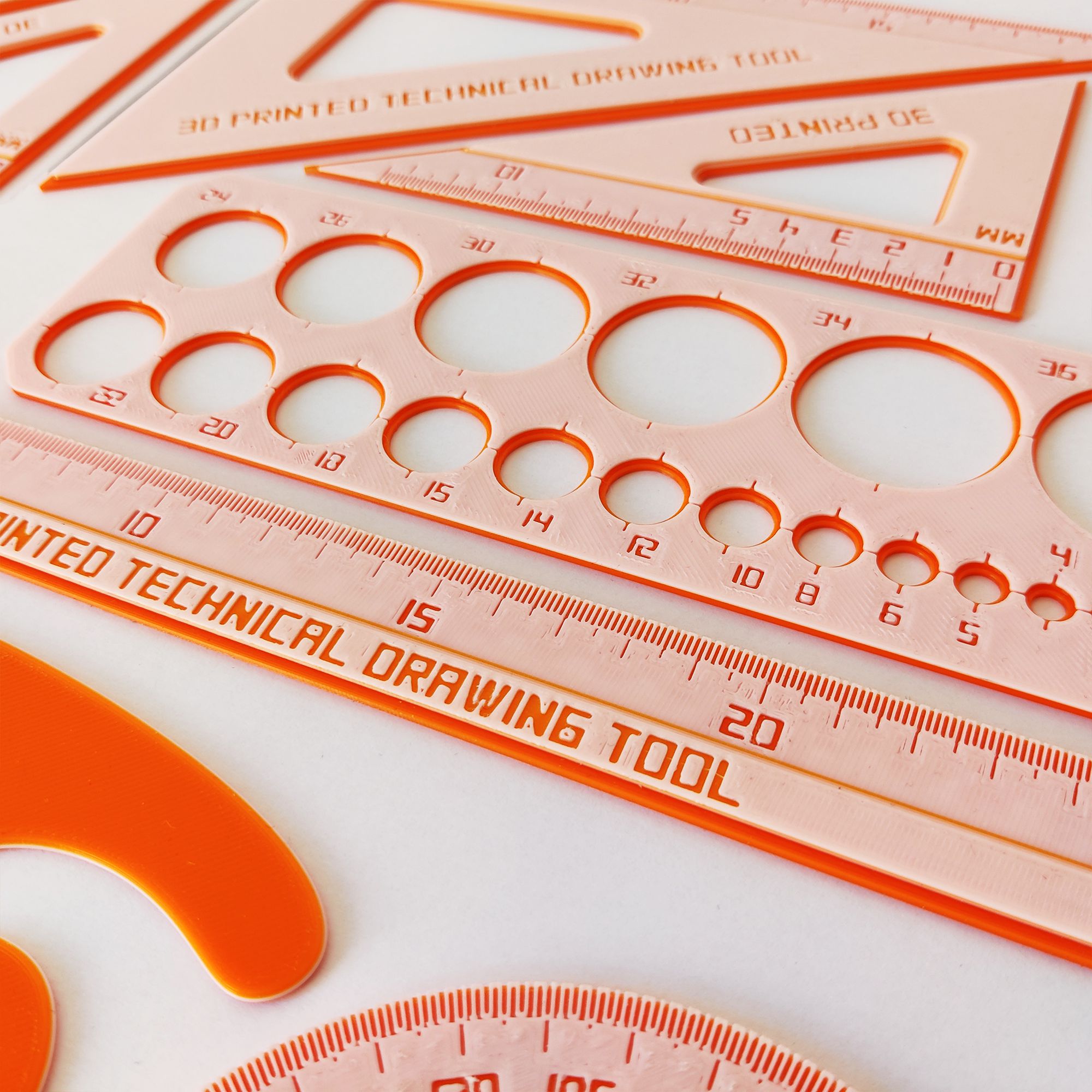

All models can be safely printed on a minimum square bed of 210x210 mm. As you can see in the photos, it is possible to take advantage of a filament change to highlight the characters and measurement notches.

If you have a new or decently calibrated printer you can get excellent results, with tools very similar to those available on the market, at a much lower cost and a customizable appearance.

I hope you like this project

For other measuring instruments you can see my "Ultimate Mechanical Caliper" available at the following link.

For other interesting projects you can visit my Creations Page.

Layer: 0.2 mm or less.
To have accurate prints it is advisable to minimize the "minimum retraction distance" on your slicer.
No supports are needed.
