T-Bar for Mitutoyo - Caliper Depth Base 6".

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 883 views
  • 2 likes
  • 1 download

3D model description

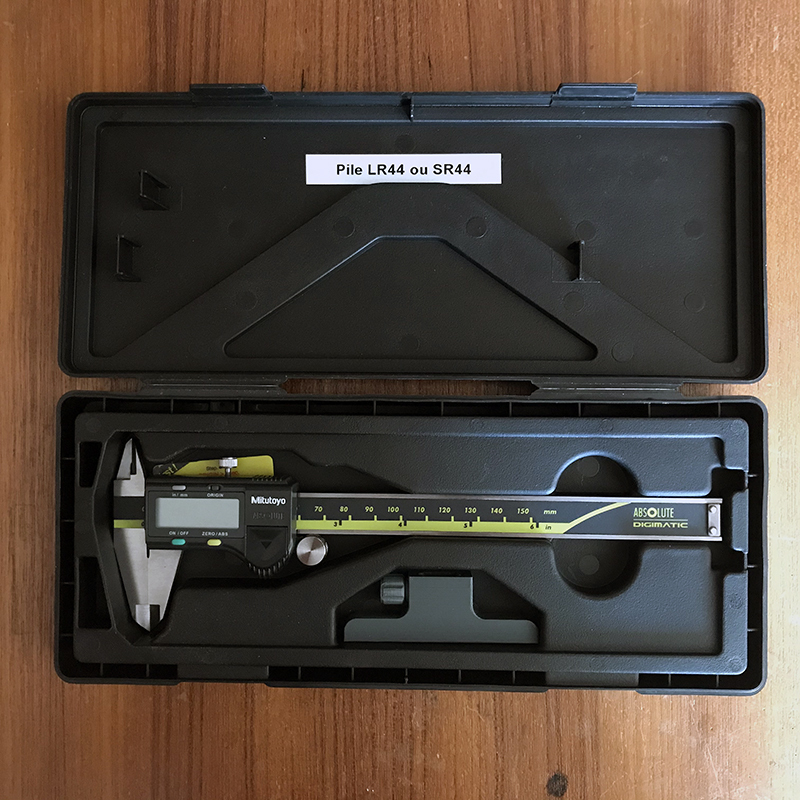

Depth base for 6" Mitutoyo caliper.

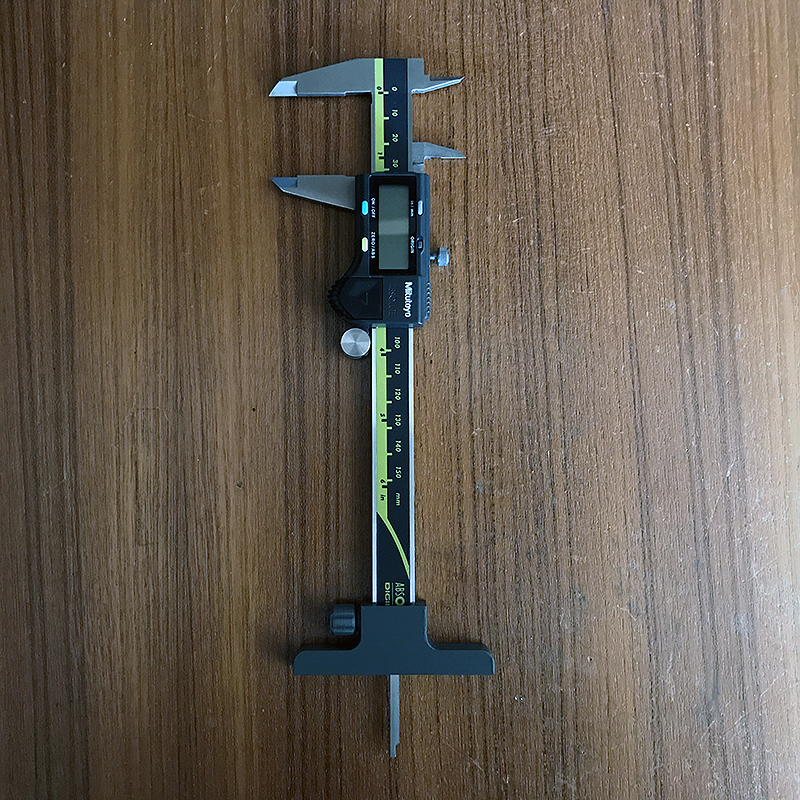

Designed to measure the depth of holes with a wider and more stable base than the caliper alone.

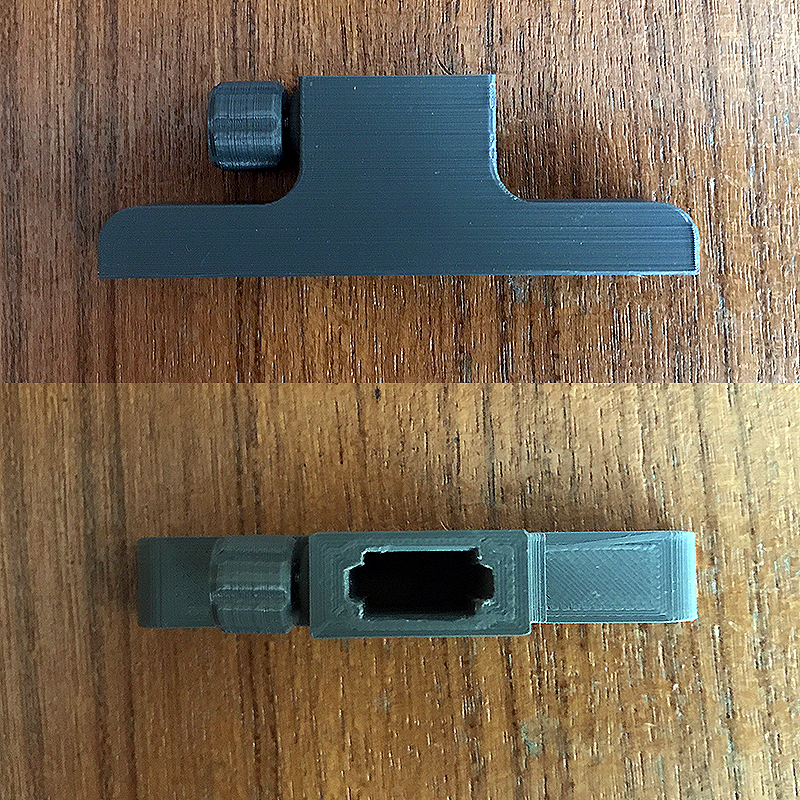

The part has been designed with a tight enough fit so that there is no play and a screw holds the caliper in the T-base.

Supplies:

  • 1 Screw M3 x 16mm

  • 1 Nylstop M3 Nut (You can replace it with an M3)

  • 1 Nut M3

3D printing settings

PLA Filament Fillamentum Extrafill

Resolution 0.15 mm

Infill 80

Supports: No

  • 3D file format: STL
  • Last update: 2020/06/27 at 18:26
  • Publication date: 2020/05/31 at 10:09
