Support Foot for Makita Router (or others)

Download free 3D printer designs Support Foot for Makita Router (or others), MrFuzzyFDownload free 3D printer designs Support Foot for Makita Router (or others), MrFuzzyFDownload free 3D printer designs Support Foot for Makita Router (or others), MrFuzzyFDownload free 3D printer designs Support Foot for Makita Router (or others), MrFuzzyF

Did you 3D print this model?

3D model description

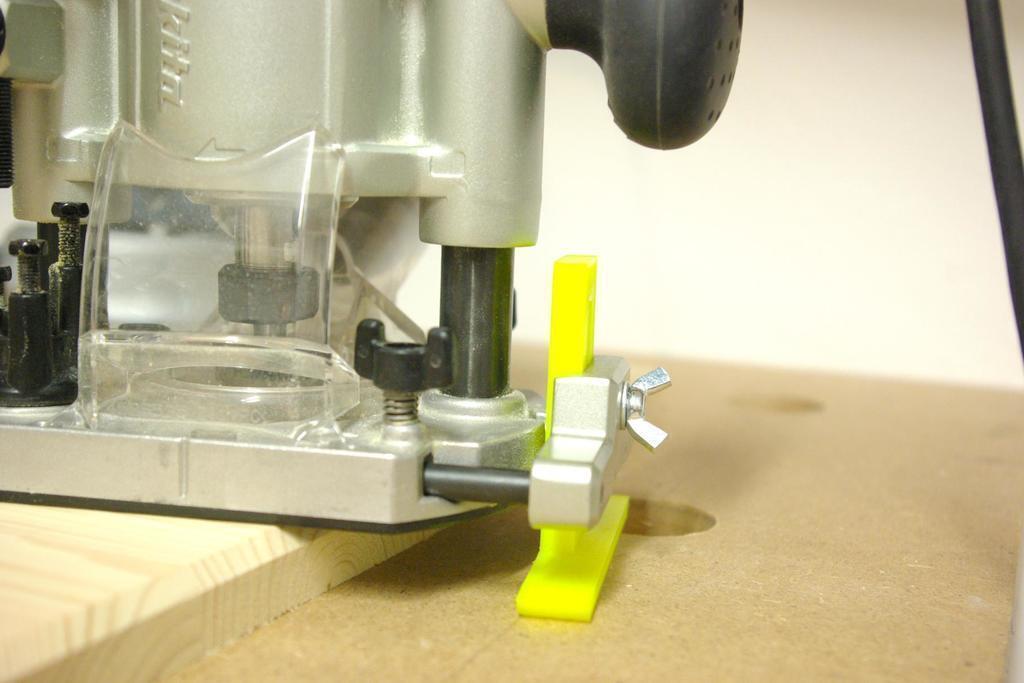

A support foot for routers. Can be used for adjusting a height difference when routing by hand. Avoid tipping the router.
- For Makita Router RT0700 plunge base: The foot fits directly into the guide holder.

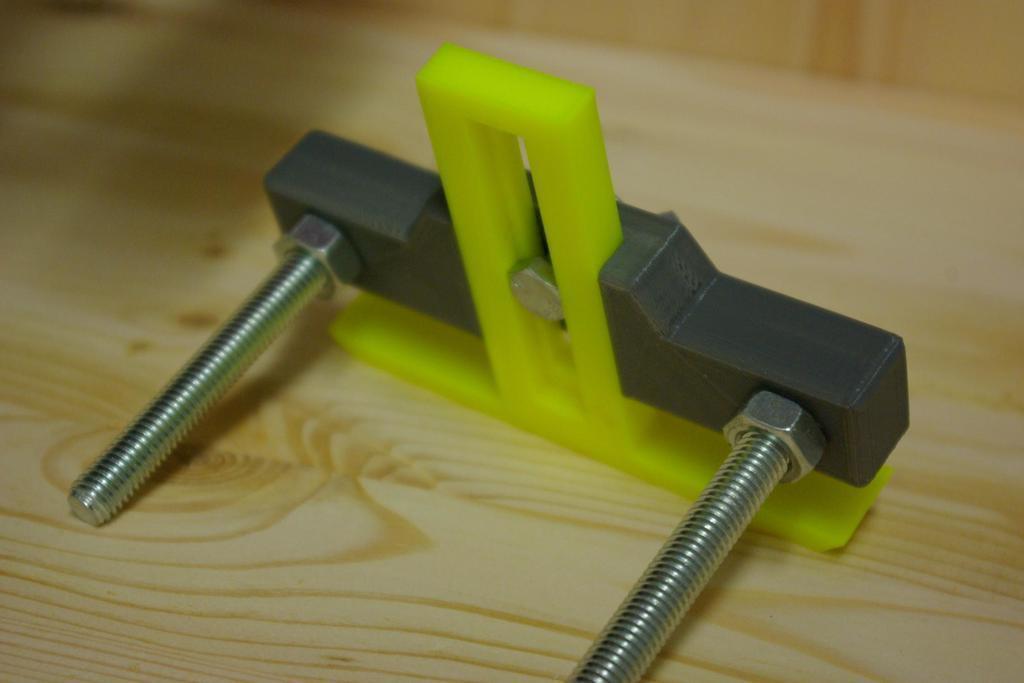

- For other routers/brands: Use the holder/adapter https://cults3d.com/en/3d-model/tool/holder-for-router-support-foot

Use an M6 hex screw or a lock screw together with a wing nut to attach it to the guide holder.

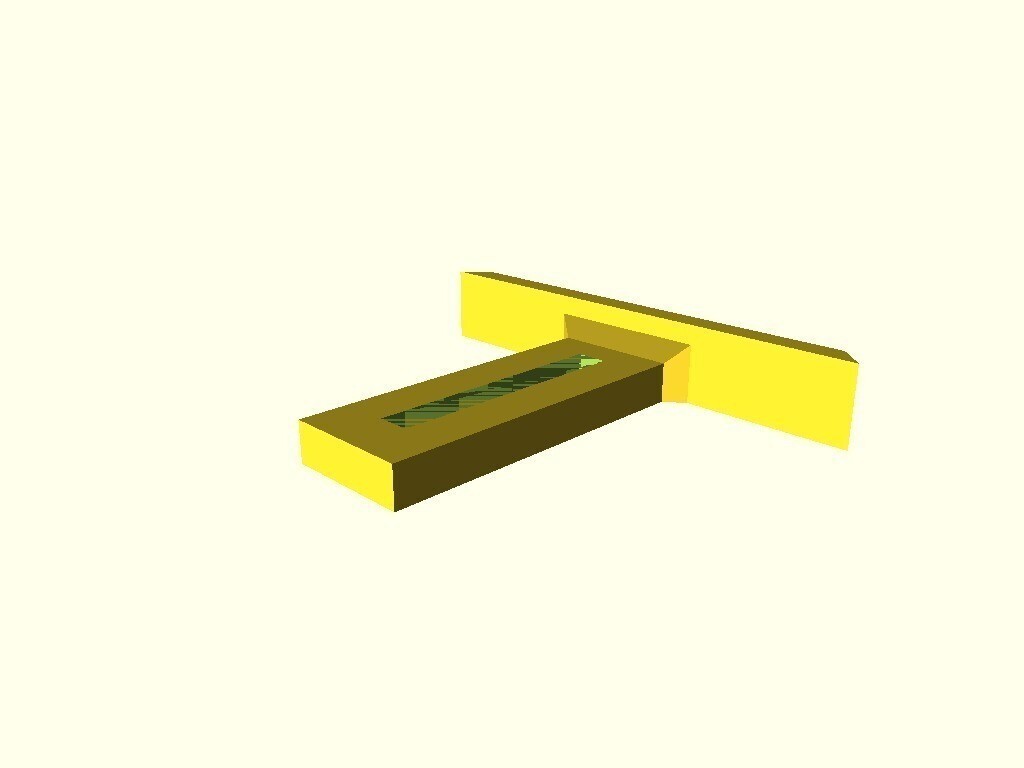

In customizer: Set head diameter parameter to 10mm for standard metric hex screw or 12mm when using the black lock screw shipped with the Makita router.

My printer (i3 Mega) consistently prints cut-outs 0.4mm too small. Hence I added a 0.4 offset to head and screw diameter to compensate for this. Adjust this offset according to the cut-out precision of your printer

Changes:
- made head diameter directly configurable, in order to allow using hex and lock screws
- added a base to the foot

  • 3D model format: STL

Tags

Creator

License

CC BY NC
