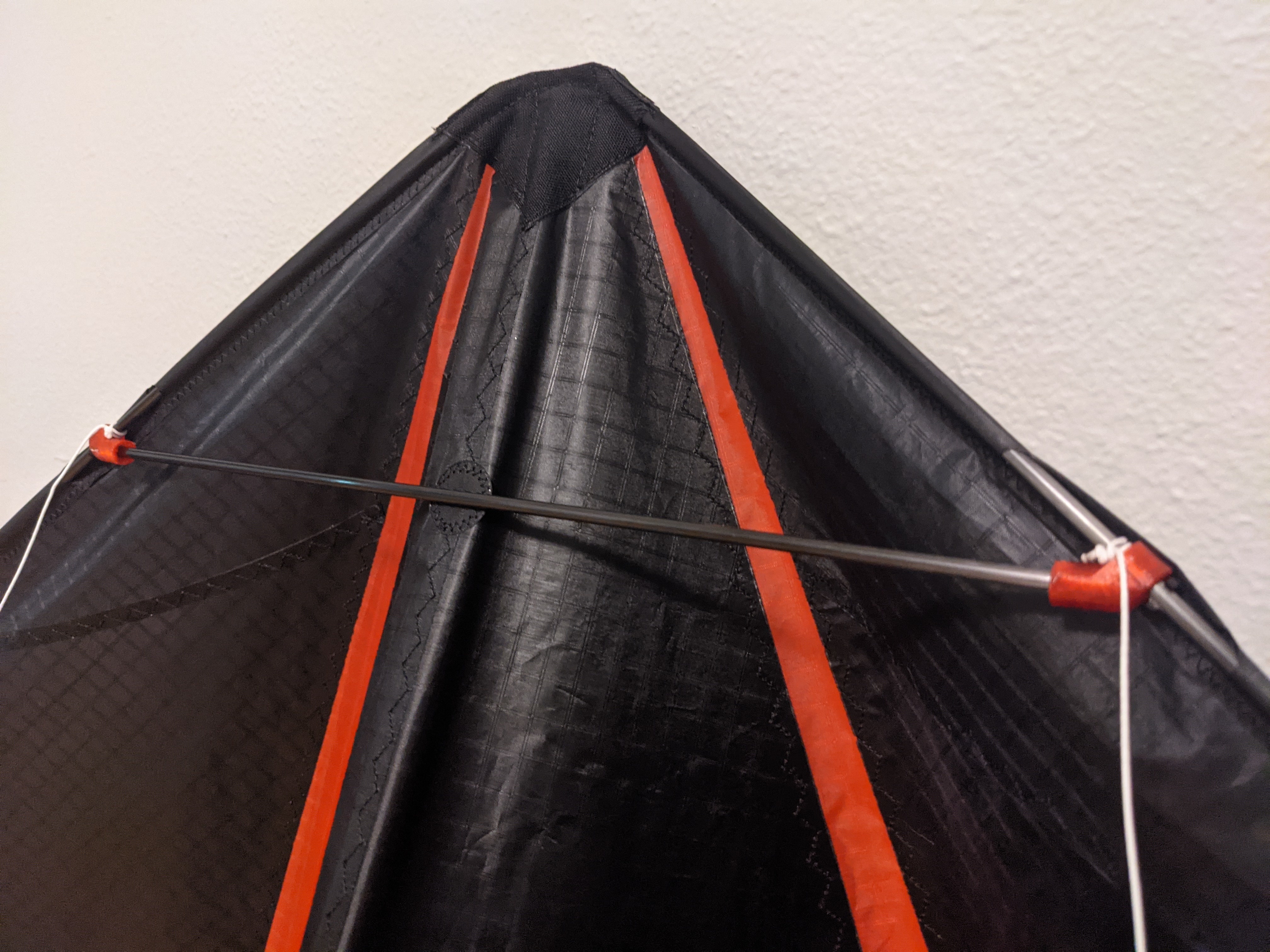

Fittings for dual line sport kites that connect the leading edge to a lower or upper spreader.

Files:
Spreader LE Connector v6.f3d
A Fusion360 file for remixing

4mm x 4mm.stl
Both holes have a 4mm internal dimeter.

7.6mm x 5.6mm
Has a 7.6mm hole for the leading edge, and a 5.6mm hole for the spreader.

7.6mm x 6.6mm
Has a 7.6mm hole for the leading edge, and a 6.6mm hole for the spreader.

8.5mm x 6.6mm
Has a 8.5mm hole for the leading edge, and a 6.6mm hole for the spreader.

3D printing settings

I print these using Sainsmart 95A TPU and no supports. I recommend using 2 layers on the wall and 50% infill so that they are a little bit softer.

Categories

All categories › Tool
