spool holder high version v2

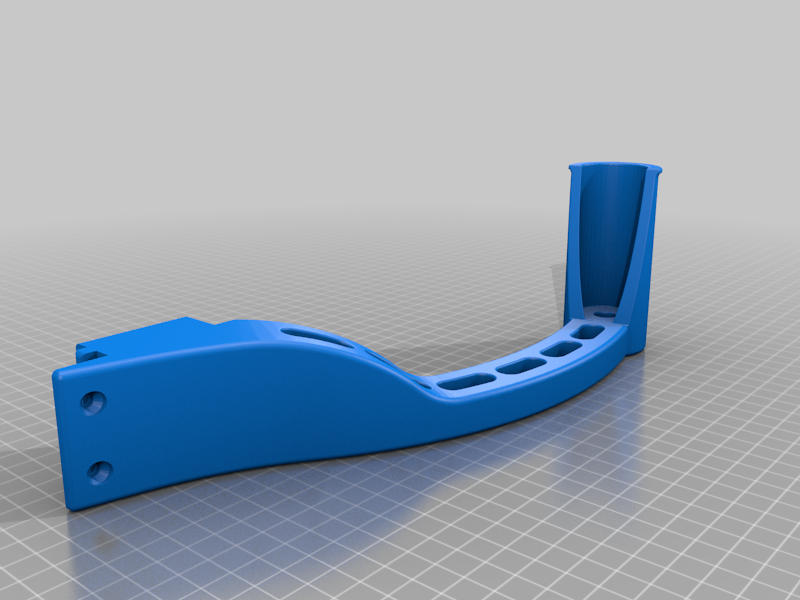

porta_bobina.png spool holder high version v2
porta_bobina.stl spool holder high version v2
porta_bobina.png spool holder high version v2
porta_bobina.stl spool holder high version v2
Advertising
Download Open priced
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
1 file Close
  • porta_bobina.stl 280.498658 Γ— 91.468406 Γ— 88.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1630881
Design author zero88cool
zero88cool

zero88cool

Issue with this design? Report a problem.

3D printer file info

3D model description

TA: porta bobina da fissare sulla barra 2020 di alluminio per la tronxy X5sa. nel disegno Γ¨ previsto uno spazio dove puo appoggiare la cinghia porta cavi della Tronxy X5sa. rispetto alla versione precedente (https://www.thingiverse.com/thing:4753617) ho migliorato

aggiunto il fissaggio con 2 viti M4 svasate da 10mm con rispettivi t-nut nel frame 2020
alzato di poco il il braccio del porta bobina
ristretto il semicerchio di appoggio della bobina per bobine piu piccole
arretrato l 'appoggio della bobina
centrato meglio i fori sul braccio
creato un appoggio piu grande da inserire nella barra 2020 nella parte alta
inspessito il braccio
abbassato di 0.5mm lo scalino per la cinghia porta cavi

ENG: reel holder to be fixed on the 2020 aluminum bar for the X5sa tronxy. in the drawing there is a space where the cable carrying strap of the Tronxy X5sa can be placed. compared to the previous version (https://www.thingiverse.com/thing:4753617) I have improved

added the fixing with 2 M4 10mm countersunk screws with respective t-nut in the 2020 frame
slightly raised the arm of the reel holder
narrowed the reel support semicircle for smaller spools
the reel support is set back
better centered the holes on the arm
created a larger support to be inserted in the 2020 bar at the top
thickened arm
lowered by 0.5mm the step for the cable carrying strap
