RC drop 270mm

b4e8c1d5c26f8fa42d7a664325d42ac5.png RC drop 270mm
5b06d1b8fd2bd0f744e68e141b26904e.png RC drop 270mm
fd1728f8320f457cffdedcf227617f39.png RC drop 270mm
3674b89eb54a5d4e8d8ae86d04f5182f.png RC drop 270mm
rc_drop_2.stl RC drop 270mm
RC_Drop_2_doors.stl RC drop 270mm
RC_Drop_2_hinges_and_servo_plate.stl RC drop 270mm
RC_drop_2_main_chamber.stl RC drop 270mm
b4e8c1d5c26f8fa42d7a664325d42ac5.png RC drop 270mm
5b06d1b8fd2bd0f744e68e141b26904e.png RC drop 270mm
fd1728f8320f457cffdedcf227617f39.png RC drop 270mm
3674b89eb54a5d4e8d8ae86d04f5182f.png RC drop 270mm
rc_drop_2.stl RC drop 270mm
RC_Drop_2_doors.stl RC drop 270mm
RC_Drop_2_hinges_and_servo_plate.stl RC drop 270mm
RC_drop_2_main_chamber.stl RC drop 270mm
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
4 files (STL) Close
  • RC_Drop_2_doors.stl 269.573913 ร— 77.999399 ร— 13.997 mm
  • RC_Drop_2_hinges_and_servo_plate.stl 99.493999 ร— 34.700001 ร— 6.0 mm
  • RC_drop_2_main_chamber.stl 270.0 ร— 75.0 ร— 36.0 mm
  • rc_drop_2.stl 270.0 ร— 216.700195 ร— 36.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 520664
Design author skrag
skrag

skrag

Issue with this design? Report a problem.

3D printer file info

3D model description

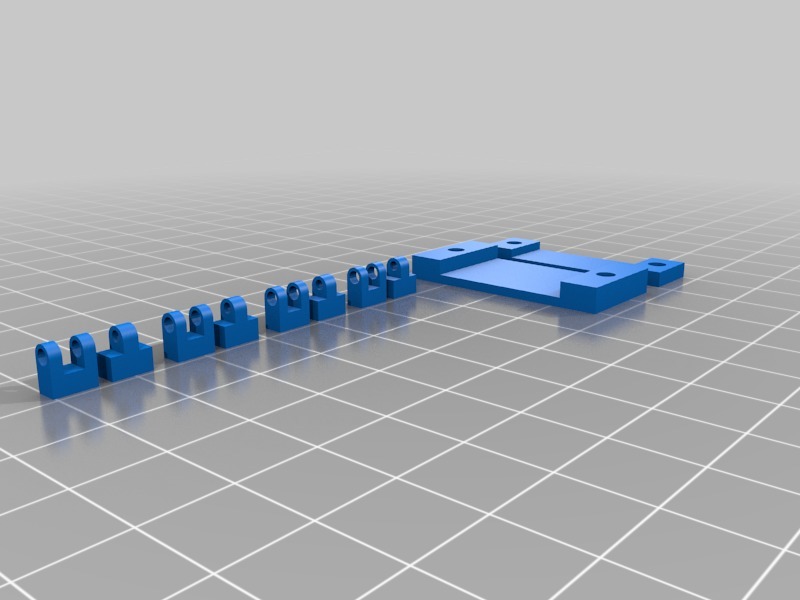

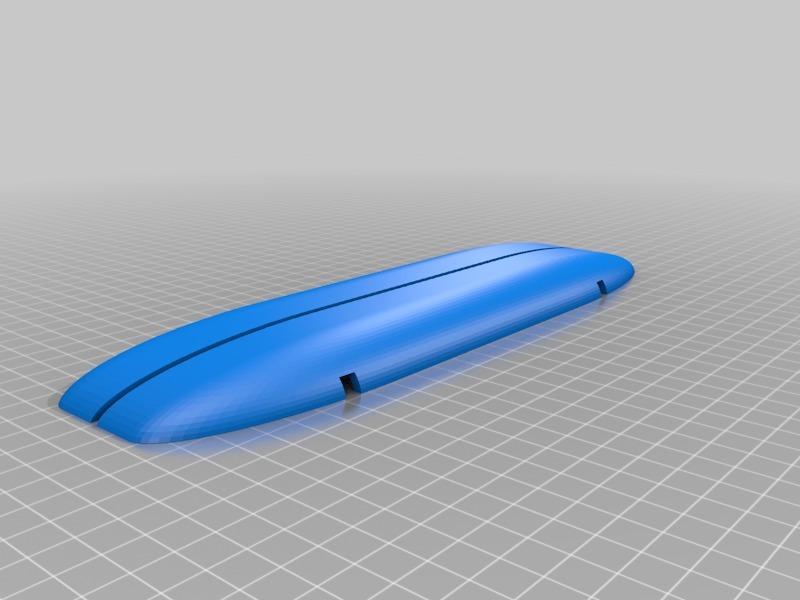

This RC candy drop is intended to be used with Tower Pro MG 90 servos and the chamber is designed accordingly. If you can size servos close to these that should make installation easier. If you prefer a shorter version there is a 230mm version here (https://www.thingiverse.com/thing:3370694). The flat clips are to hold down the servos in the tray. The small hinges can be assembled by sliding some PLA into the holes for a rod pin, then just glue the hinges in place when lining the doors up with the main chamber. Just use standard push rod pieces to construct the mechanism from the control horn of the servo to the flap on the door.

For full size printing, this was designed to be printed on a 300mm x 300mm printer, but you can simply scale it to fit yours. However note that scaling will cause the servo chamber area to change and could result in needing to redo that to fit your chosen servo.

This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/k5XMjaWARlE

3D printing settings

-

Categories

All categories โ€บ Tool โ€บ 3D Printing & Accessories
