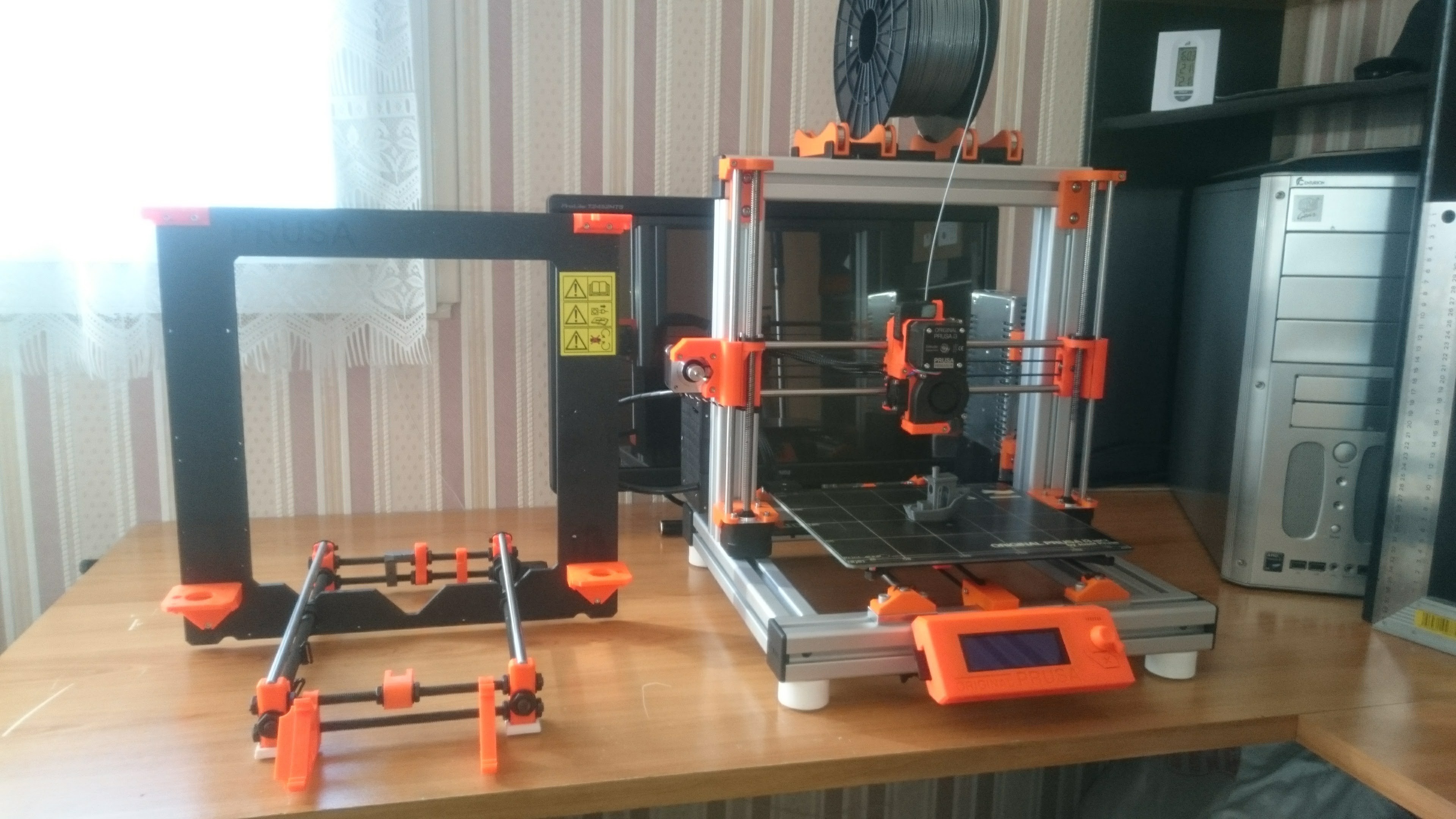

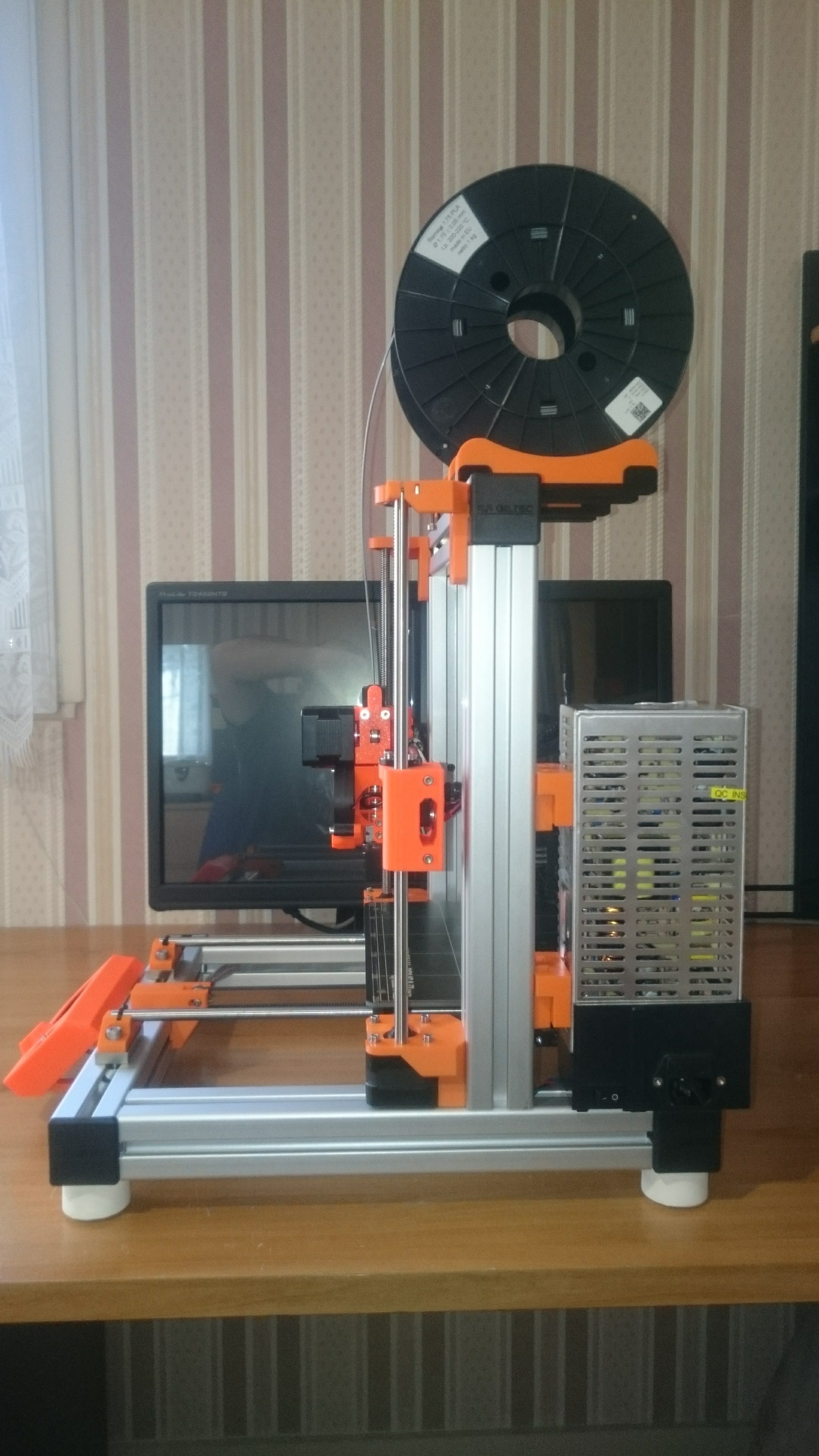

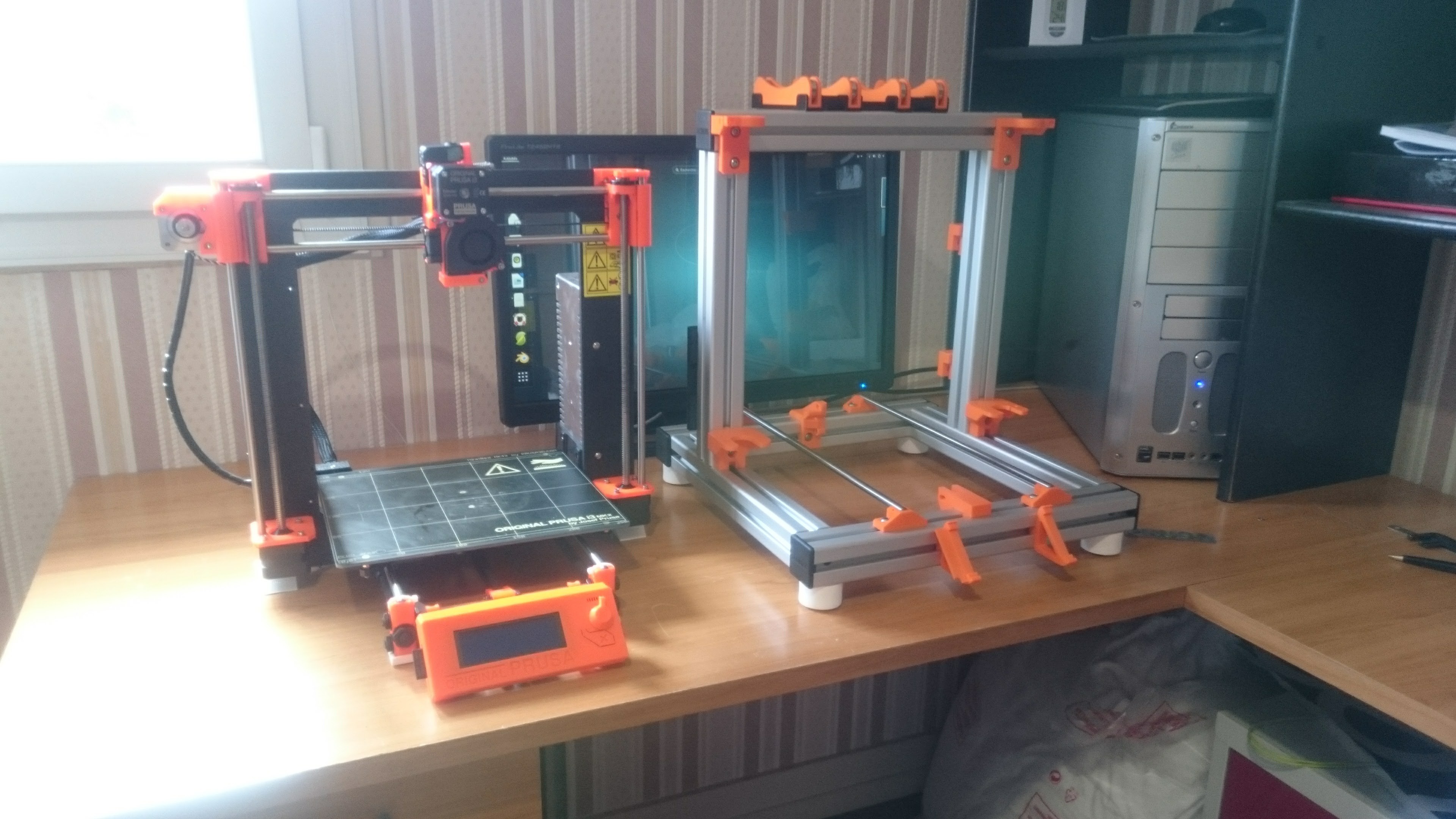

Modified Prusa i3 MK2S

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 9.9k views
  • 36 likes
  • 634 downloads

3D model description

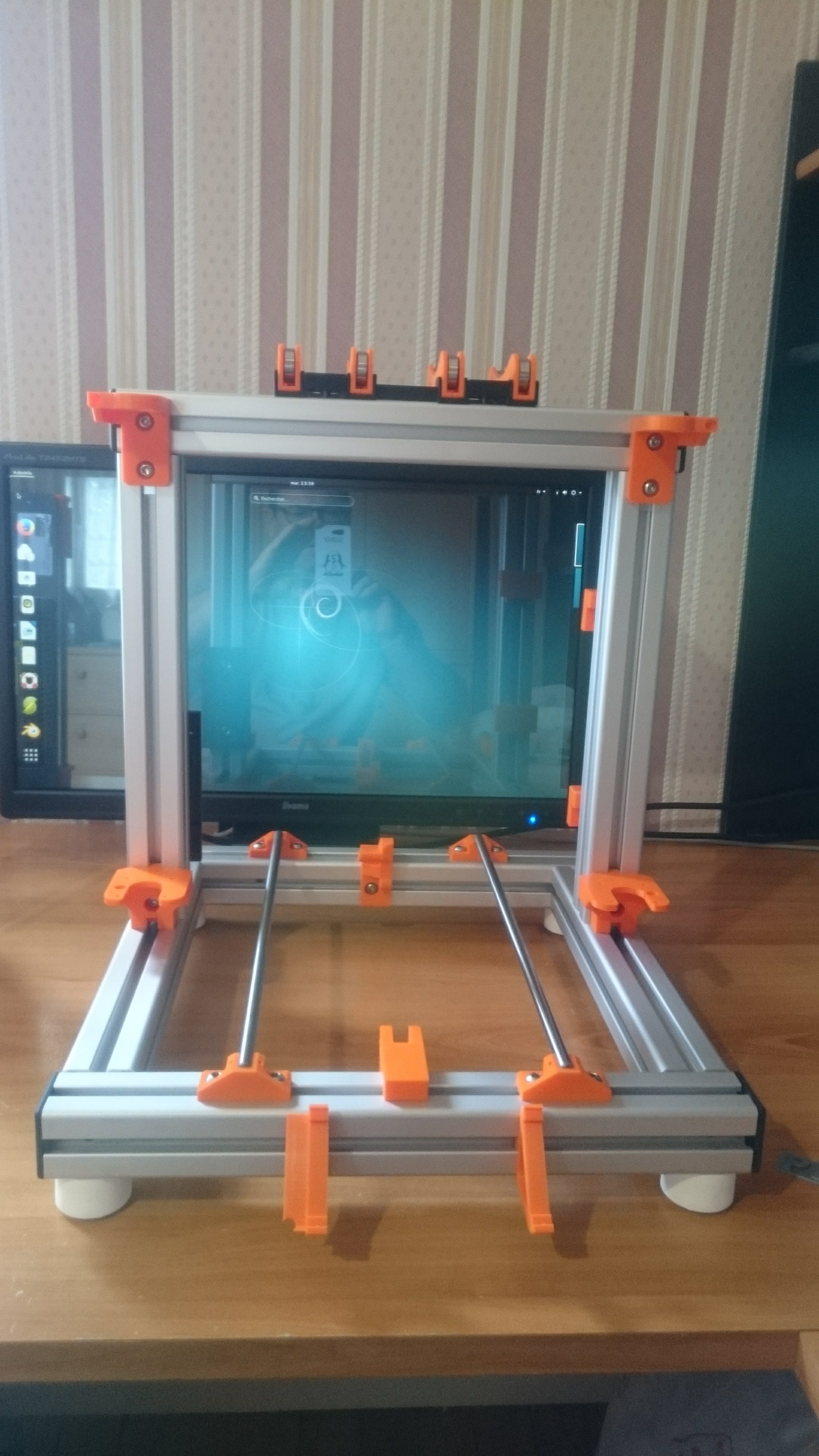

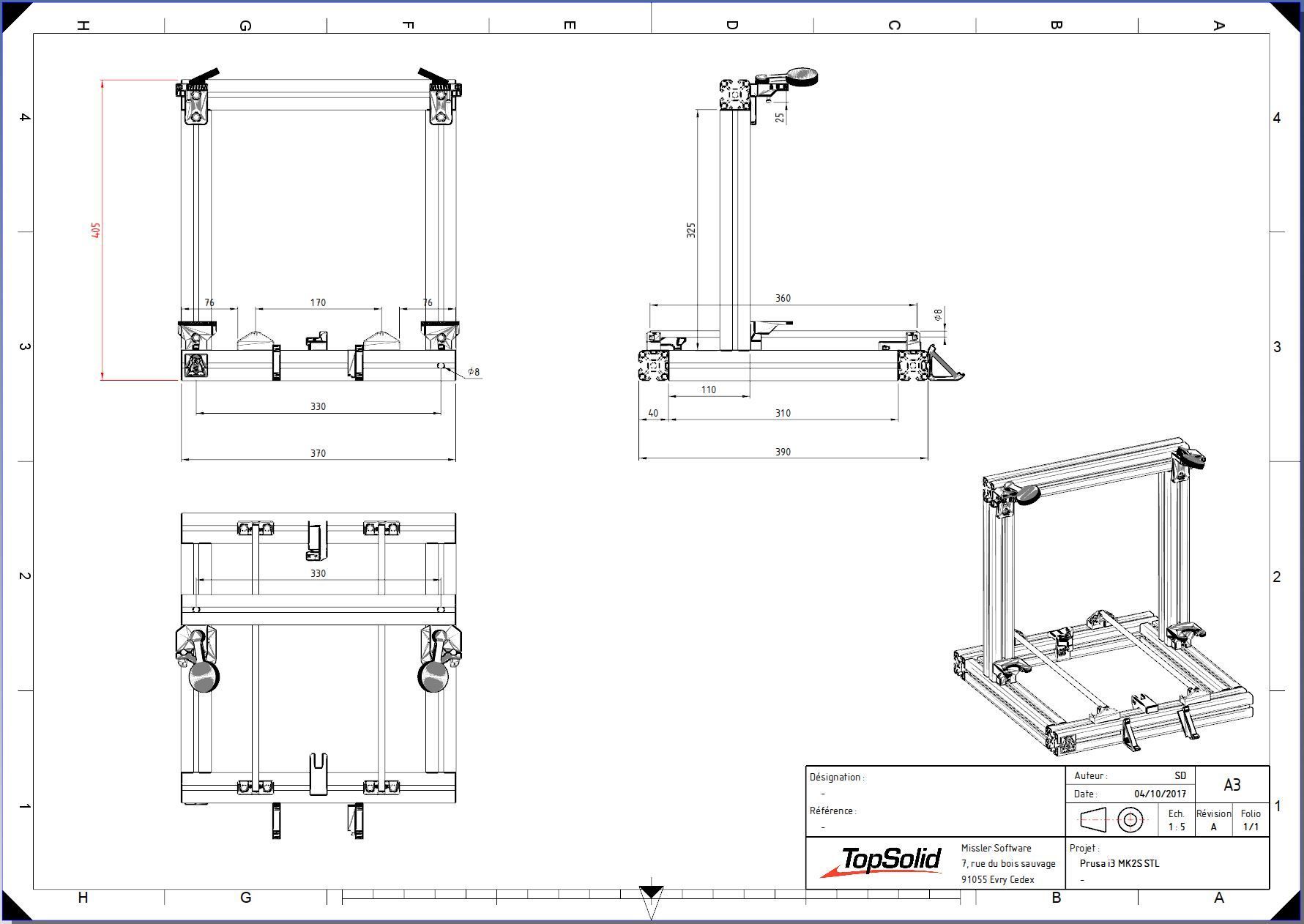

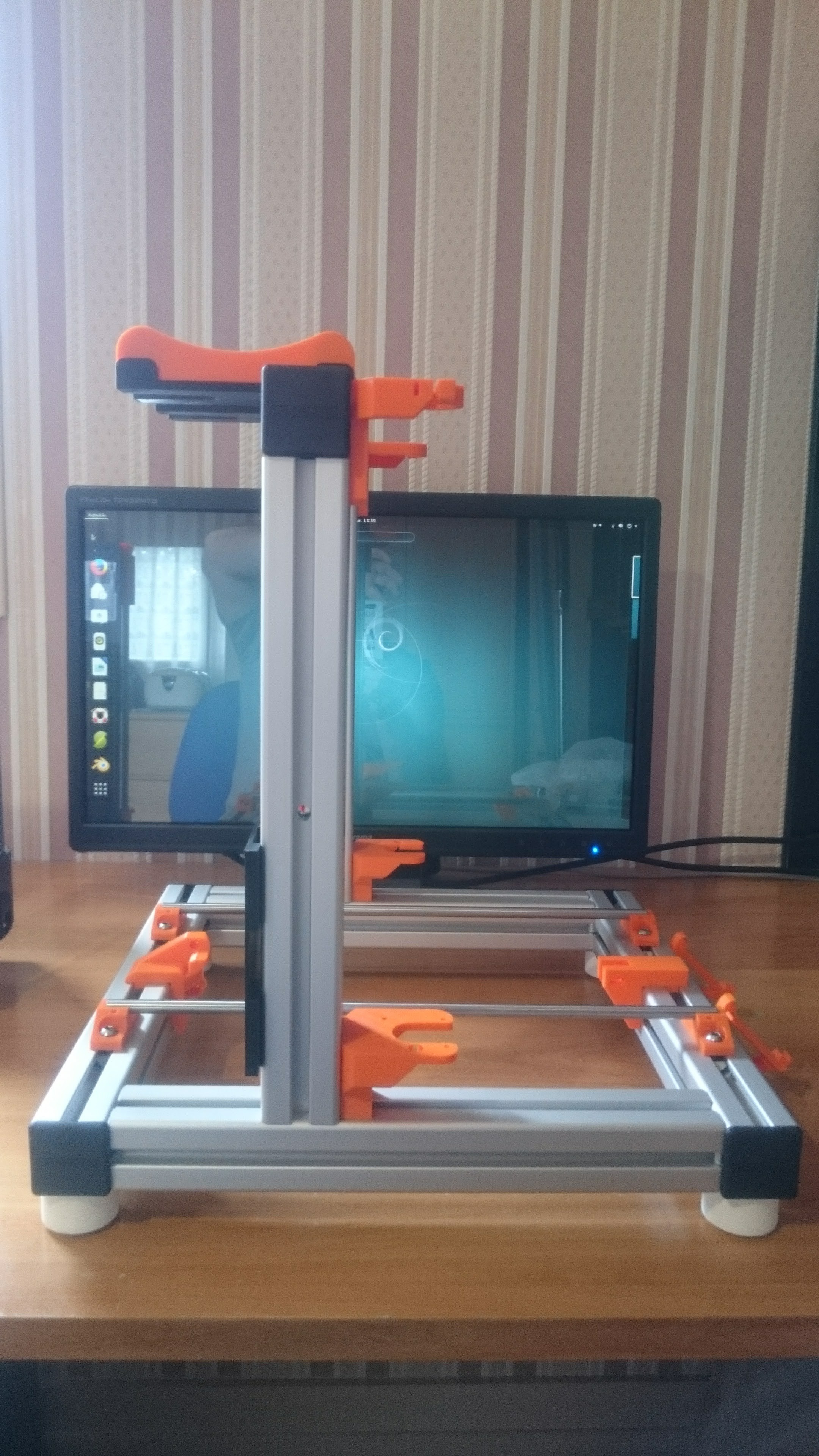

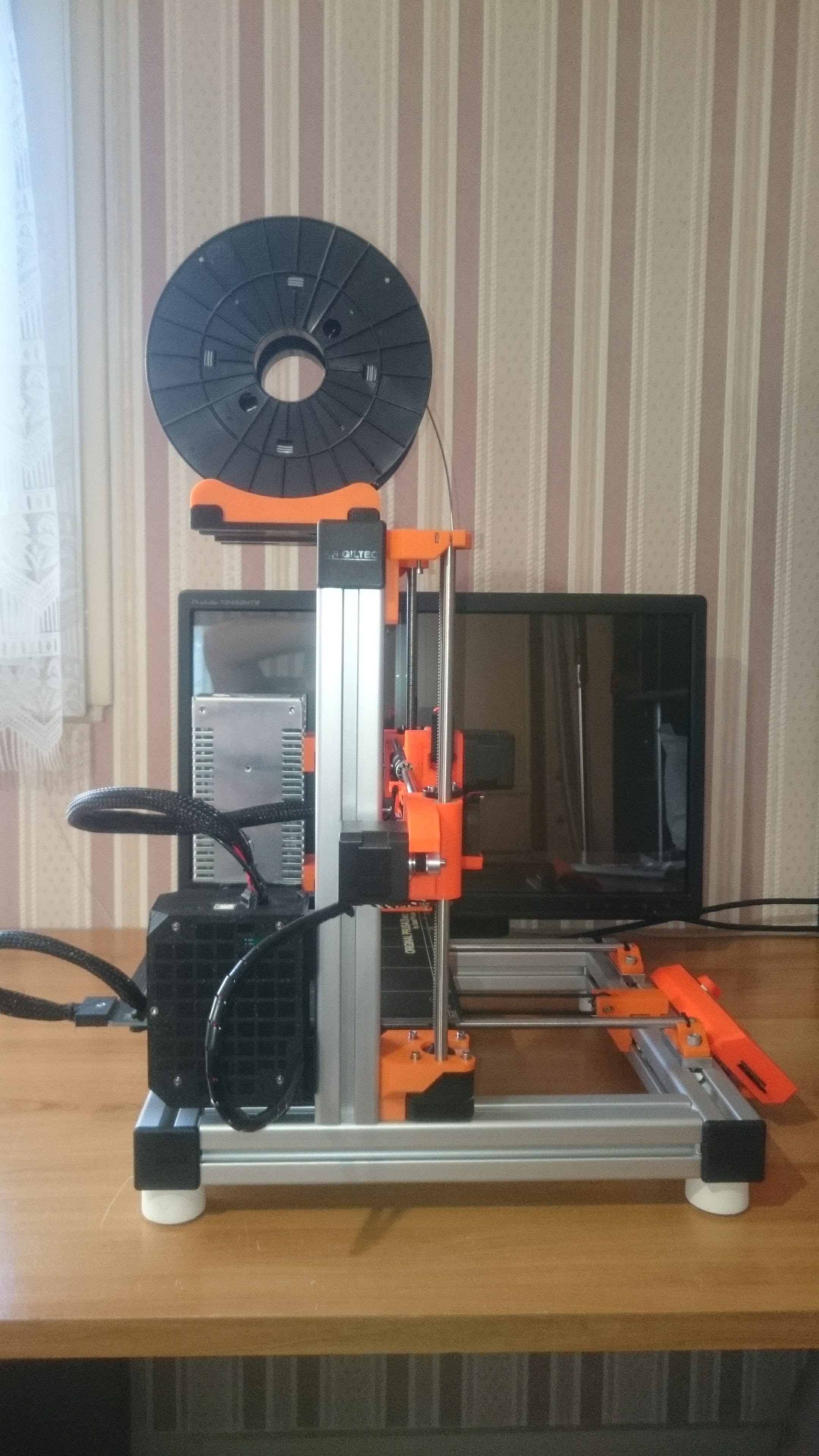

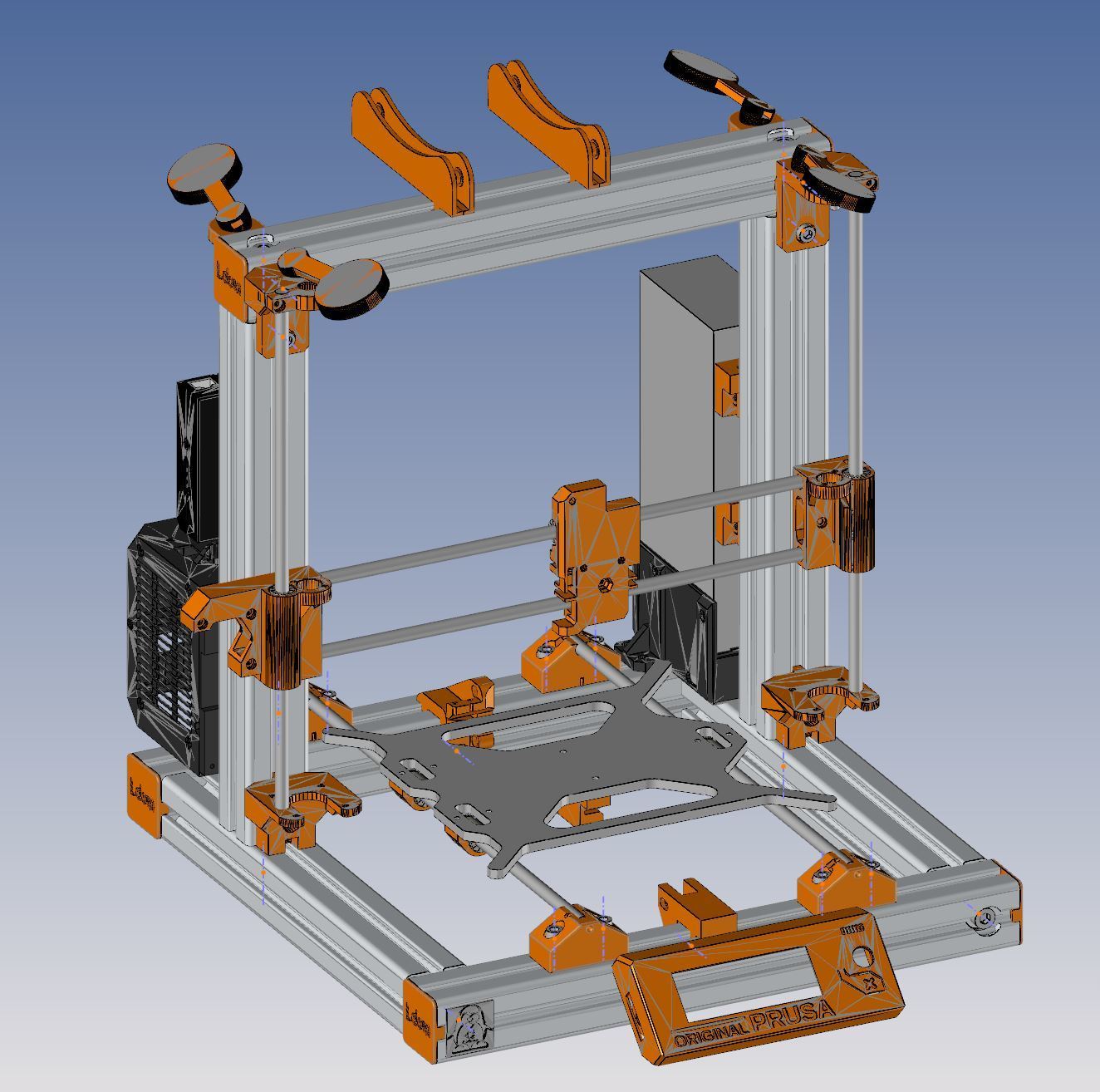

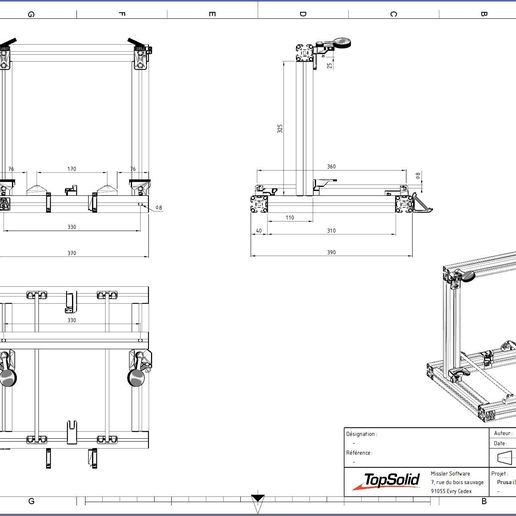

Modification with profile 40mmx40mm from "GILTEC"

Profile:

Qty: 3

370x40x40x40

Qty:2

310x40x40x40

Qty:2

325x40x40x40

Qty:2

Rod Ø8 long 360mm

screws M3 M6 M6 M8

Calibration Z, observe the 25mm dimension with the M3 screws on the upper Z bearings.

Feet: door stop Ø40mm at Leroy Merlin:" https://www.leroymerlin.fr/v3/p/produits/lot-de-2-butees-de-porte-caoutchouc-mat-blanche-diam-4-cm-x-h-2-5-cm-e24461"

IKEA LED lighting:

Reader Service Code: 203.428.56


3D printing settings

ABS or PETG

resolution 0.15mm

infil: 30%.

3D printer file information

  • 3D design format: STL Folder details Close
    • LCD SupportA -40x40.stl
    • LCD_SupportB -40x40.stl
    • Ldom 30x30x1.5.stl
    • Led_holder_Left.stl
    • Led_holder_Right.stl
    • PSU-mount-plug.stl
    • PSU-mount-socket.stl
    • Pince fils.stl
    • Profilé Cache - vierge.stl
    • Profilé Cache.stl
    • Rambo-mount.stl
    • Raspberry Pi 3 couvercle MK2.STL
    • Raspberry_Pi_3 base_MK2s.stl
    • Support Bobine 01.stl
    • Support Bobine 02.stl
    • Support MMU plateau.stl
    • Y Motor Appuis.stl
    • Y Motor Support.stl
    • Y Motor tendeur.stl
    • Y-Palier Axe D V2.stl
    • Y-Palier Axe G V2.stl
    • Y-belt-holder.stl

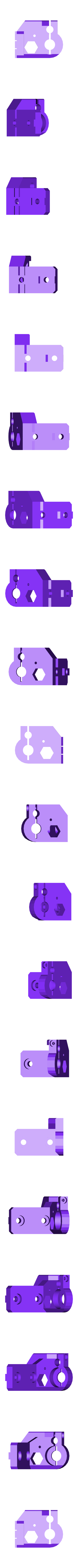

    • Z-Axis-guide_v2 (Miroir).stl

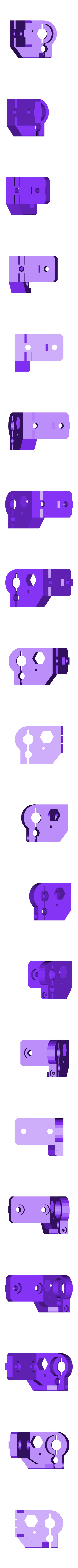

    • Z-Axis-guide_v2.stl
    • Z-Support AR-LED.stl
    • Z-axis-supp moteur (Miroir).stl
    • Z-axis-supp moteur.stl

    Learn more about the formats

  • Last update: 2019/05/04 at 10:10
  • Publication date: 2017/10/04 at 19:45

Tags

Creator

Imprimante 3D: Original PRUSA i3 MK2.5s modifié
Logiciel Dessin: TopSolid 7.14

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Best sellers of the category Tools


Add a comment

5 comments

Buen dia, tenes el modelo para imprimir del gabinete para la pantalla LCD?

Buenas, tenes el modelo del gabinete para la placa arduino mega y la ramps 1.4? y el de la fuente de alimentacion? muchas gracias

Mrkej průšo.. Je to rebel.. z I3 Rebela 2 a přitom vylepšil.. stabilita presnější tisk zadný slajdování nad 60mm-sec. jojo máš se co učit.. (prusa i3 MK1 je šrot i s mym starym reprapem sem mu natrh díru :)

Pas de modification sur les support MMU, j'ai rajouter les fichiers.

do you have the modifications for MMU?
