3D model description

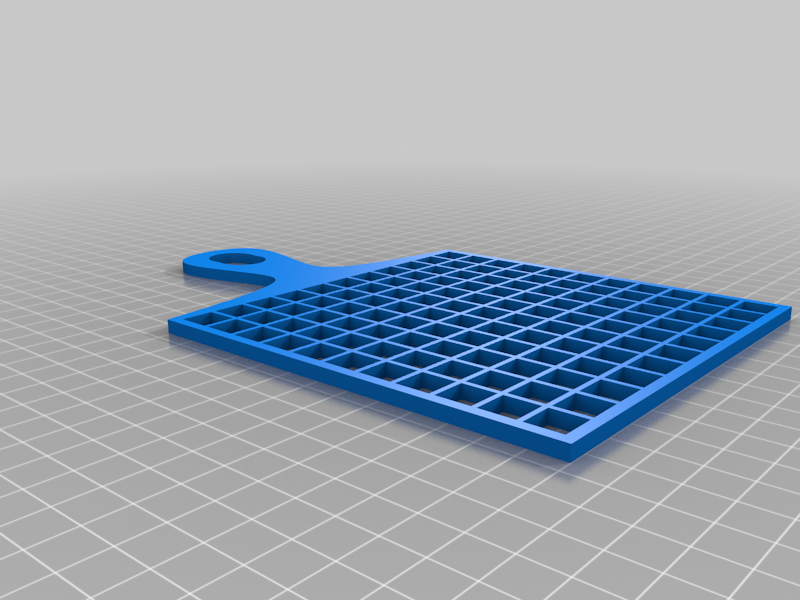

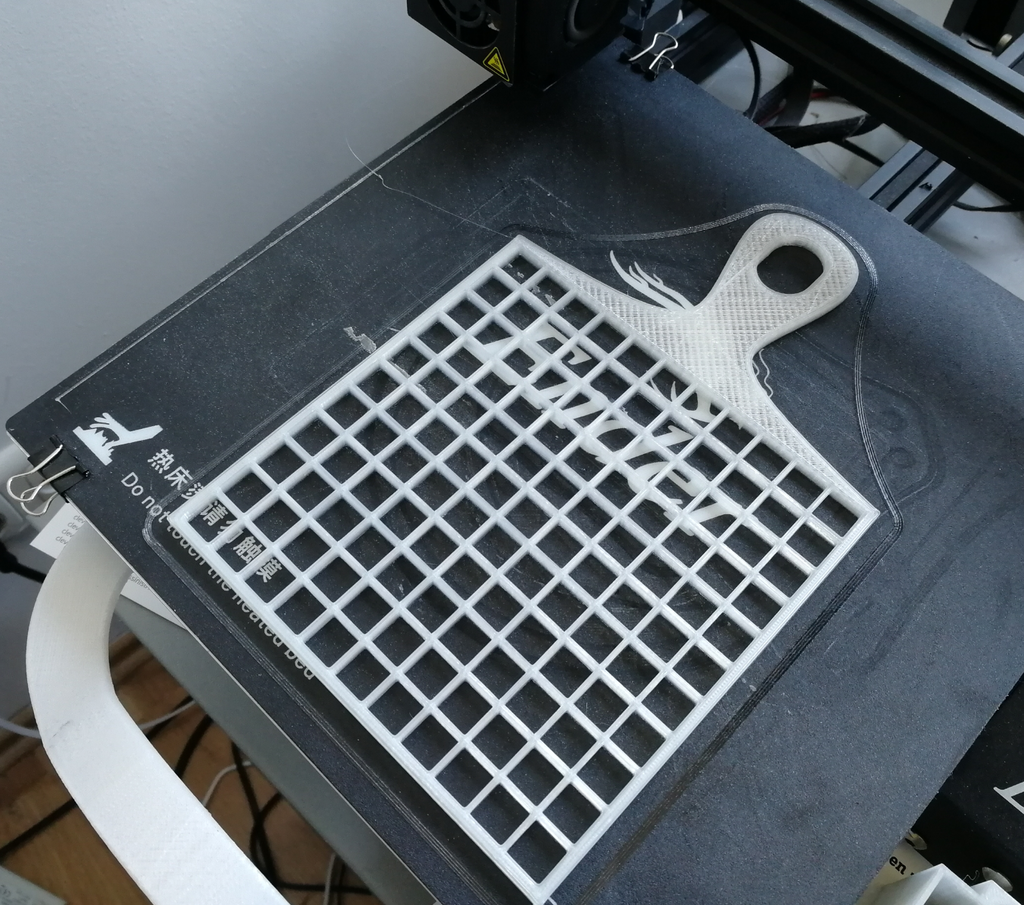

I couldn't find a paint grid, so I made a small one in FreeCAD.

It's made to fit a 1 liter paint bucket and for using a 10 cm roller.

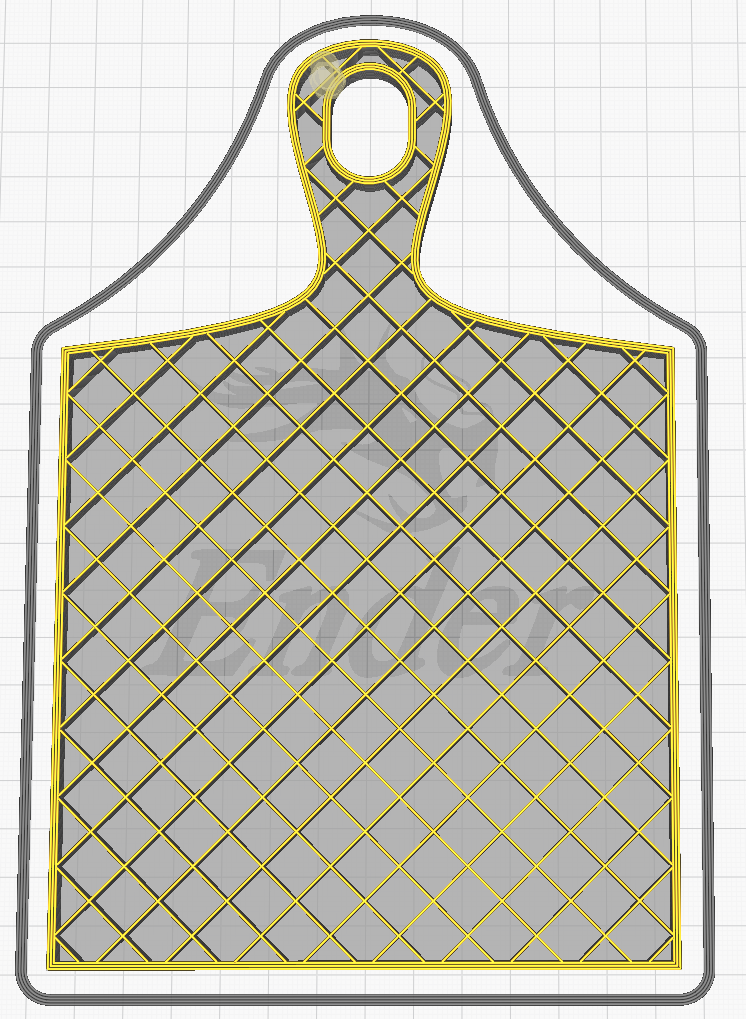

I also uploaded a version "paint_grid_solid" if you want to generate the grid using your slicer. To do this in Cura like in the screenshot, set:
-Bottom Layers: 0
-Top Layers: 0
-Infill Density: 10%
-Infill Pattern: Grid

I think this will only work well, when you either use a large nozzle, or increase the "infill line multiplier" so you get a strong grid.
