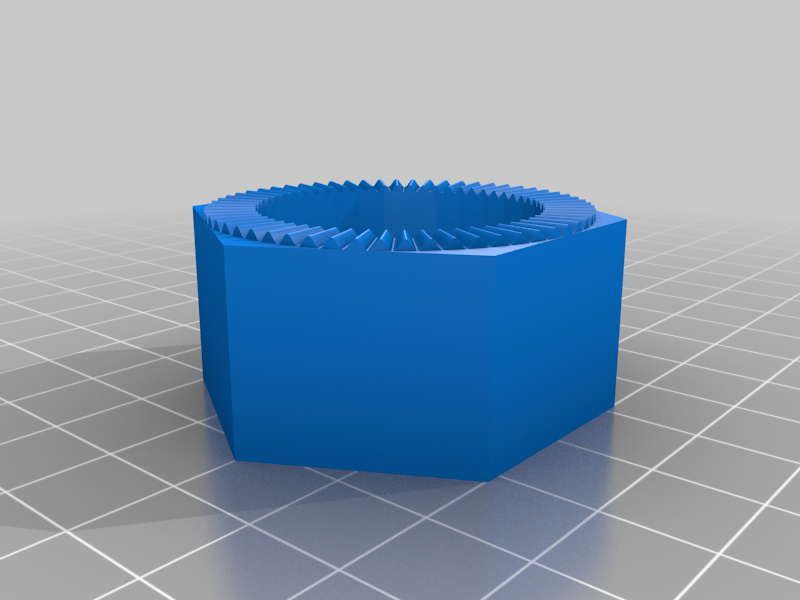

  • Hirth_Tri_60Tx40x20mm.stl 46.188018 × 40.0 × 21.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1428039
Design author davex
davex

davex

Issue with this design? Report a problem.

3D printer file info

3D model description

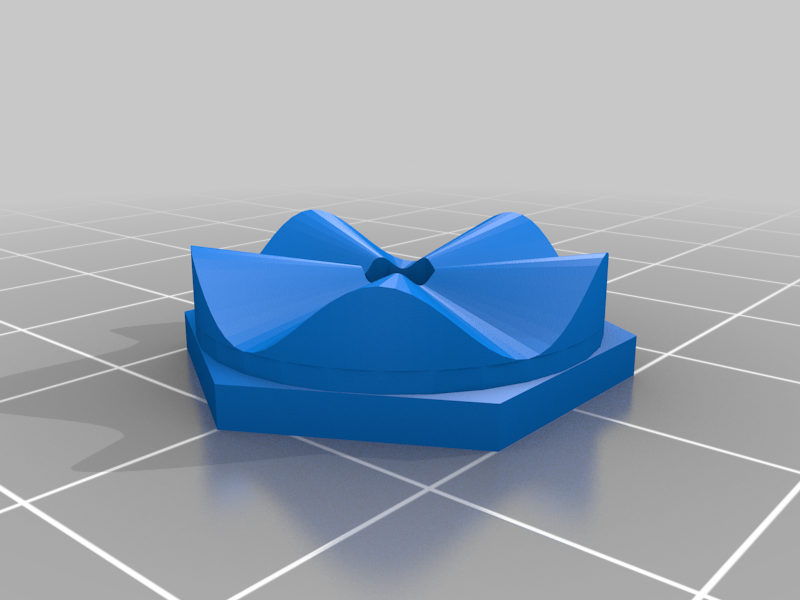

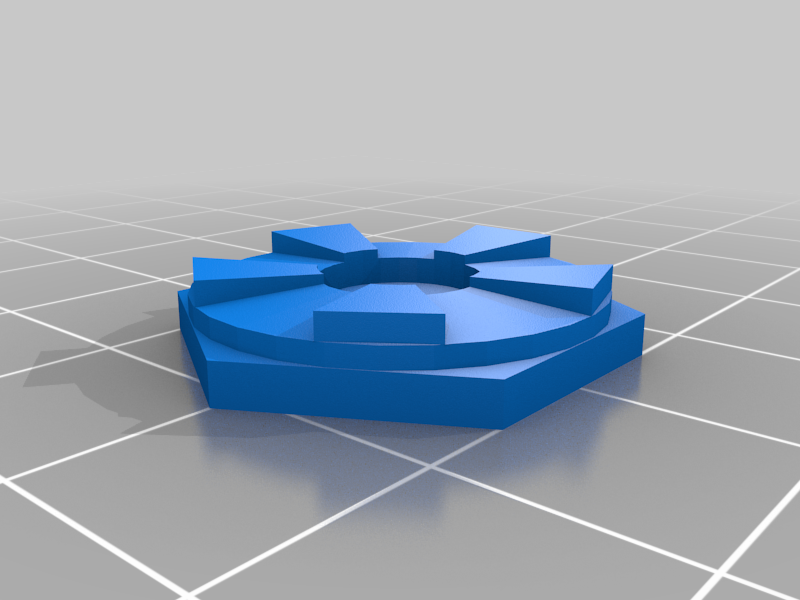

This is a remix which adds a customizable Hirth joint in triangle, rectangular, and square tooth forms.

It does not work within the Thingiverse customizer because of dependencies on librearies unavailable in Thingiverse:

It does work in OpenSCAD.

There are several half-Hirth joints .stls of various numbers of teeth, which could be used as indexers or index plates

  • 5 Teeth - pentagons and 72° indexing, 5 position index plate

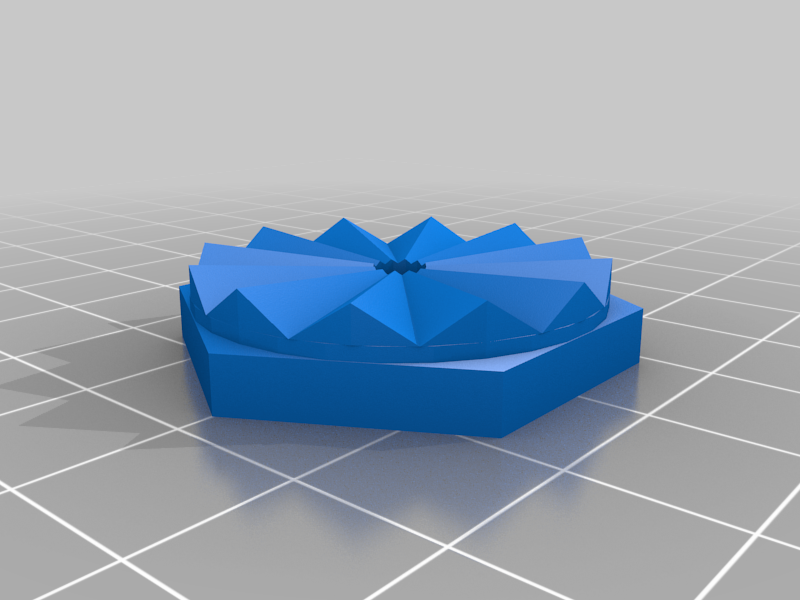

  • 12 teeth - 30° degree indexing, 2, 3, 4, 6, 12 positition index plate

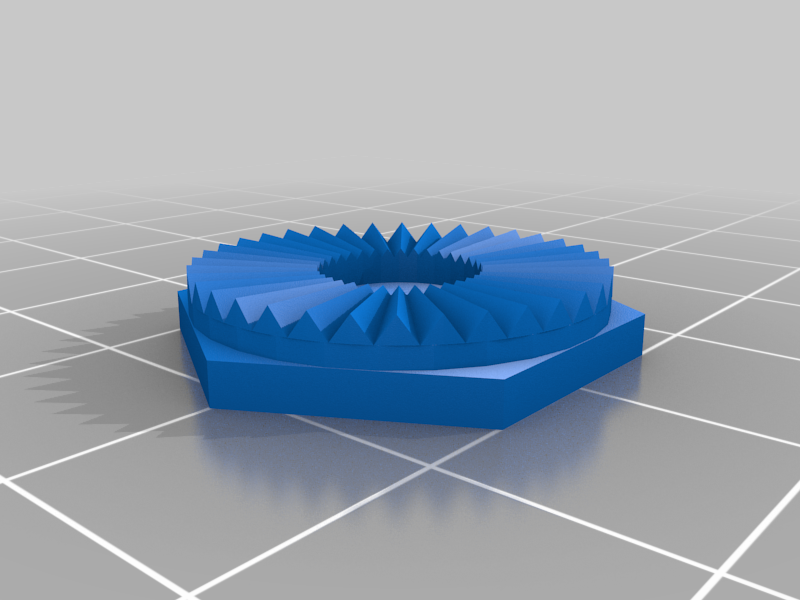

  • 36 Teeth - 10° indexing, 2, 3, 4, 6, 9,12, 18, 36 position index plate

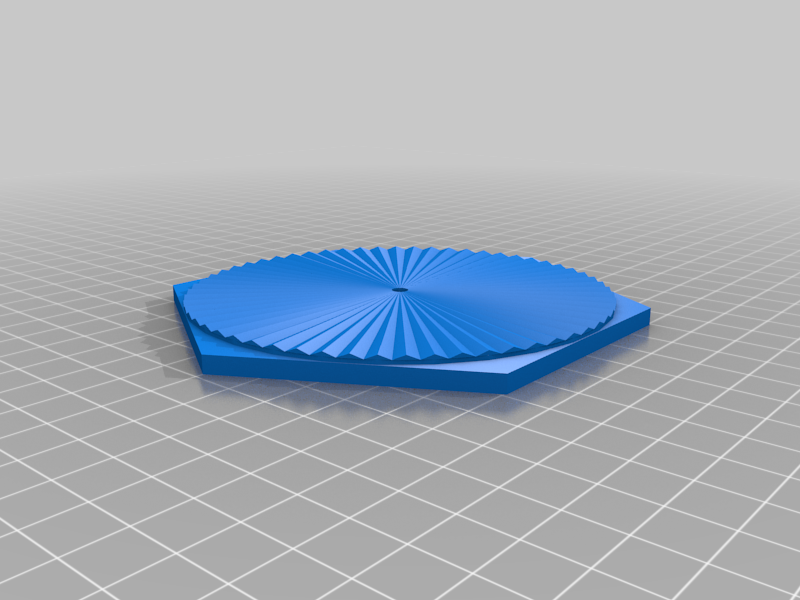

  • 60 Teeth - 6° indexing, 2, 3, 4, 5, 6, 9,12,18, 60 position index plate

With the OpenSCAD customizer, you can choose the number of teeth
