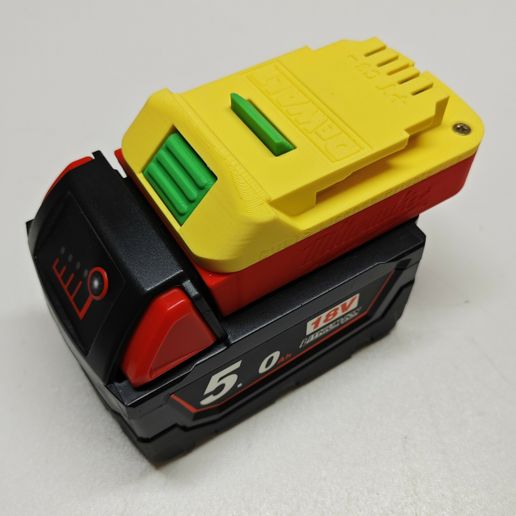

MILWAUKEE M18 on DEWALT Battery adapter

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
12 files (PDF and STL) Close
  • Cable lid.stl 32.599998 × 18.2 × 7.899999999999999 mm
  • Clip.stl 32.0 × 37.49999999999999 × 12.098139 mm
  • DEWALT VERTICAL CLIP.stl
  • DEWALT VERTICAL CLIP_22.stl
  • DEWALT.stl 60.599998 × 103.097785 × 19.477327000000002 mm
  • DEWALT_22.stl 60.599998 × 103.097785 × 19.477327000000002 mm
  • DEWALT_cable_lid.stl 60.599998 × 103.097785 × 19.477327000000002 mm
  • LID M18_22.stl 28.0 × 21.4 × 4.377174 mm
  • Other on Dewalt3.pdf
  • VERTICAL CLIP.stl
  • milwaukee.stl
  • milwaukee_22.stl

Learn more about the formats
Last update
Publication date
Design number 1531983
Design author josephs
josephs

josephs

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

MILWAUKEE M18 to DEWALT XR 18V adapter

The 06/11/2023 I added a DEWALT side for a mounting without glue or soldering.

The 17/02/2025 I added a DEWALT side with a vertical clip for a better hold.

2 different M18 models.

Extension _22 for the second

Supplies

1 spring 9.5 x 16 mm

2 Flat terminal 6.3mm

4 female terminals

4 wood screws 3 X 16 MM

Resistors (see PDF)

Fuse Box Terminal Connector US

Male Terminals 6.3mm US

Terminal femelle bx2091c

Male 6.3 Ali flat terminals

WARNING: Check your wiring before use to avoid damage. Reversed polarity can be fatal.

Lithium ion batteries are delicate and potentially dangerous. Always use the MILWAUKEE charger. Disconnect batteries from the adapter when not in use.

With CULTS license for private use,

you are authorized to manufacture adapters for your own use.

It is not permitted to resell or give away the files and adapters created.

The entire DeWalt collection HERE

3D printing settings

With brackets and 80° cantilever angle

There are very few brackets, and they're easy to remove.
