Miller Mig welder lead holder

c811ad13-e065-4503-83b0-cb87b3ea251f.jpg Miller Mig welder lead holder
56ef3989-d990-4082-b606-4b60283b5982.png Miller Mig welder lead holder
81ff6f02-4fe5-49b9-964f-25ea96aae67b.png Miller Mig welder lead holder
f693941b-83c7-4deb-96f4-1124bf588aee.png Miller Mig welder lead holder
Millermatic250_Gun_holder_Side_Mount.stl Miller Mig welder lead holder
Miller250_Lead_Hanger_Top_and_Bottom.stl Miller Mig welder lead holder
Welding_Bottle_helmet_hanger_v2.stl Miller Mig welder lead holder
c811ad13-e065-4503-83b0-cb87b3ea251f.jpg Miller Mig welder lead holder
56ef3989-d990-4082-b606-4b60283b5982.png Miller Mig welder lead holder
81ff6f02-4fe5-49b9-964f-25ea96aae67b.png Miller Mig welder lead holder
f693941b-83c7-4deb-96f4-1124bf588aee.png Miller Mig welder lead holder
Millermatic250_Gun_holder_Side_Mount.stl Miller Mig welder lead holder
Miller250_Lead_Hanger_Top_and_Bottom.stl Miller Mig welder lead holder
Welding_Bottle_helmet_hanger_v2.stl Miller Mig welder lead holder
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
3 files Close
  • Miller250_Lead_Hanger_Top_and_Bottom.stl 96.153496 × 61.5 × 90.0 mm
  • Millermatic250_Gun_holder_Side_Mount.stl 156.0 × 100.0 × 100.0 mm
  • Welding_Bottle_helmet_hanger_v2.stl 181.98170399999998 × 181.959541 × 40.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 994092
Design author SwainJ
SwainJ

SwainJ

Issue with this design? Report a problem.

3D printer file info

3D model description

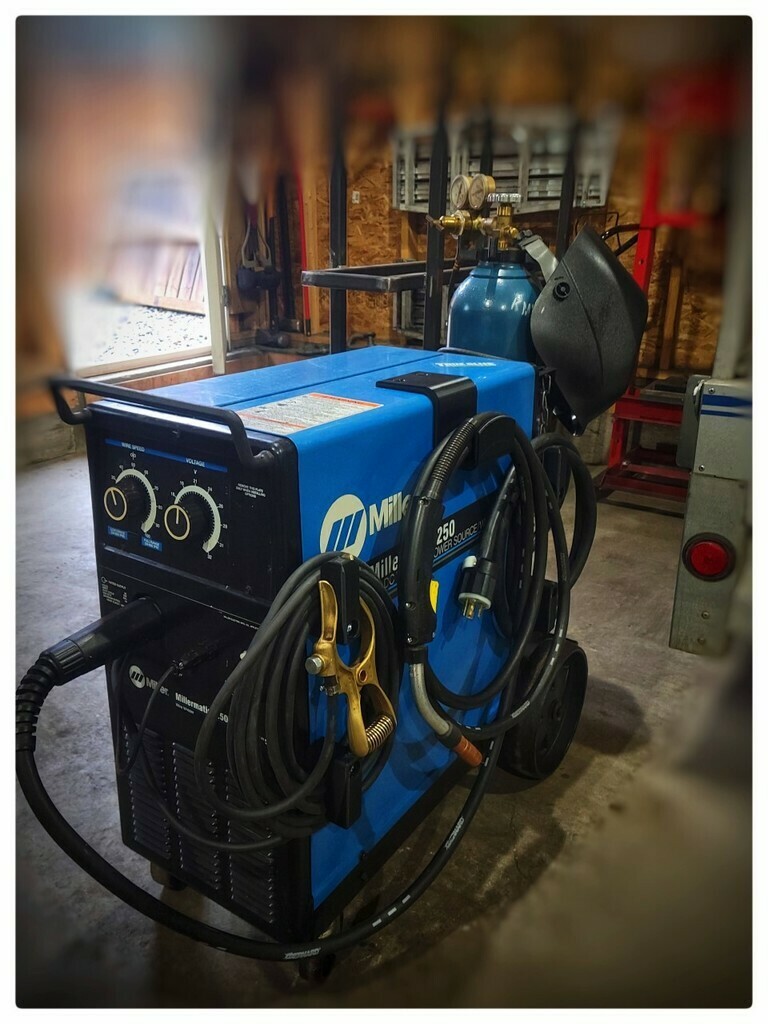

This is a lead holder for a larger style miller mig welder, the larger one for sure fits millermatic 250 & millermatic 185. The smaller ones I mounted on the side of a millermatic 250 to wrap power & ground leads. Also included is a bottle top helmet hanger. Fits 80cuft/125cuft tanks or perhaps more if the threads are the same size.

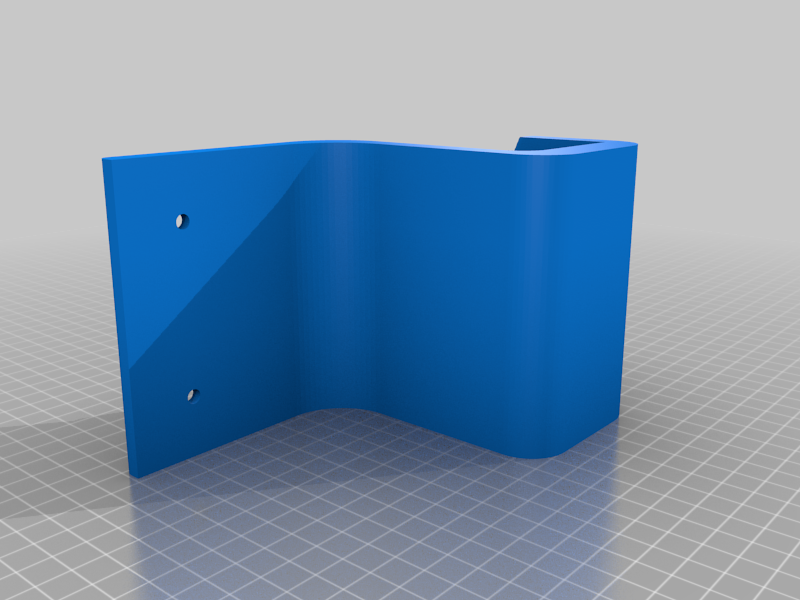

The top/side mig gun holder mounts in the factory location with no drilling or panel removal required, pop out the plastic covers & use 2x 3/16 rivets to secure, they will be snug but fit.

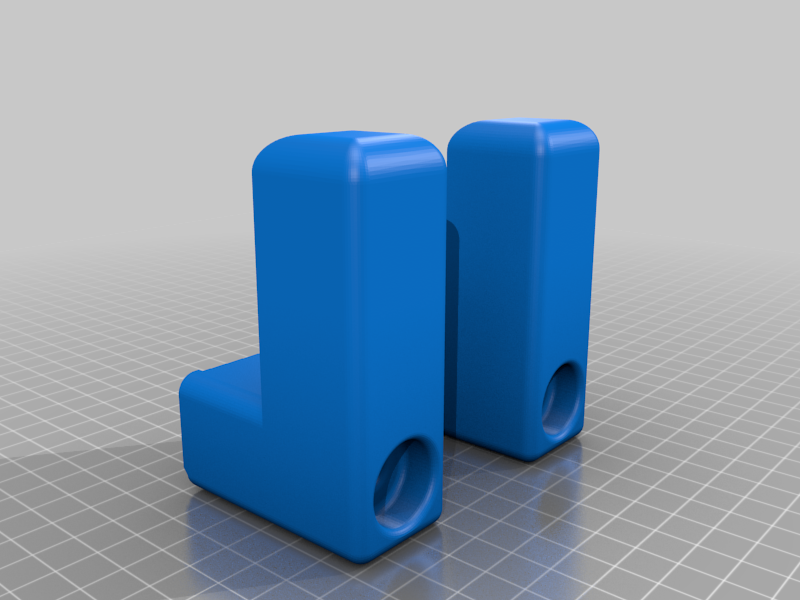

The side power cable/ground holders mount in the factory holes but use a longer philips head screw which I used 1/4-20 x 3" long.

3D printing settings

-

Categories

All categories › Tool › Machine Tools
