Mars Orbiter Shroud (ender3/pro/v2, CR10, microswissDD, hermitcrab - hotend: stock, Dragon,Dragonfly,V6, Phaetus rapido HF)

?
Creation quality: 4.8/5 (21 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

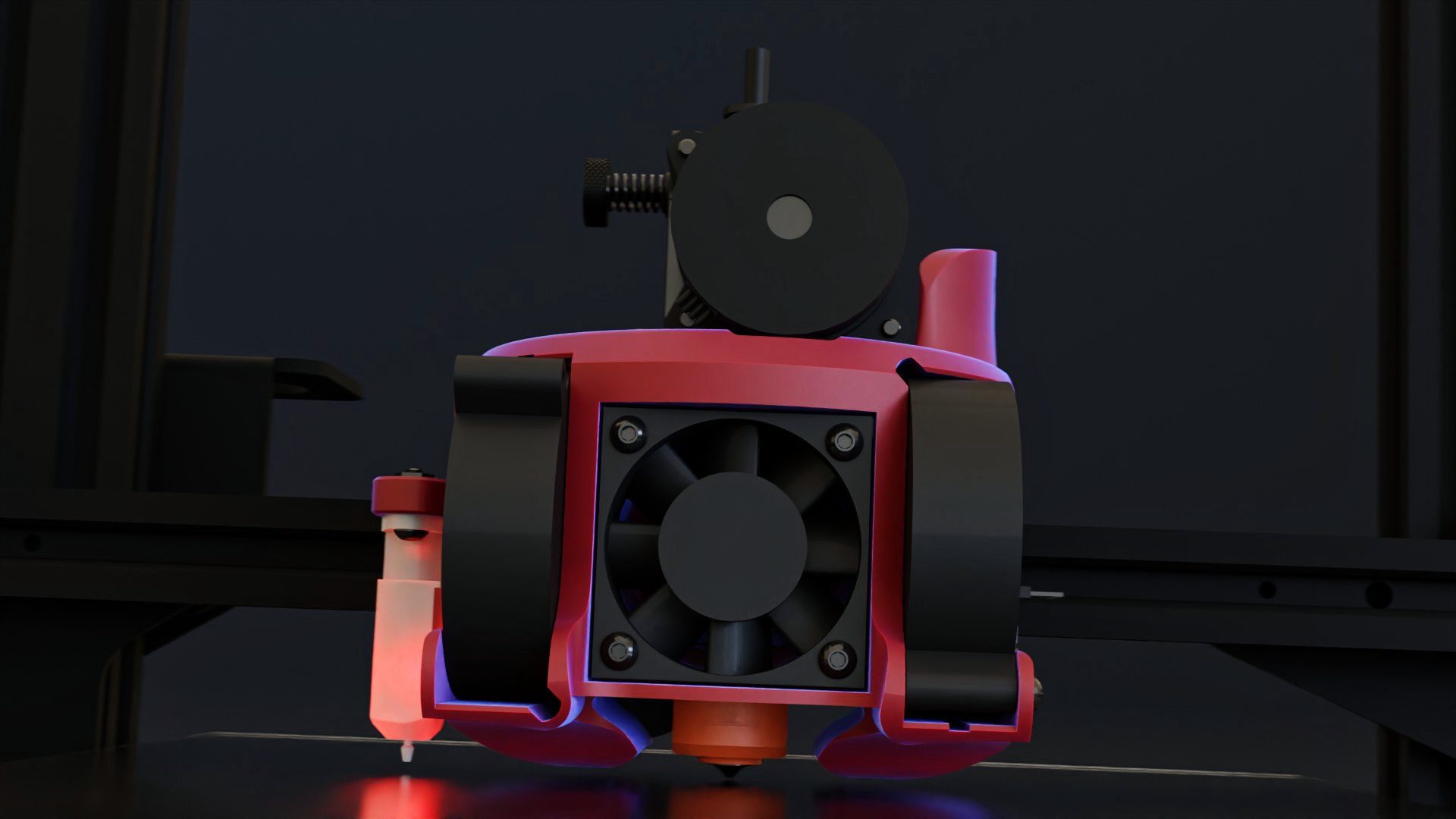

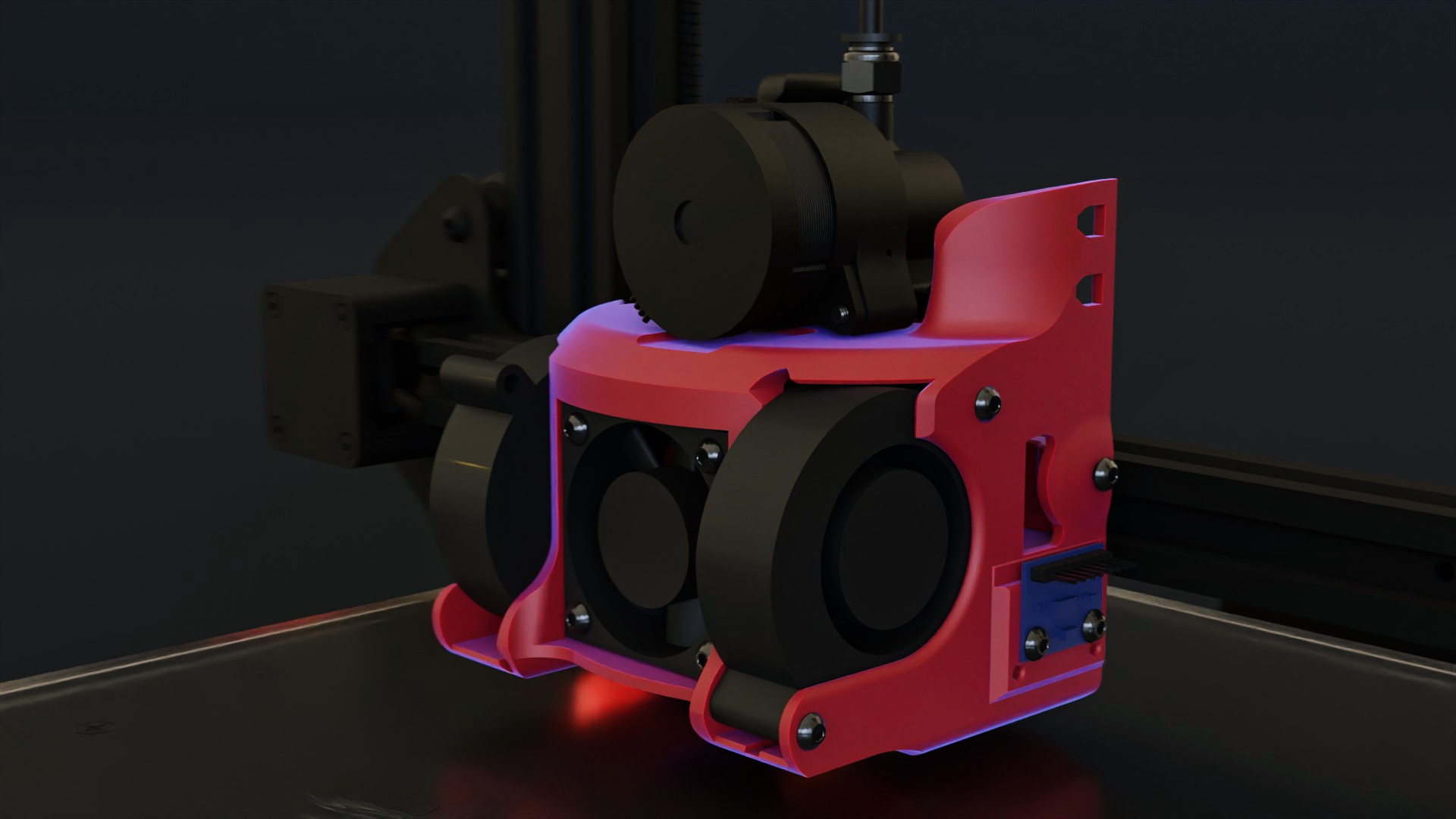

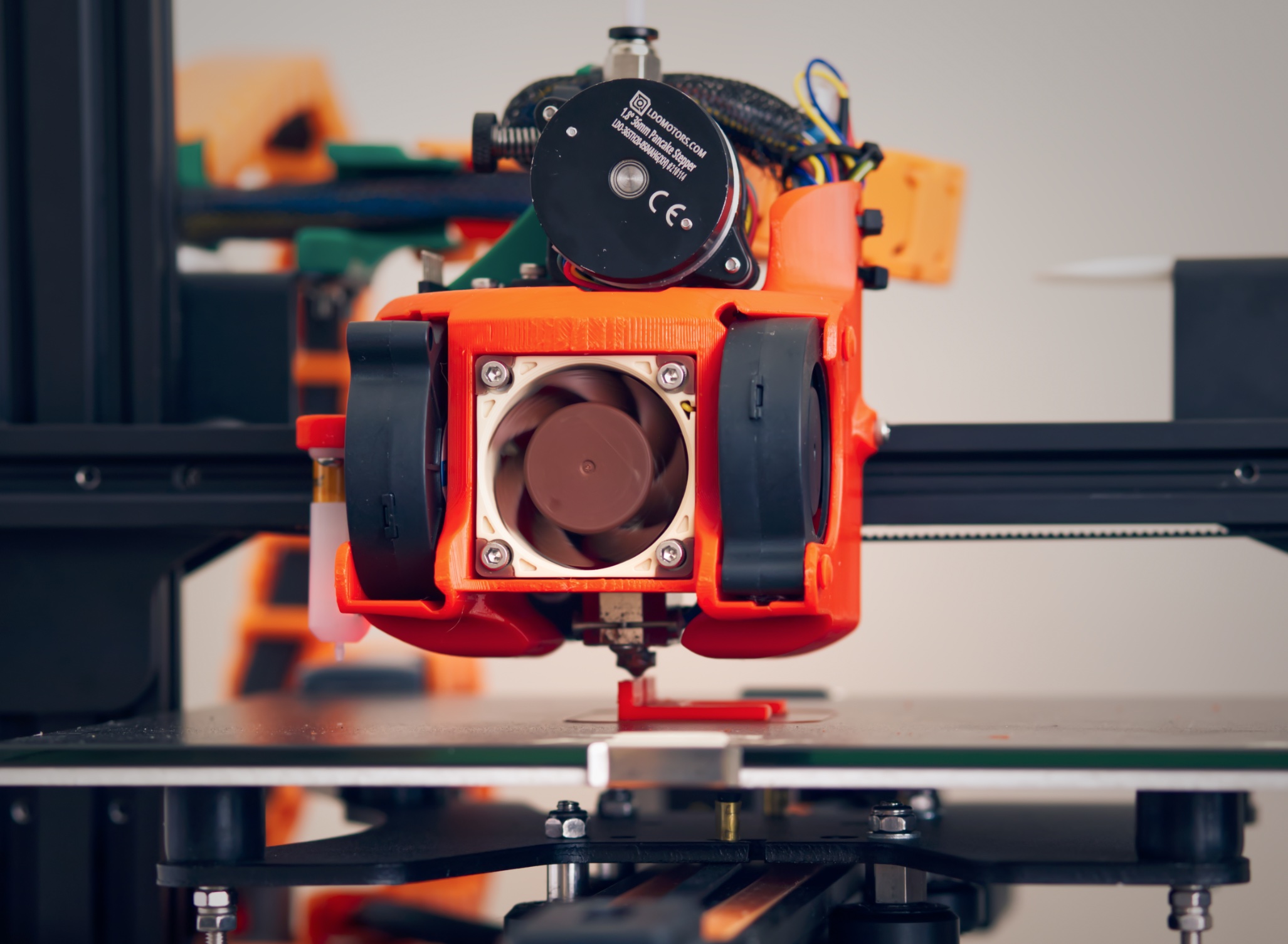

Mars orbiter


STEP BY STEP installation with pictures:
https://www.patreon.com/posts/60445034


SaturnOrbiter beta is out
Looks may be different but the fully functional beta of its successor called SaturnOrbiter is available if you become a patron ( you also get access to other shroud design I'm working on)
it's superior in many ways thanks to everything I learned doing this one.
https://www.patreon.com/squirrelf3d

Checkout what it looks like here
or
instagram


Thank to everyone who supported my work by purchasing it here and to my patreon supporter the Mars Orbiter files are now free ! Please consider supporting my work on Patreon

https://www.patreon.com/squirrelf3d

Or

<img src="https://cdn.buymeacoffee.com/buttons/v2/default-yellow.png" alt="https://www.buymeacoffee.com/squirrelf" loading="lazy" referrerpolicy="no-referrer">


Key Point

  • ender3, ender3pro, ender3v2, CR10
  • does not reduce printing surface area!
  • no print support!
  • Can be used with or without a direct drive system (aka bowden setup)
  • orbiter extruder, sherpa mini, BMG, microswiss direct drive (may need tweaking), some self printed ones that attaches on the wheel axles
  • dual 5015 blower
  • hotend fan can be 40x20 or 40x10 ( 10mm spacer included in files )
  • adxl345 mount (generic and adafruit one)
  • BLtouch, CRtouch, 12mm & 18mm probes (like EZABL)
  • swappable probes version
  • stock hotend, dragon (rigid mounted), dragonfly BMS/BMO (rigid mounted), microswiss Direct drive. Slice Engineering copperhead (unconfirmed), Phaetus Rapid HF (unconfirmed),

--

Make sure to set the correct BLtouch offset and mesh min/max to avoid crashing your print head (values are further below)

--

updates:

Feb 10, 2022: Mars orbiter files are now free thanks to my Patron supporter on https://www.patreon.com/squirrelf3d - and a huge thank you to everyone else who purchased it here.

Jan 18, 2022:

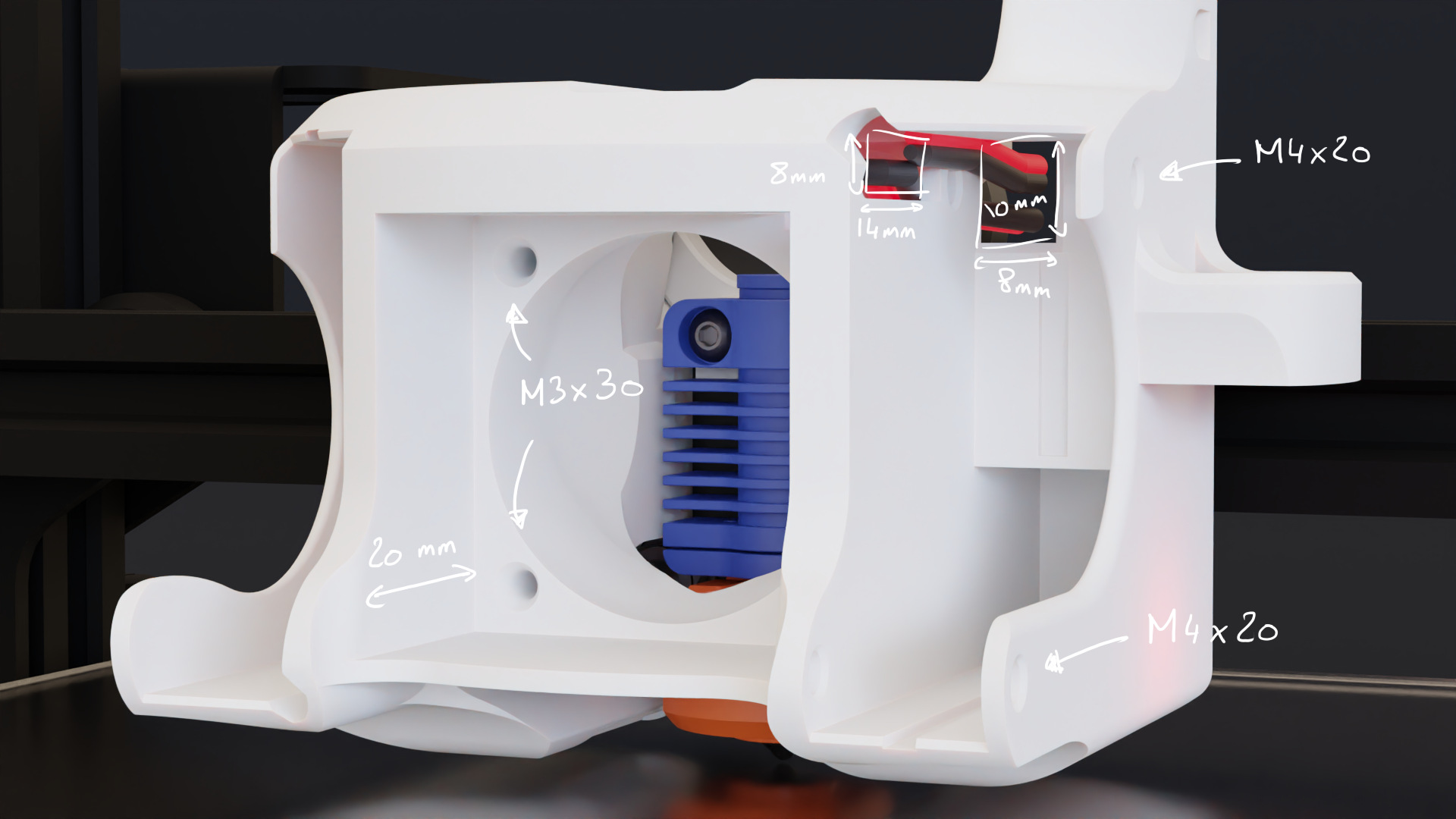

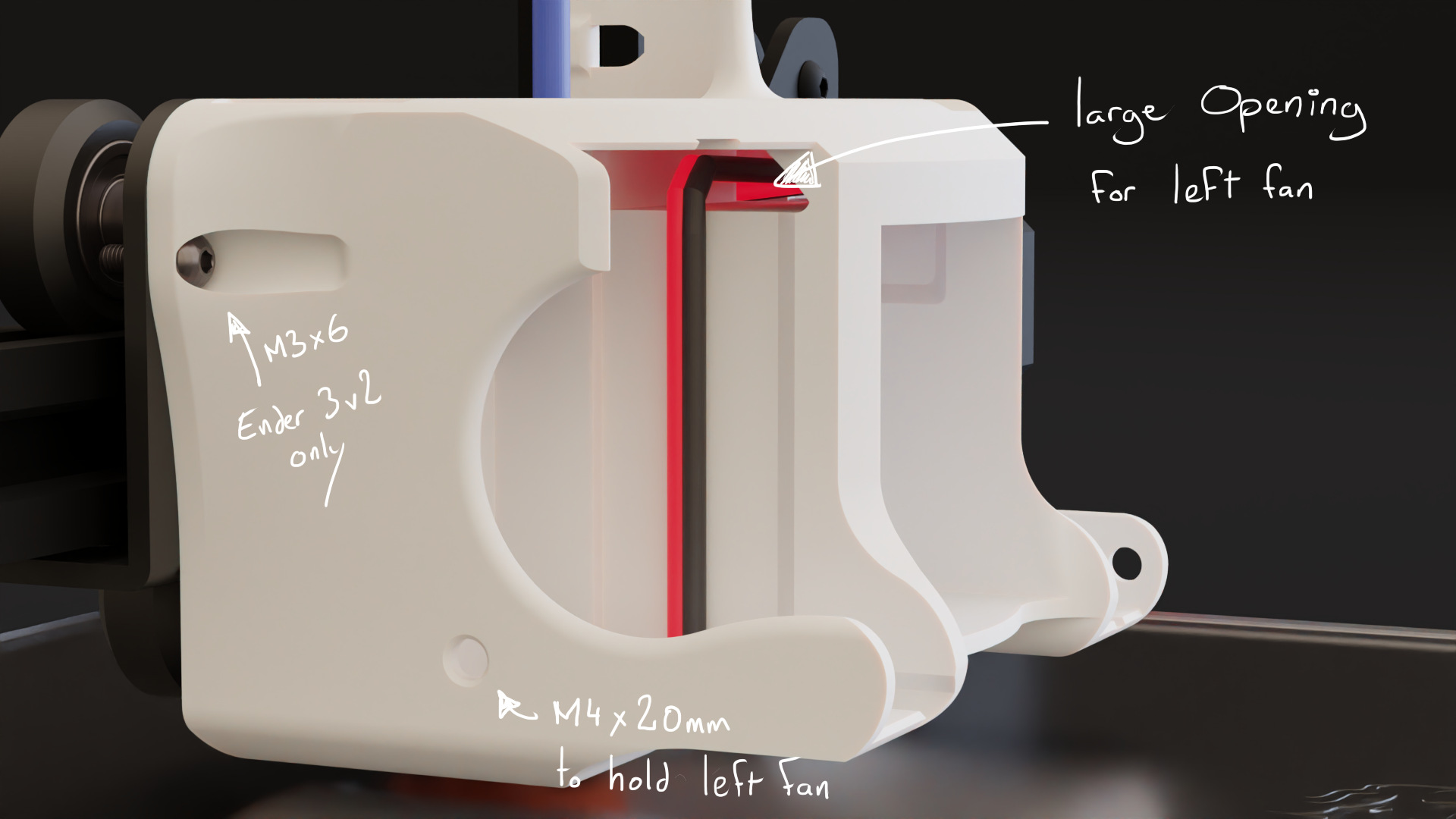

beefed up the BLTouch cable tidy prongs, should not break as easily (hopefully)

Jan 8, 2022: I was pointed out that the rigid mount for the dragonfly BMO could only take M2.5x6, So I added a version of the mount for M2.5x8, and maximum M3x8 to bind the two printed part (M2.5x6 version will remain)
Rapido M2.5x8, would take exactly 8mm screws, so added 0.6mm of tolerance to give little room

Jan 2, 2022: Happy new Year!!
For ender3/pro/v2 CR10 added a no direct drive version with swappable probe and one with no probe

Dec29: added step by step instruction with pictures
https://www.patreon.com/posts/60445034

Dec 29: Phaetus Rapido HF (ender3/pro/v2 cr10 and hermitcrab mount) updated, installed and working. (Not compatible with UHF version as it's too tall).

Dec29: updated BMG orbiter 1.5 mount, larger platform, and heat inserts version for the 2 pieces.
"unlocked" version that can rotate 360 like before, locked version with motor facing the front, and locked version with motor facing the left side. Based on a clone BMG so not sure if the locked version will work on all.

Dec28: Reorganized files in zips and folders, should be more intuitive now

Dec 28: Updated dragon rigid mount with M6 pneumatic fitting thread, for bowden setup.

Dec22: Redesigned BMG groove mount added with orbiter1.5 mounting holes. Single print version with print support needed. And a second in two pieces, no print support, held together with two M3x8.
Use m3x8 to mount it on the orbiter 1.5 mounting holes.

Dec20: Added prototype of new BMG mount using the groove mount. you will need print support for that one.
Use M3x8 to attache it to orbiter1.5 mounting points. (not compatible with orbiter v2.0)

Dec19: u/roofuskit pointed out that BMG mount I made was unusable and recreated a working concept, that I will base a new design on. Removed the old one, new one coming shortly.

Dec 16: Orbiter Extruder v2.0 supported, only ender3/v2/pro cr10 for now (bltouch version and swappable probe version).
"Mars Orbiter v116 - Orbiter 2.0 mount - ender3 - bltouch"
"Mars Orbiter v116 - Orbiter 2.0 mount - ender3 - swappable probes"

Dec 11: small fix on printermod shroud (prototype stage)

Dec 7: Prototype for BIQU HERMIT CRAB (files with hermitcrab on the filename), orbiter, sherpa, and orbiter with 90deg rotated fan, all swappable probe. And only Rapido hotend end for now, if you are interested in another hotend mount, let me know. This being a retrofit, it's not perfect, but should still work quite well. I only did assumption about threaded holes and non threaded wholes, seems like only the hotend mount is threaded and mounted from the front, everything else is mounted from the back.

Dec 7: printermod MDD 1.3 ender3v2 dragon mount tiny fix

Dec 2: Untested left rotated fan version, pointing directly into the duct output.

Nov29: Phaetus Rapido HF rigid mount, untested (UHF would put the nozzle probably too low, but could make a mount of it if interested)

Nov29: Duct for Printermod MDD 1.3 ender3v2 mounting plate, with dragon mount only for now - untested

Nov29: Sherpa mini version (bltouch version and swappable probe version ), will work on ender3/pro/v2/cr10
"Mars Sherpa Orbiter v109" (removed v106)

Nov28: more sensitive filament sensor

Nov27: Added UNTESTED BMG mount that goes onto orbiter mounting holes. use M3x8 (use the v84 orbiter extruder version of the duct, or the v103 swappable probe version, as the mount will screw in place the orbiter)

Nov27: removed "Mars Orbiter v102 - no bltouch - Probe 12-18" (nothing wrong with it), updating it to make one that can be used with probes AND bltouch/crtouch.
use Mars Orbiter v103 - swappable probe mount
use probes v103
check probe offset further down
on the left side, two screw m3x6mm (m3x7 max)
try the "1mm lowered" first for CRtouch

if you plan on only using a bltouch, you can keep using v84 of the duct

Nov27: small tolerance adjustment on AIO filament sensor (rev5)

Nov26: microswiss Direct drive linear rail mount confirmed working

Nov26: tweaked filament sensor AIO (All in one, no mount needed, screws directly into your extruder), and added "AIO large" to use the larger pneumatic fitting. Measure two flat edge of the nut on the pneumatic fitting: 8mm use the AIO, 10mm use the "AIO large" version (the top threads remains 6mm). There are other pneumatic fitting that may not work with it.
Renamed zip to filamentsensor.zip
Added picture with pneumatic fitting names
(quick fix, now rev4)

Nov25: Probe 12mm and 18mm v102 (obsolete, use v103)

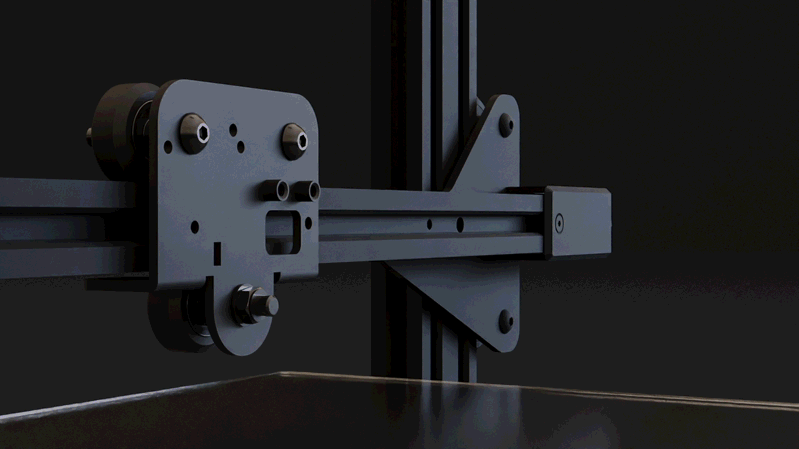

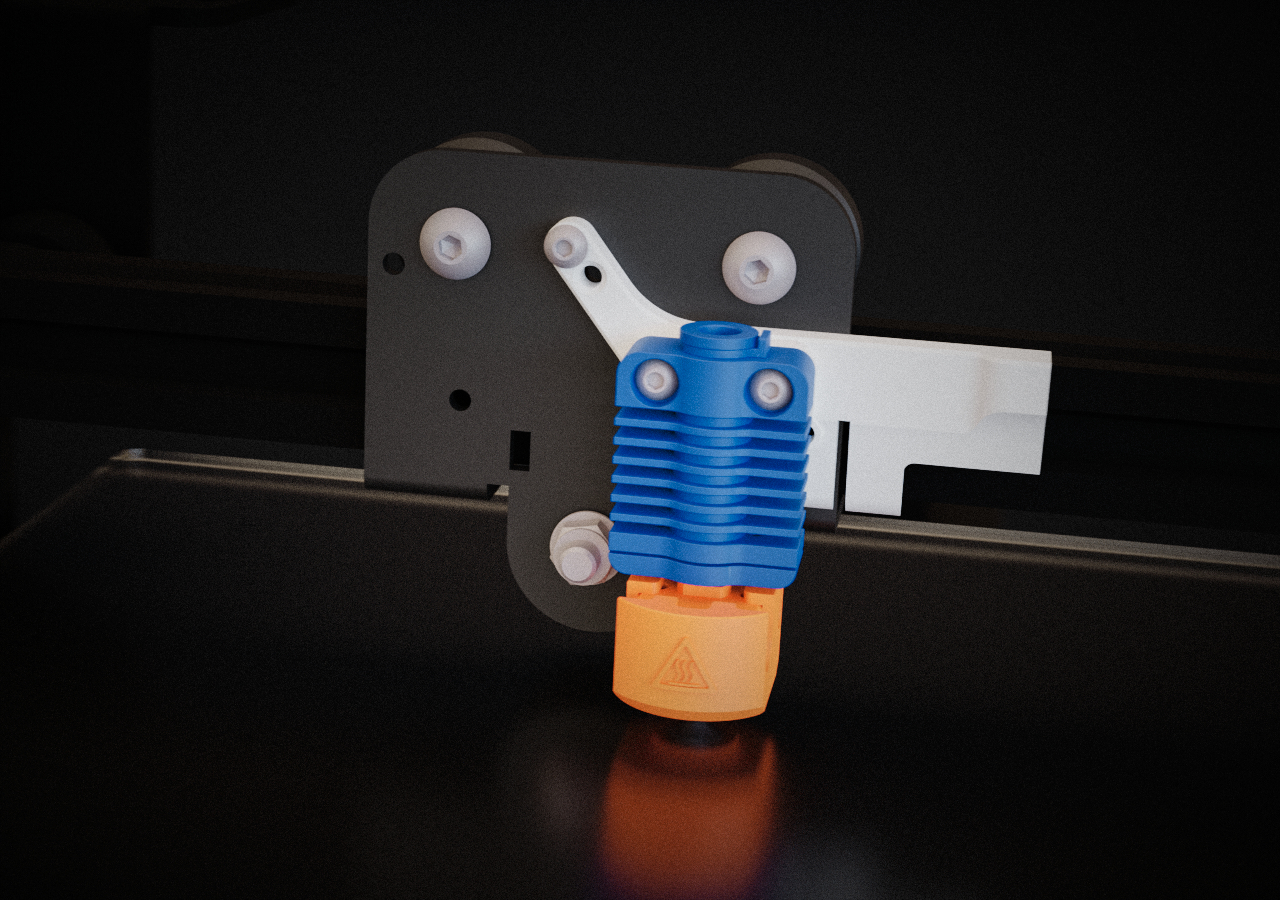

Nov22: finally designed a Dragonfly BMO rigid mount, 2 printed parts (not actually tested in practice, but I printed it and the parts fit together nicely, don't see why it won't work )
M6x4 pneumatic fitting threaded screw hole integrated
No print support.
- two M3x6 to mount to the plate
- four M2.5x6 to go into the dragonfly
- two M3 between 8mm and 12mm long to secure the two parts together

Nov17: mircoswiss V-roller version mount thickness fix (v62)

Nov16: received more precise measurement of the depth of the microswiss linear rail version by a fellow redditor, so I removed the old files and added new ones (MOUNT v62 - MiscroswissDD_LinerarRail, comes in 3 different tolerances, you want it as tight as possible)

Nov16: CRtouch compatibility confirmed (removed the printable test)

Nov13:
- Moved hight of Bltouch mount (for dragonfly BMS), and printable spacer to lower it again for other hotend or CRtouch
- 5015 printable pins
- removed ADXL on top version (if you want it back let me know)
- removed BLtouch on the right side version

Nov12: Added pneumatic fitting screwable mount (M6 and M10) for temporary bowden setup when using a dragon rigid mount and waiting for the orbiter. Secures itself in place of the orbiter extruder

nov10, 2021: small fix

nov9, 2021: as requested added support to Adafruit ADXL (use m2.5x4), ADXL mount moved to the right wall

nov9, 2021: updated grove mount to use m3 instead of m2.5, V6 and dragon fly BMS, Copperhead (unconfirmed)

nov9, 2021: general clean up of files, removed old versions

nov9, 2021: (v76 ) Final version with Bltouch on the left, and larger cable route
X offset is -52.7mm
Y offset will be -7.5mm extra from what you had (so on stock -8 - 7.5 = -15.5mm)

nov6, 2021: pre release bltouch moved to the left side, small fix

nov5, 2021: pre release bltouch moved to the left side

nov5, 2021: CRTOUCH compatibility test (now removed, it is compatible)

nov5, 2021: microswiss DD Linear Rail version and V-Roller versions

nov4, 2021: slice engenering copperhead support (unconfirmed)

nov3, 2021: V6 grove mount added

nov3, 2021: v67, small fix

nov2, 2021: v66, small fix


If some of your values are wrong get ready to kill printer power before a nozzle crash

BLTOUCH - LEFT SIDE - settings (X is exact, Y are approximations)

  • stock hotend: offset X is -52.7mm , Y is -15.5mm
  • Dragon Fly BMS: offset X is -52.7mm , Y aprox -14
  • dragon: offset X is -52.7mm, Y is -7.5 mm

Those are my values with a stock hotend (until I get my dragon back), will be slightly different with different hotend, start with smaller values.
physical printer max X to 247
physical printer max Y to 229

(starting values to be safe, adjust them more precisely to your printer, depending on your hotend )
In klipper those are the actually bltouch head coordinates.
mesh min = 20, 20
Mesh max = 184 , 203

BLTOUCH - RIGHT SIDE (old version)

  • stock hotend: offset X is +52.7mm , Y is -8mm

#PROBE 12 & 18mm

(Y offset are approximate, X is exact)

18mm:
Offset X= -55.40mm
Offset Y= -15.5 mm for stock (-23.5 for dragon/dragonflyBMO/v6)

12mm:
Offset X= -52.40mm
Offset Y= -12 mm for stock (-20 for dragon/dragonflyBMO/v6)


weight breakdown:

totally setup weight: 360g ( includes duct, dragon hotend, orbiter extruder, fans, bltouch, adxl435, hotend, screws & bolts
(same weight as the official Creality direct drive, which has a single 4010 blower fan)

Duct: 87g
back mount: 4g
5015 Fan: 25g (X2)
Noctua 4020: 20g
bltouch:7g
Adxl: 2g
Dragon hotend: aprox 30g (the heat block is attached to my stock hotend while i wait fro the rplacement heatbreak and don't want to mess with it now)
Orbiter extruder: 145g
screws and bolts (include bltouch and adxl hardware): 13g


3D printing settings

No support needed, minimal cleanup if any at all

test printed at 0.20mm layer height with 0.4mm nozzle, the smaller layer height you get the better overhangs will be.

Duct can be printed in PLA

Mount part should preferably be printed in PETG since it's close to the heat sink. If you print it in PLA, print yourself a backup mount in case you experience heat creep in which case the mount can soften.

Make sure you have decent bridging before printing, as I rely on it a lot here (you can use super slicer to calibrate the bridging flow)

makes sure you have good bed adhesion (clean your glass bed before this print ) (I added a small thin printed part to help with one of the thin pieces, check pictures to see which part to clip out)

takes about 6 to 12hours to print the duct depending on your setup, layer height and print speed/acceleration.

3D printer file information

  • 3D design format: ZIP Folder details Close
    • MarsOrbiter_BIQU_HermitCrab_2021-12-29.zip
      • hotendmount/Phaetus Rapido HF - rigid mount.stl
      • Mars Sherpa Orbiter v114 - HermitCrab - swappable probe mount.stl
    • MarsOrbiter_Miroswiss_Direct_Drive_2022-01-18.zip
      • extra stuff/5015 fan pin 4x20.stl
      • extra stuff/bl-cr-touch spacer/Bltouch 1.5mm spacer.stl
      • extra stuff/bl-cr-touch spacer/Bltouch 1mm spacer.stl
      • extra stuff/bl-cr-touch spacer/Bltouch 2mm spacer.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • extra stuff/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • extra stuff/M10 pneumatic fitting _ for temporary dragon rigid mount_orbiter1.5.stl
      • extra stuff/M6 pneumatic fitting _ for temporary dragon rigid mount_ orbiter1.5.stl
      • extra stuff/squirrelf3d.xyz.webloc
      • hotend mount/MOUNT v62 - MiscroswissDD_LinerarRail - 0.25 tolerance - 3mm deep.stl
      • hotend mount/MOUNT v62 - MiscroswissDD_V-Rollers - 3.4mm deep.stl
      • Mars Orbiter - Microswiss.stl
      • Mars Orbiter v84 - Microswiss.stl
      • squirrelf3d.xyz.webloc
    • MarsOrbiter_ender3_pro_v2_cr10_2022-01-18.zip
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • ender3 - BMG using orbier 1.5 mount/BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • ender3 - BMG using orbier 1.5 mount/Orbiter Extruder 1.5 - integrated bl-cr-touch.stl
      • ender3 - BMG using orbier 1.5 mount/Orbiter Extruder 1.5 - swappable probe.stl
      • ender3 - Bowden ONLY/Smoothtop - no directdrive mount - bltouch_crtouch.stl
      • ender3 - Bowden ONLY/Smoothtop - no directdrive mount - no probe.stl
      • ender3 - Bowden ONLY/Smoothtop - no directdrive mount - swappable probe.stl
      • ender3 - orbiter 1.5/Orbiter Extruder 1.5 - integrated bl-cr-touch.stl
      • ender3 - orbiter 1.5/Orbiter Extruder 1.5 - swappable probe.stl
      • ender3 - orbiter 2/Orbiter Extruder v2.0 - bl-cr-touch.stl
      • ender3 - orbiter 2/Orbiter Extruder v2.0 - swappable probes.stl
      • ender3 - sherpa mini/Sherpa - integrated bl-cr-touch.stl
      • ender3 - sherpa mini/Sherpa - swappable probes.stl
      • hotendmount/Dragon_rigid_1of2.stl
      • hotendmount/Dragon_rigid_2of2.stl
      • hotendmount/Dragonfly_BMO_rigid_M2.5x6_1of2.stl
      • hotendmount/Dragonfly_BMO_rigid_M2.5x6_2of2.stl
      • hotendmount/Dragonfly_BMO_rigid_M2.5x8_1of2.stl
      • hotendmount/Dragonfly_BMO_rigid_M2.5x8_2of2.stl
      • hotendmount/Dragonfly_BMS.stl
      • hotendmount/Groove mount - V6 - dragonfly BMO - dragon_1of2.stl
      • hotendmount/Groove mount - V6 - dragonfly BMO - dragon_2of2.stl
      • hotendmount/Phaetus Rapido.stl
      • hotendmount/Phaetus Rapido_8_holes.stl
      • hotendmount/Slice Copperhead 1of2 - prototype.stl
      • hotendmount/Slice Copperhead 2of2 - prototype.stl
      • hotendmount/Stock hotend.stl
      • squirrelf3d.xyz.webloc
    • MarsOrbiter_extra_stuff_2021-12-29.zip
      • 5015 fan pin 4x20.stl
      • bl-cr-touch spacer/Bltouch 1.5mm spacer.stl
      • bl-cr-touch spacer/Bltouch 1mm spacer.stl
      • bl-cr-touch spacer/Bltouch 2mm spacer.stl
      • BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • BMG mount for orbiter1.5 mounting holes/360/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • BMG mount for orbiter1.5 mounting holes/Front Motor/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 1 of 2 - heat insert M3 x L 4 x OD 5.stl
      • BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 1 of 2.stl
      • BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 2 of 2 - heat insert M3 x L 4 x OD 5.stl
      • BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - 2 of 2.stl
      • BMG mount for orbiter1.5 mounting holes/Left Side Motor/BMG to Orbiter 1.5 mount - one piece - use supports.stl
      • M10 pneumatic fitting _ for temporary dragon rigid mount_orbiter1.5.stl
      • M6 pneumatic fitting _ for temporary dragon rigid mount_ orbiter1.5.stl
    • MarsOrbiter_printermod_MDD_v1.3_2022-01-18.zip
      • hotendmount/printermod MDD1.3 ender3v2 - dragon_rigid_1of2.stl
      • hotendmount/printermod MDD1.3 ender3v2 - dragon_rigid_2of2.stl
      • Printermod MDD 1.3 ender3v2 - integrated bl-cr-touch- prototype.stl
    • MarsOrbiter_swappable_probes_2021-12-28.zip
      • 12mm probe mount.stl
      • 18mm probe mount.stl
      • bltouch crtouch probe mount - 1mm lowered.stl
      • bltouch crtouch probe mount - 2mm lowered.stl
      • bltouch crtouch probe mount.stl

    Learn more about the formats

  • Last update: 2022-01-18 at 20:43
  • Publication date: 2021-11-02 at 06:14

License

CC BY NC SA

Tags

Creator

Issue with this design? Report a problem

Makes created by the community

Best 3D printer files of the Tools category

Best sellers of the category Tools


Add a comment

23 comments


Would you like to support Cults?

You like Cults and you want to help us continue the adventure independently? Please note that we are a small team of 3 people, therefore it is very simple to support us to maintain the activity and create future developments. Here are 4 solutions accessible to all:

  • ADVERTISING: Disable your AdBlock banner blocker and click on our banner ads.

  • AFFILIATION: Make your purchases online by clicking on our affiliate links here Amazon.

  • DONATE: If you want, you can make a donation via PayPal.

  • WORD OF MOUTH: Invite your friends to come, discover the platform and the magnificent 3D files shared by the community!
