Lyman / Mulier Filament Extruder V5

Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
9 files Close

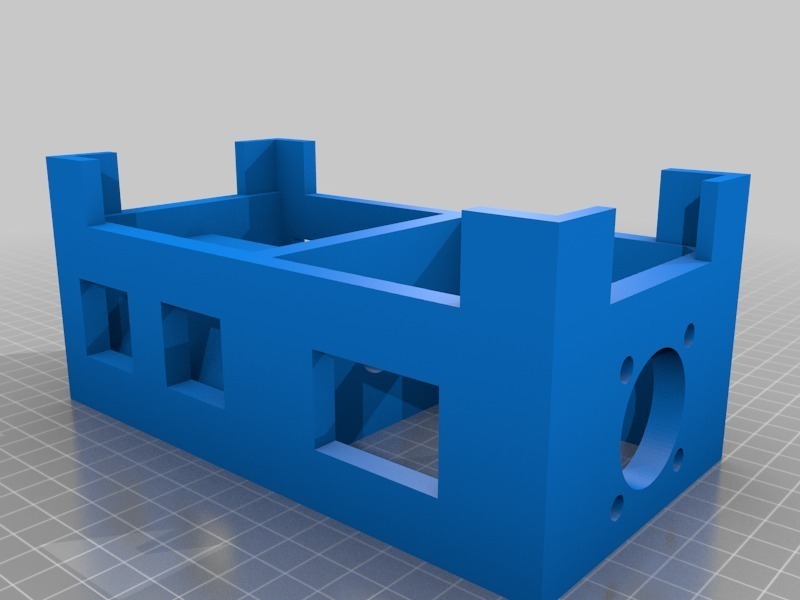

  • A02_PART_11_STL_1__EXTR_BASE_NO_OUTRIGGER.stl 92.67785600000002 Γ— 176.40116099999997 Γ— 77.550216 mm

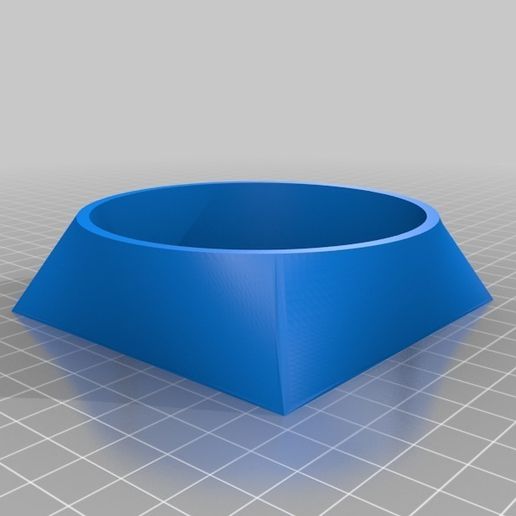

  • A02_PART_19_STL_4_FUNNEL_BASE.stl 91.56682199999999 Γ— 91.566802 Γ— 26.161948000000002 mm
  • A03_PART_1_STL_6B_SENSOR_CASE_CONE.stl 18.885559 Γ— 18.858261 Γ— 29.690823 mm

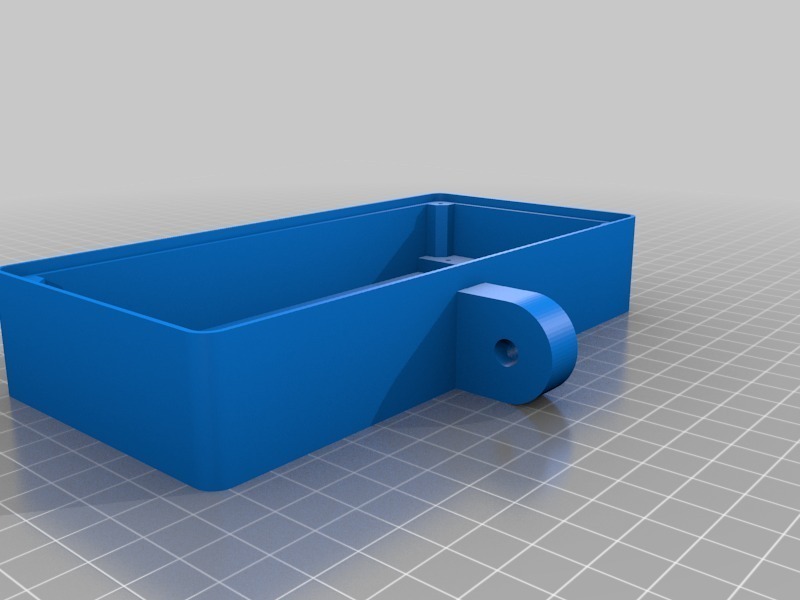

  • A05_PART_4_STL_18_PED_CASE_NO_OUTS.stl 165.999999 Γ— 105.999999 Γ— 30.000000999999997 mm

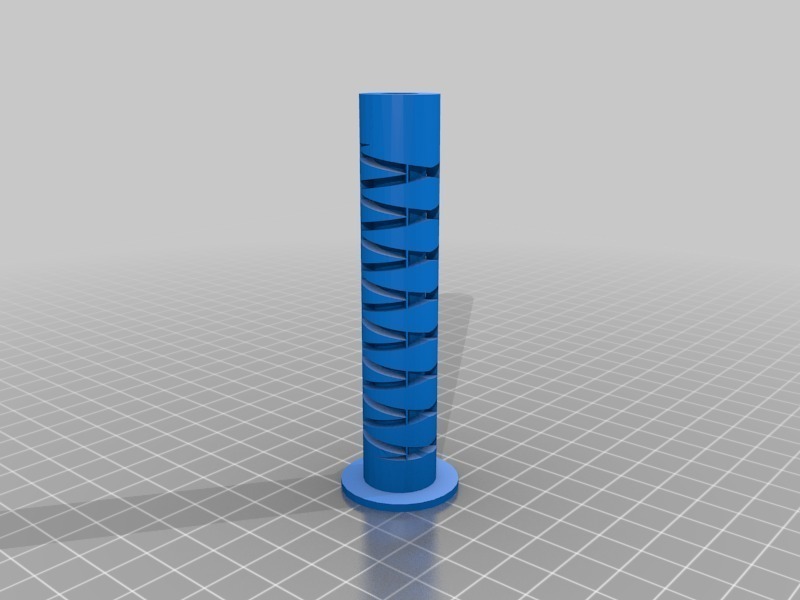

  • A07_PART_3_STL_28_WORM_GEAR.stl 28.860996 Γ— 28.909906 Γ— 94.00006 mm
  • LEVEL_WIND_NEW_WORM_GEAR.zip
    • LEVEL WIND WORM GEAR HALF.stl
    • LEVEL WIND NEW WORM GEAR.pdf
    • LEVEL WIND SQ BRKT.stl
    • LEVEL WIND SQ CHANNEL.stl
    • LEVEL WIND SQ GUIDE.stl

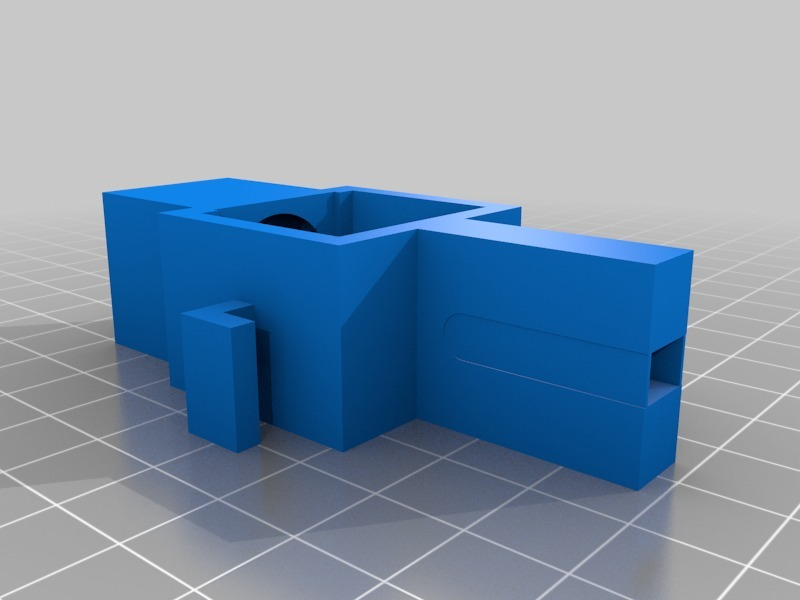

  • LEVEL_WIND_SQ_GUIDE_with_Clips.stl 45.001784 Γ— 75.0 Γ— 21.0 mm
  • LYMAN_MULIER_FILAMENT_EXTRUDER_V5_MANUAL_R1.pdf
  • STL_PARTS_ZIP.zip
    • A02 PART 11 STL 1 EXTRUDER BASE.stl
    • A02 PART 14 STL 2 M1 COUPLER.stl
    • A02 PART 18 STL 3 FUNNEL.stl
    • A03 PART 1 STL 6 SENSOR CASE TOP.stl
    • A03 PART 1 STL 6B SENSOR CASE CONE.stl
    • A03 PART 2 STL 5 SENSOR CASE BOTTOM.stl
    • A03 PART 6 STL 7 SENSOR BRKT.stl
    • A03 PART 8 STL 8 FAN BRKT.stl
    • A04 PART 1 STL 9 CASE BOTTOM.stl
    • A04 PART 2 STL 10 CASE FRONT.stl
    • A04 PART 3 STL 11 CASE RT SIDE.stl
    • A04 PART 4 STL 12 CASE LT SIDE.stl
    • A04 PART 5 SLT 13 CASE BACK.stl
    • A04 PART 6 STL 14 CASE TOP.stl
    • A05 PART 1 STL 15 PED BASE.stl
    • A05 PART 2 STL 16 SWIVEL POST.stl
    • A05 PART 3 STL 17 LCD KNOB.stl
    • A05 PART 4 STL 18 PED CASE.stl
    • A05 PART 5 STL 19 CASE BACK LID.stl
    • A06 PART 1 STL 20 PULLER BASE.stl
    • A06 PART 2 STL 21 M2 BASE.stl
    • A06 PART 3 STL 22 M2 COUPLER.stl
    • A06 PART 4 STL 23 IDLER ROLLER BRKT.stl
    • A07 PART 1 STL 24 BRKT.stl
    • A07 PART 2 STL 25 GUIDE.stl
    • A07 PART 3 STL 28 WORM GEAR.stl
    • A07 PART 3 STL 28B HALF GEAR.stl
    • A07 PART 4 STL 27 PULLEY.stl
    • A08 PART 1 STL 28 SPOOL BRKT LT.stl
    • A08 PART 2 STL 29 SPOOL BRKT RT.stl
    • A08 PART 4 STL 31 PULLEY.stl
    • A08 PART 5 STL 32 SPOOL CORE.stl
    • A08 PART 6 STL 33 SPOOL DISC.stl
    • A08 PART 7 STL 34 MOTOR ARM.stl
    • A08 PART 8 SLT 35 COG D HOLE.stl

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 1624531
Design author hlyman
hlyman

hlyman

Issue with this design? Report a problem.

3D printer file info

3D model description

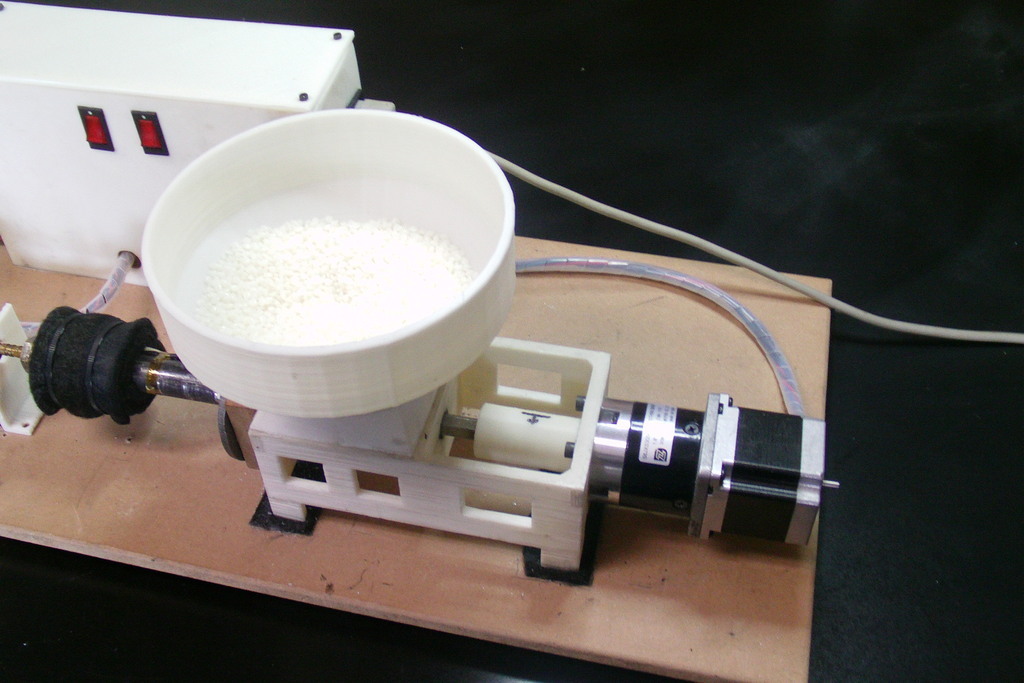

The Lyman / Mulier Filament Extruder V5 extrudes filament for use in 3D printers.

Features:

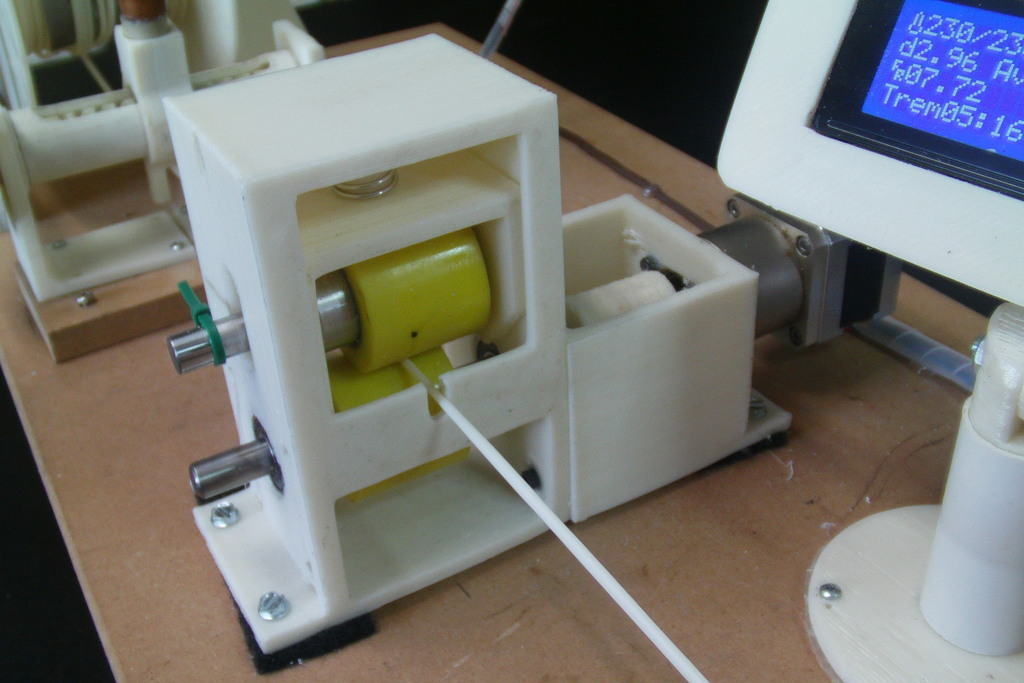

Stepper Gear Motors

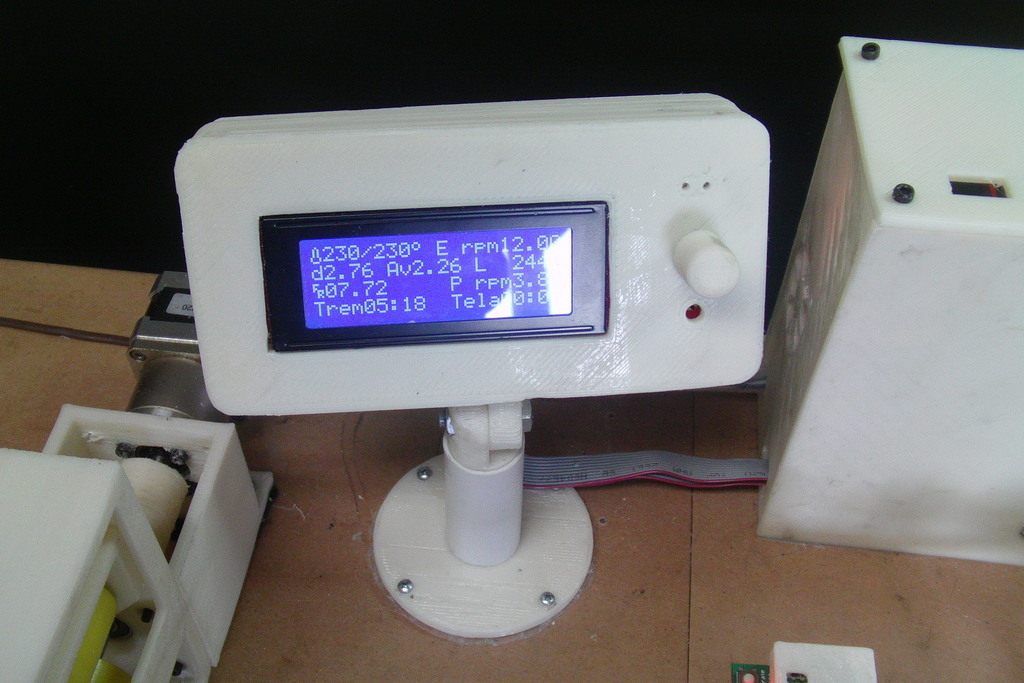

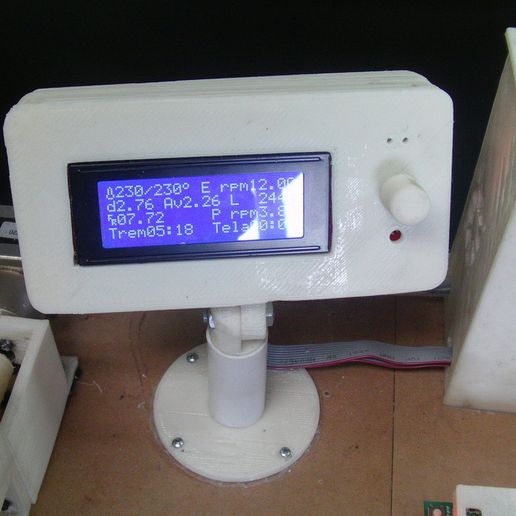

LCD control of Ramps for all functions

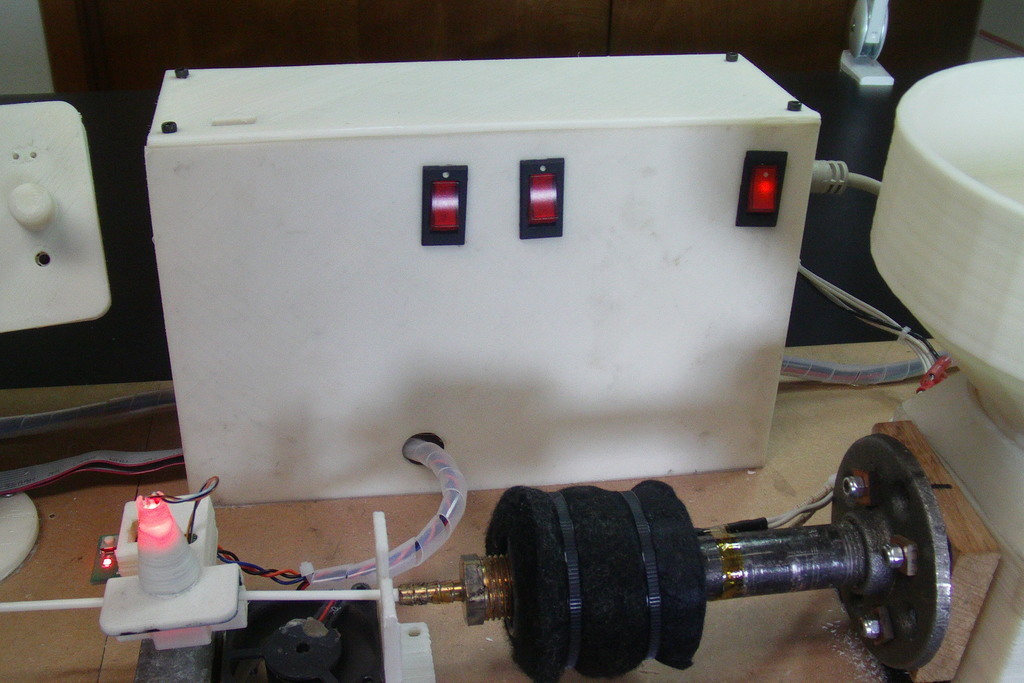

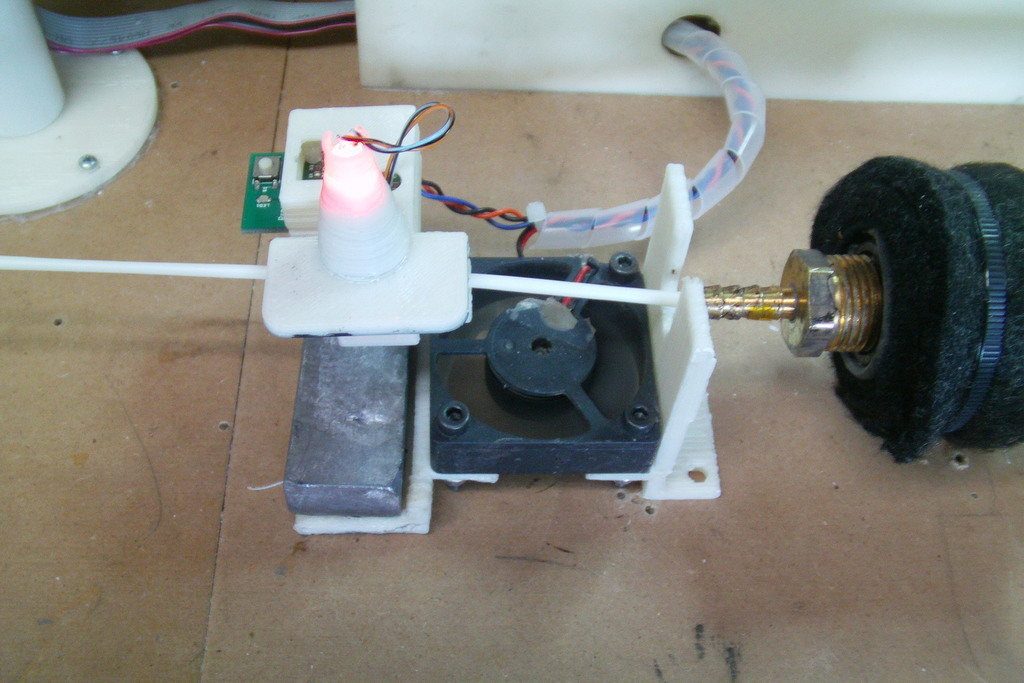

Filament Diameter Sensor

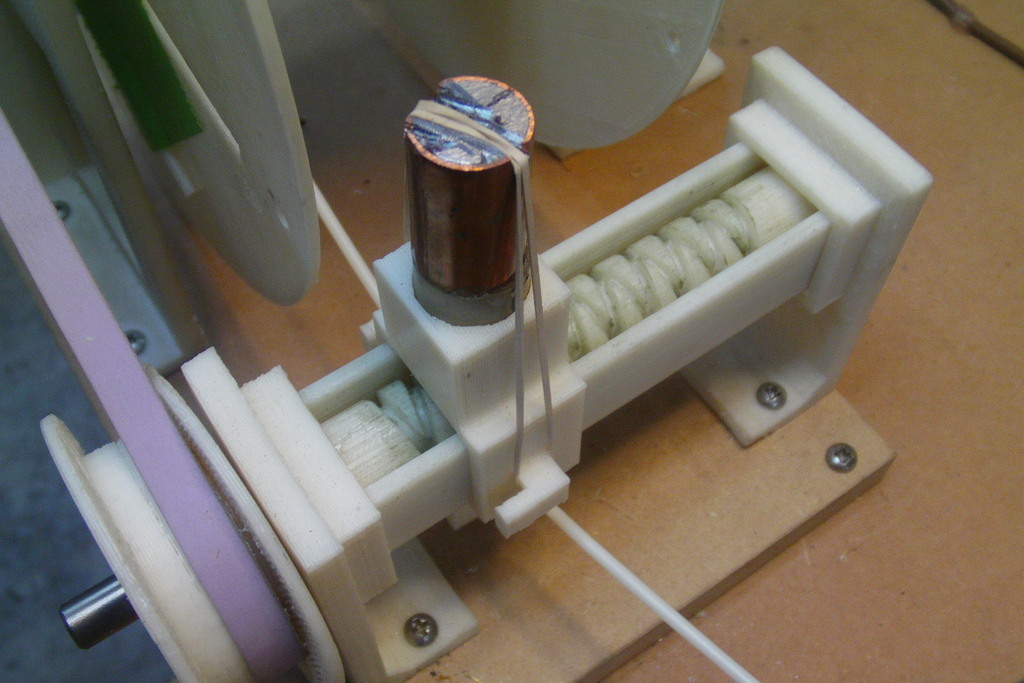

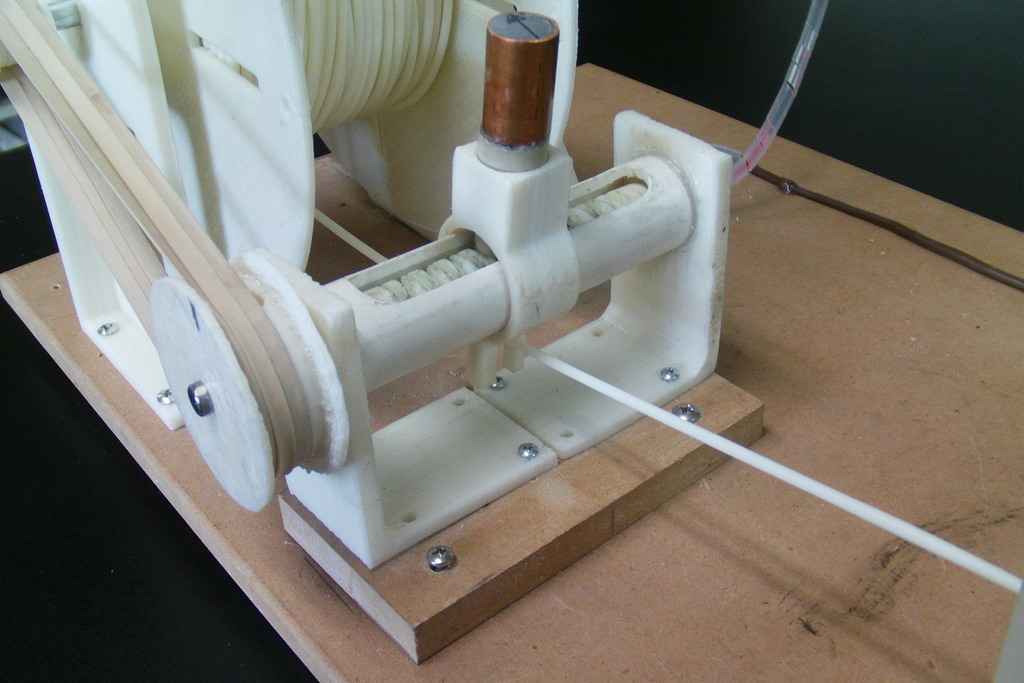

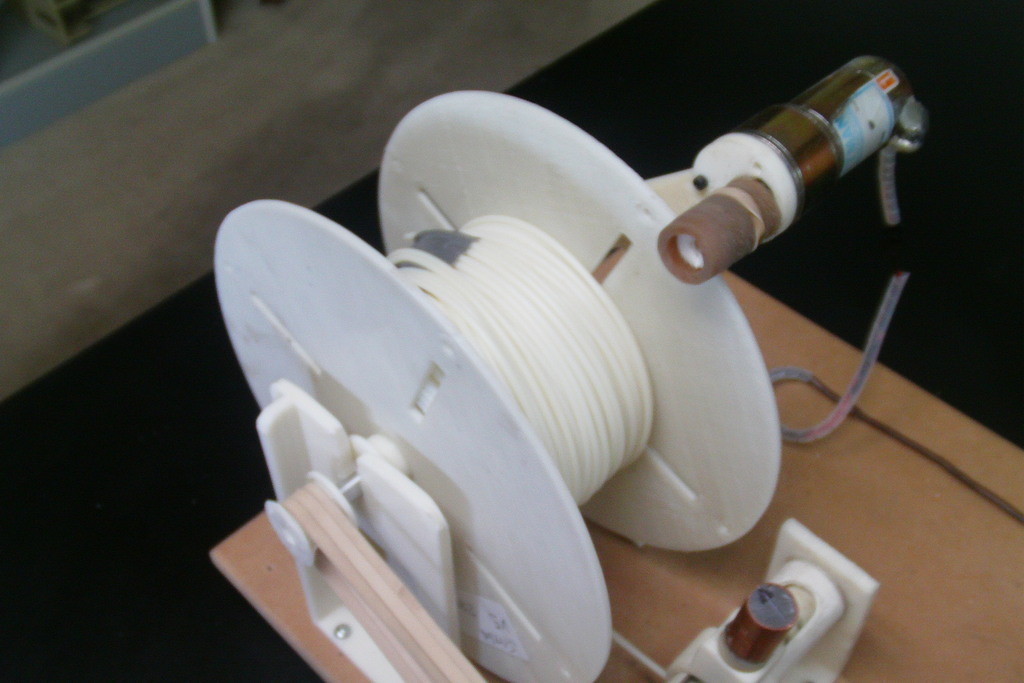

Level Winding filament onto Filament Spool.

Manual is 60 pages and there are 35 stl part files in the zip folder.

BOM for each sub assembly is included with each exploded view of the assembly.

Material Cost of about $600.

Video Link:

https://www.youtube.com/watch?v=vL9zDOdRqBo

3D printing settings

Lyman made the mechanical parts for two extruders.

Mulier made the electronic parts for two extruders.

We each assembled our extruders and began testing, changing and retesting now for 4 months. Improvements are sure to happen.

Full construction and operating instructions are included in the manual. You will find and understand all the features and functions by reading the manual.

Ref: http://www.thingiverse.com/thing:265375

Ref: http://www.thingiverse.com/thing:89044

Keep in mind that the Sensor, Level Wind and the Spool Windup sub assemblies are optional. You could build the extruder without these and still extrude filament with only having to wind the filament onto a spool from the floor as shown in earlier extruder versions.

Good Luck.
