Krusher Fortress

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
30 files (STL and TXT) Close
  • Fortress_Cab.stl 68.512009 ร— 49.618483999999995 ร— 64.771004 mm

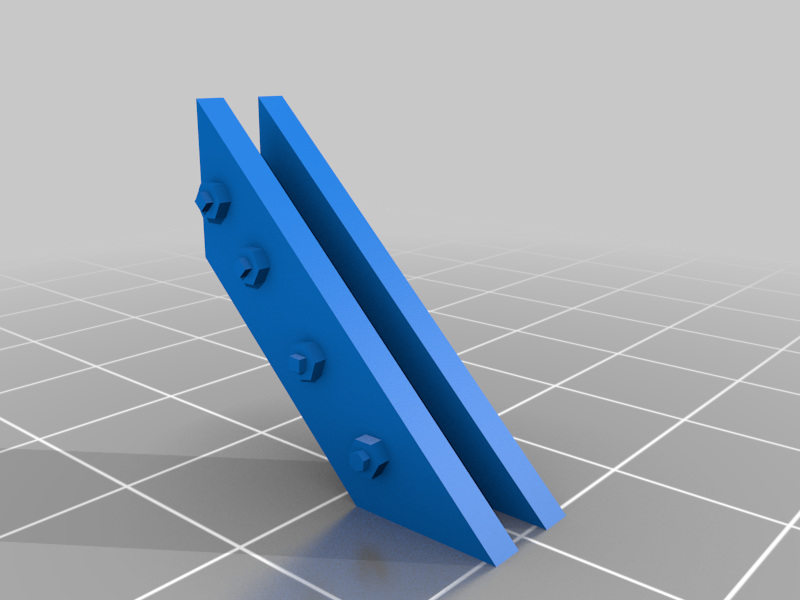

  • Fortress_Cab_Beam01.stl 8.989990999999975 ร— 21.081999999999994 ร— 21.081999 mm
  • Fortress_Cab_Beam02.stl 8.889983999999998 ร— 21.081999999999994 ร— 21.081999 mm
  • Fortress_Cab_No_Glyph.stl 68.51199300000002 ร— 49.618477 ร— 64.771004 mm

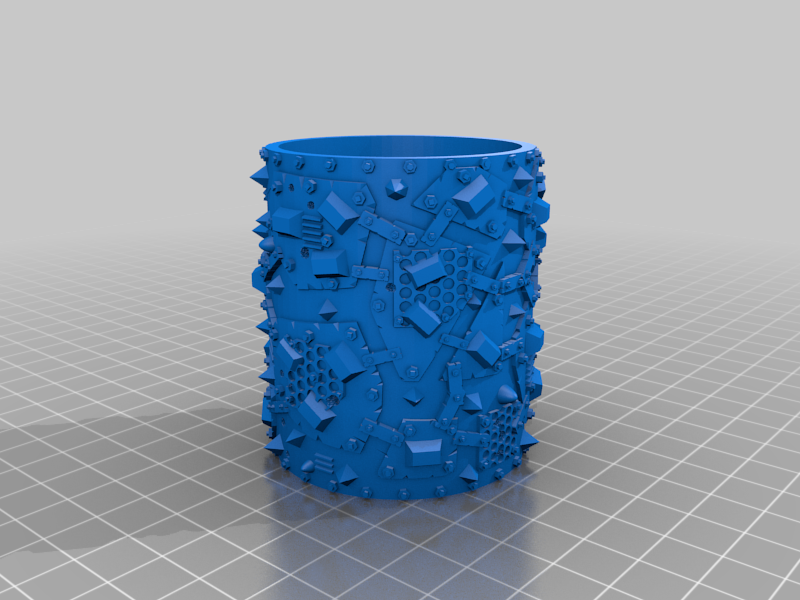

  • Fortress_DeffRolla_01.stl 58.622 ร— 58.619002 ร— 62.299999 mm

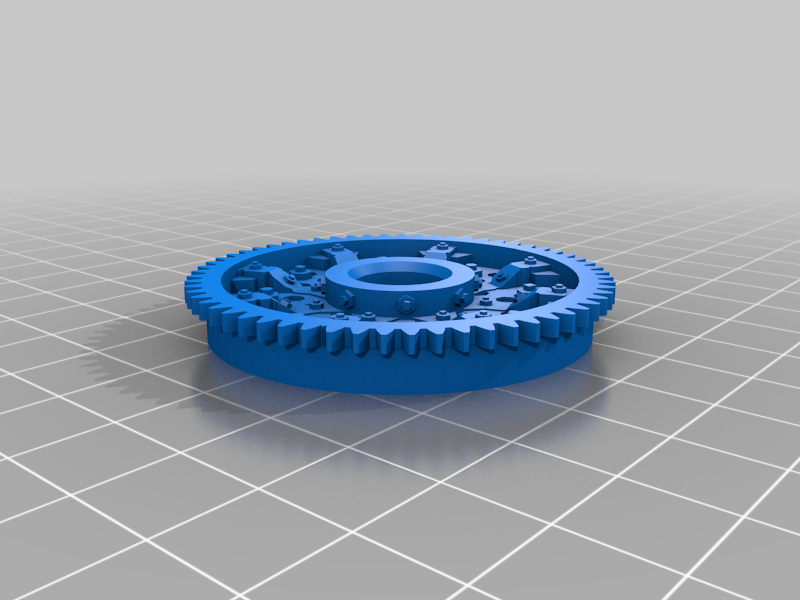

  • Fortress_DeffRolla_02.stl 51.15073 ร— 51.14349 ร— 6.9 mm

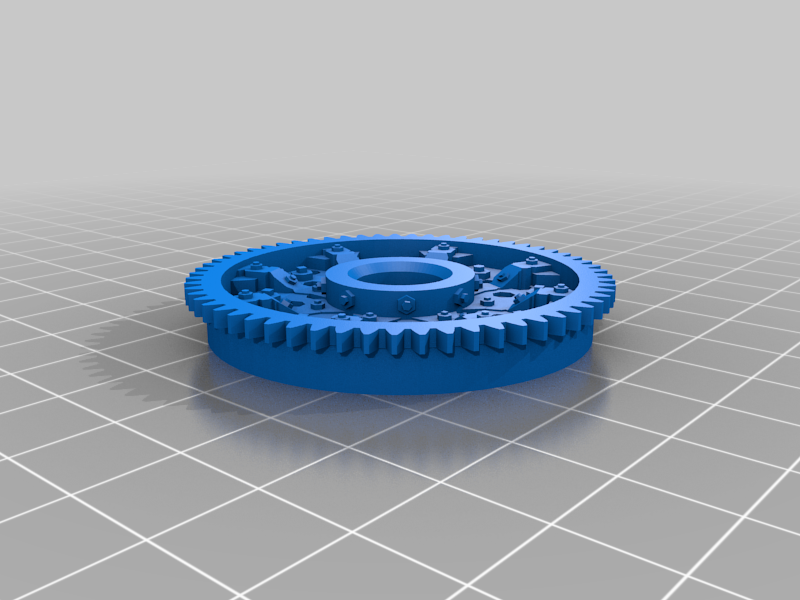

  • Fortress_DeffRolla_03.stl 51.15073 ร— 51.14349 ร— 6.9 mm
  • Fortress_DeffRolla_Pin01.stl 10.145996 ร— 10.145996 ร— 2.9 mm

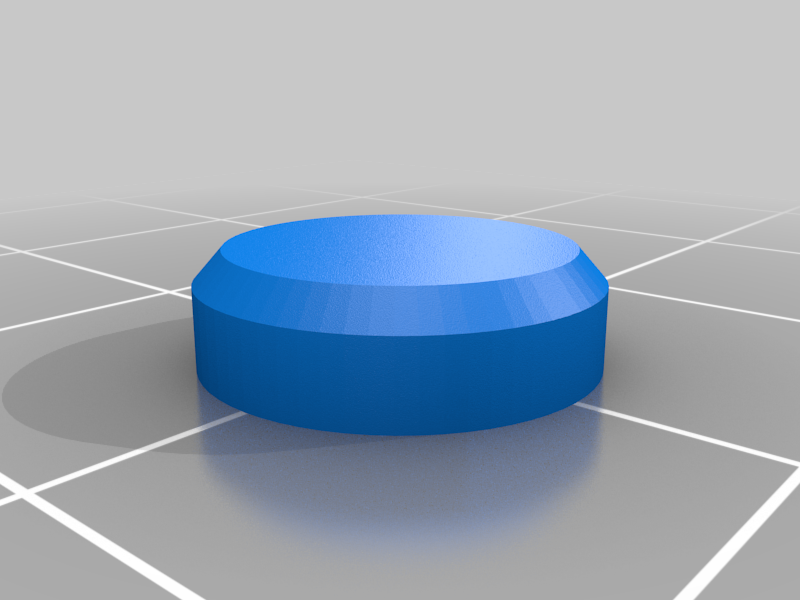

  • Fortress_DeffRolla_Pin02.stl 10.145996 ร— 10.145996 ร— 2.9 mm
  • Fortress_Engine_01.stl 34.24400300000002 ร— 65.69900100000001 ร— 20.398001 mm
  • Fortress_Engine_02.stl 20.999786 ร— 20.999779000000004 ร— 5.254966 mm
  • Fortress_Engine_Exhaust.stl 29.513306 ร— 34.836647 ร— 37.82661 mm
  • Fortress_Engine_Tank_01.stl 19.988595000000004 ร— 19.988586999999995 ร— 26.215 mm
  • Fortress_Engine_Tank_02.stl 19.988595000000004 ร— 19.988594000000006 ร— 26.215 mm
  • Fortress_Engine_Tank_03.stl 9.116394 ร— 8.730132999999995 ร— 17.829978999999998 mm

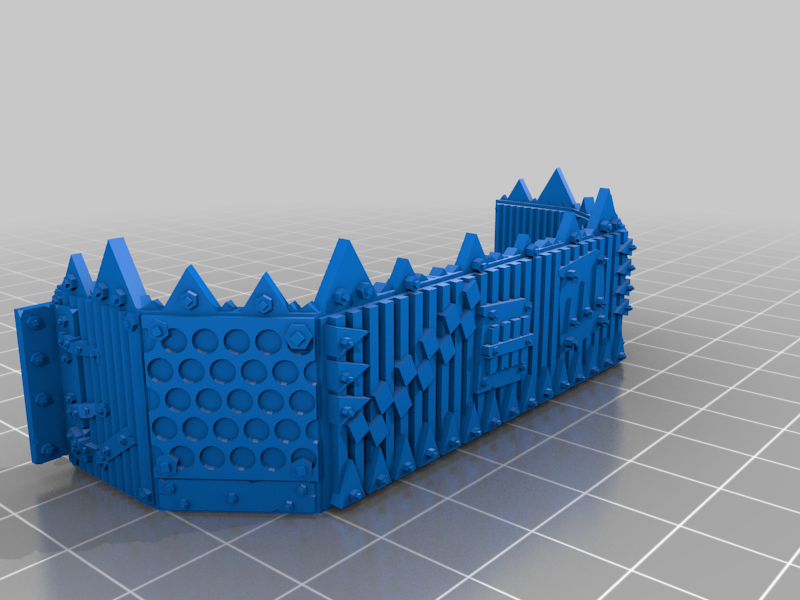

  • Fortress_GunPlatform01.stl 89.34899899999999 ร— 30.939999 ร— 26.156999999999996 mm

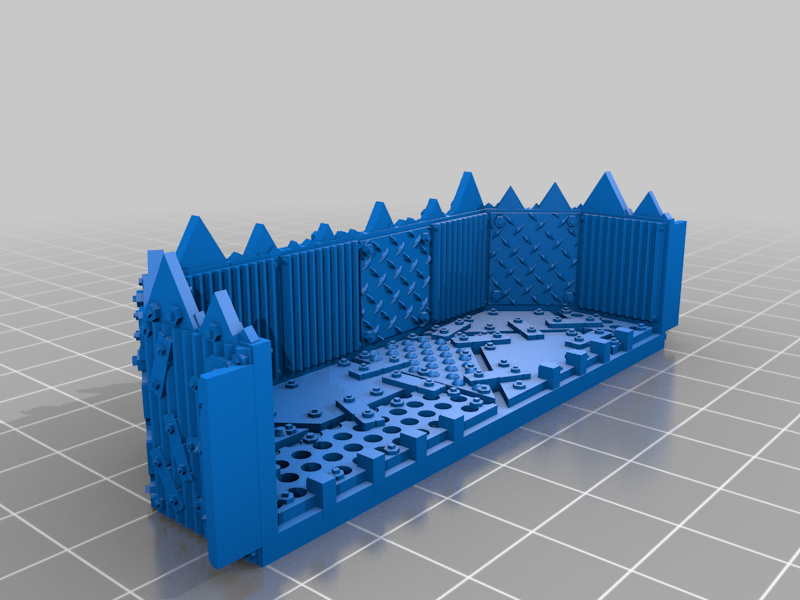

  • Fortress_GunPlatform02.stl 89.34899899999999 ร— 30.812999000000005 ร— 26.156999999999996 mm

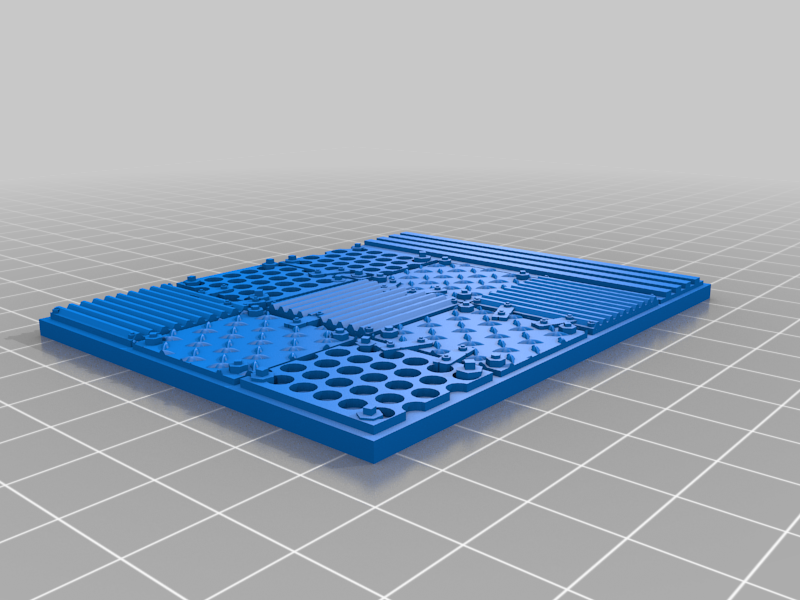

  • Fortress_Hull_01.stl 85.999998 ร— 67.0 ร— 5.098999999999998 mm
  • Fortress_Hull_02.stl 25.016006000000004 ร— 65.395996 ร— 66.99999600000001 mm
  • Fortress_Hull_03.stl 20.108999 ร— 65.59300200000001 ร— 66.998002 mm

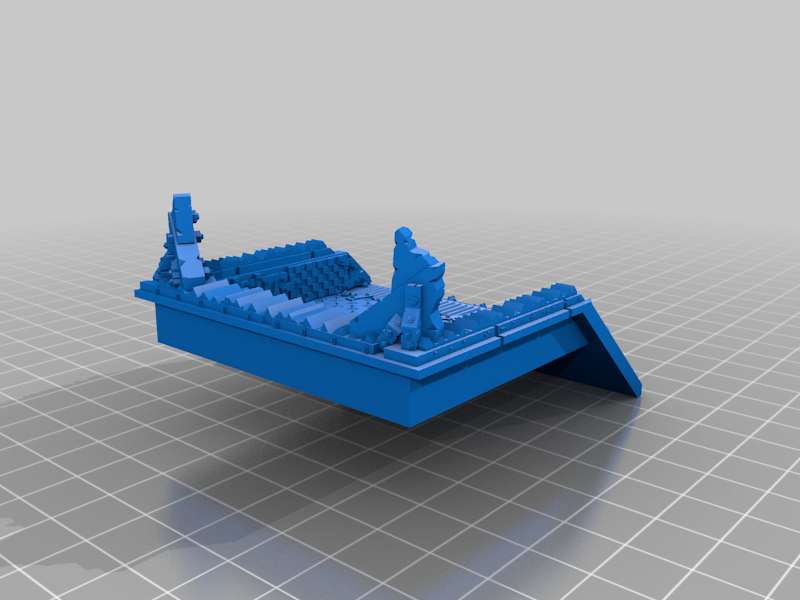

  • Fortress_Hull_Hard_Top.stl 73.093001 ร— 69.701 ร— 43.558434000000005 mm

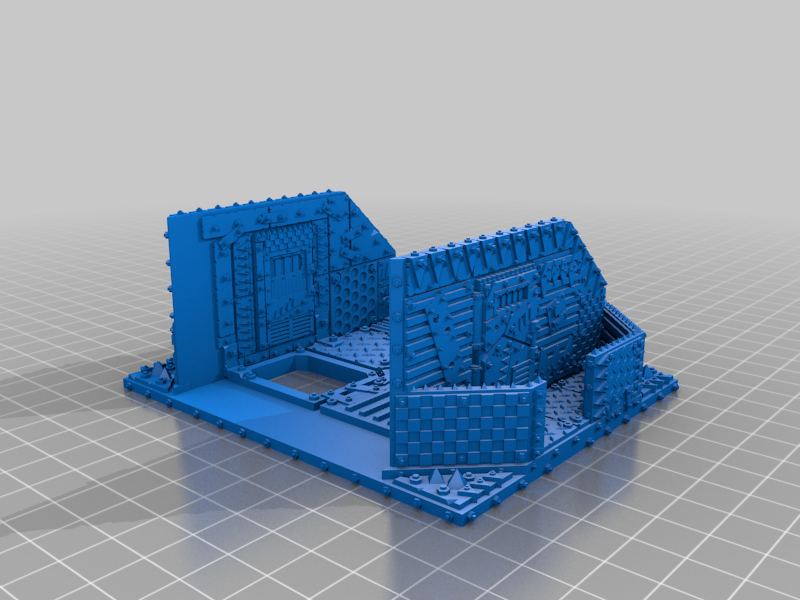

  • Fortress_Hull_Top.stl 94.237999 ร— 111.012001 ร— 46.89400500000001 mm
  • Fortress_Kannon01.stl 38.718999000000004 ร— 53.42102 ร— 26.171999 mm
  • Fortress_Kannon02.stl 29.555001000000004 ร— 29.55600000000001 ร— 108.299003 mm
  • Fortress_Kannon03.stl 18.86568400000001 ร— 18.865691999999996 ร— 3.7984850000000003 mm
  • Fortress_Kannon04.stl 28.155663999999998 ร— 23.523055999999997 ร— 20.528512999999997 mm
  • Fortress_OrkyGlyph.stl 43.689764 ร— 37.40072600000002 ร— 3.0 mm

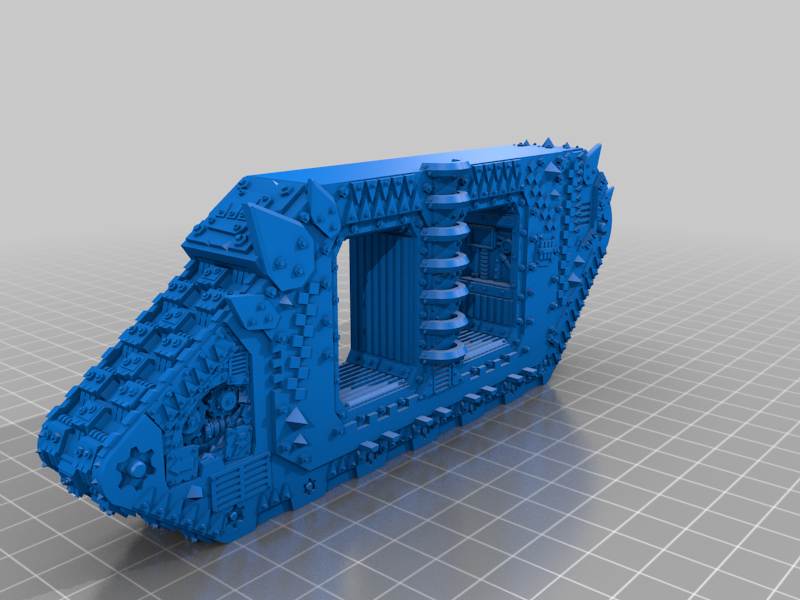

  • Fortress_Trakk01.stl 170.808998 ร— 27.428002 ร— 66.747002 mm

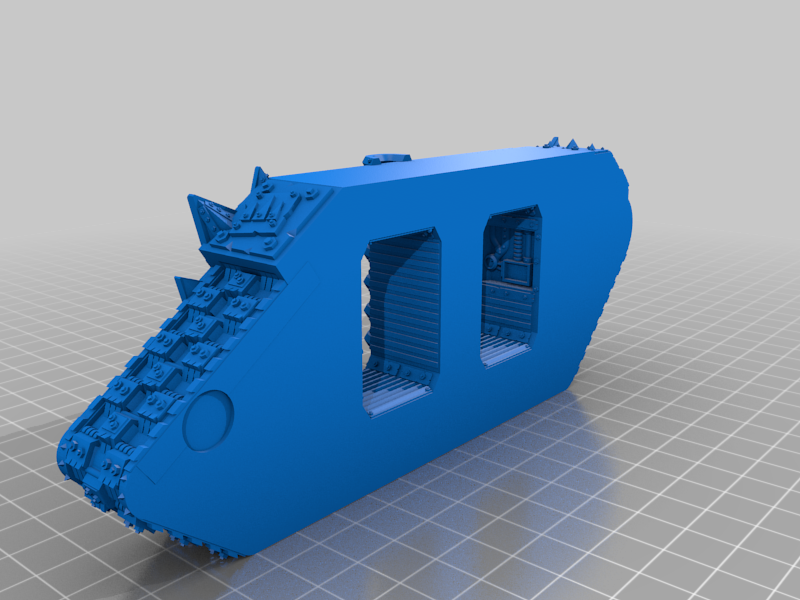

  • Fortress_Trakk02.stl 170.808998 ร— 27.428001000000002 ร— 66.747002 mm
  • ReadMe.txt

Learn more about the formats
Publication date
Design number 404757
Design author Tersus
Tersus

Tersus

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

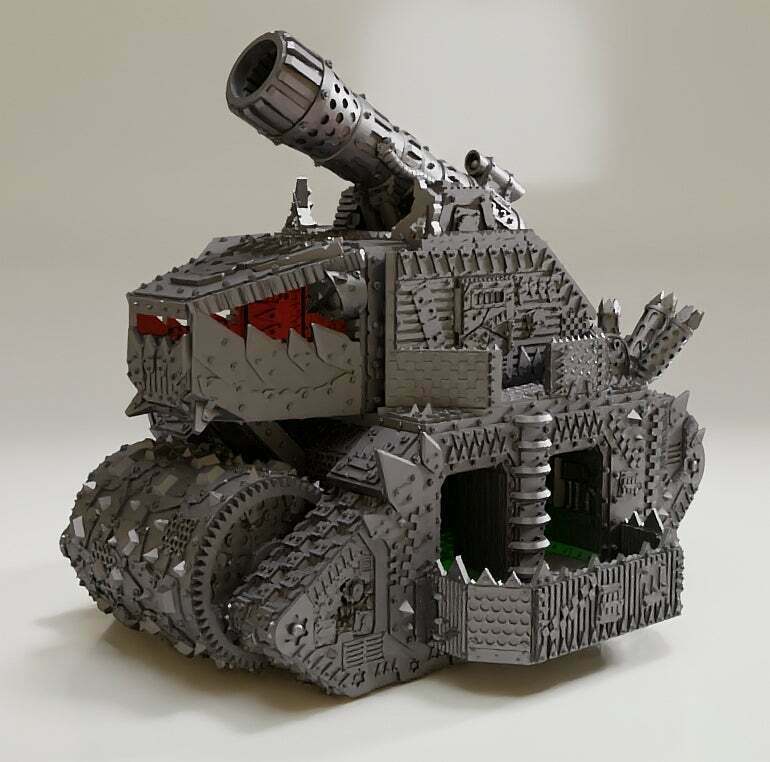

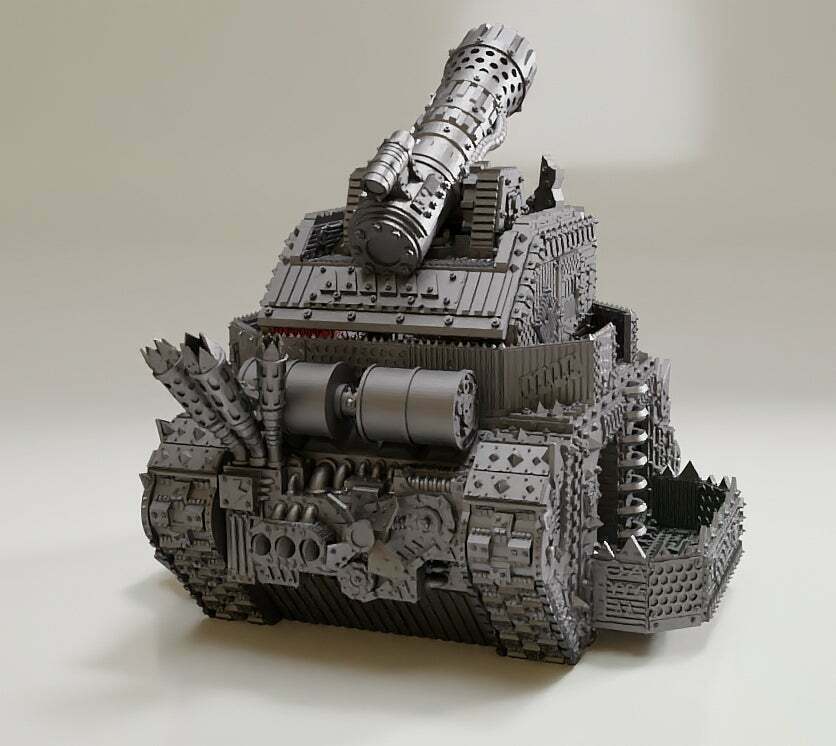

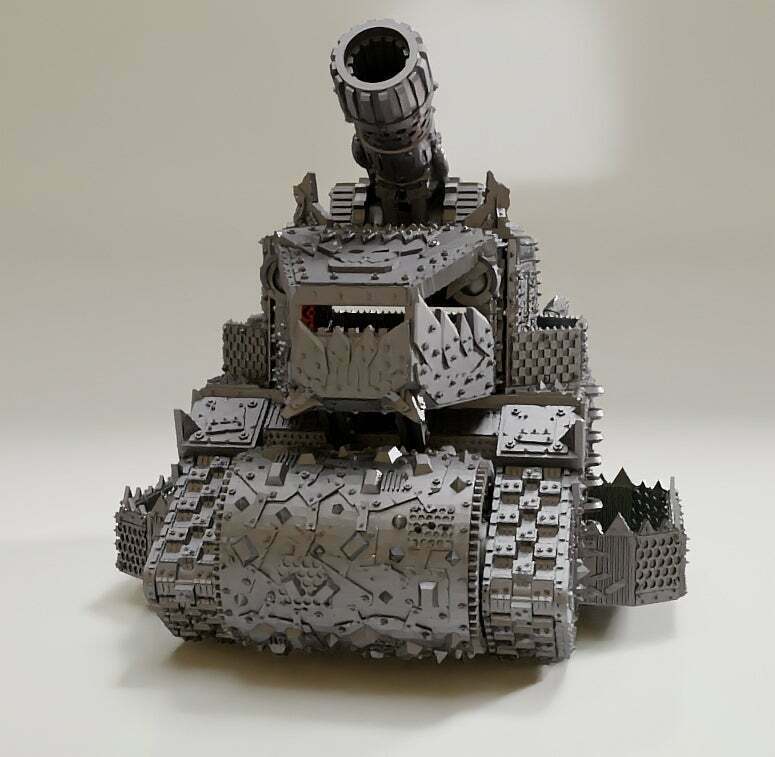

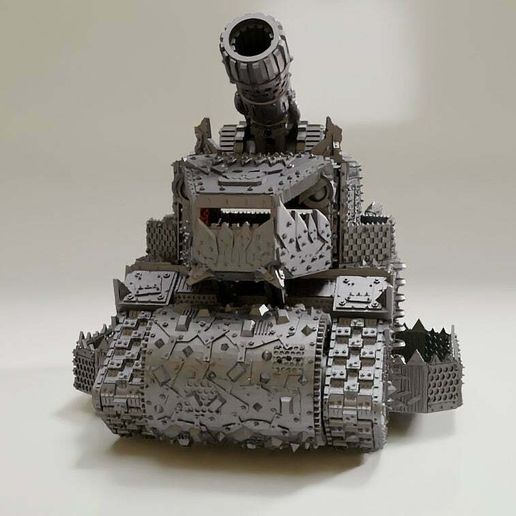

'Uge battle fORKtress to krush unlucky gitz not fast 'nuff to run away from this beast!

Print the larger parts with 0.12mm
Print the smaller parts with 0.1mm

As infill I used ca. 12% gyroid

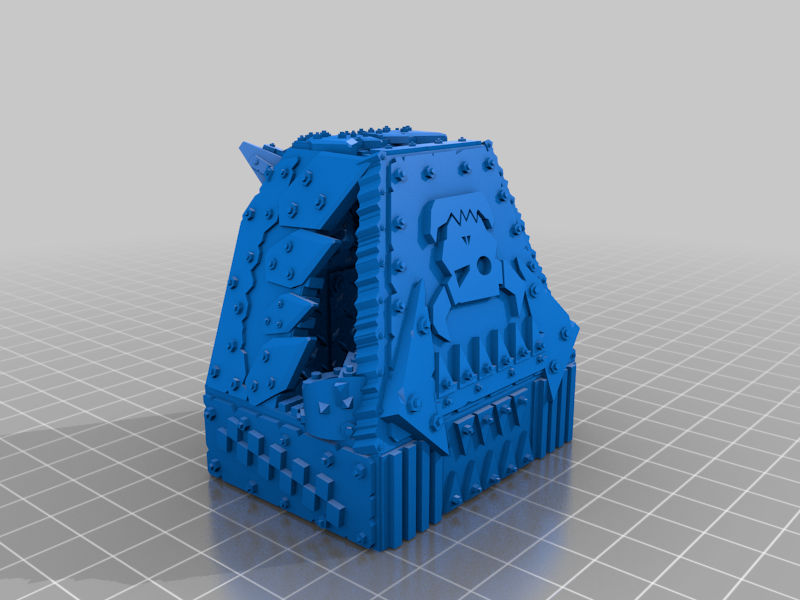

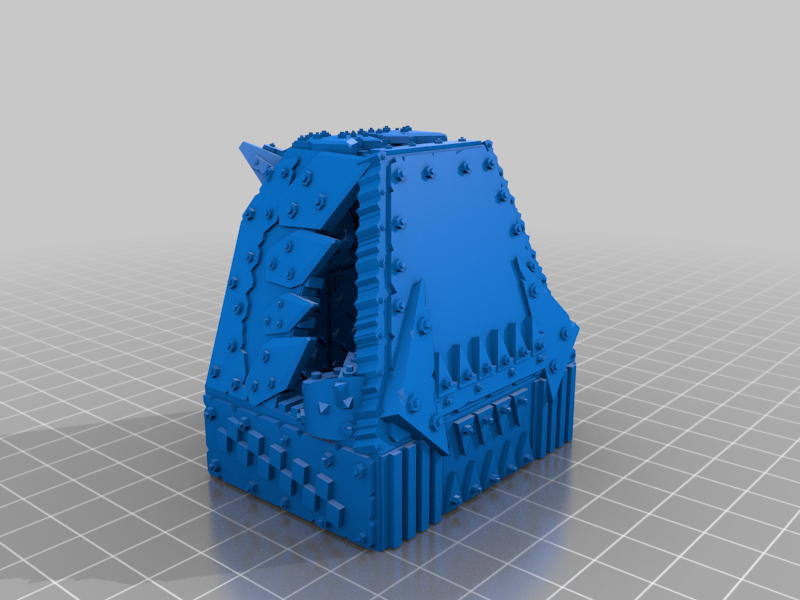

The cab has two versions: with and without glyph to add your own if you want

No supports needed for:
- Fortress_Cab
- Fortress_DeffRolla_01
- Fortress_DeffRolla_Pin01
- Fortress_DeffRolla_Pin02
- Fortress_Engine_01
- Fortress_Hull_01
- Fortress_Hull_02
- Fortress_Hull_03
- Fortress_Hull_Top
- Fortress_Kannon02
- Fortress_Kannon03
- Fortress_Trakk01
- Fortress_Trakk02

Everything else (might) need regular supports
- Fortress_Engine_Exhaust prints best with tree support

Assembly:

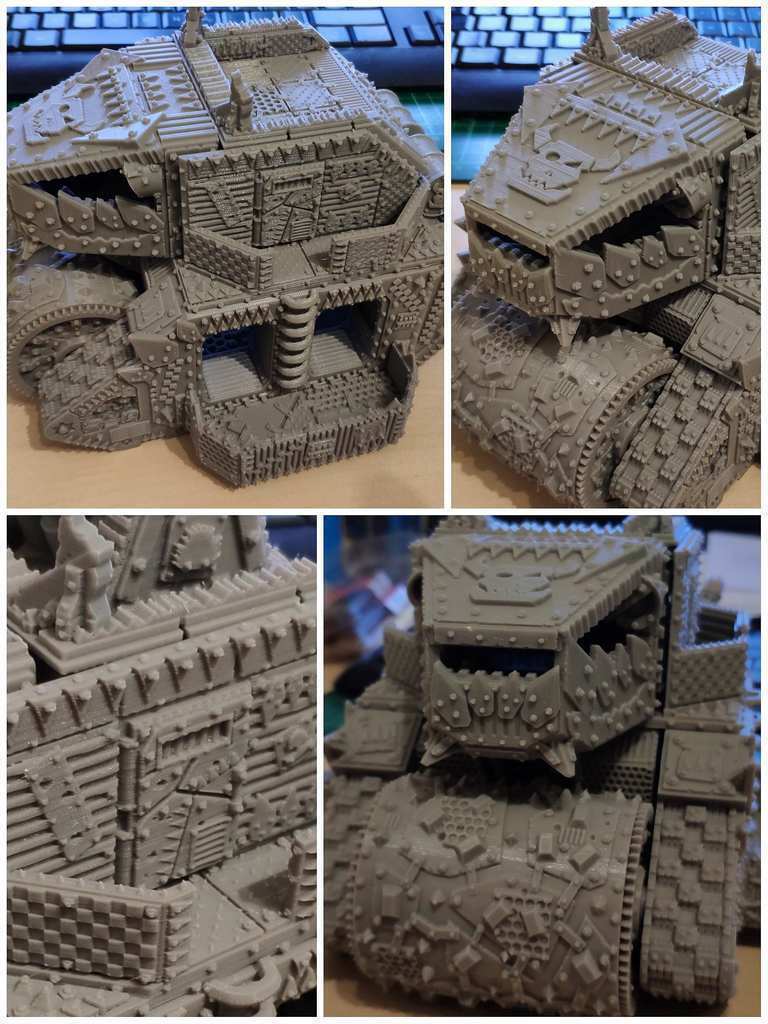

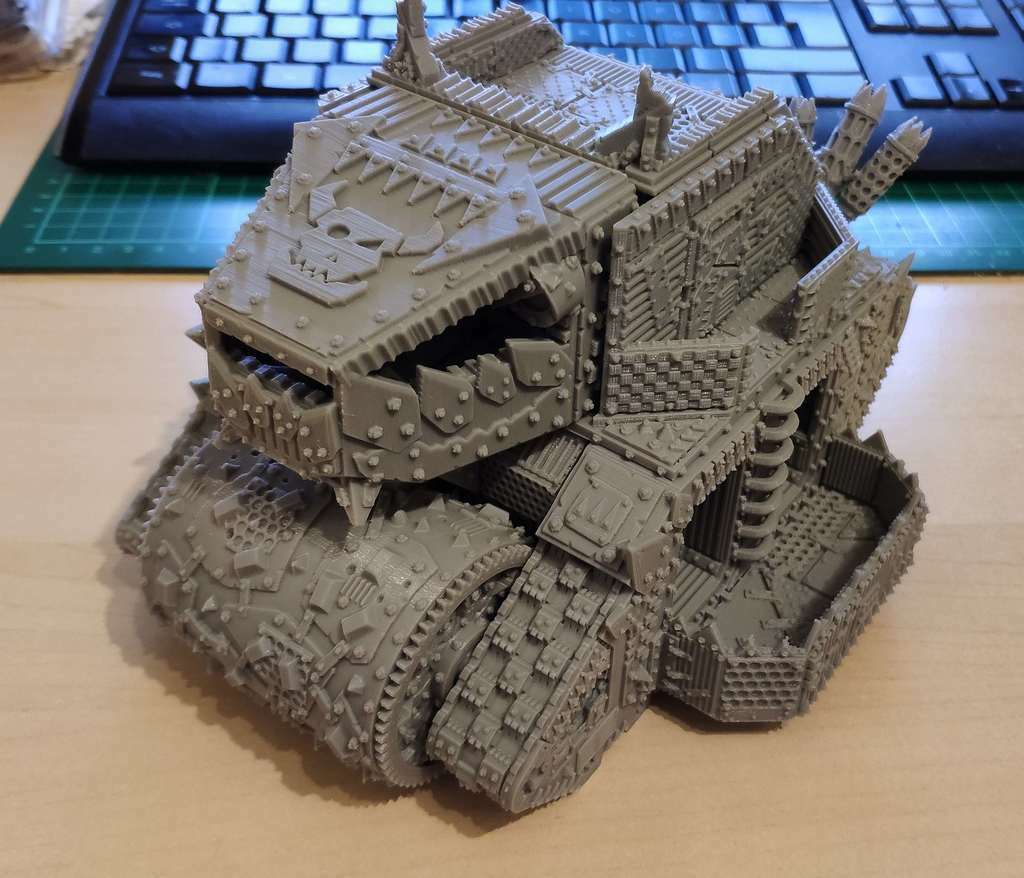

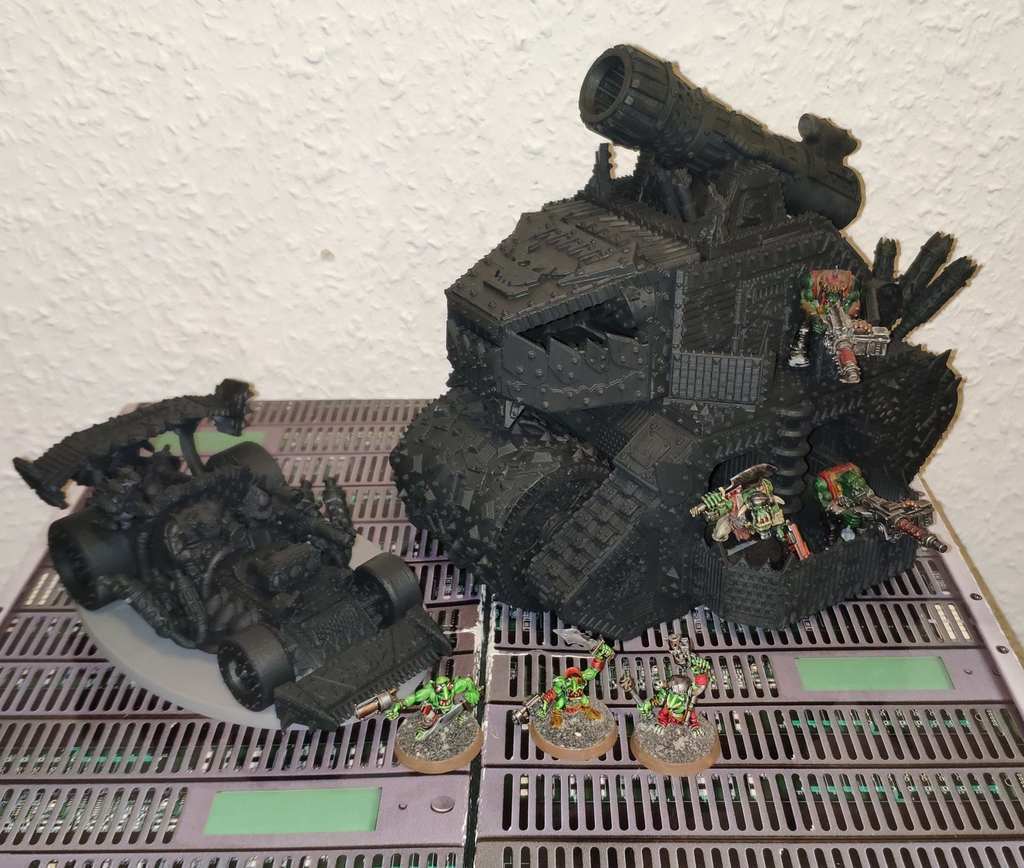

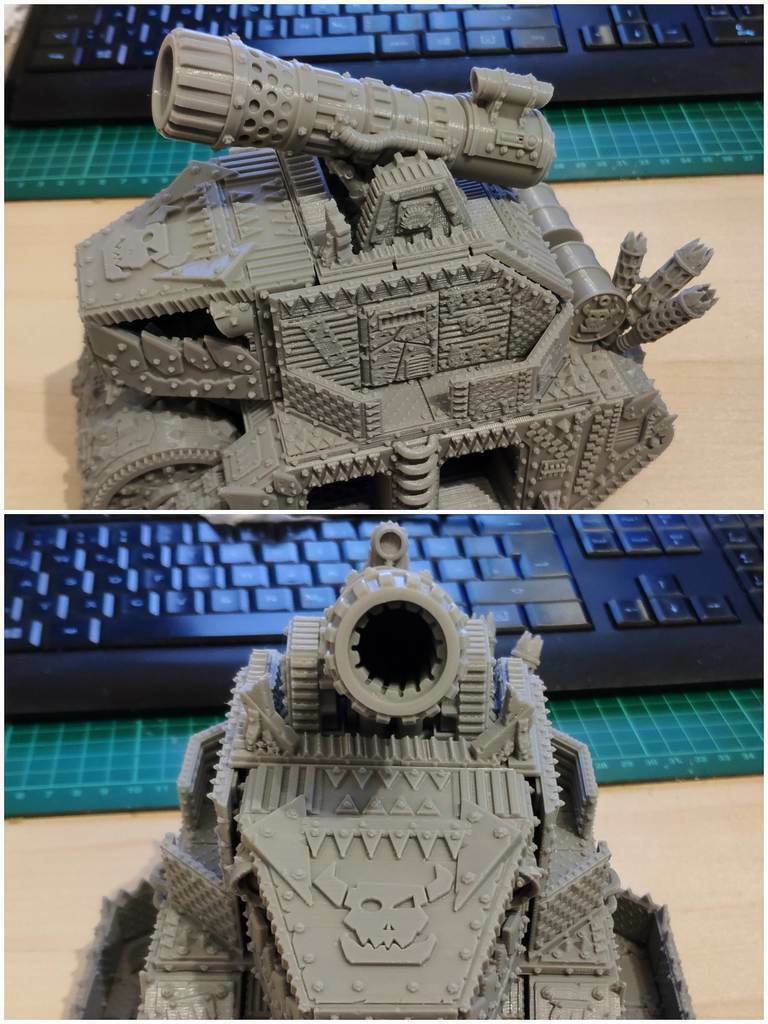

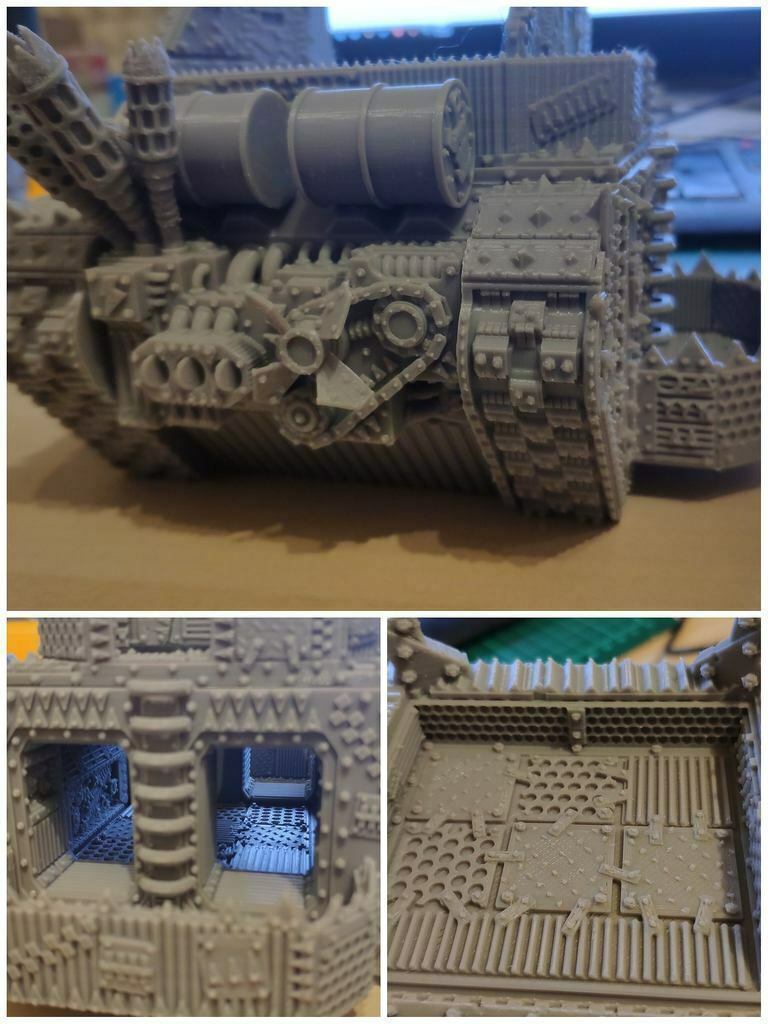

- Please see the Pictures :-)
- Most parts will fit only where they should.
- Fortress_Cab_Beam01 & Fortress_Cab_Beam02 are holding the cab and belongs to Fortress_Hull_03, there are slight gaps where they fit (test without glue!)
- I recommend to paint first, then glue the parts since the interieur would be impossile to reach later.
- Fortress_Kannon01 has a slot or a 10x4mm magnet, glue this one in first and place it to the centre of the open or closed top. Then glue a 10x4mm magnet on the mating part (underside) for an easy removable kannon. Aso fits the Fortress_DeffRolla_Pins.
- The Fortress_Kannon02 (barrel) can bee glued on to fit the angle of open (high) or hard top (low) as in my pictures (design fits high angle, low doesn't fit perfect...but its not much visible later on...)
- The Fortress_Engine_01 is just glued centered to Fortress_Hull_02
- I did not glue the Fortress_Hull_Hard_Top, I wanted it to be removable.
