Kossel Mini Hexagonal Base

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
11 files (SKP, STL, and SVG) Close
  • BedPlatform.svg
  • Bottom.svg

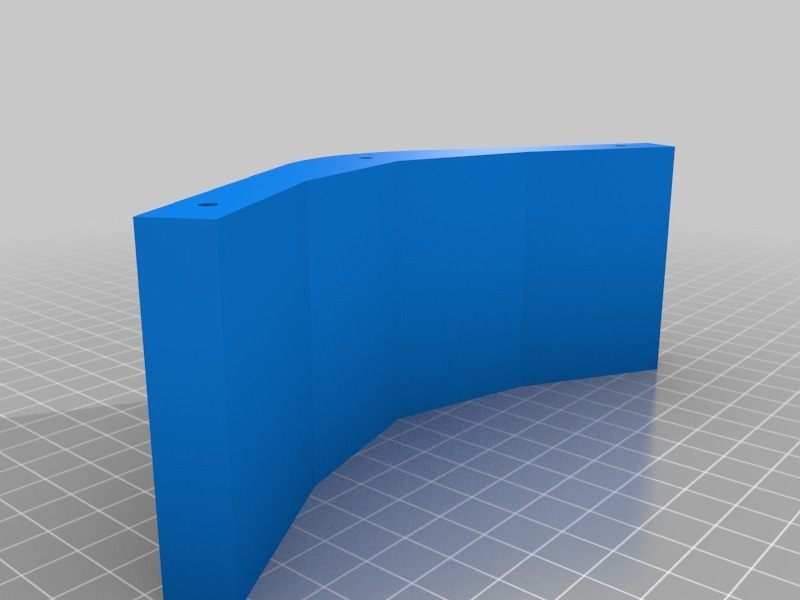

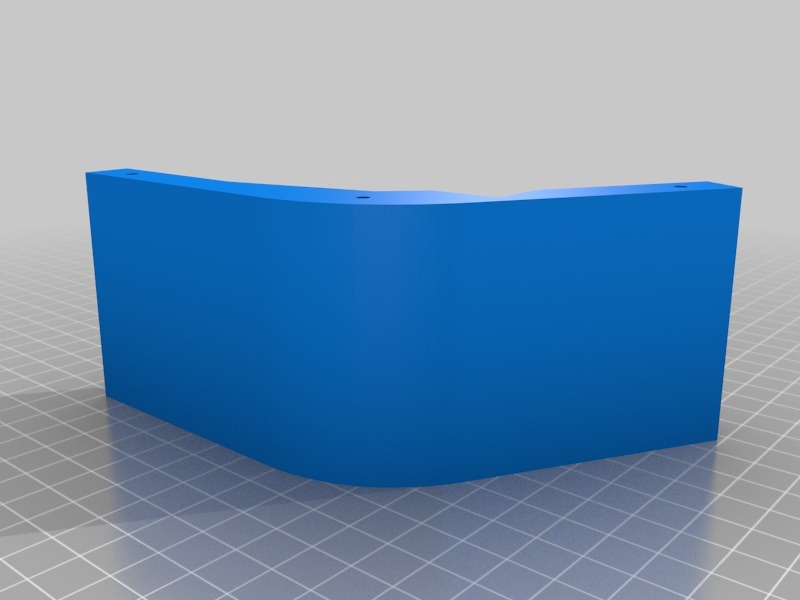

  • CornerBlock.stl 157.250298 Γ— 49.20599400000003 Γ— 60.0 mm

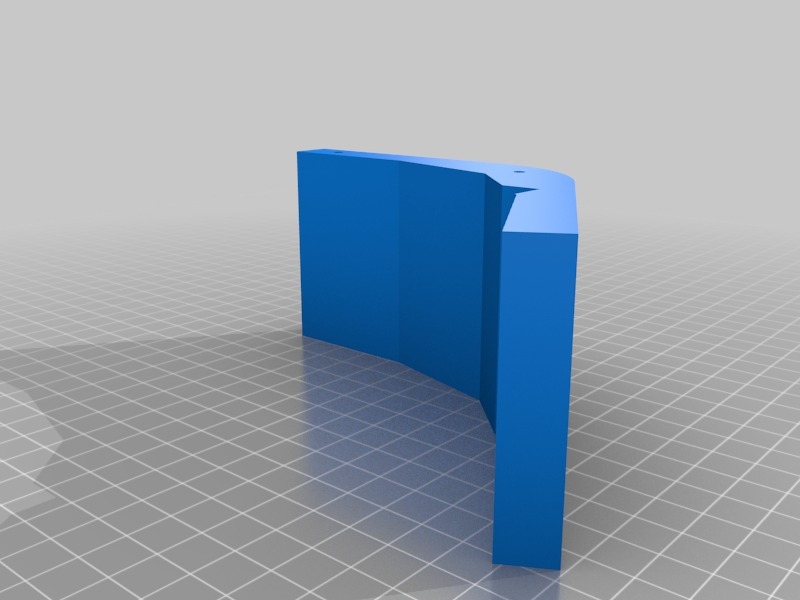

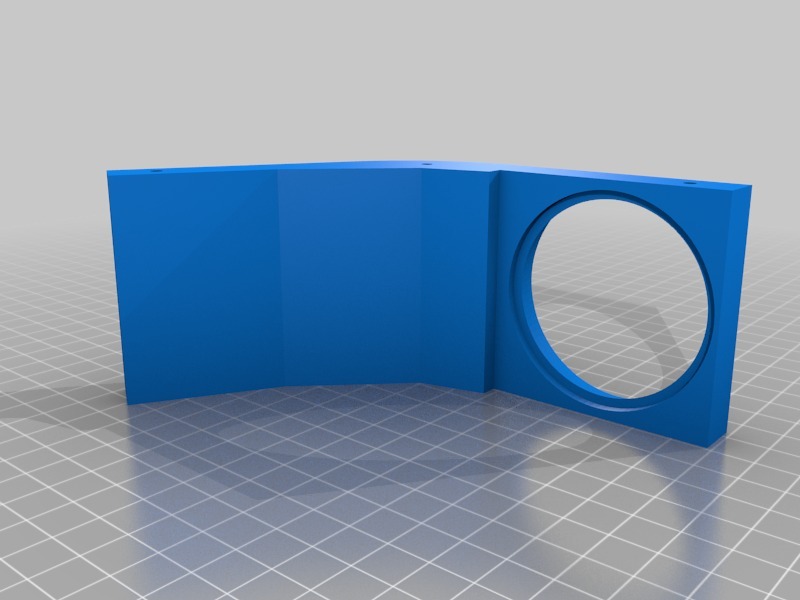

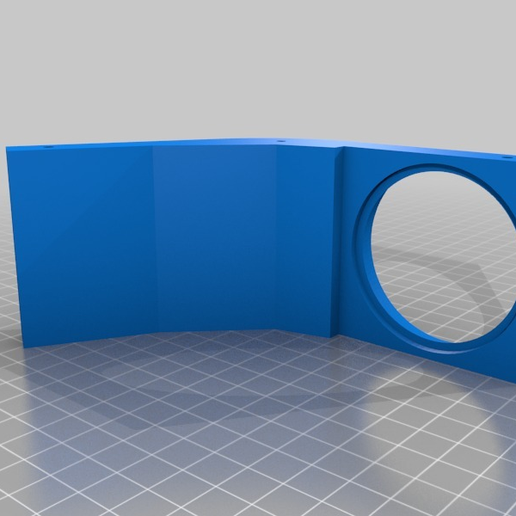

  • CornerBlockAirInlet.stl 84.85600300000002 Γ— 136.085998 Γ— 60.0 mm

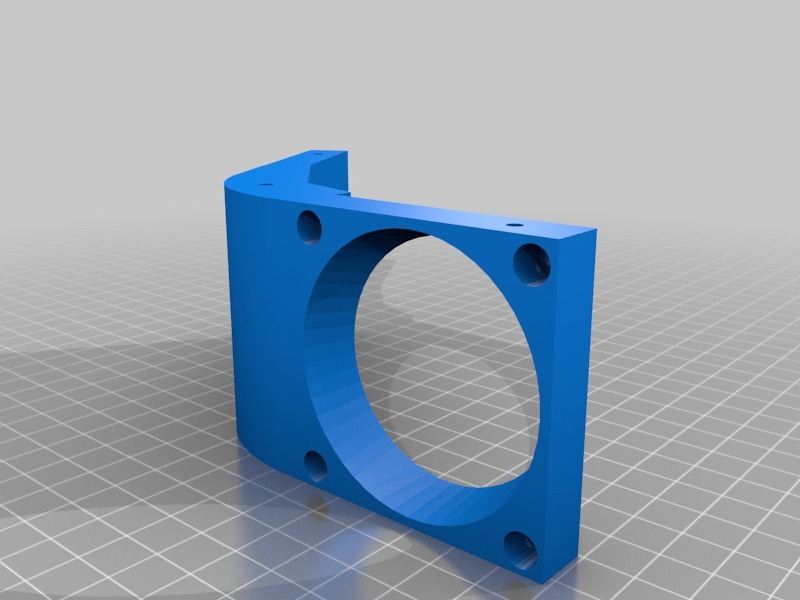

  • CornerBlockFan.stl 84.377991 Γ— 136.462005 Γ— 60.002 mm

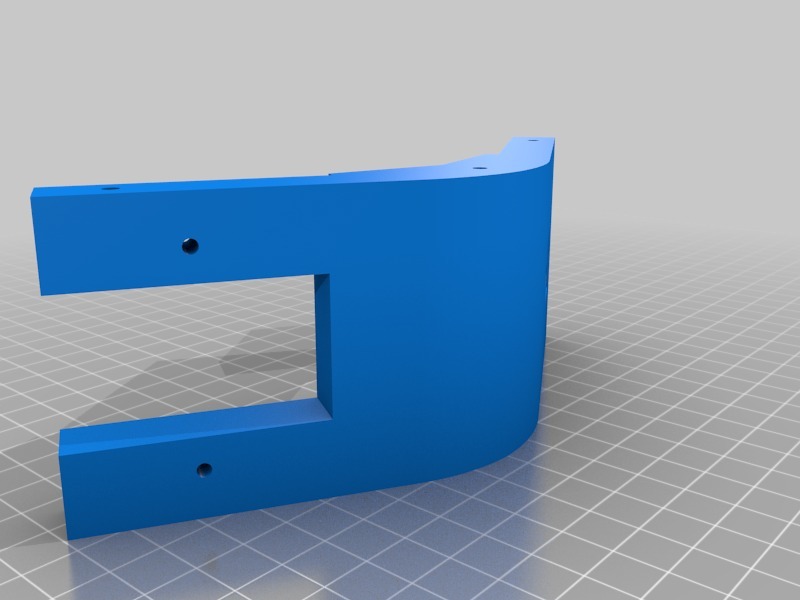

  • CornerBlockPSULeft.stl 84.856975 Γ— 136.087917 Γ— 60.001853999999994 mm
  • CornerBlockPSURight.stl 84.375992 Γ— 136.462493 Γ— 60.0 mm
  • CornerBlockPowerInletUSB.stl 157.261597 Γ— 49.206004 Γ— 60.0 mm
  • KosselMiniBase.skp

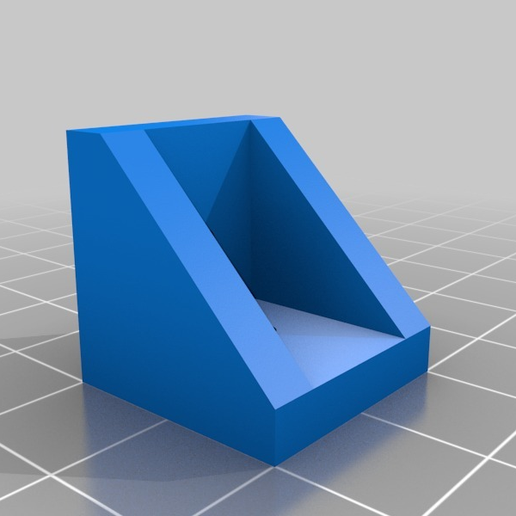

  • MountingBracket.stl 20.0 Γ— 20.0 Γ— 20.009353999999988 mm
  • Top.svg

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 538927
Design author loidolt
loidolt

loidolt

Issue with this design? Report a problem.

Template info

3D model description

This version is outdated, please check out version 2 by clicking the remix above or by following this link:

http://www.thingiverse.com/thing:1766797

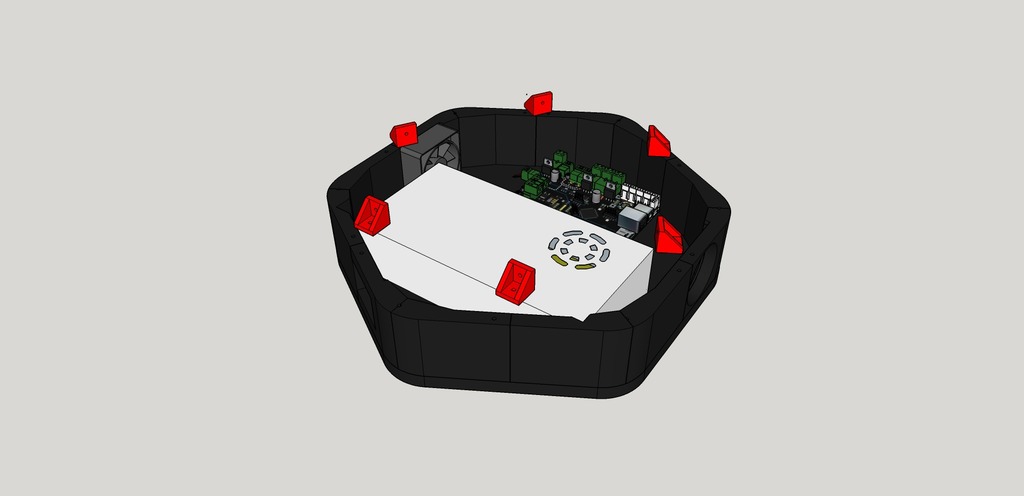

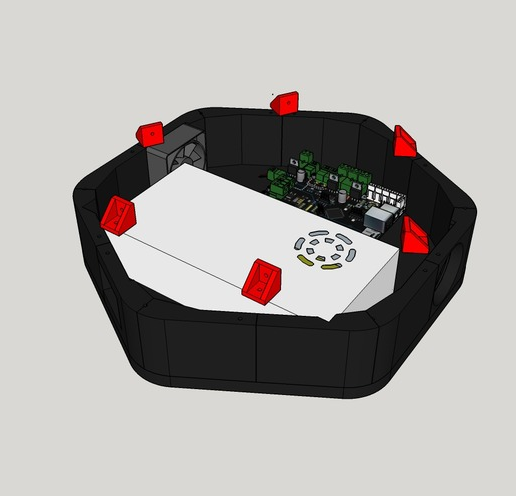

In my struggle to contain the wire and visual mess of my Kossel Mini printers, I designed this base.

Designed to fit almost any Kossel Mini style printer up to 220 mm build platform diameter, smaller sizes will work just fine as well. The use of brackets to attach the printer to the base allows very flexible sizes and configurations.

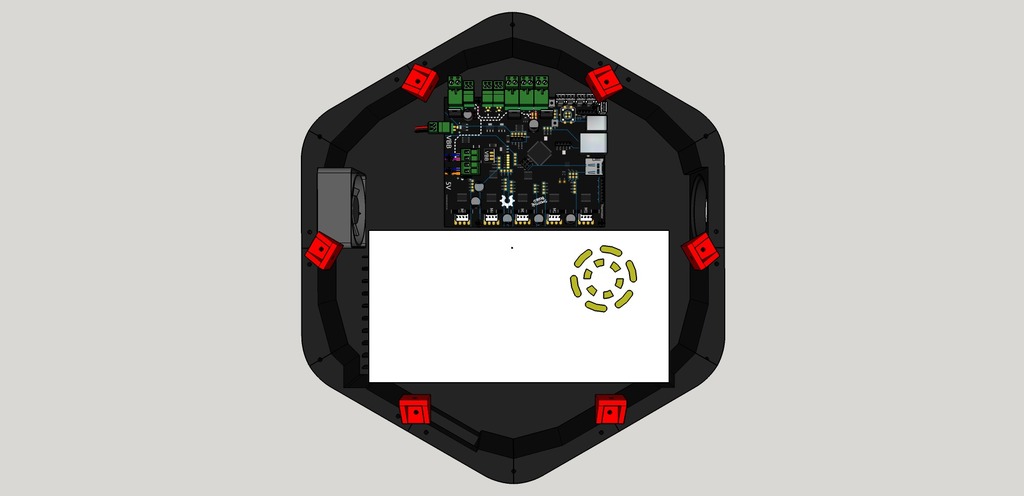

The model shows a Smoothieboard, though there is plenty of room for a RAMPS 1.4 or most other printer control boards in that space instead.

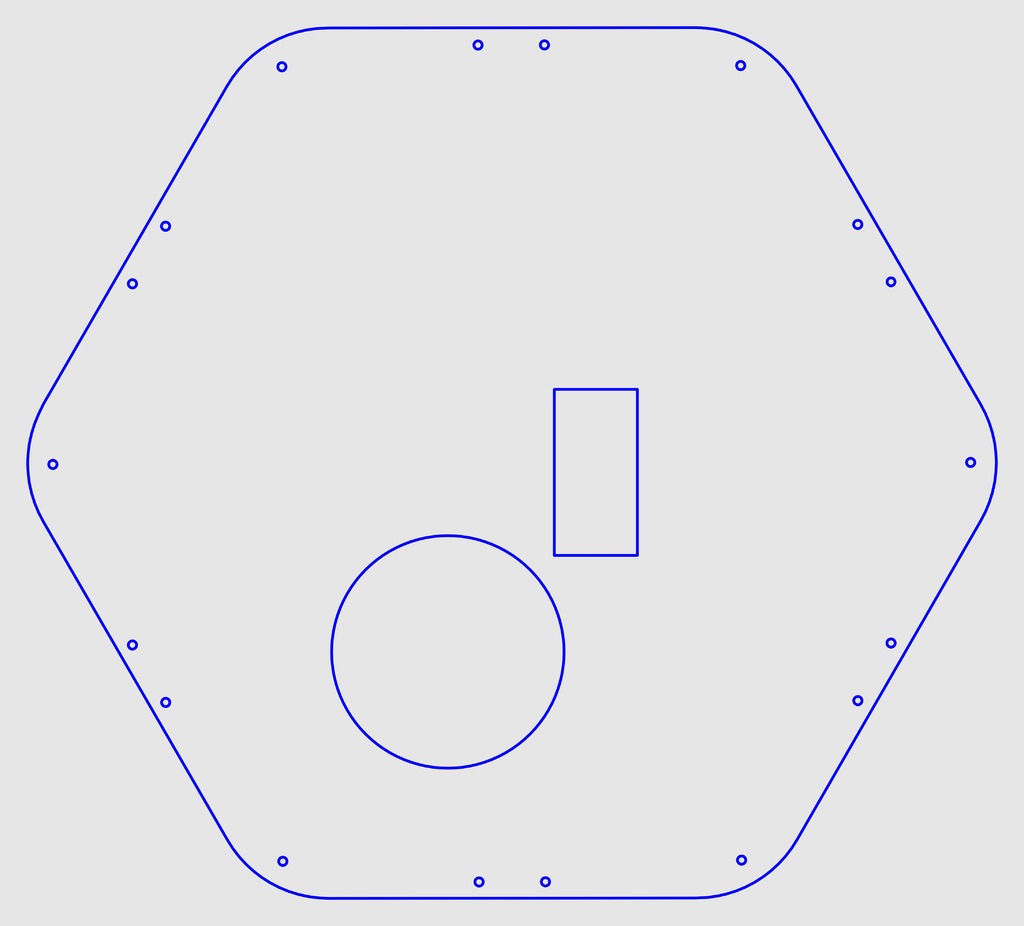

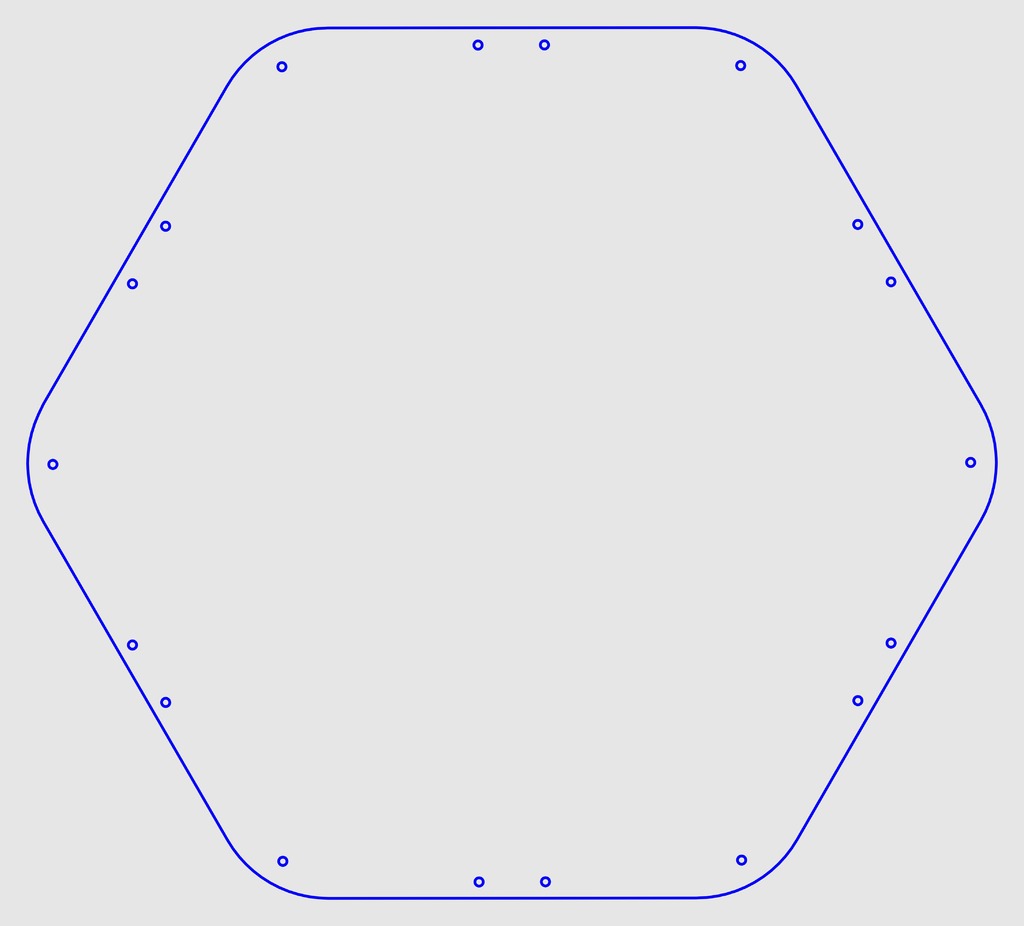

You will need a saw, drill and some patience or a CNC/ laser cutter for the top and bottom sheets that complete the base as well as the bed support and insulation circle. 1:1 scale SVG files are included for all of those pieces. You can either print them out and cut around them or load up your CAM software of choice.

Thanks!
