Festool OF 1010 Router Copy Rings Kit

001.jpg Festool OF 1010 Router Copy Rings Kit
002.jpg Festool OF 1010 Router Copy Rings Kit
003.jpg Festool OF 1010 Router Copy Rings Kit
004.jpg Festool OF 1010 Router Copy Rings Kit
005.jpg Festool OF 1010 Router Copy Rings Kit

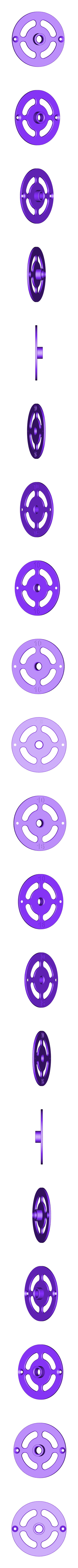

Disque 16-10 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 18-12 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 20-14 HM.stl Festool OF 1010 Router Copy Rings Kit

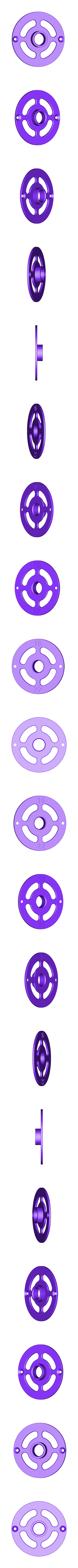

Disque 22-16 HM.stl Festool OF 1010 Router Copy Rings Kit

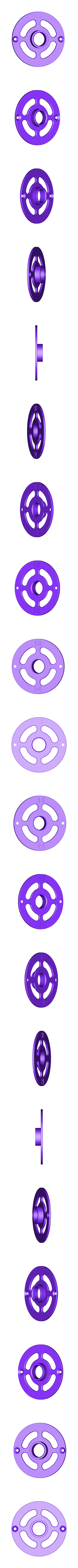

Disque 24-18 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 26-20 HM.stl Festool OF 1010 Router Copy Rings Kit

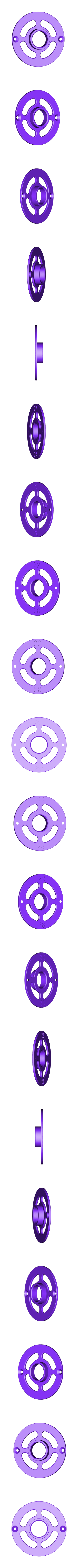

Disque 28-22 HM.stl Festool OF 1010 Router Copy Rings Kit

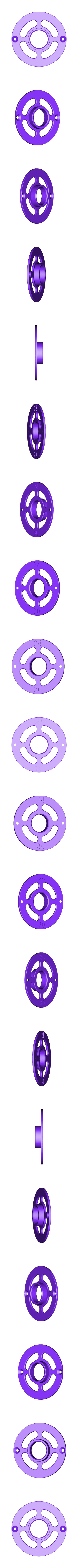

Disque 30-24 HM.stl Festool OF 1010 Router Copy Rings Kit
Ecrou 5mm HM.stl Festool OF 1010 Router Copy Rings Kit
Vis 5mm HM.stl Festool OF 1010 Router Copy Rings Kit
001.jpg Festool OF 1010 Router Copy Rings Kit
002.jpg Festool OF 1010 Router Copy Rings Kit
003.jpg Festool OF 1010 Router Copy Rings Kit
004.jpg Festool OF 1010 Router Copy Rings Kit
005.jpg Festool OF 1010 Router Copy Rings Kit
Disque 16-10 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 18-12 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 20-14 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 22-16 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 24-18 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 26-20 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 28-22 HM.stl Festool OF 1010 Router Copy Rings Kit
Disque 30-24 HM.stl Festool OF 1010 Router Copy Rings Kit
Ecrou 5mm HM.stl Festool OF 1010 Router Copy Rings Kit
Vis 5mm HM.stl Festool OF 1010 Router Copy Rings Kit
Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
10 files (STL) Close
  • Disque 16-10 HM.stl
  • Disque 18-12 HM.stl
  • Disque 20-14 HM.stl
  • Disque 22-16 HM.stl
  • Disque 24-18 HM.stl
  • Disque 26-20 HM.stl
  • Disque 28-22 HM.stl
  • Disque 30-24 HM.stl
  • Ecrou 5mm HM.stl
  • Vis 5mm HM.stl

Learn more about the formats
Last update
Publication date
Design number 50095
Design author ramses3D
ramses3D

ramses3D

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

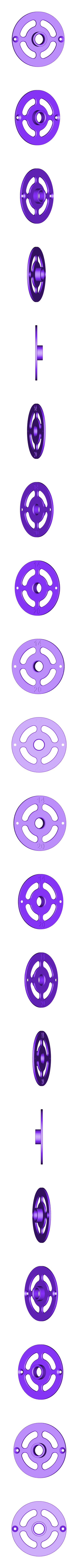

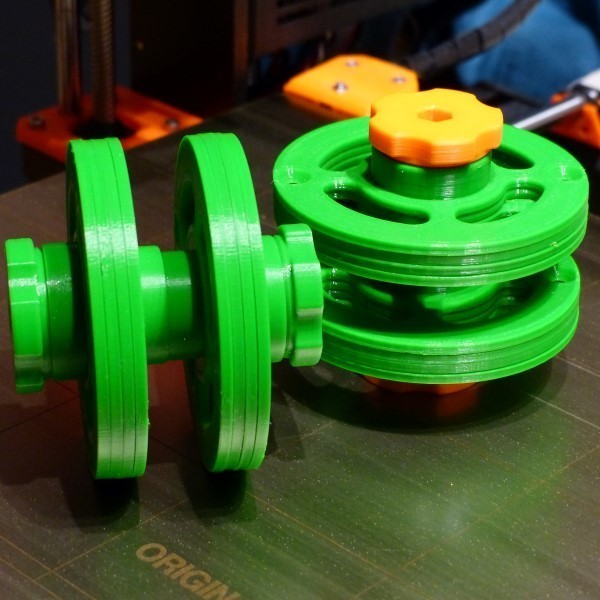

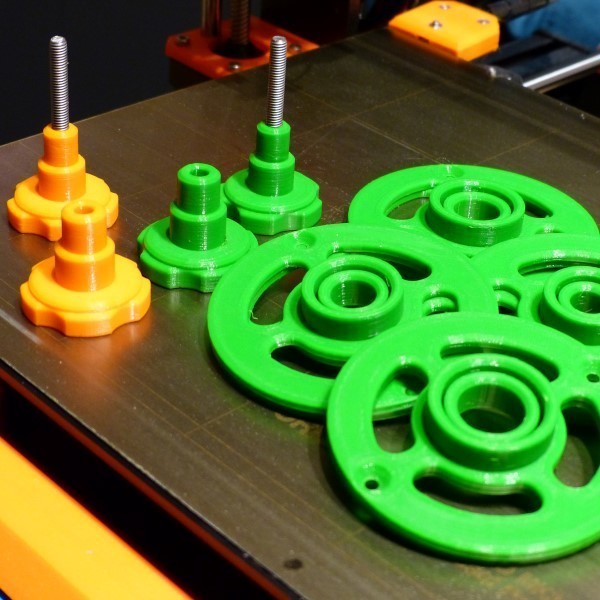

-This kit includes 8 copy rings as well as 2 stepped screws to secure the assembly.

-Each ring has the outer and inner diameter engraved on its underside. The wall of each ring is 3mm thick and the height of the ring is 7.5mm

-The kit includes the sizes: 16/10 - 18/12 - 20/14 - 22/16 - 24/18 - 26/20 - 28/22 - 30/24

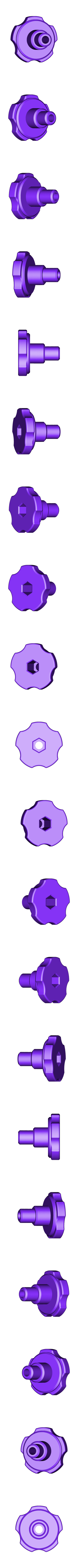

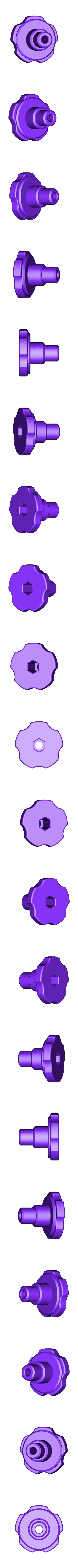

-The stepped screws are printed to accommodate a nut in M5 and a 40mm long M5 hex head screw.

-The STL files are created with a very fine mesh, this explains the "weight" of the files.

This model is for your personal, non-commercial use only. Therefore, in accordance with the license defined for this template, selling or redistributing/sharing the files or printed copies of this template is not allowed.

3D printing settings

  • Printing made in PETG (150µm) on a Prusa MK3

  • Printing recommended in PETG or ABS for better resistance to abrasion during milling.

  • 150µm layer

  • Walls in triple thickness

Page translated by automatic translation. See the original version.
