Hinge

?
Creation's quality: 3.4/5 (8 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 23.7k views
  • 80 likes
  • 3.2k downloads

3D model description

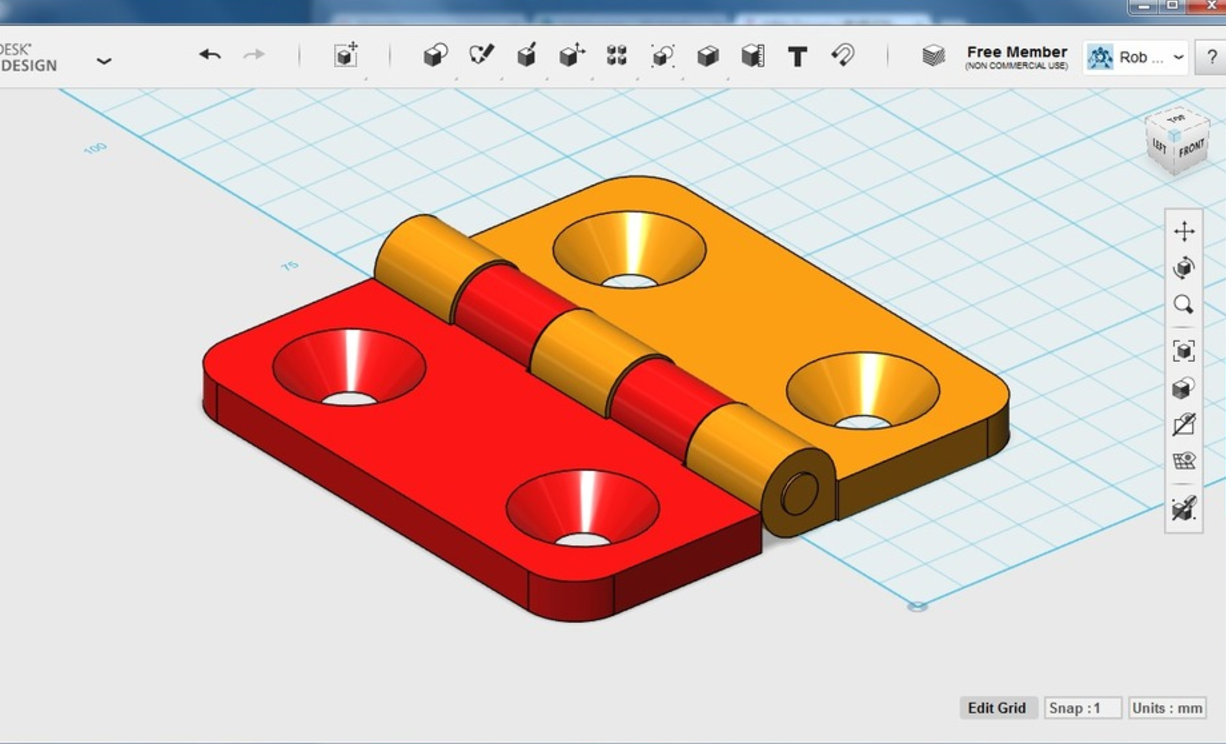

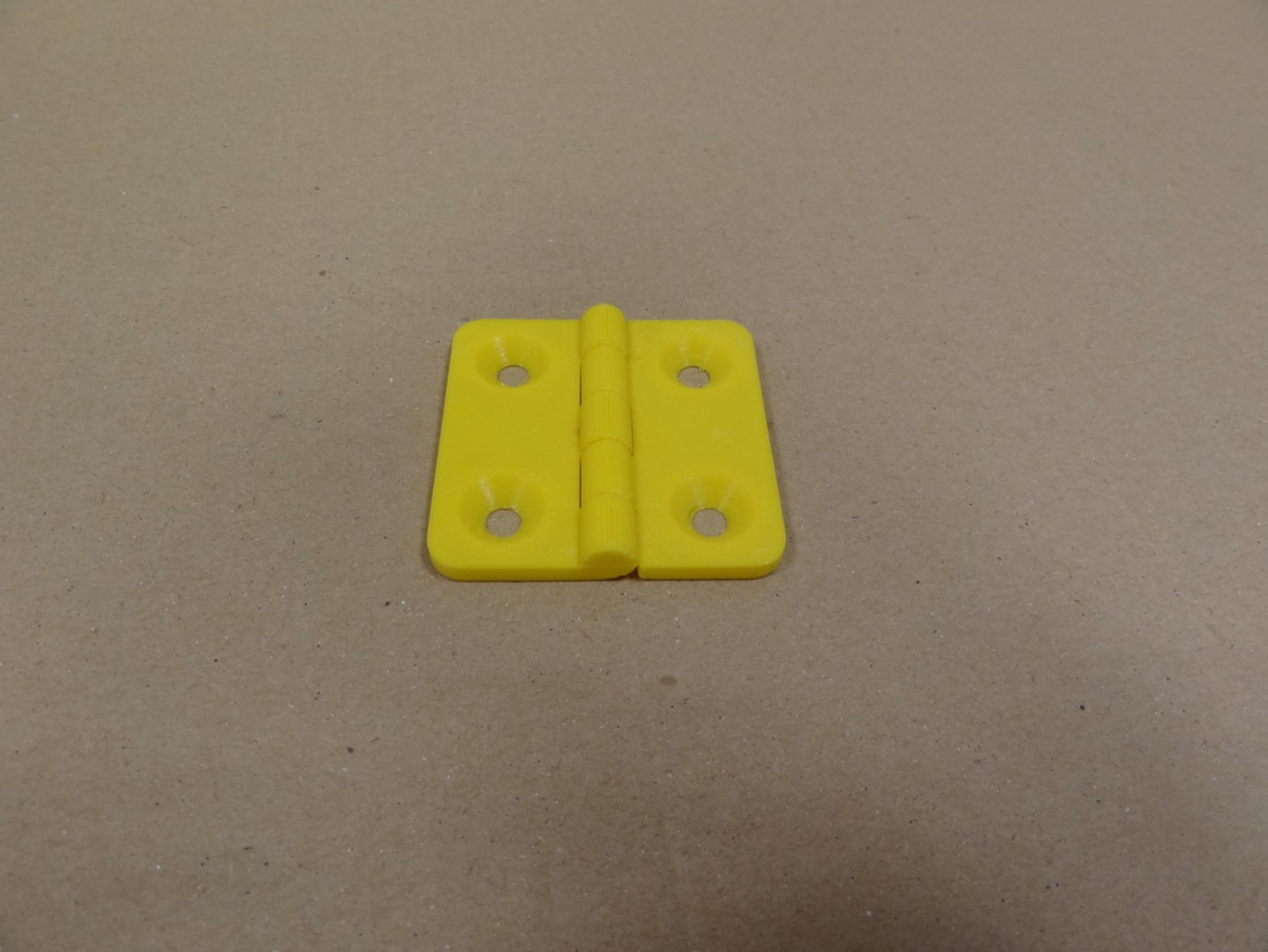

I created an integrated hinge model in 123D Design. I don't need to take hinge apart to print and assemble it. How to creat it ? Just watching the tutorial video.
https://www.youtube.com/watch?v=y_s6rYYf-fU


3D printing settings

Printer Brand:
Up!

Printer:
Up Plus2

Rafts:
Yes

Supports:
No

Resolution:
0.2mm

Infill:
big hole

3D printer file information

  • 3D design format: STL Folder details Close
    • hinge.stl
  • Publication date: 2017/01/17 at 14:26

License

CC BY NC SA

Creator

Issue with this design? Report a problem

Makes created by the community

Best sellers of the category Tools


Add a comment

3 comments

Conseguí imprimir uno pero el segundo se partió al intentar quitar los trozos de soporte. No lo puedo hacer sin soporte porque tengo un problemilla con la cama caliente que no pega muy bien las piezas.

Hay que forzarlo recién sacado de la impresora pero acaba girando perfectamente.

Realiza un giro de 270º. Funciona. Gracias!

Comment faites vous car quand on imprime toutes les partie sont collés.
