Height Gauge with Electronic Digital Caliper

?
Creation's quality: 3.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.9k views
  • 7 likes
  • 7 downloads

3D model description

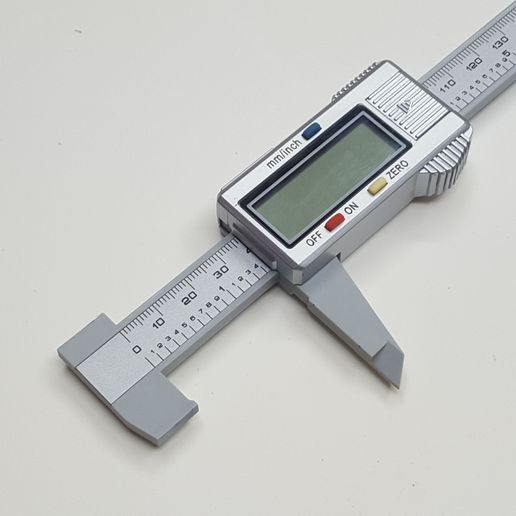

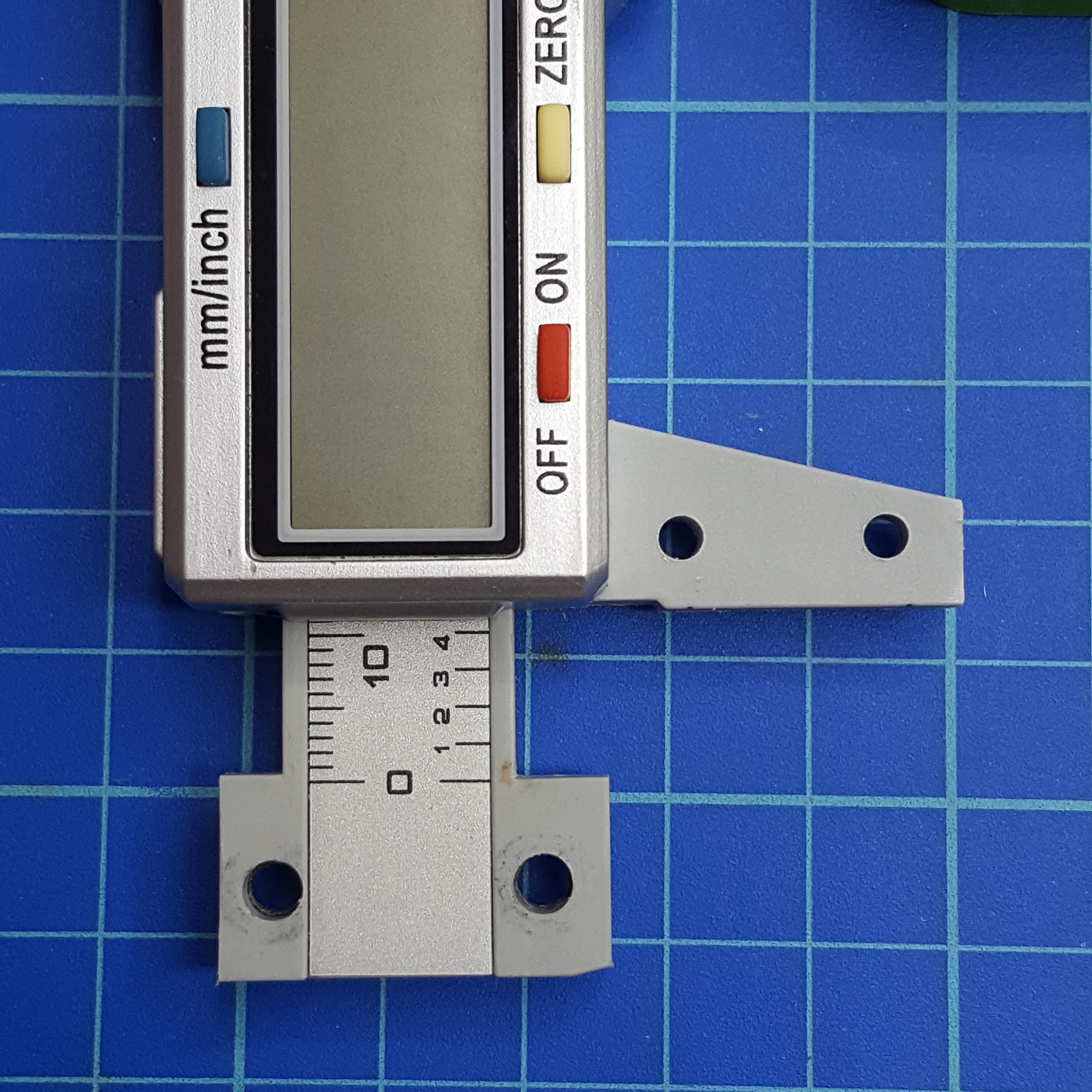

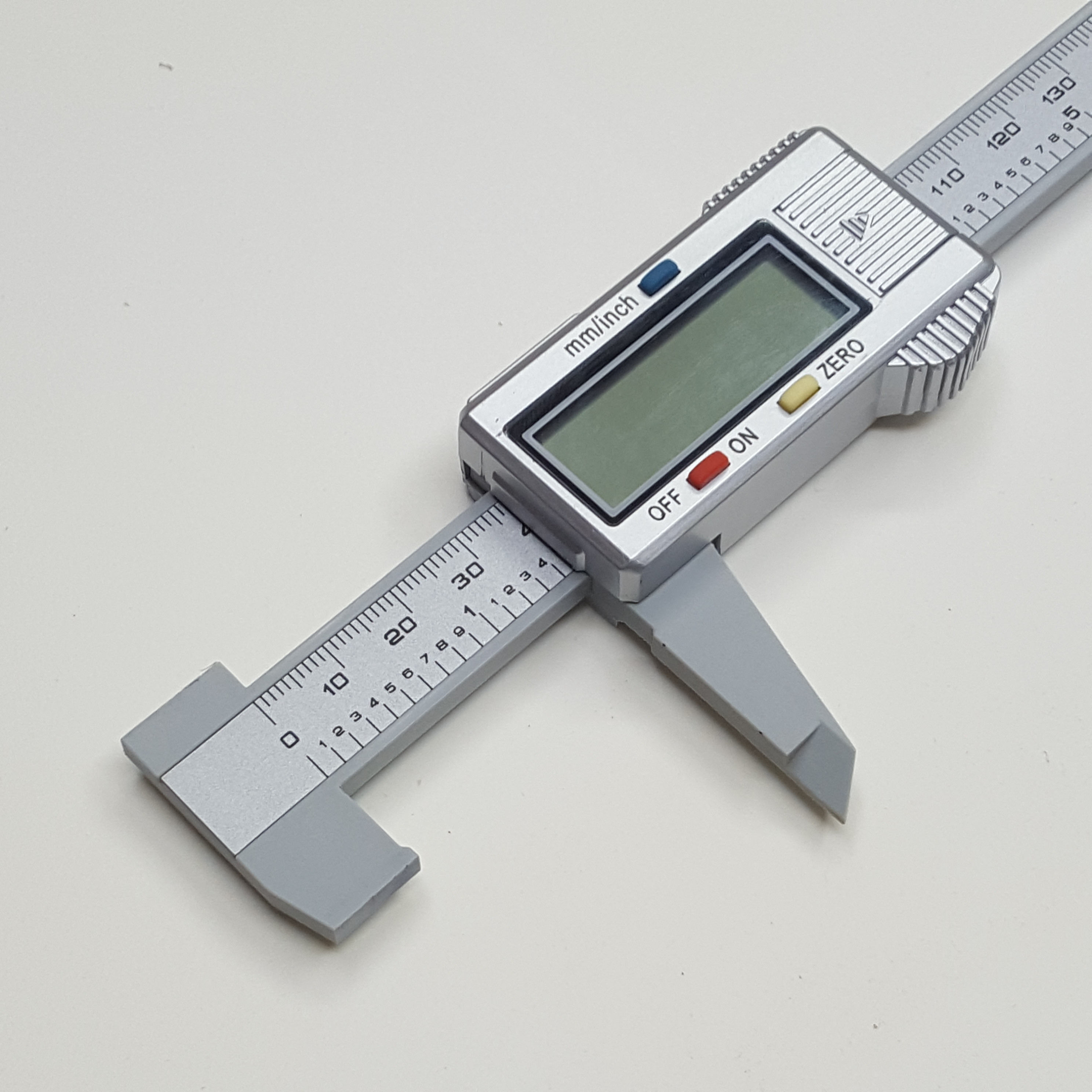

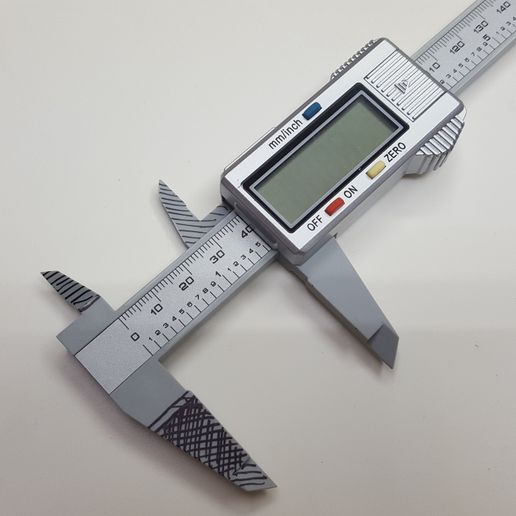

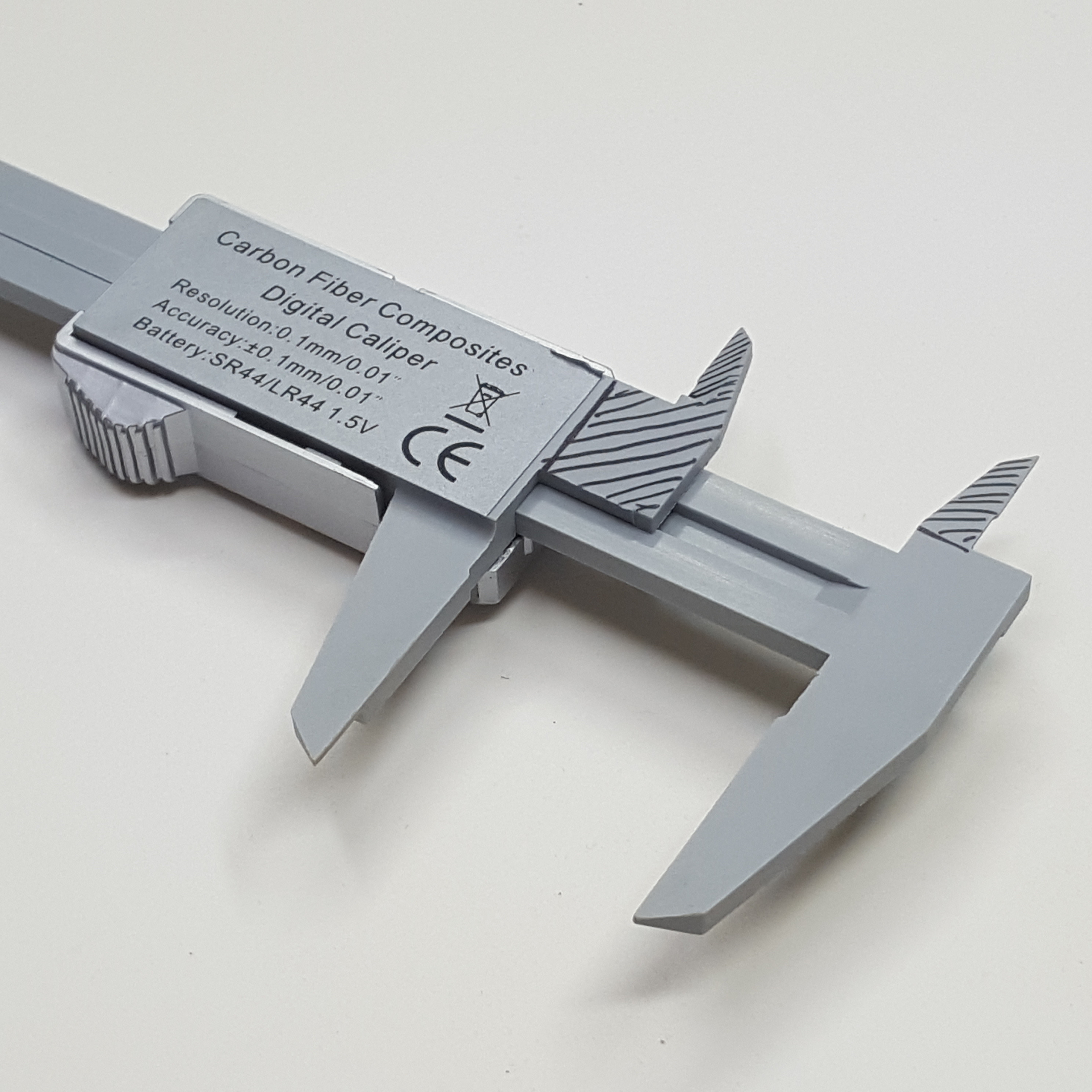

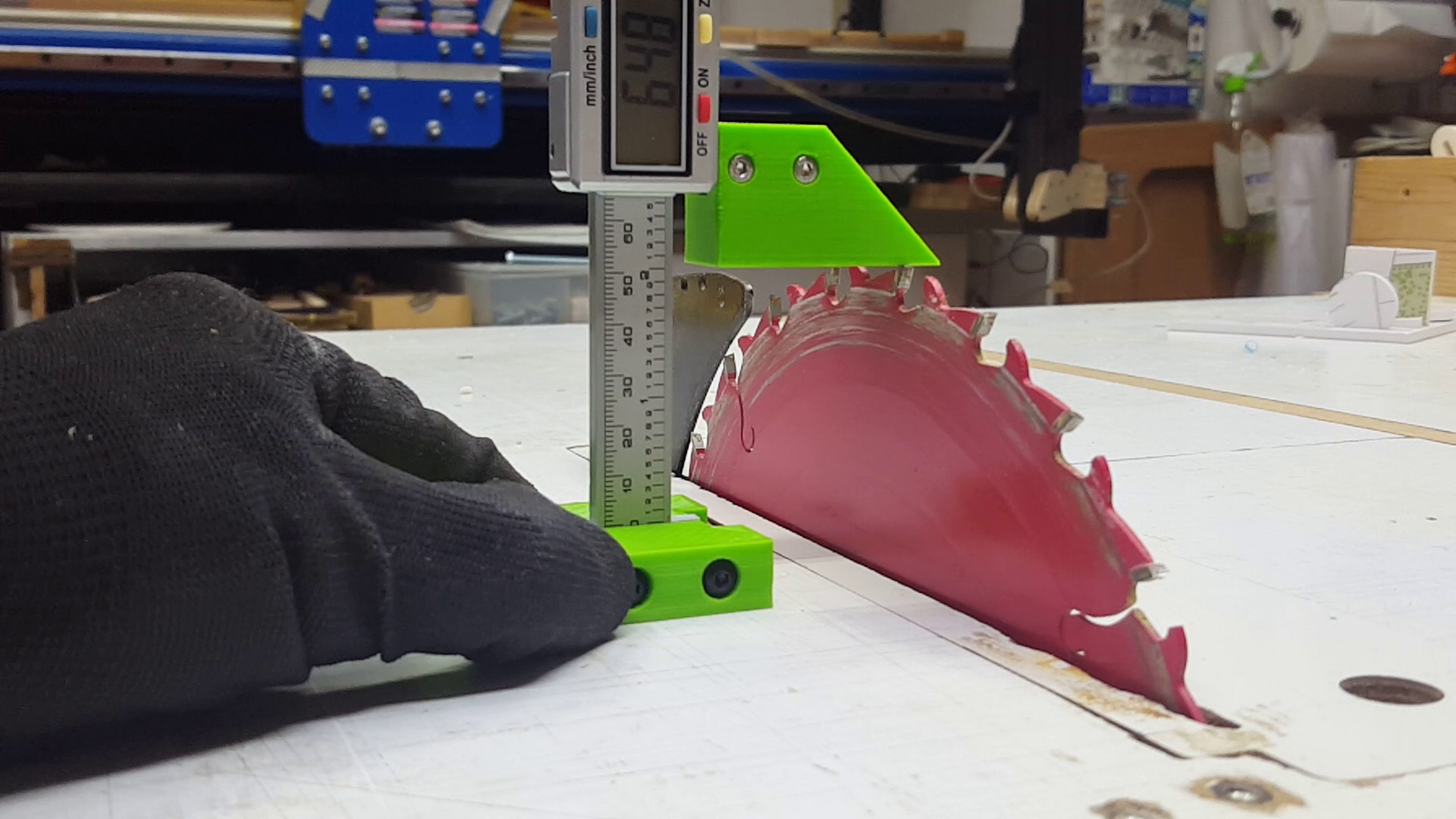

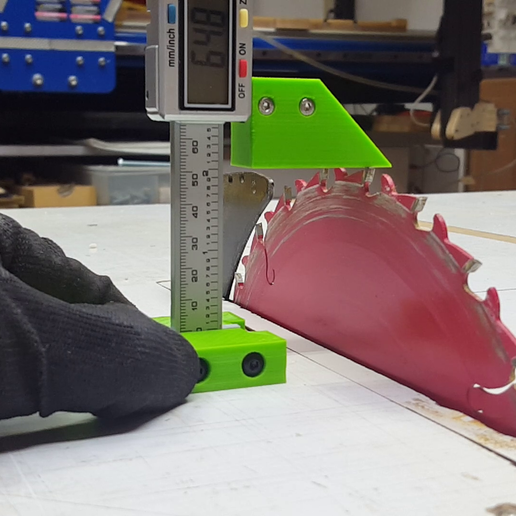

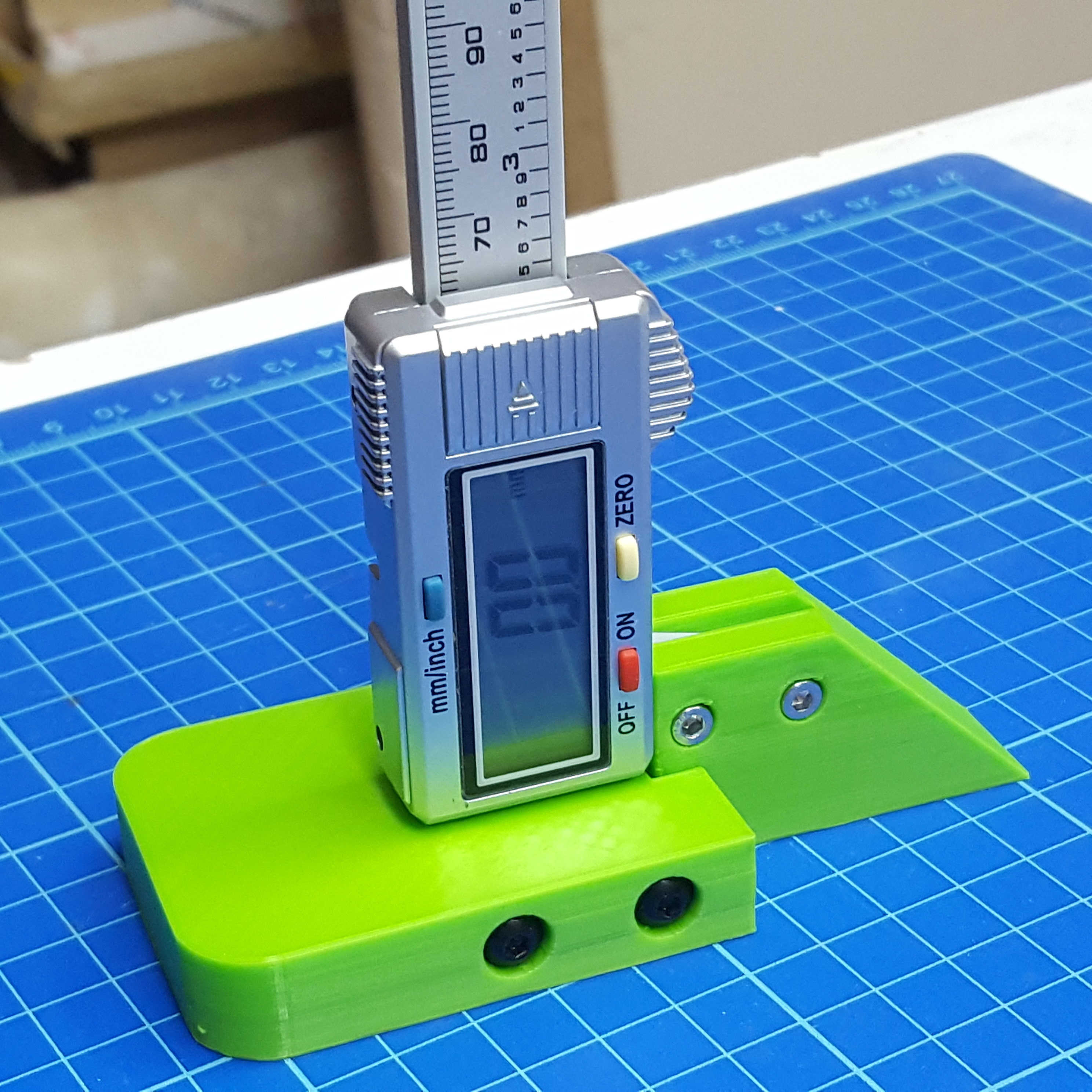

With this tool is possible to measure the height of cut of table saw and router lift table.

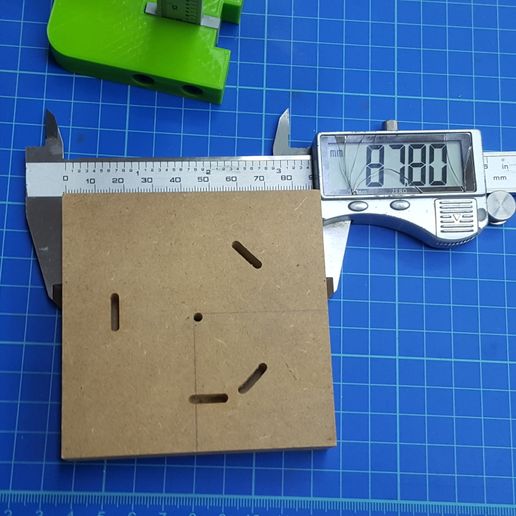

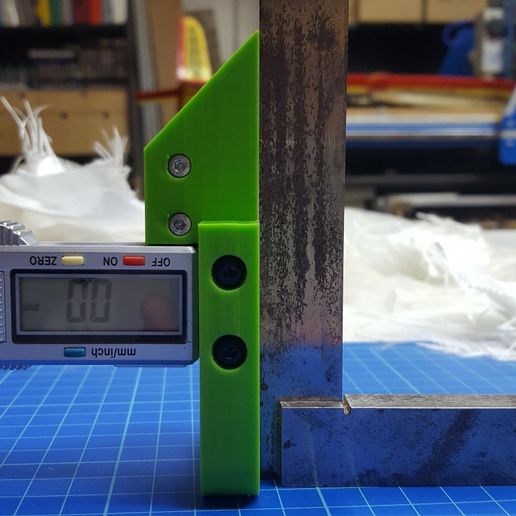

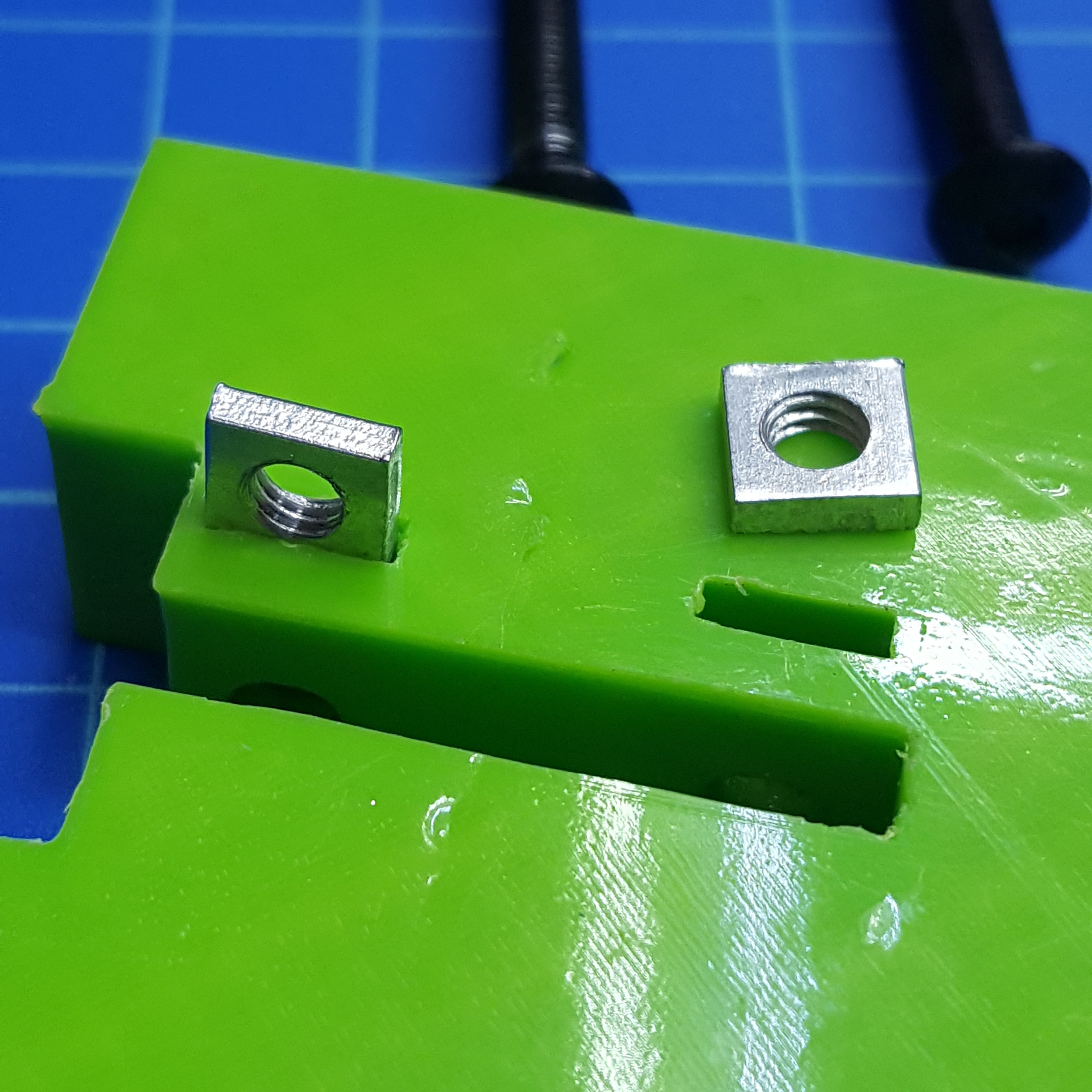

It's possible to add optionally four pieces of Ø10mm x 2mm thick magnets into the base: to make it possible, you need to pause the printer after the 13th layer (referred to layer height of 0.2mm).

Video: https://youtu.be/FbcWf0Djhiw


3D printing settings

Material: PLA
Ø nozzle: 0.3mm
Layer Height: 0.2mm
Infill: 25%

Hardware needed:
2x M3x14mm screws
2x M3 square nuts
2x M4x40mm screws
2x M4 square nuts

3D printer file information

  • 3D design format: STL Folder details Close
    • Base.STL
    • Piede.STL
