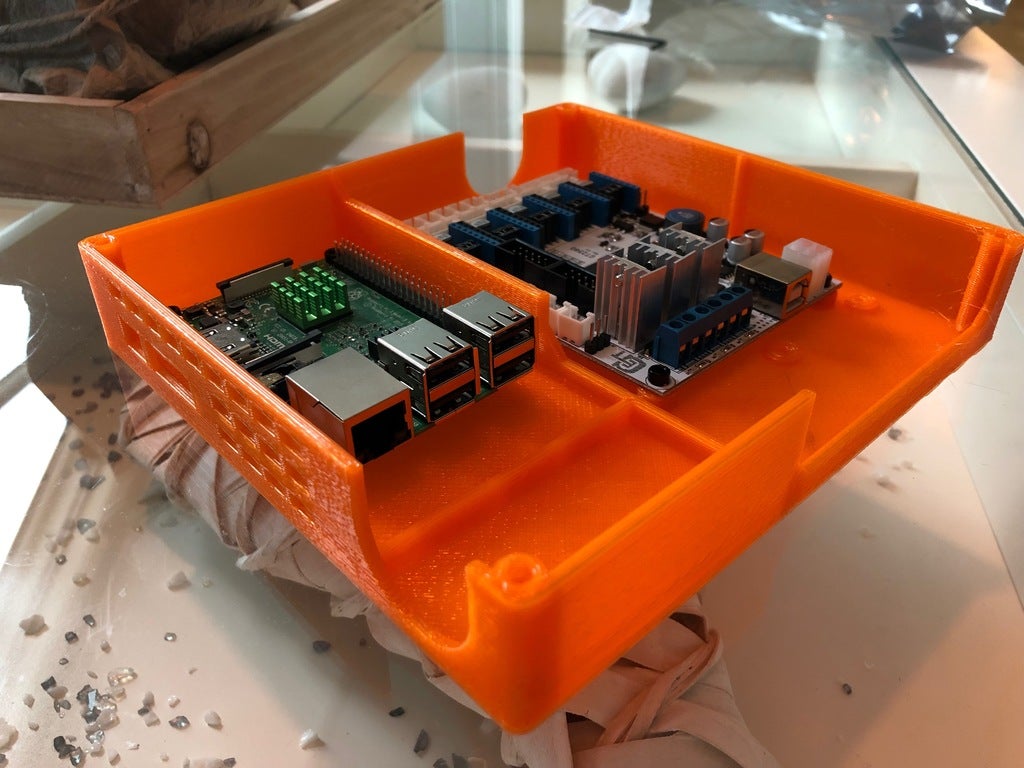

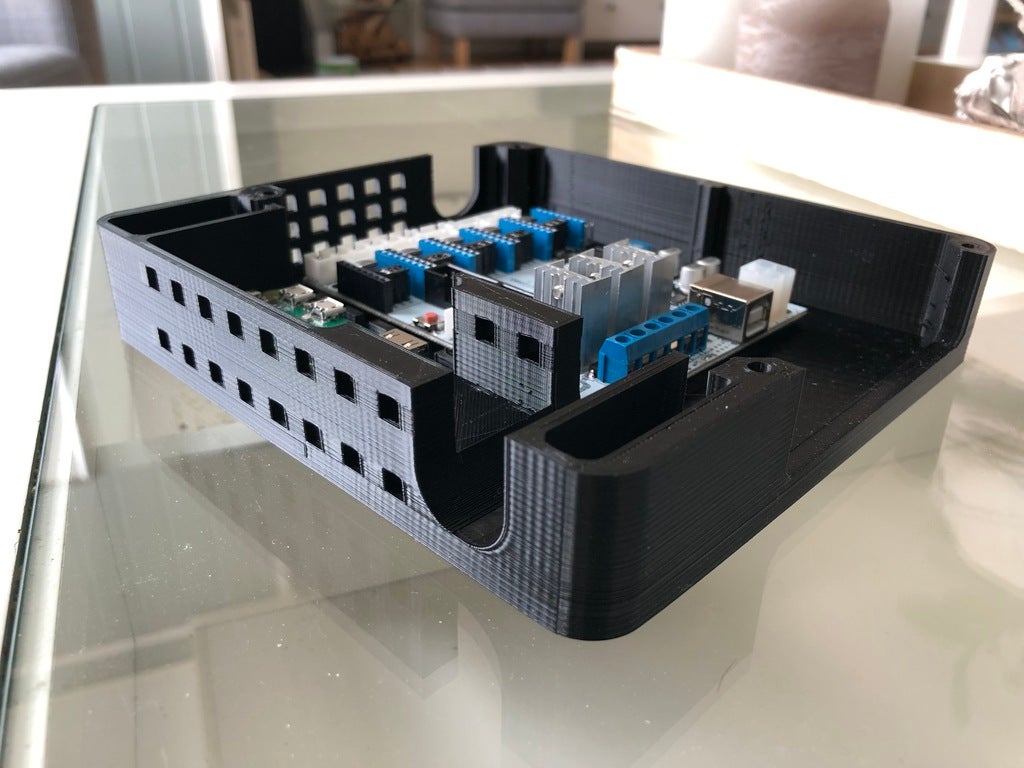

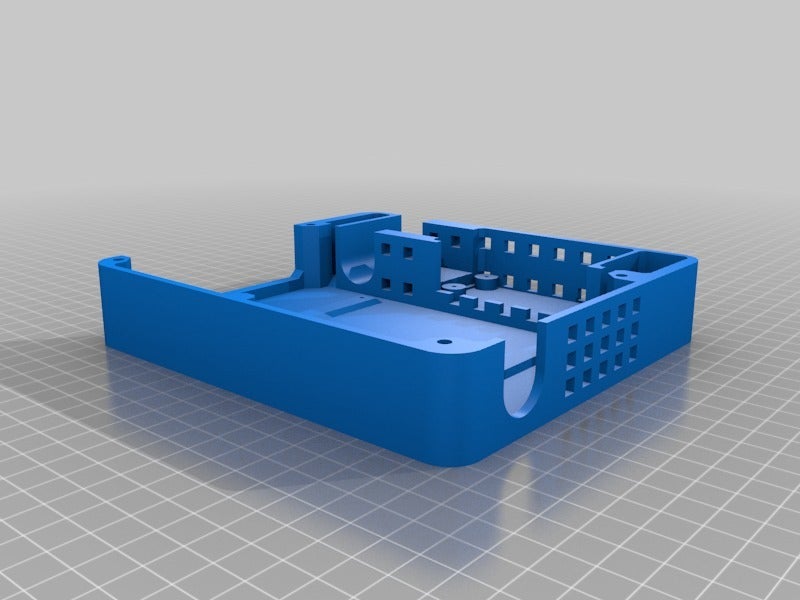

Made two versions of a control box for my P3Steel.

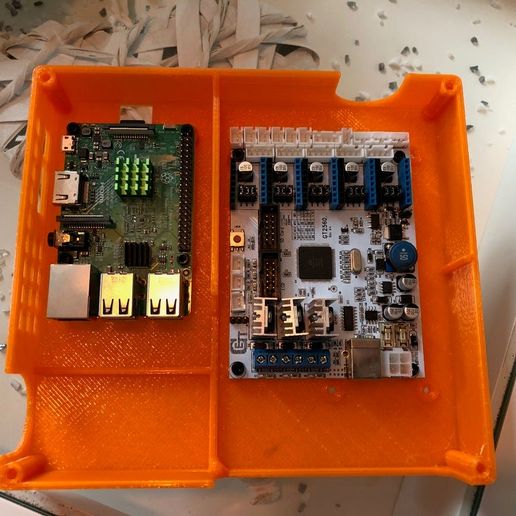

Both are made for Geeetech GT2560 Rev a+ (possible fit others as well?)

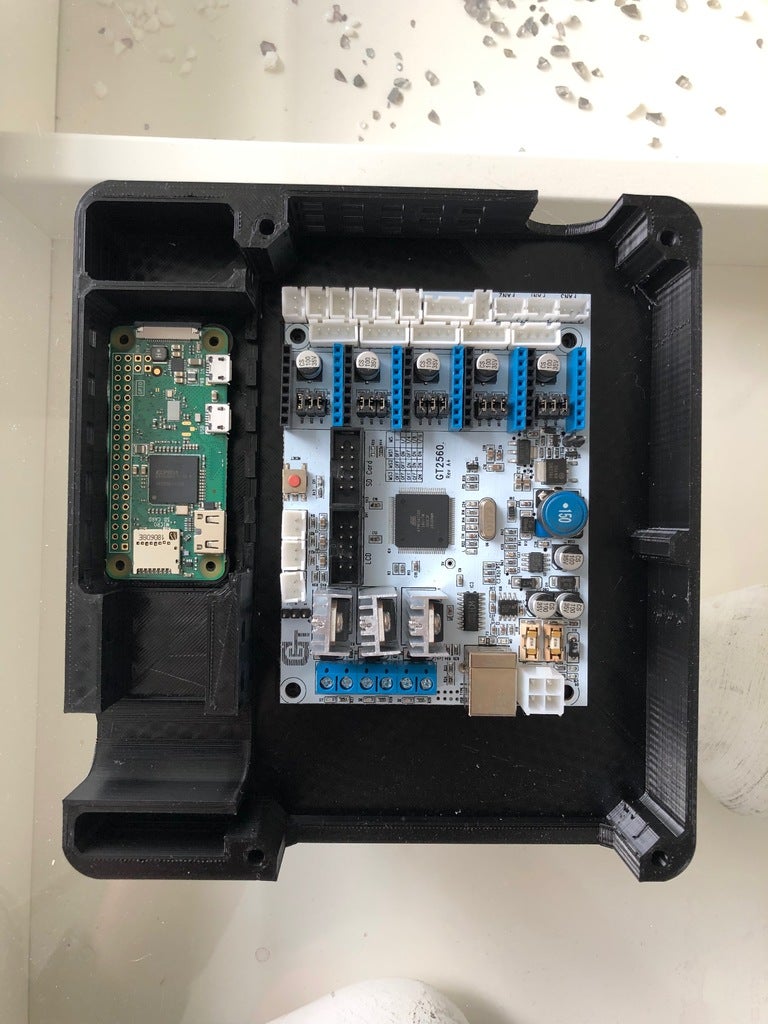

Rev 2 is made for Raspberr Pi Zero, also with space for an DC-DC converter.

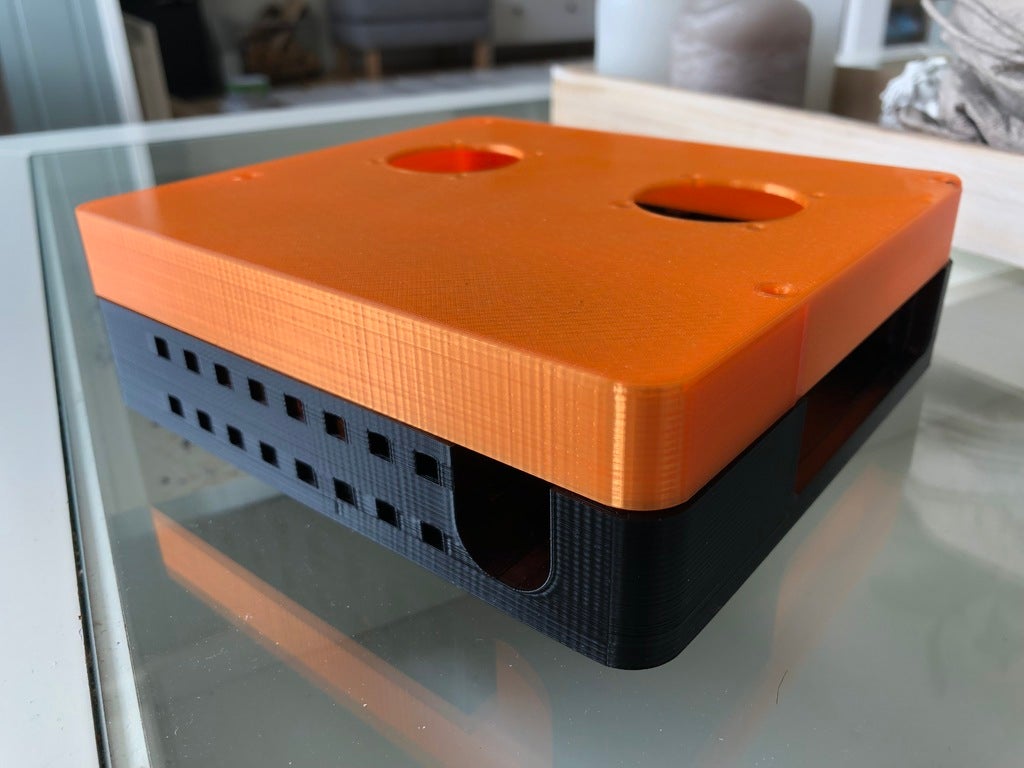

Attached is also a cover with cutouts for 2 x 40mm fans

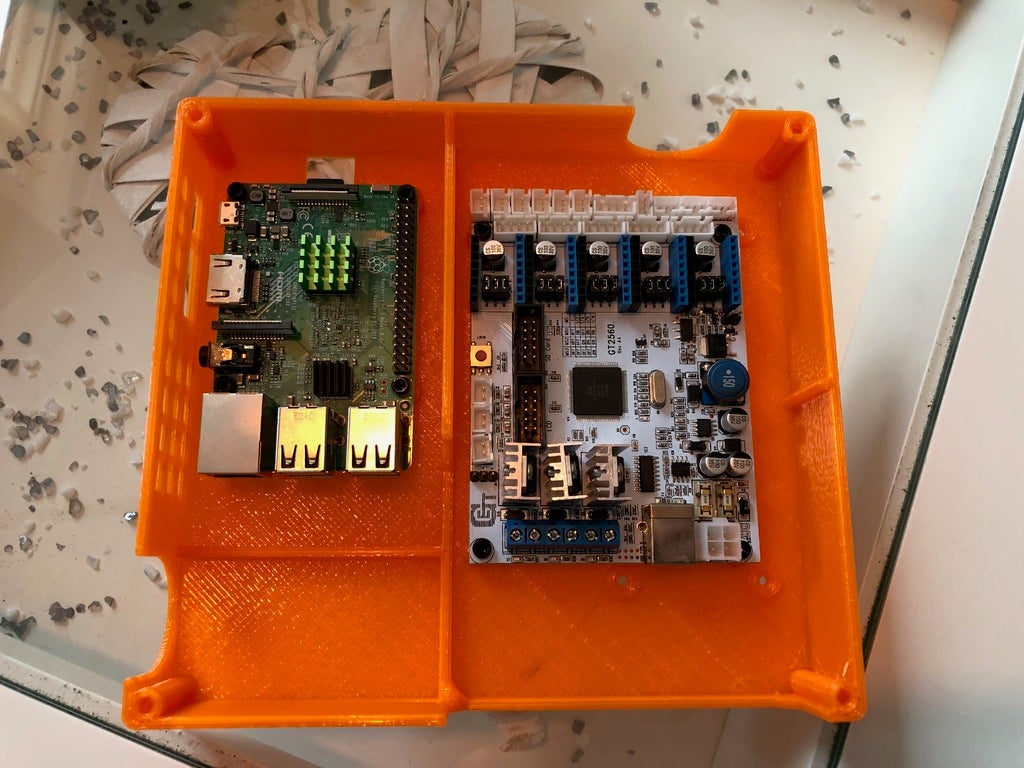

Rev 3 is made for Raspberr Pi 2/3/3B.

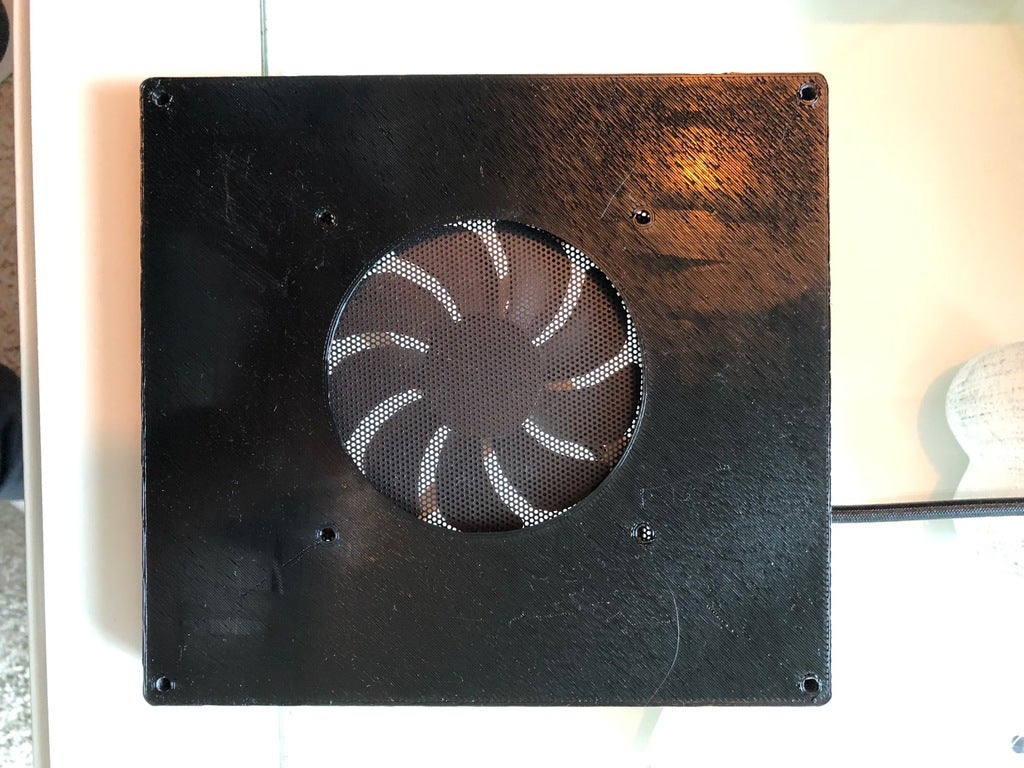

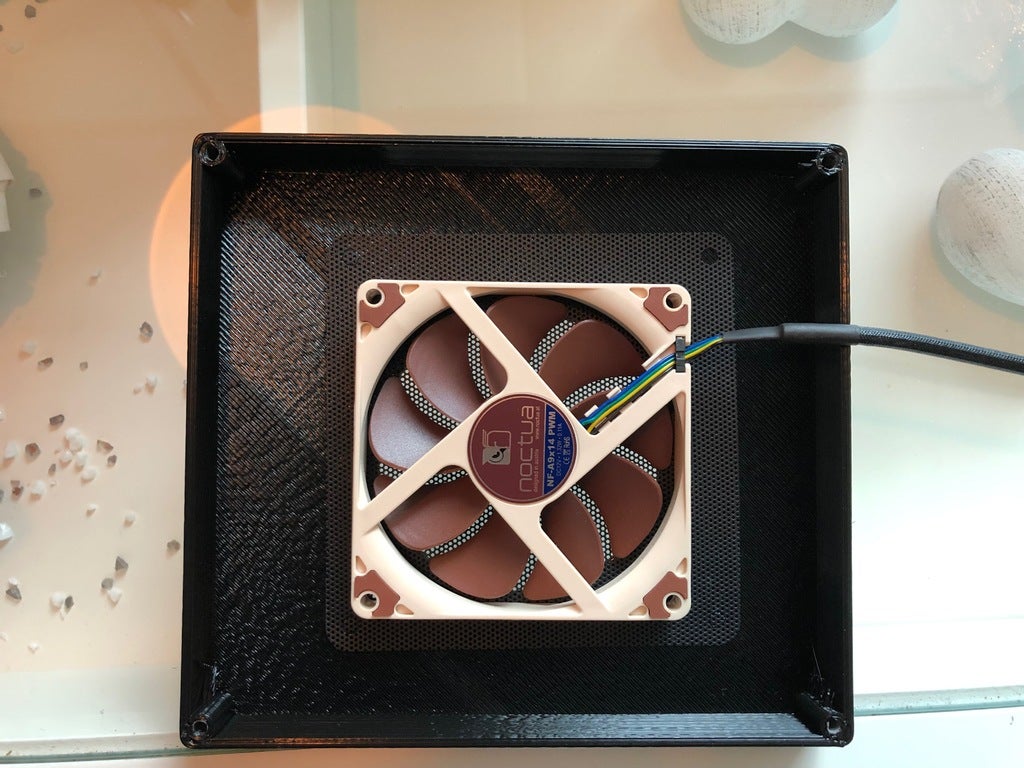

Attached is also a cover with cutouts for 1 x 92mm fan

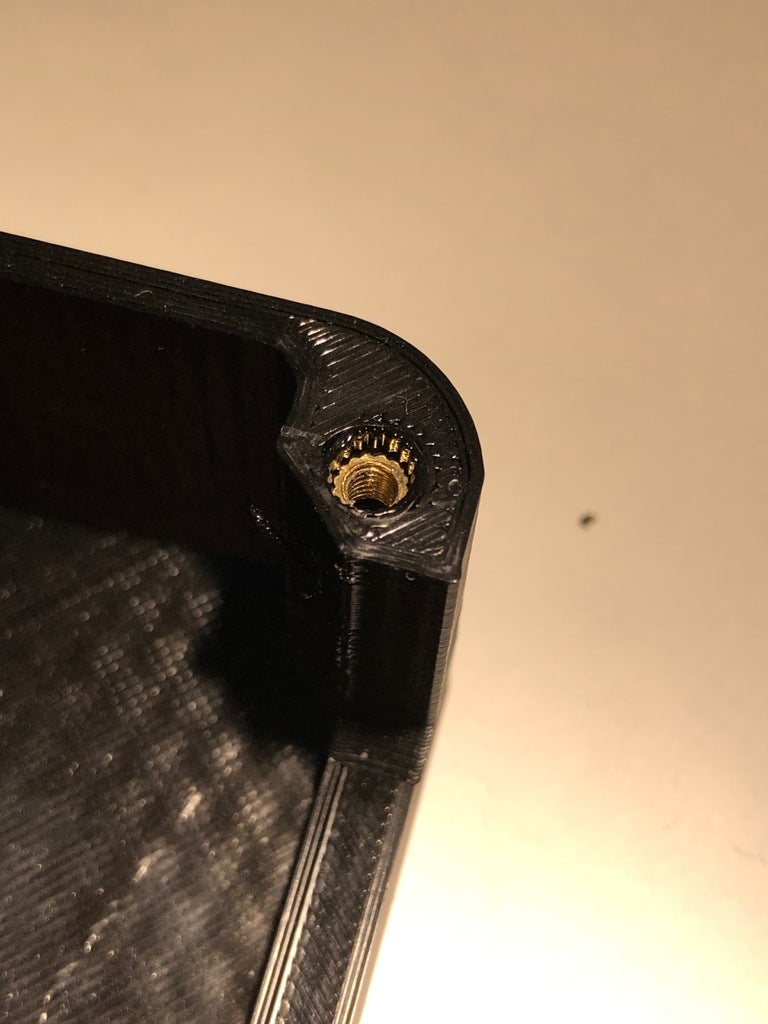

Both are made with knurled inserts as a thought.
These will be melted in place with an soldering iron.
But nuts and long bolts would work as well.

Knurled inserts
