First Layer Z height calibration

54578611656798245210940077c32ced_display_large.jpg First Layer Z height calibration
First_layer_calibration_single.stl First Layer Z height calibration
First_layer_calibration_x3.stl First Layer Z height calibration
54578611656798245210940077c32ced_display_large.jpg First Layer Z height calibration
First_layer_calibration_single.stl First Layer Z height calibration
First_layer_calibration_x3.stl First Layer Z height calibration
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
๐Ÿ†ย Bestย ?
License
3D design format
2 files (STL) Close
  • First_layer_calibration_single.stl 46.252318 ร— 46.253574 ร— 0.2 mm
  • First_layer_calibration_x3.stl 166.25232 ร— 46.253574 ร— 0.2 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 54188
Design author Aravon
Aravon

Aravon

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

My own design for Z height calibration.
It is big enough to check the first layer smoothness yet small enough to save time.

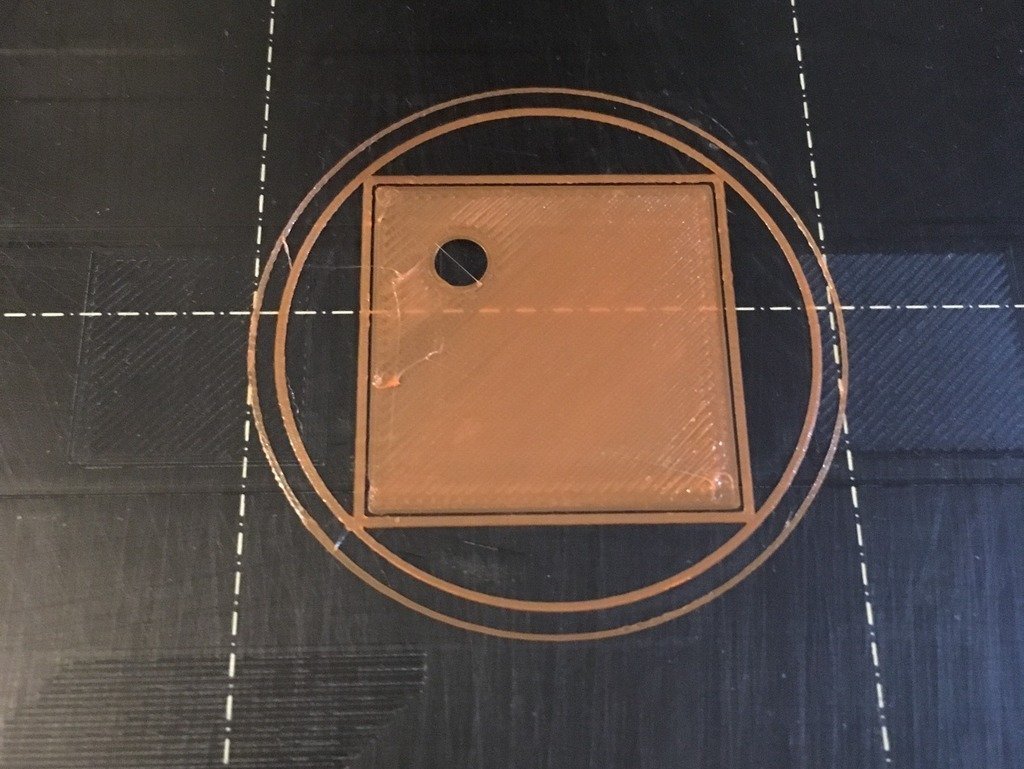

The central square should be smooth and even.

The hole at the corner should be round and clear.

The outer square line should adhere well to the bed, and the gap between it and the central square should be clearly seen.

The out most circle should adhere well and round, it just touches the corner of the square.

Single and a line of 3 patterns are included. You can add more and arrange in your slicer to suit your own use.

Categories

All categories โ€บ Tool โ€บ 3D Printing & Accessories
