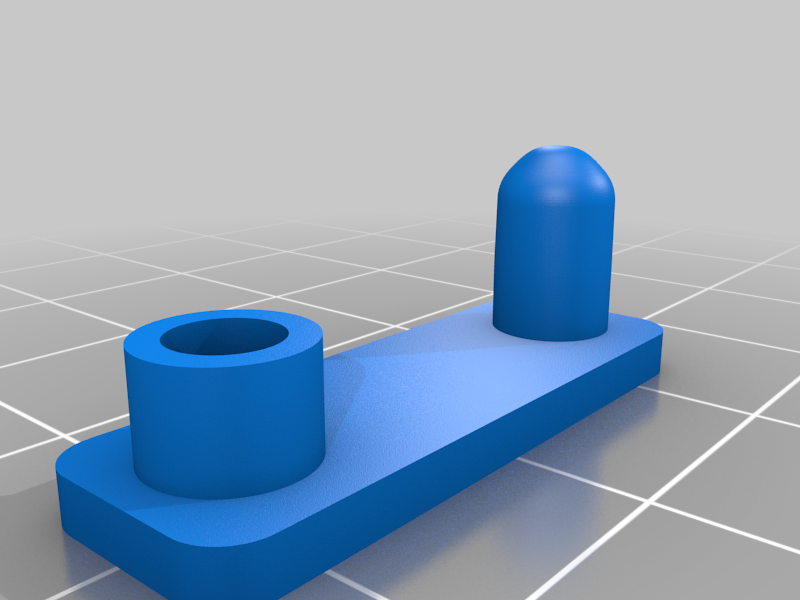

  • flange.stl 27.437396999999997 ร— 9.367047 ร— 10.5 mm
  • lower_bracket_2.stl 24.866108 ร— 45.76549 ร— 15.054588 mm
  • upper_bracket.stl 26.426558999999997 ร— 44.759606000000005 ร— 15.099998 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 491512
Design author yong3Dprint
yong3Dprint

yong3Dprint

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

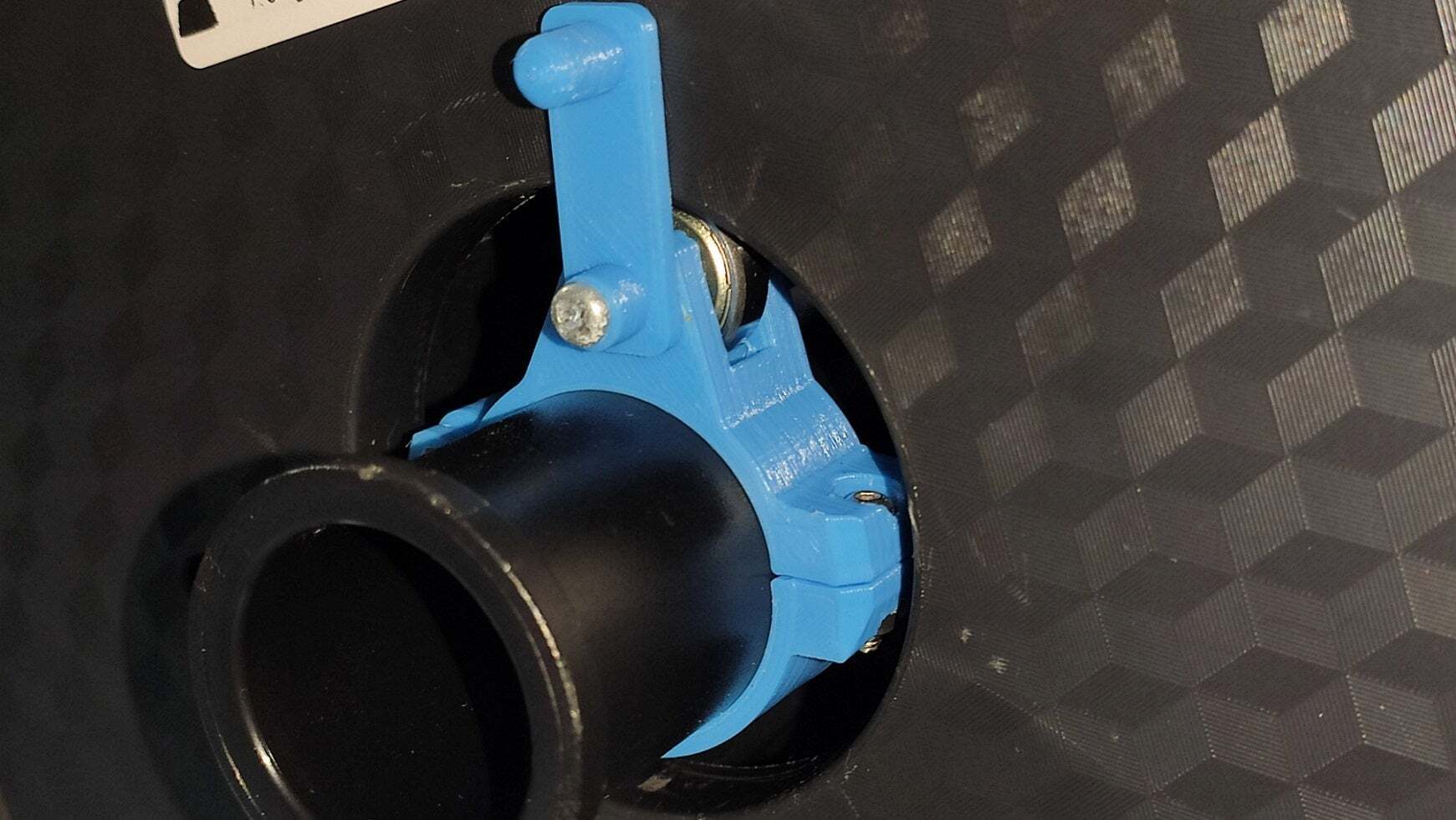

Designed up Ender3V2 original spool filament with roller bearing with minimal print.
Do not need to replace the original spool filament tube. Just add 2 roller bearing and should have a smooth spool rolling during printing. No more jerky spool!
Minimal print, support needed.

Require m2.5 screws and nuts. You can enlarge hole with drill bits for M3 size.

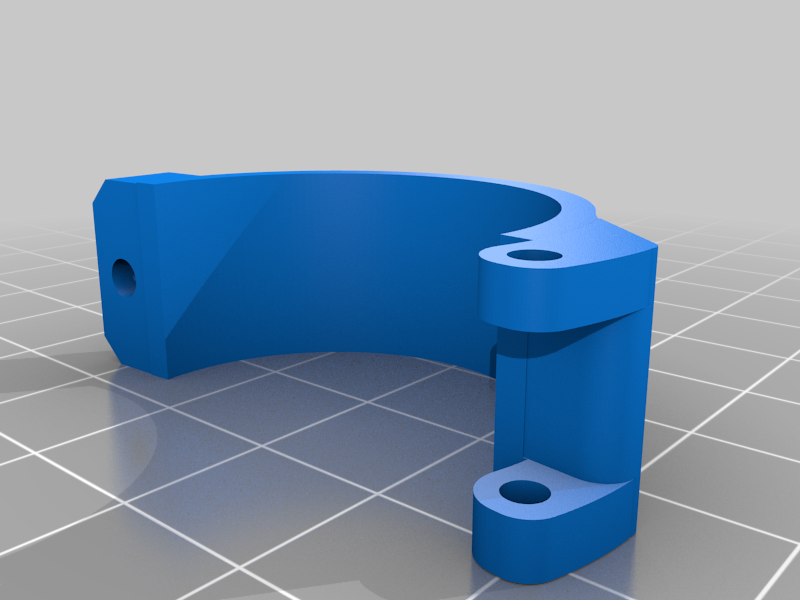

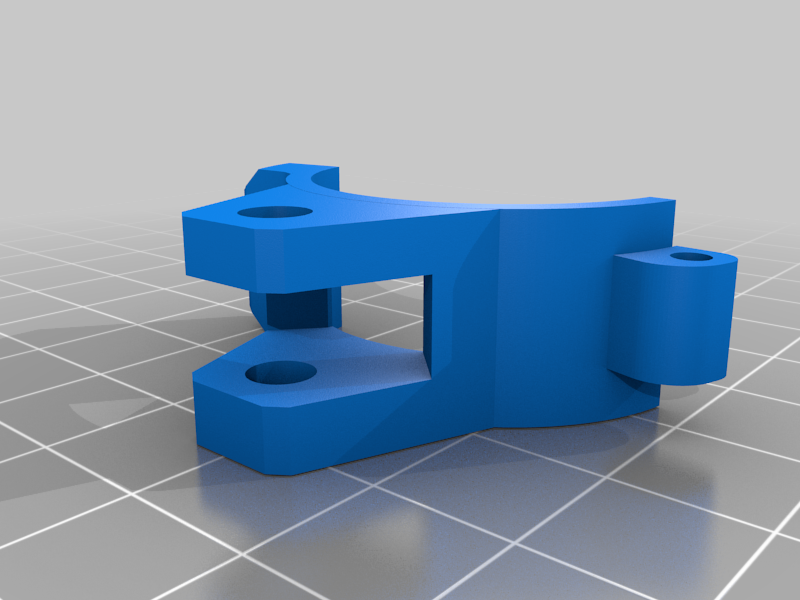

The spool bracket design is a C clamp shell type. Require a 2mm thin wire as pin bracket.

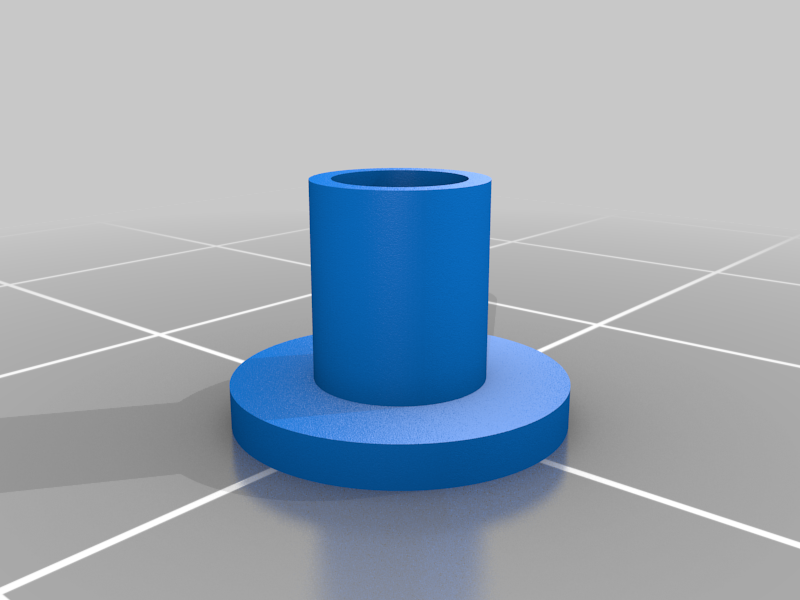

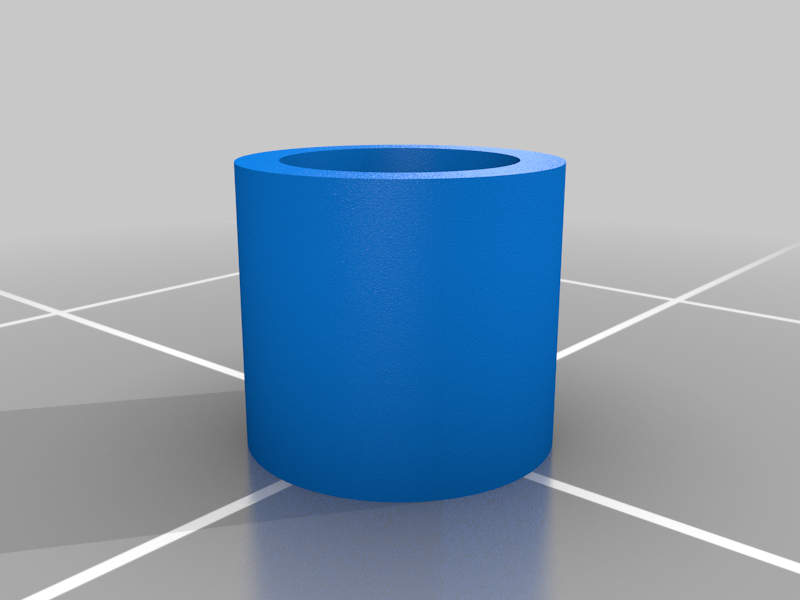

Bearing is NSK 625ZZ. There is bearing pin and bush that can cater for the inner bearing dimension. Uses M2.5-M3 screw sizes.
Print to fit and no issue with 0.4mm nozzle at standard print quality.
Print two as to get 2 sets of brackets.

PLA will do.
