DIY Dremel CNC #1 design and parts (Arduino, aluminum profiles, 3D printed parts)

3D model description

https://youtu.be/I7woln6urVY
DIY CNC machine is a very popular project on the internet, a lot of people made different versions but I want to show you how I made my own CNC machine with a Dremel as a spindle. Personally, I think that CNC machine is kind of an upgrade of a 3D printer, you can create stronger parts made out of wood or metal but it also has some limitations (that's a topic for another video). To learn more check out my video about this:
That's just the first part, there will be more so make sure to subscribe!
Also keep in mind that this is work in progress so I may change some models or something in the design. If you have any questions feel free to ask me!
Below you can find parts that I will use to build this machine.

T8 CNC machine: https://goo.gl/wLLyht

My design: https://a360.co/2LeZZVf

What we will need, amount in ():
-Dremel tool
-Aluminium Profiles 20x20x600mm (5)
-12mm rod (about 2 meters)
-500mm long trapezoidal lead screw 8mm (2): https://goo.gl/7oGeV8
-300mm long trapezoidal lead screw 8mm (2): https://goo.gl/qh1jEH
-12mm linear bearing (6): https://goo.gl/v6P5DC
-5 to 8mm coupler (5): https://goo.gl/as5cJ2
-T nut (50): https://goo.gl/gtL3Z8
-Screws: https://goo.gl/2USpv5

-Arduino+CNC shield+stepper drivers: https://goo.gl/CXwEkG
-Power supply: https://goo.gl/r9vfmF
-Stepper motors (4): https://goo.gl/LS9UAd
-Relay: https://goo.gl/mgPM9M
-Limit switches: https://goo.gl/Xc2964
-AC IEC socket with switch: https://goo.gl/9NJkKh

In the first part of my DIY Dremel CNC, I will show you how my design looks like (if you have any idea on how to make it better or you see some problems please let me know :)) I will also show you all the parts that I will use in next parts of this short series. In the next two or three videos, we will assemble this machine and hopefully mill some stuff.

I always wanted to have one of those fancy CNC machines that can mill metals. It's cool and it gives you so many possibilities for next projects! I already have few ideas for projects with a CNC machine :)

Subscribe and follow to stay tuned:
YouTube: https://goo.gl/x6Y32E
Facebook: https://goo.gl/ZAQJXJ
Instagram: https://goo.gl/JLFLtf
Twitter: https://goo.gl/eiAecG

3D printing settings

Printer Brand: Creality

Printer: CR-10 Mini

Rafts: No

Supports: Yes

Resolution: 0.25mm

Infill: 40% - 70%

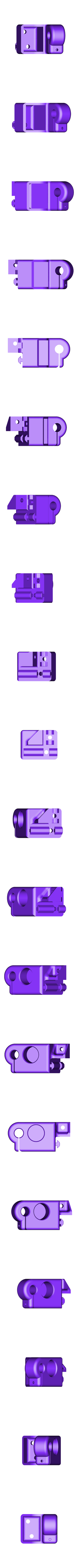

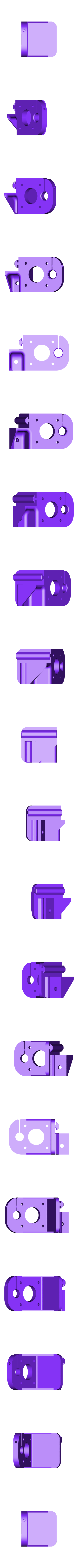

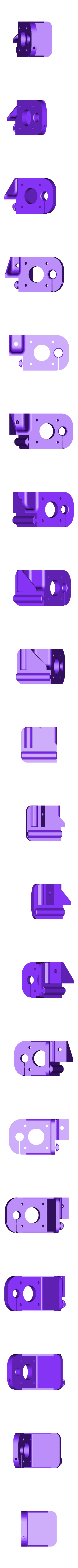

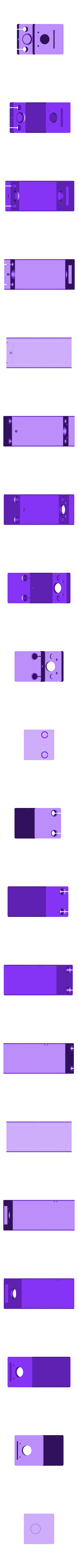

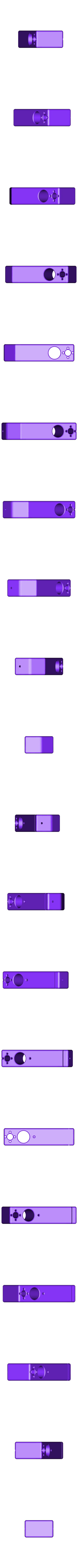

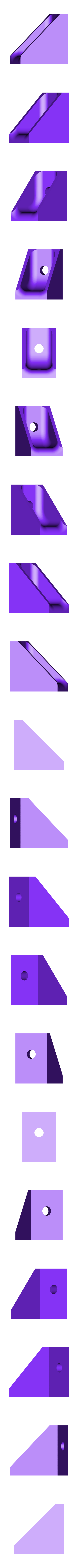

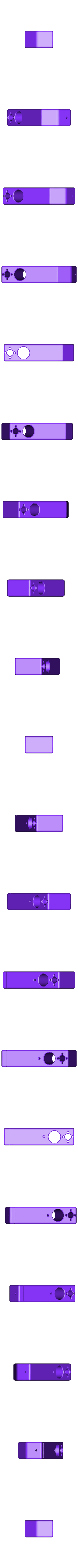

  • 3D model format: STL
