Delta effector with magnetic joints and fans

photo.jpg Delta effector with magnetic joints and fans
photo.jpg Delta effector with magnetic joints and fans
effector_top_cla.stl Delta effector with magnetic joints and fans
effector_cla.stl Delta effector with magnetic joints and fans
collettore_aria.stl Delta effector with magnetic joints and fans
effector_cla_asm.stl Delta effector with magnetic joints and fans
effector_cla_r1.stl Delta effector with magnetic joints and fans
effector_cla_asm_r1.stl Delta effector with magnetic joints and fans
photo.jpg Delta effector with magnetic joints and fans
photo.jpg Delta effector with magnetic joints and fans
effector_top_cla.stl Delta effector with magnetic joints and fans
effector_cla.stl Delta effector with magnetic joints and fans
collettore_aria.stl Delta effector with magnetic joints and fans
effector_cla_asm.stl Delta effector with magnetic joints and fans
effector_cla_r1.stl Delta effector with magnetic joints and fans
effector_cla_asm_r1.stl Delta effector with magnetic joints and fans
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
6 files (STL) Close
  • collettore_aria.stl 30.0 Γ— 12.0 Γ— 15.0 mm
  • effector_cla.stl 97.490311 Γ— 41.0 Γ— 86.377446 mm
  • effector_cla_asm.stl 97.490311 Γ— 69.700001 Γ— 86.389504 mm
  • effector_cla_asm_r1.stl 100.49062 Γ— 69.700001 Γ— 88.975521 mm
  • effector_cla_r1.stl 100.49062 Γ— 41.0 Γ— 88.975521 mm
  • effector_top_cla.stl 12.0 Γ— 53.964946999999995 Γ— 51.518507 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 116293
Design author volpiclaudio
volpiclaudio

volpiclaudio

Issue with this design? Report a problem.

3D printer file info

3D model description

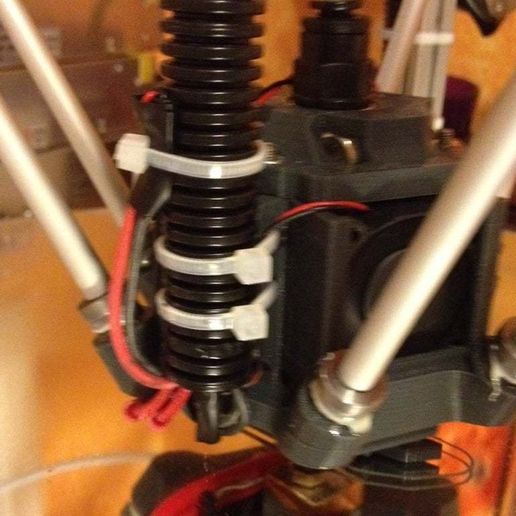

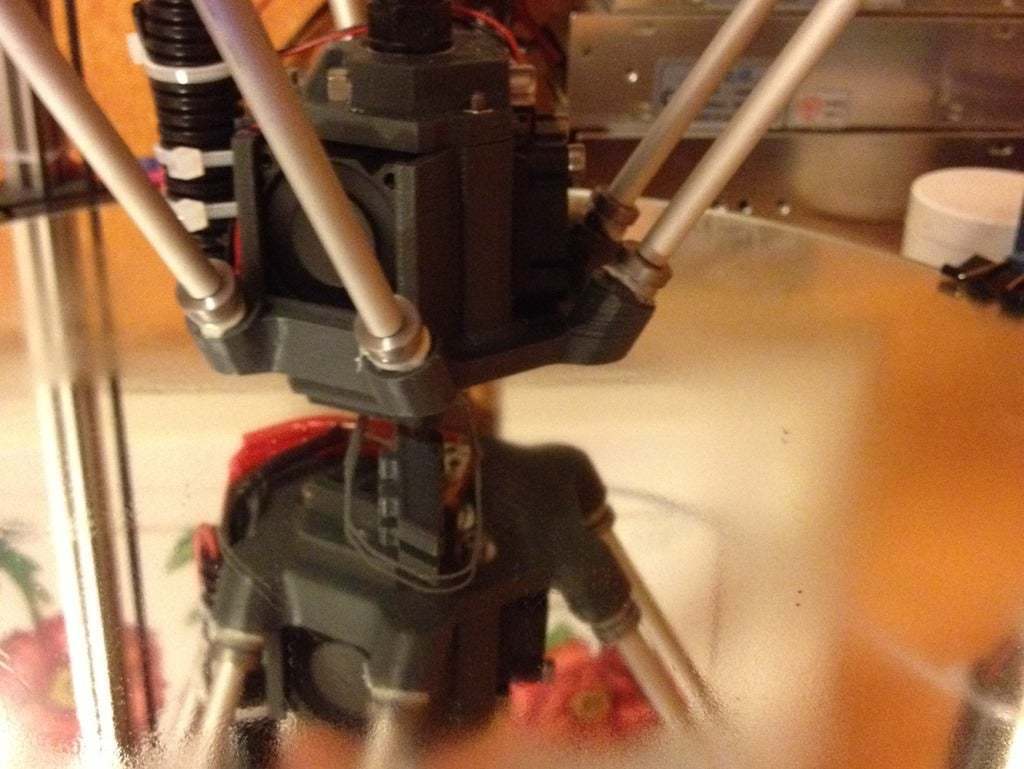

This is my version of delta effector for my new printer.

The provision is for the E3D bowden extruder and 10 mm magnetic ball joints. Three 30 mm fans , one for the extruder and the other two for cooling the printed filament.

2014_05_11 I uploaded R1 stl. I found an error in ProE regeneration.

The distance between rods is 42mm
