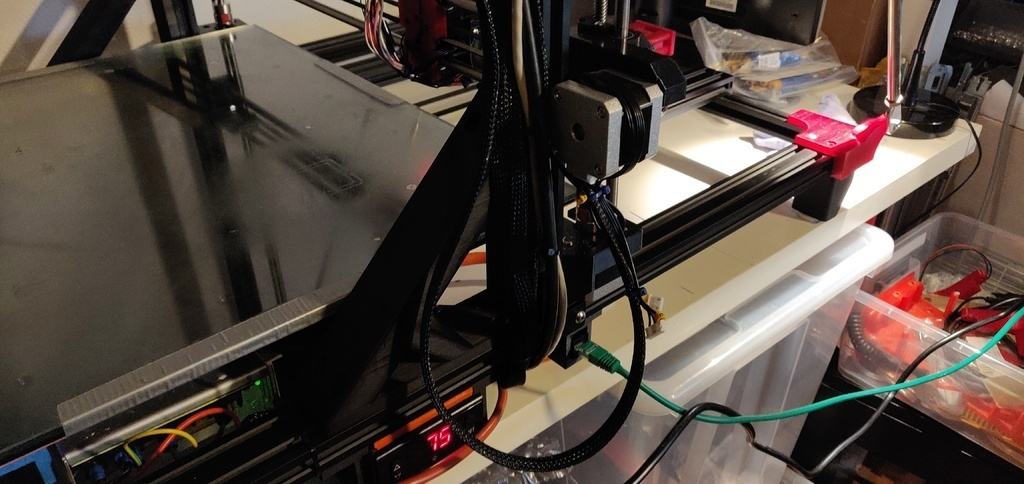

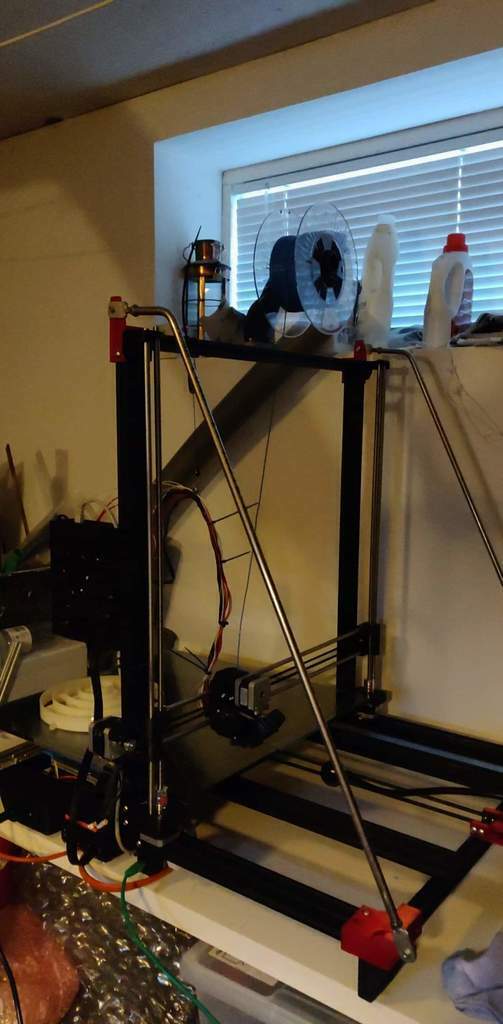

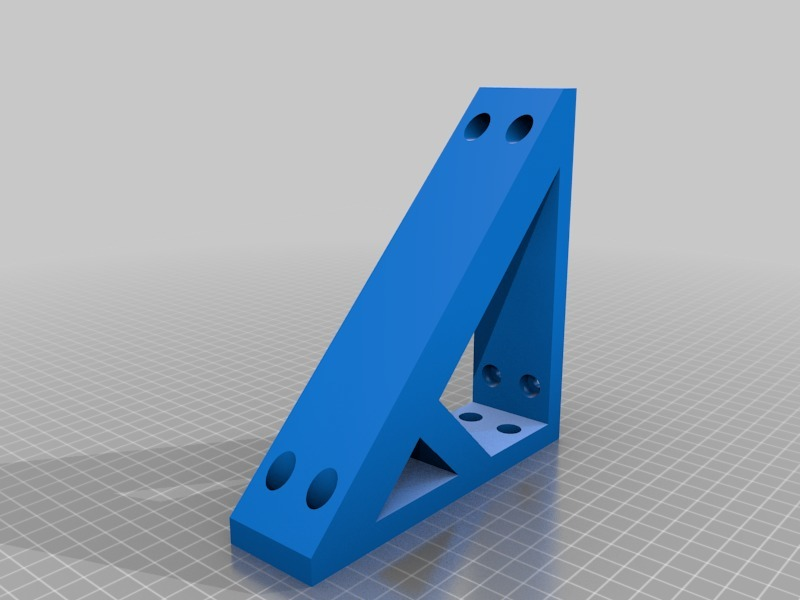

i bought the cr10 s5 but didn´t like the stiffness (or the rather wobbly frame) of the printer. i then build on the crearibo kit(link below) and then made this custom brackets with the help of a metal shop.

the holes in the printed parts is 5mm and a m5x8-10mm long will do

and the holes to mount the rods is 4mm

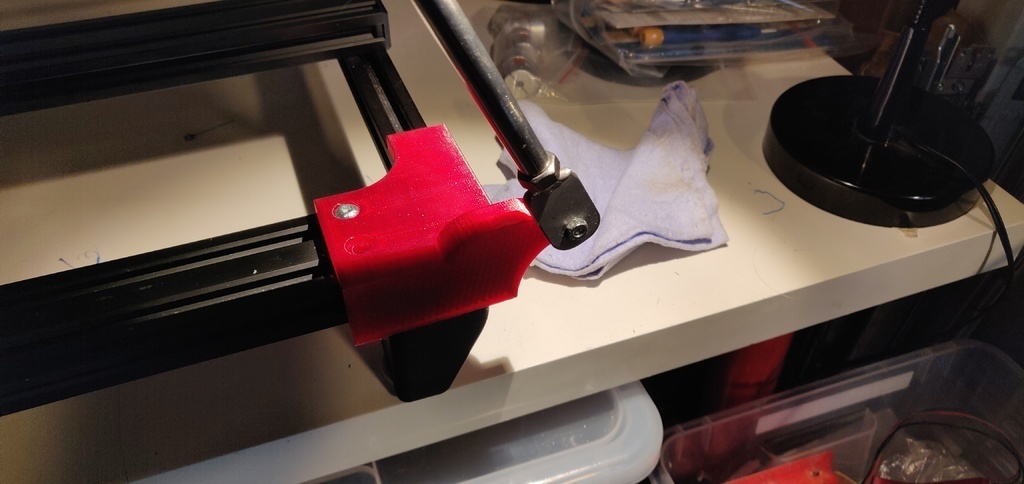

the rods is 10mm hydraulic pipe with a 8 mm internal size where i have tapped m8
thread in. the plate is 5 mm thick with a m8 thread rod welded to and a m8 nut to tighten against the pipe.

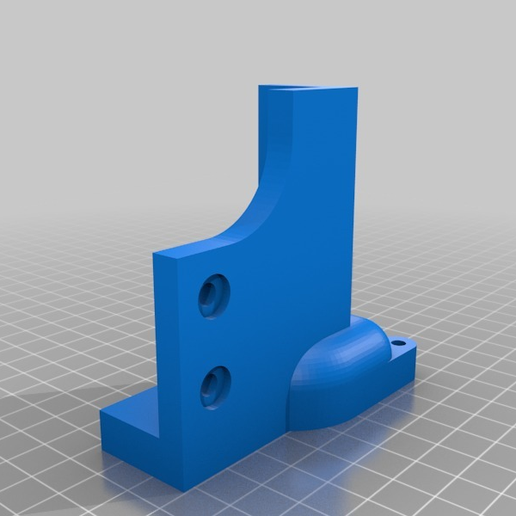

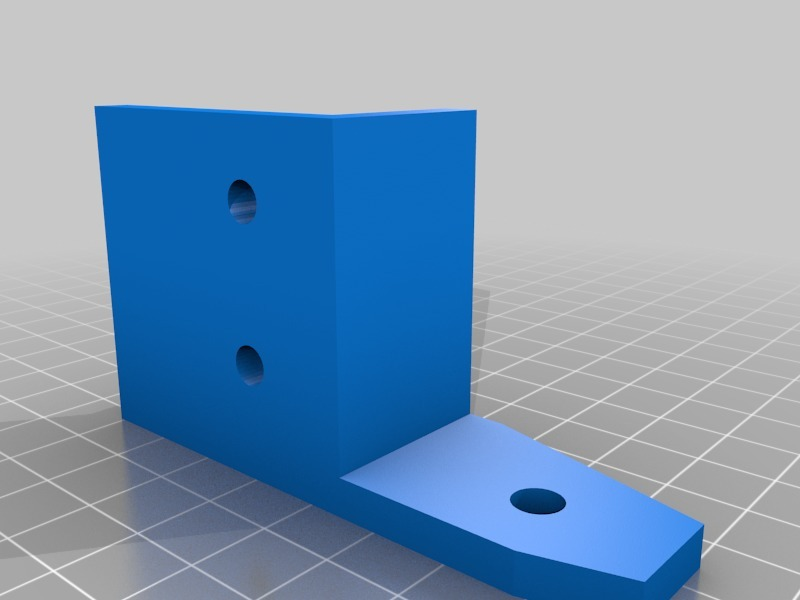

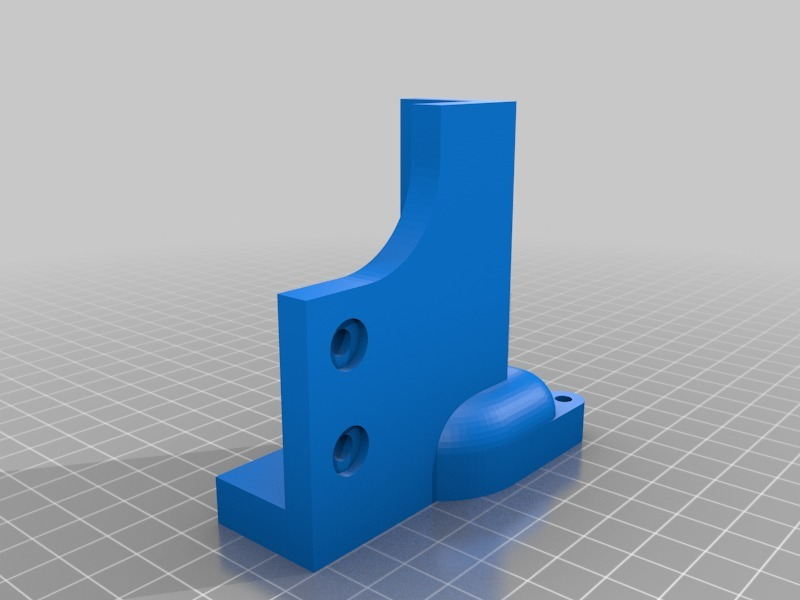

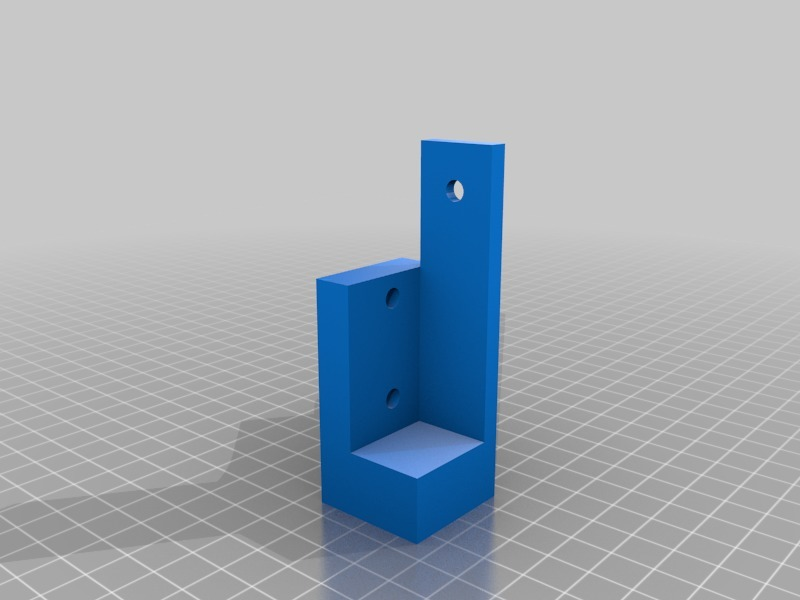

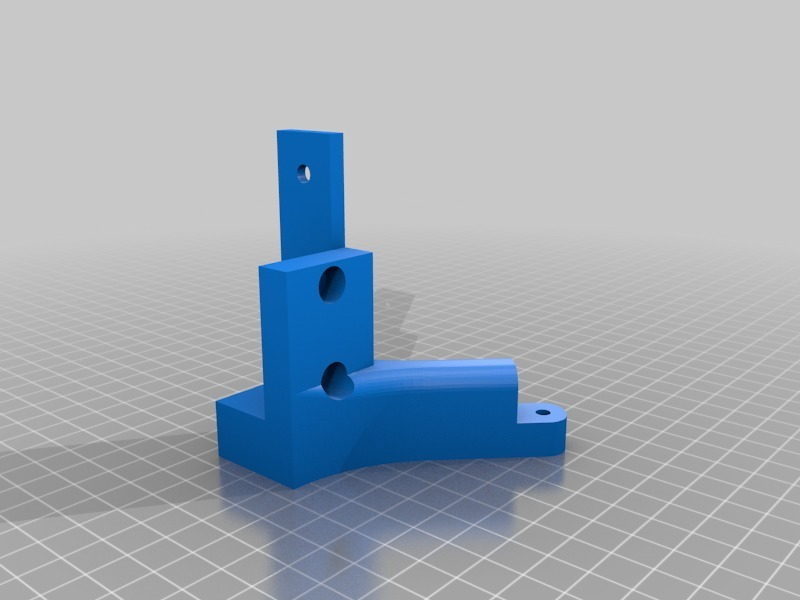

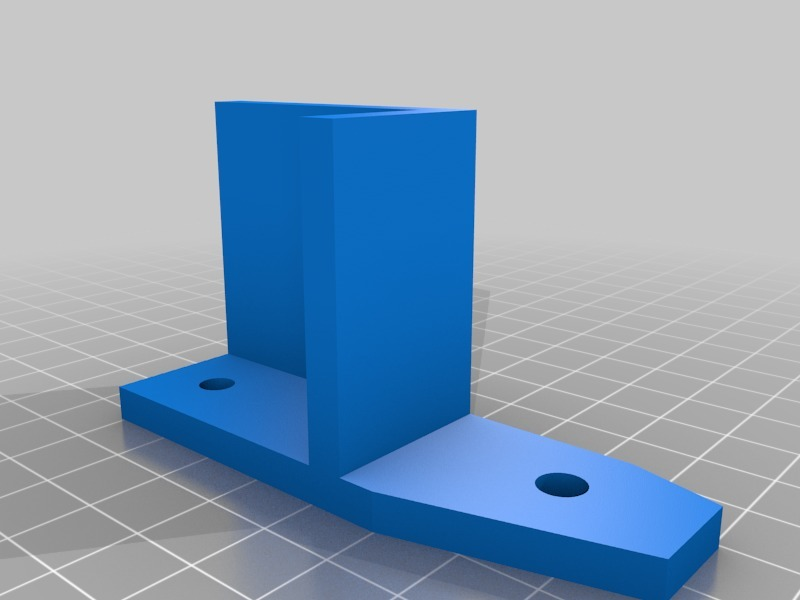

for the normal cr10 s5 there is the left and right upper bracket. and for the prusa style there is the left and right upper bracket prusa style. the lower bracket is the same

https://www.thingiverse.com/thing:3143998
