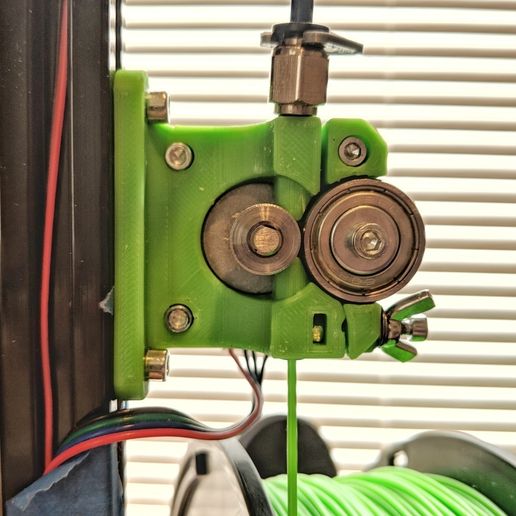

Remixed this great flexible-filament-compatible bowden extruder so it takes less post-processing and vitamins to mount on my flsun kossel. (Remixed from https://www.thingiverse.com/thing:2599755)

####Assembly on a flsun Kossel requires only one purchased item:
* 1x MK7 extruder drive gear. (You will need to calibrate extruder steps-per-mm after the change)

####And one post-processing step:
* Clean the filament path with a drill (5/64" or around 1.9mm)

Changes made in the remix

####mount piece

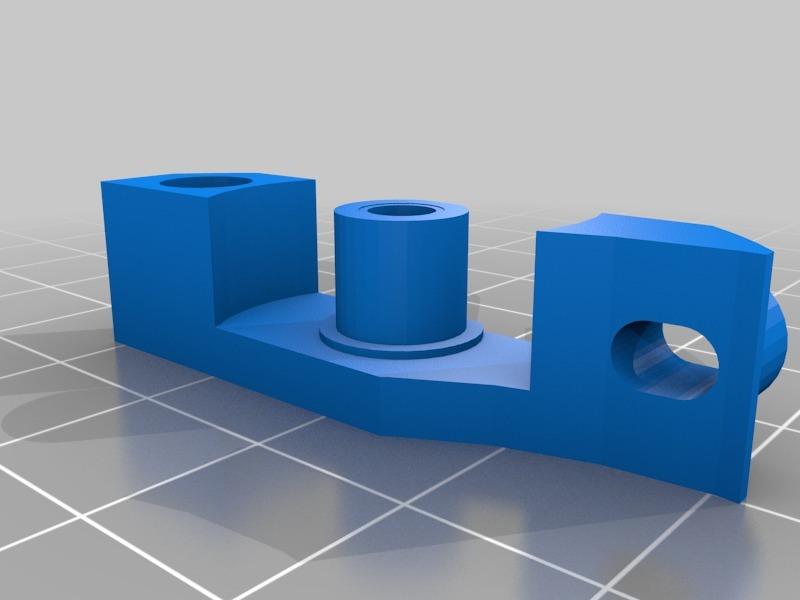

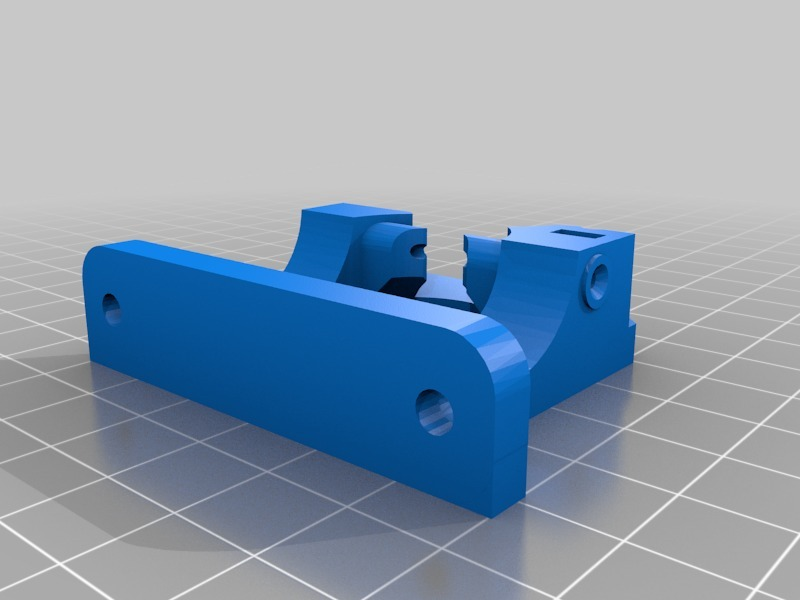

* Pre-drilled for an M4 pneumatic fitting (the bowden tube connector).
* Removed two unnecessary overhangs.

####clamp piece
* An M4 screw replaces an M5 to hold the bearing. If you prefer M5, print the clamp from the original instead. (https://www.thingiverse.com/thing:2599755)
