ANET A8 2020 X Axis with Titan Aero BLTouch

This is a remix of the quoted Anet A8 2020 X axis which works well for the idlers, motor mount and belt tensioner.

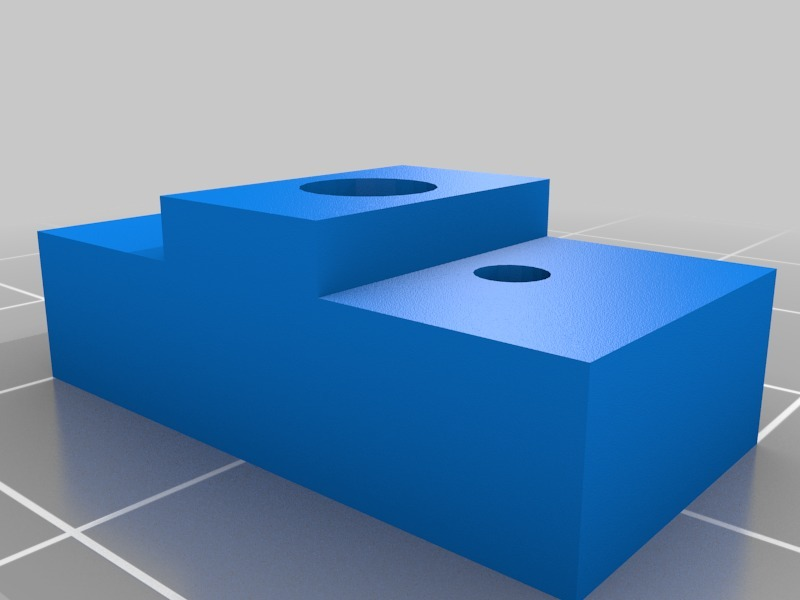

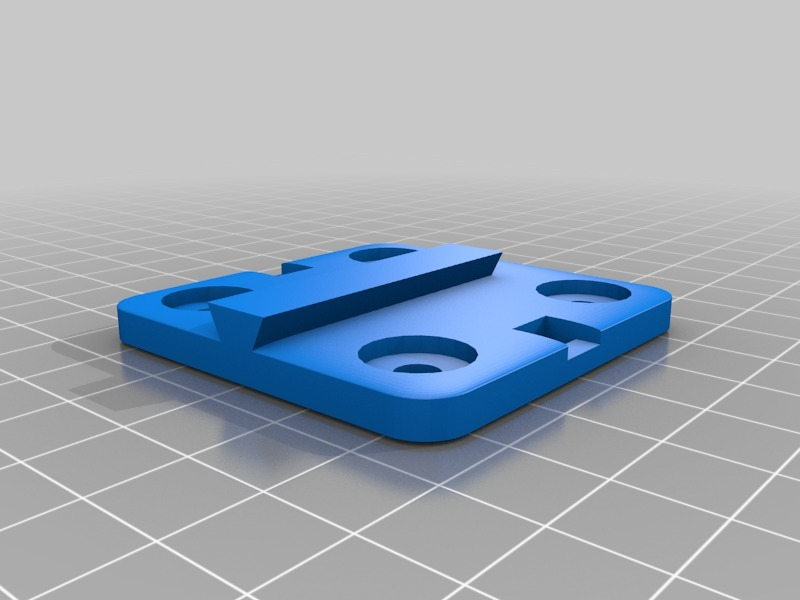

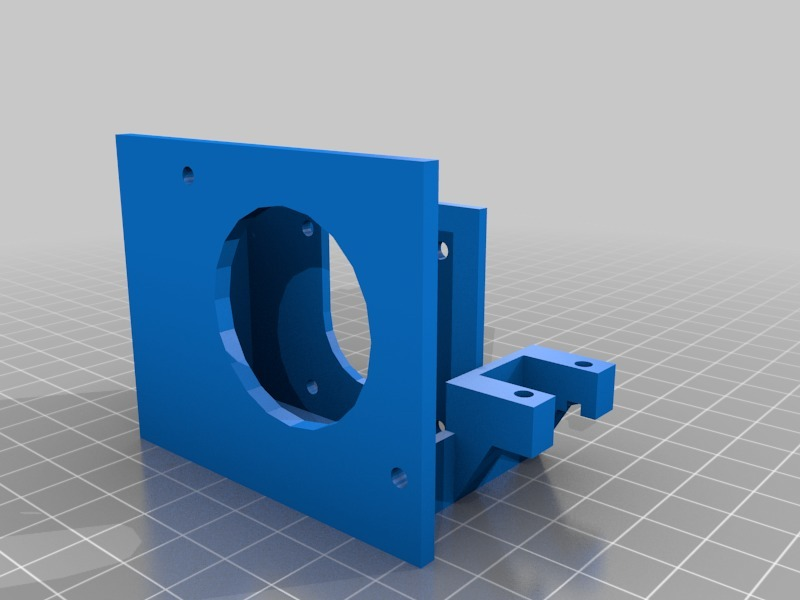

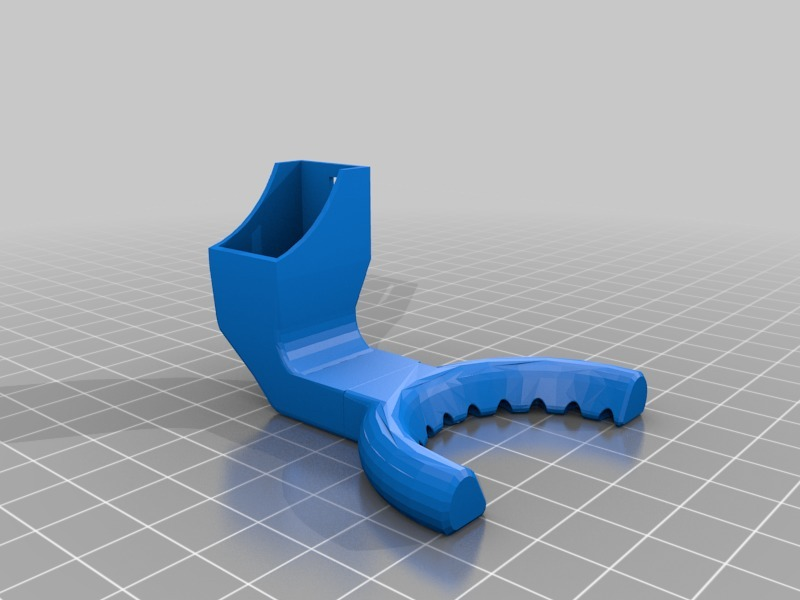

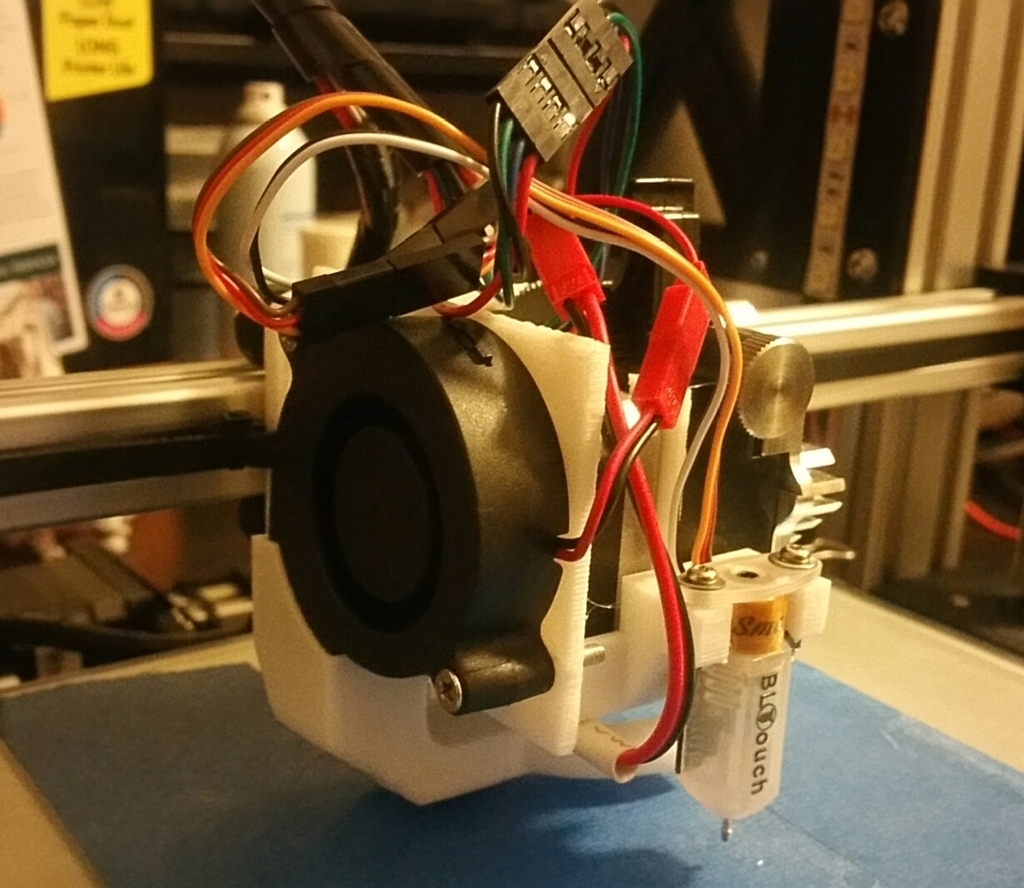

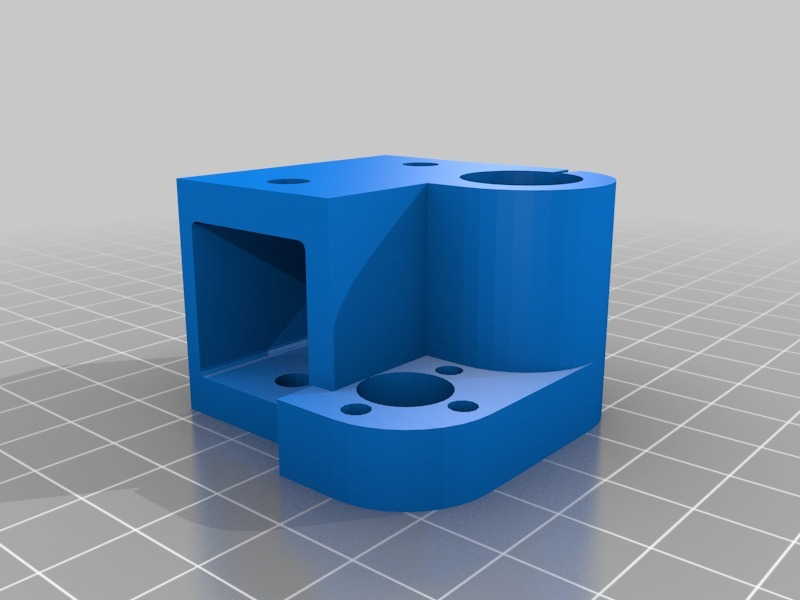

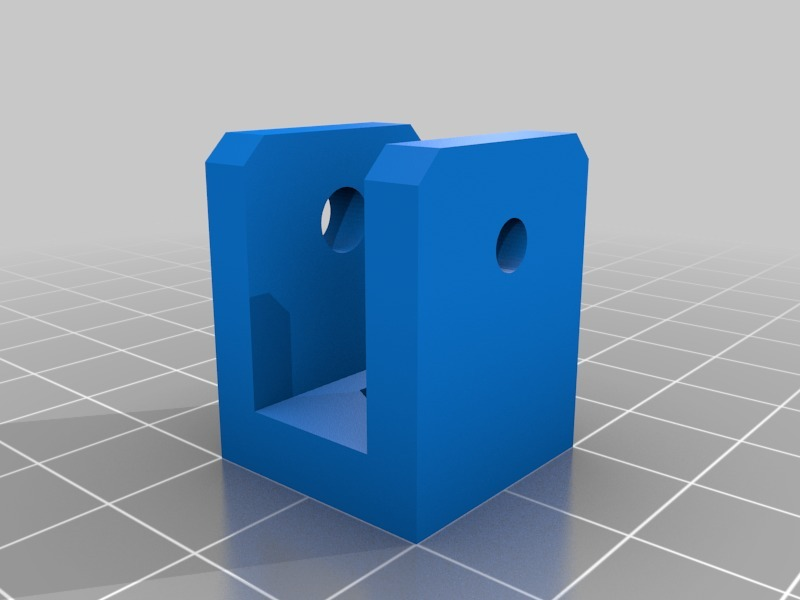

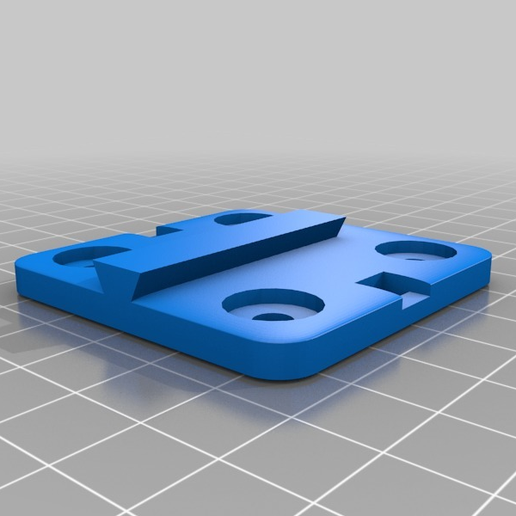

I have added my own designs for a quick release gantry based on Openbuilds mini gantry and mini wheels together with a mount for my Titan Aero clone with fan and BLTouch sensor. I have have a modified fan duct and X limit switch.

Note this is designed for the TriangeLabs Titan Aero clone with pancake motor which saves a lot of weight and space. It also gives more vertical height than the original 2 rod setup.

Although this was designed for my AM8, it should work fine with the original design too.

Mechanical Parts

500mm 2020 T/V slot aluminium extrusion.
Openbuilds mini wheels set.
Various M3 nuts and bolts from Anet A8.
Existing 2 x bearings, fan, belt and pulleys from A8
M5 T nuts and bolts for securing printed parts to the extrusion.

Assembly

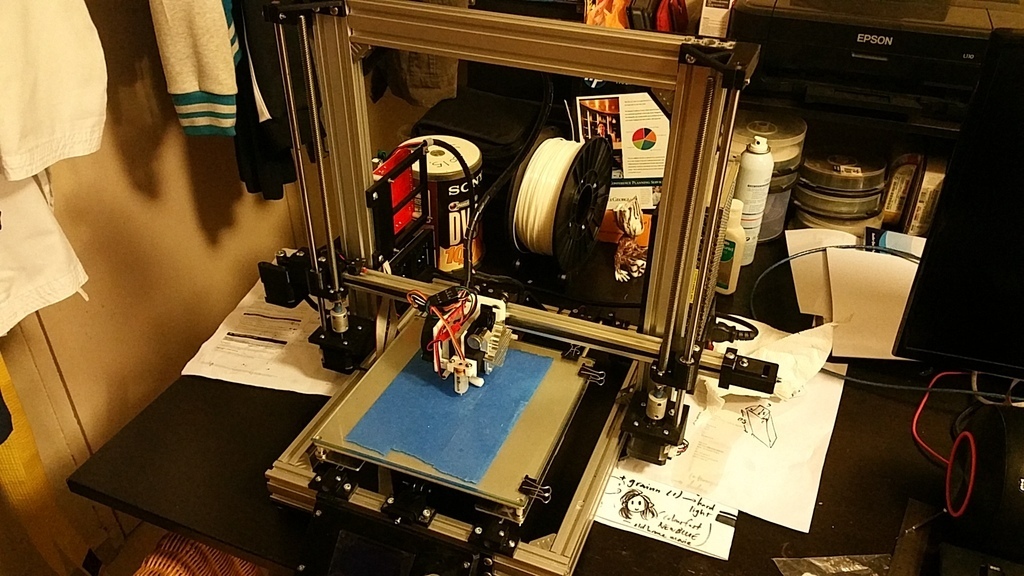

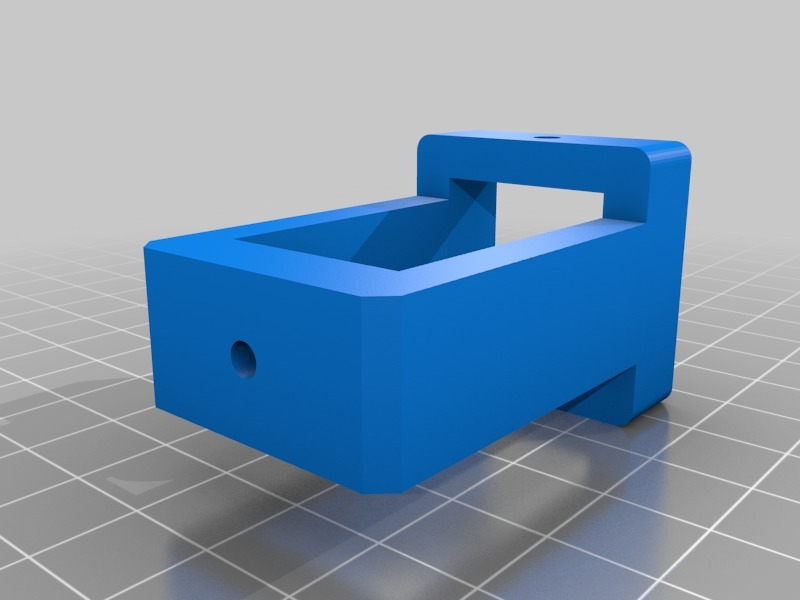

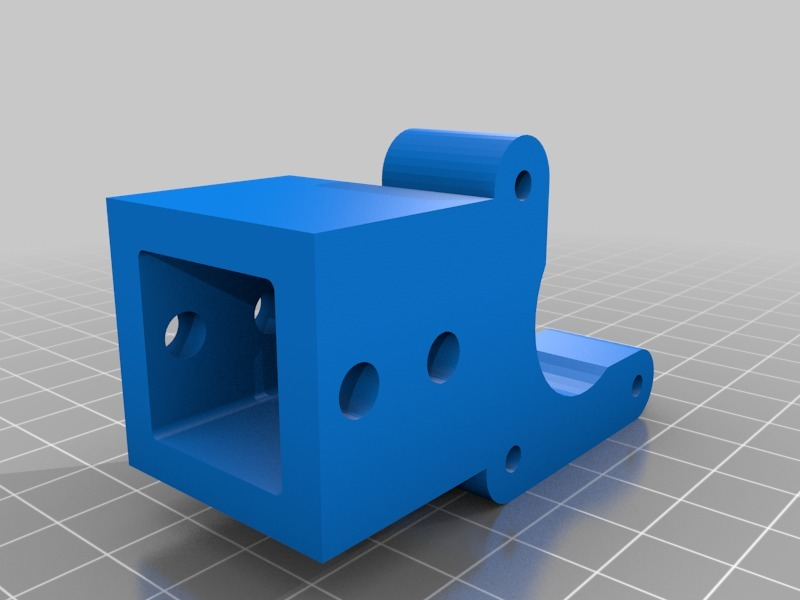

Follow the original design for the 2020 idlers, motor mount and belt tensioner. Print out the parts for the gantry, extruder mount, fan duct and X limit switch holder. The extruder mount should slide over the mounting joint on the ganrty. If its tight, file it down a bit. If it's loose, you can put a piece of paper between the joints to secure it.

BLTouch Offsets

TBD
