https://www.thingiverse.com/thing:2134532 gave me the idea to make a version for the A6.

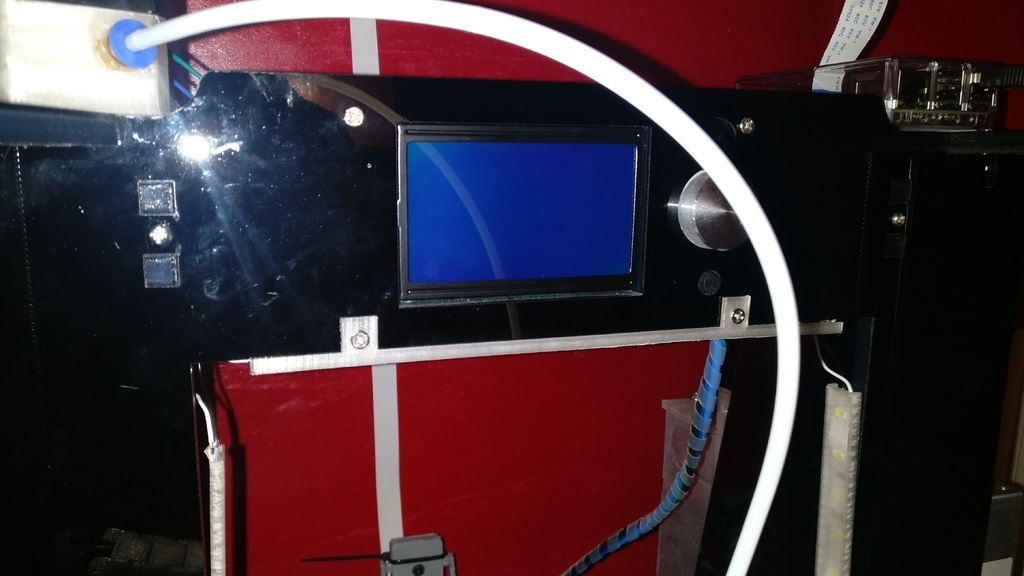

It's the first version and it's not perfect, but it works as you can see on the photo.
The design is for 10 mm LED strips with max of around 3 mm height.

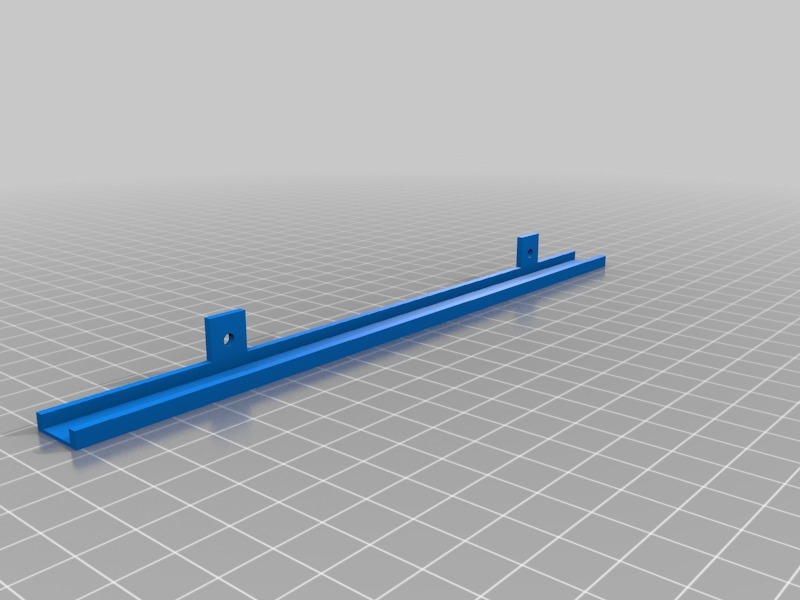

The idea to use the existing screw is not the best, since especially those at the top are a pain to reassemble. So be careful! ;)

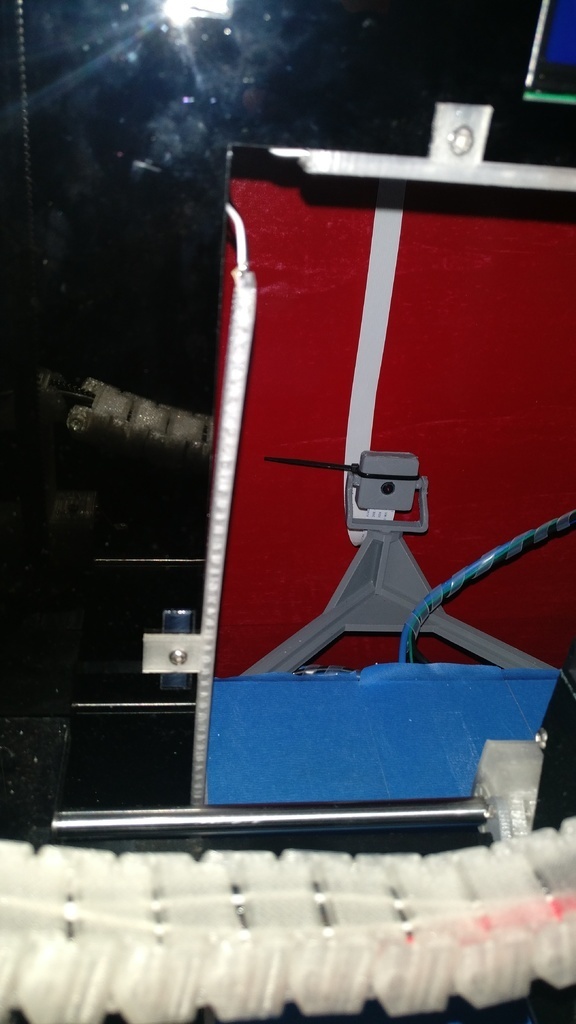

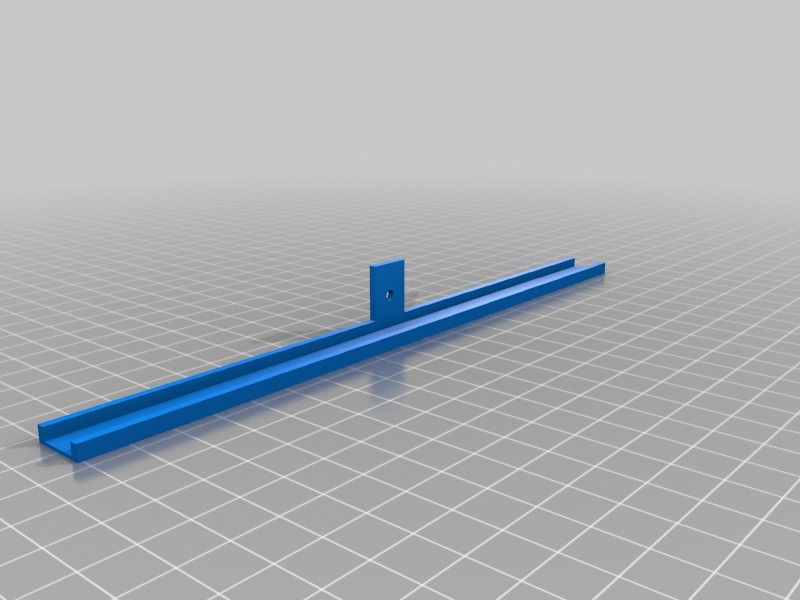

The two sides are easier, but since it's a single screw, the edges will bend a bit, so it won't fit perfectly.

If I have time, I'll try to fix those issues, but it works and that was the main goal :)

Here's the link to onshape, where I designed it: https://cad.onshape.com/documents/8bc7baa5bb05947e70f900d1/w/23bc0b4a6f20a9ed75621f03/e/24475a5311f4ca007616fc82
