Adjustable Archery Fletching Jig: Flat Version

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
28 files (STL) Close

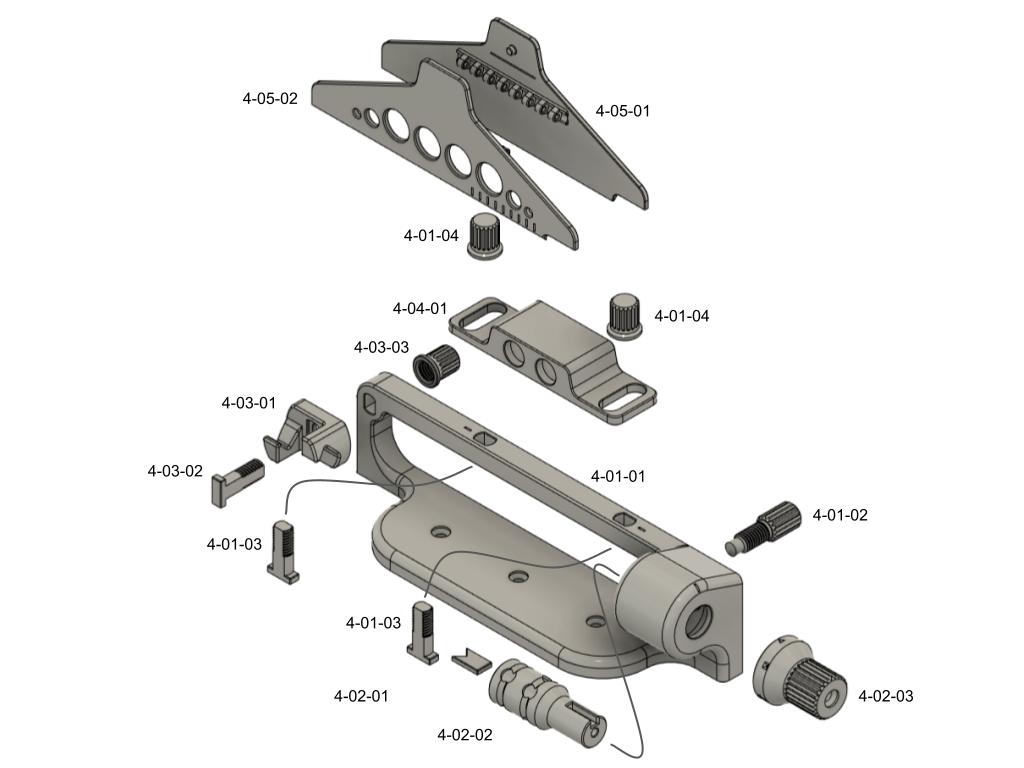

  • 4-01-01 Jig Frame Flat.stl 236.90004 × 62.65693 × 57.0 mm
  • 4-01-02 Jig Lock Screw.stl 13.07744 × 13.07744 × 42.5 mm
  • 4-01-03 Clamp Offset Adjuster Screw [1-2].stl 15.0 × 27.9 × 6.0 mm
  • 4-01-04 Clamp Offset Adjuster Lock Nut [1-2].stl 16.0 × 15.991064999999999 × 17.0 mm
  • 4-02-01 Jig Nock V Locator.stl 16.5 × 9.616652 × 2.8 mm
  • 4-02-02 Jig Adaptor 3-4 Fletch.stl 22.0 × 21.99864 × 49.400002 mm
  • 4-02-03 Jig Adaptor Knob 3-4 Fletch.stl 32.0 × 31.999938 × 35.400002 mm
  • 4-03-01 Arrow Rest Double.stl 35.0 × 23.0 × 22.799999 mm
  • 4-03-02 Arrow Rest Lock Screw.stl 15.0 × 27.9 × 6.0 mm
  • 4-03-03 Arrow Rest Lock Nut.stl 16.0 × 15.991064999999999 × 17.0 mm
  • 4-04-01 Offset Adjuster Magnet x2.stl 110.0 × 29.800001 × 18.0 mm
  • 4-05-01 Jig Clamp Magnetic Triangle Inside.stl 170.0 × 63.599998 × 8.1 mm
  • 4-05-02 Jig Clamp Magnetic Triangle Outside.stl 170.0 × 63.599998 × 8.1 mm
  • 4-11-01 OPTION Clamp Offset Adjuster Lock Nut Medium [1-2].stl 16.0 × 15.997392000000001 × 24.0 mm
  • 4-11-02 OPTION Clamp Offset Adjuster Lock Nut Long [1-2].stl 16.0 × 15.996991999999999 × 31.0 mm
  • 4-11-03 OPTION Jig Frame Flat Compact.stl 200.40004 × 62.669822 × 48.299999 mm
  • 4-12-01 OPTION Jig Adaptor 6-4 Fletch.stl 22.0 × 22.0 × 49.400002 mm
  • 4-12-02 OPTION Jig Adaptor Knob 6-4 Fletch.stl 32.0 × 32.0 × 35.400002 mm
  • 4-12-03 OPTION Jig Adaptor Knob 3-4 Fletch Compact.stl 32.0 × 32.0 × 15.0 mm
  • 4-12-04 OPTION Jig Adaptor Knob 6-4 Fletch Compact.stl 32.0 × 32.0 × 15.0 mm
  • 4-13-01 OPTION Arrow Rest Single.stl 35.0 × 23.0 × 22.799999 mm
  • 4-14-01 OPTION Offset Adjuster Magnet x1.stl 110.0 × 29.800001 × 18.0 mm
  • 4-14-02 OPTION Offset Adjuster Magnet x3.stl 110.0 × 29.800001 × 18.0 mm
  • 4-14-03 OPTION Offset Adjuster Slotted.stl 110.0 × 29.800001 × 18.0 mm
  • 4-15-01 OPTION Jig Clamp Magnetic Deep Inside.stl 170.0 × 64.99999600000001 × 8.1 mm
  • 4-15-02 OPTION Jig Clamp Magnetic Deep Outside.stl 170.0 × 64.99999600000001 × 8.1 mm
  • 4-15-03 OPTION Jig Clamp Magnetic Compact Inside.stl 133.5 × 63.599998 × 8.1 mm
  • 4-15-04 OPTION Jig Clamp Magnetic Compact Outside.stl 133.5 × 63.599998 × 8.1 mm

Learn more about the formats
Publication date
Design number 507723
Design author colinp_hughes
colinp_hughes

colinp_hughes

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

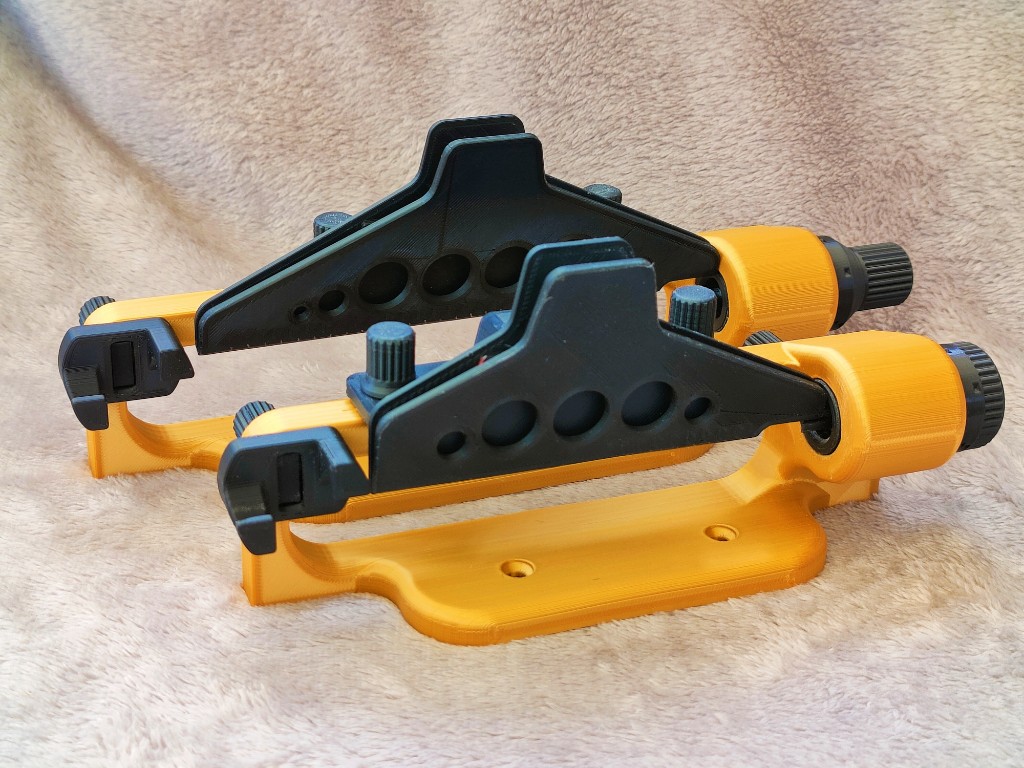

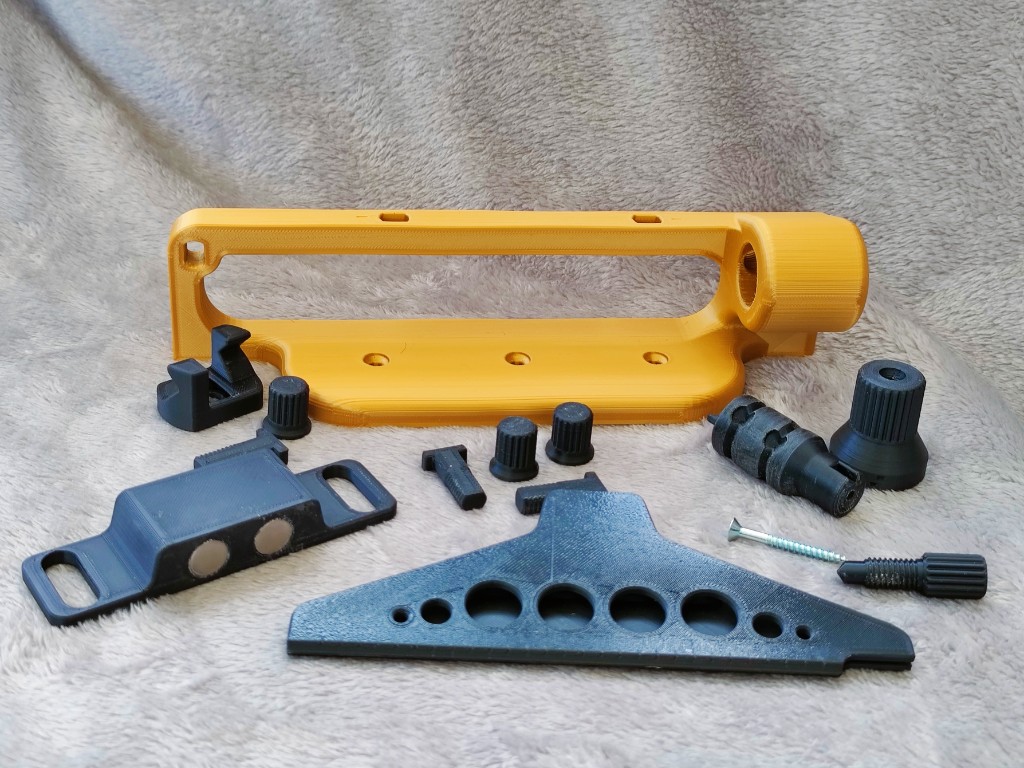

This is my 3D printable, fully adjustable fletching jig capable of fletching 3-fletch and 4-fletch arrows in full-size and compact sizes.

This is the flat version. Please read the information and instructions on my website before purchasing

Choose between 6" full-size version or a compact 4" version all from the same download. The full-size version requires a bed size of at least 220x220mm. The compact version requires a bed size of at least 200x200mm, but may just about print on a 180x180mm bed with some careful placement.

Features included in this release
Up to 6″ fletchings from the full-size version or up to 4" fletchings from the compact version.
Flat frame with a sturdy base that won’t tip over with an arrow fitted.
Double-hook adjustable arrow rest locks arrow into centre alignment.
Fitted multipurpose adaptor for 3-fletch (120)º and 4-fletch (105º/75º) without dismantling.
Strong screw threads that can easily be replaced if damaged.
Magnetic offset adjuster using 2x exposed round magnets.
Clamp design with strong, sturdy hinge and printable scale.
Optional parts provided including:
- A compact frame (requires compact 4" clamp)
- An alternative multipurpose adaptor for 6-fletch (60º) and 4-fletch (90º).
- A single-hook adjustable arrow rest.
- Medium and long nuts for easier access and better grip.
- Magnetic offset adjuster options with 1x or 3x round magnets, or a slotted option for a bar magnet.
- An alternative clamp shape (6" only).
- A compact 4" clamp.
- Compact versions of the adaptor knob.

Upgrade available
How would you like more spin in your arrow flight with helical fletchings? An optional upgrade provides stronger self-aligning clamps and a guided offset adjuster that doesn’t need magnets. Clamps available are 6″ straight, left-wing helical and right-wing helical.

More information about the helical upgrade can be found here, or can be downloaded from Cults3D here

Alternative design available

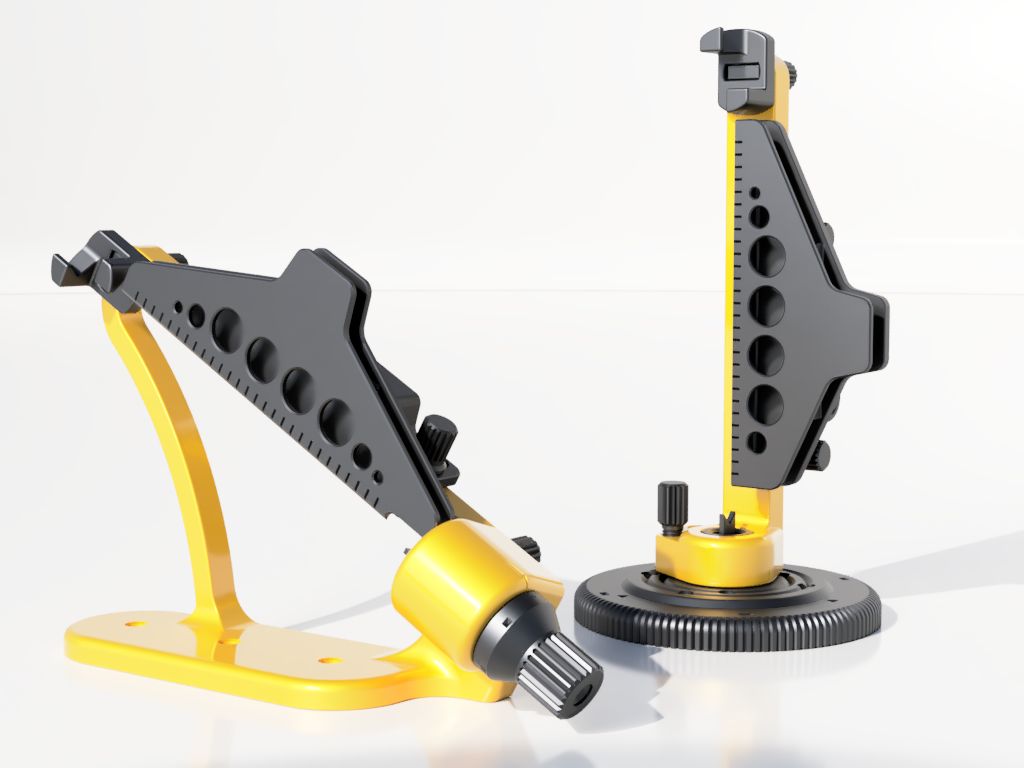

If you don’t like the flat design, then all the same features are available in the original angled version and the alternative vertical version. All are compatible with the upgrades too.

More information about the angled version can be found here, or can be downloaded from Cults3D here

More information about the vertical version can be found here, or can be downloaded from Cults3D here

IMPORTANT: The compact flat version is the smallest I can provide.

3D printing settings

Printer: Creality CR-10S
Nozzle: 0.4mm
Filament: Eryone Carbon Black and Gold PLA 1.75mm
Resolution: 0.16mm layer height
Shells: 1.6mm (4x perimeters)
Infill: 25%
Top/Bottom Layers: 1mm (6x layers)
Rafts: See printing notes
Supports: No
Brim: See printing notes
