3D PRINT - LIGHT - STACKABLE DRAWERS

Advertising
Share
Add to
Make
?
Creation quality: 0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
34 files (STL) Close
  • DRAWER LIGHT BASIC NO HOLE 130.stl 186.39999699999998 × 176.399994 × 126.399997 mm
  • DRAWER LIGHT BASIC NO HOLE 170.stl 186.400009 × 176.400002 × 166.39999699999998 mm
  • DRAWER LIGHT BASIC NO HOLE 190.stl 186.40002400000003 × 176.4 × 176.39999699999998 mm
  • DRAWER LIGHT BASIC NO HOLE 50.stl 186.40002400000003 × 176.399994 × 46.399998 mm
  • DRAWER LIGHT BASIC NO HOLE 90.stl 186.400009 × 176.399994 × 86.399998 mm
  • DRAWER LIGHT FINGER HOLE 130.stl 186.39999699999998 × 176.399994 × 126.399997 mm
  • DRAWER LIGHT FINGER HOLE 170.stl 186.400009 × 176.399994 × 166.39999699999998 mm
  • DRAWER LIGHT FINGER HOLE 190.stl 186.40002400000003 × 176.399994 × 176.39999699999998 mm
  • DRAWER LIGHT FINGER HOLE 50.stl 186.40002400000003 × 176.399994 × 46.399998 mm
  • DRAWER LIGHT FINGER HOLE 90.stl 186.400009 × 176.399994 × 86.399998 mm
  • DRAWER LIGHT HAND HOLE 130.stl 186.39999699999998 × 176.399994 × 126.399997 mm
  • DRAWER LIGHT HAND HOLE 170.stl 186.400009 × 176.399994 × 166.39999699999998 mm
  • DRAWER LIGHT HAND HOLE 190.stl 186.40002400000003 × 176.399994 × 176.39999699999998 mm
  • DRAWER LIGHT HAND HOLE 50 12 SEP.stl 186.39999799999998 × 176.400002 × 46.40002400000003 mm
  • DRAWER LIGHT HAND HOLE 50.stl 186.40002400000003 × 176.399994 × 46.399998 mm
  • DRAWER LIGHT HAND HOLE 90.stl 186.400009 × 176.399994 × 86.399998 mm
  • DRAWER LIGHT HOUSING 130.stl 194.200001 × 133.699999 × 178.599994 mm
  • DRAWER LIGHT HOUSING 170.stl 194.199997 × 173.700006 × 178.599994 mm
  • DRAWER LIGHT HOUSING 190.stl 194.20001200000002 × 193.700006 × 178.599994 mm
  • DRAWER LIGHT HOUSING 50.stl 194.20001200000002 × 53.699999 × 178.599994 mm
  • DRAWER LIGHT HOUSING 90.stl 194.20001200000002 × 93.699999 × 178.599994 mm
  • DRAWER LIGHT HOUSING REDUCED 130.stl 194.20001200000002 × 133.700004 × 178.600006 mm
  • DRAWER LIGHT HOUSING REDUCED 170.stl 194.20001200000002 × 173.699997 × 178.600006 mm
  • DRAWER LIGHT HOUSING REDUCED 190.stl 194.20001200000002 × 183.69998999999999 × 178.600006 mm
  • DRAWER LIGHT HOUSING REDUCED 50.stl 194.20001200000002 × 53.69998199999998 × 178.600006 mm
  • DRAWER LIGHT HOUSING REDUCED 90.stl 194.20001200000002 × 93.699997 × 178.600006 mm
  • DRAWER LIGHT KNOB HOLE 130.stl 186.39999699999998 × 176.399994 × 126.399997 mm
  • DRAWER LIGHT KNOB HOLE 170.stl 186.400009 × 176.399994 × 166.39999699999998 mm
  • DRAWER LIGHT KNOB HOLE 190.stl 186.40002400000003 × 176.399994 × 176.39999699999998 mm
  • DRAWER LIGHT KNOB HOLE 50.stl 186.40002400000003 × 176.399994 × 46.399998 mm
  • DRAWER LIGHT KNOB HOLE 90.stl 186.400009 × 176.399994 × 86.399998 mm
  • DROWER FRONT AND BACK LEG.stl 25.215972000000022 × 6.5 × 23.0 mm
  • DROWER MID LEG.stl 25.215972000000022 × 6.5 × 20.0 mm
  • M4 KNOB.stl 15.999603999999977 × 15.999603999999977 × 17.0 mm

Learn more about the formats
Publication date
Design number 764487
Design author COSTATECHNICDESIGN
COSTATECHNICDESIGN

COSTATECHNICDESIGN

Issue with this design? Report a problem.

Template info

3D model description

3D PRINT - LIGHT - STACKABLE DRAWERS

FOR KNOB USE M4 20MM COUNTERSUNK BOLT AND NUT

IN ORDER TO REDUCE THE FILAMENT, FOR THE INTERIOR DRAWERS HOUSING CAN BE USED THE REDUCED VERSION.

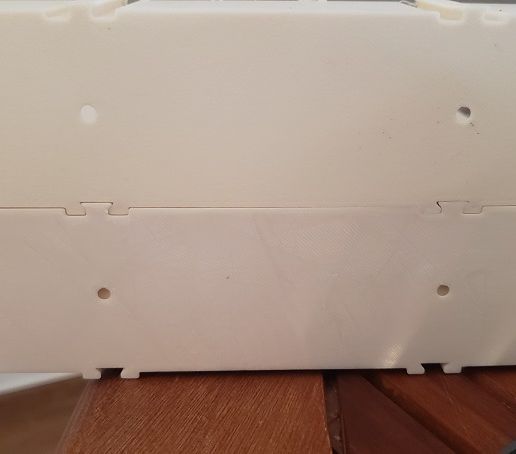

CLEAN ALL INTERLOCK CHANNELS FOR AN EASY FIT!

Manufacturing settings

OPTIMIZED FOR PRINTING USING A 0.4MM NOZZLE

DRAWER REQUIRED TOUCHING BUILDPLATE SUPPORT !

!!! TO AVOID WARPING AND DELAMINATION !!! I STRONGLY RECOMMEND USING AN ENCLOSURE FOR YOUR PRINTER OR USE FILAMENT WHAT DO NOT REQUIRE AN ENCLOSURE - AS PLA!

LET PART COLLING BEFORE REMOVING FROM THE ENCLOSURE!

PRINTED SAMPLE SETTINGS:
SLICER - CURA
NOZZLE - 0.4MM
HEIGHT - 0.2MM
WALL - 0.8MM
TOP/BOTTOM - 0.8MM
INFILL 20% - PATTERN CUBIC
SUPPORT - YES - TOUCH BUILD PLATE

PRINTER - CREALITY CR10 V3
FILAMENT - ASA
BED - 90C NOZZLE - 245C
ENCLOSED SPACE - YES
PRINT SURFACE - BUILDTAK
CLEANING SURFACE - ISOPROPYL ALCOHOL 99.99%

HAPPY PRINTING!
