22mm Button enclosure(No supports, easy print)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 246 views
  • 2 downloads

3D model description

FOR 404 DOWNLOAD ERROR, USE THE INDIVIDUAL FILE DOWNLOAD!

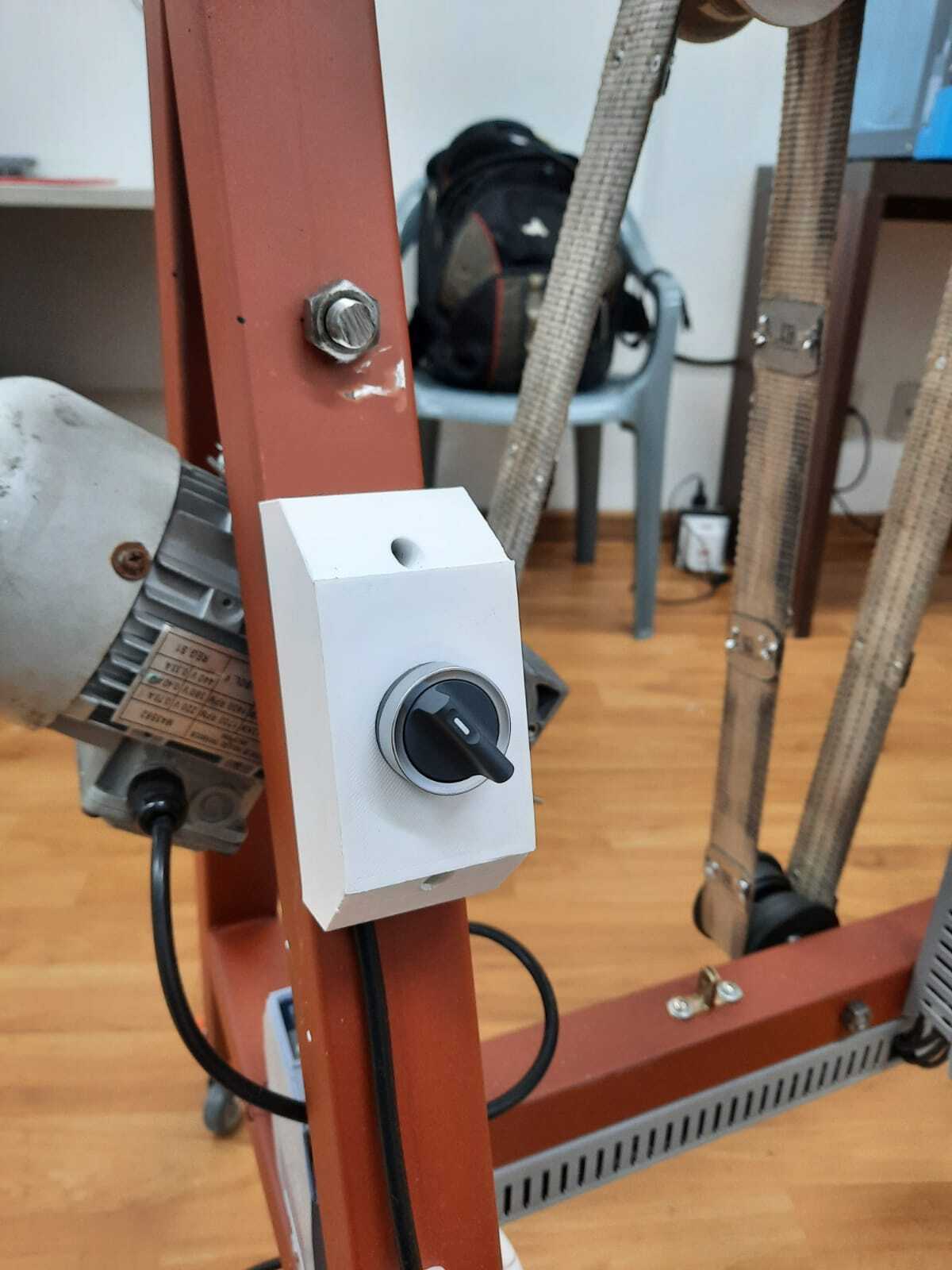

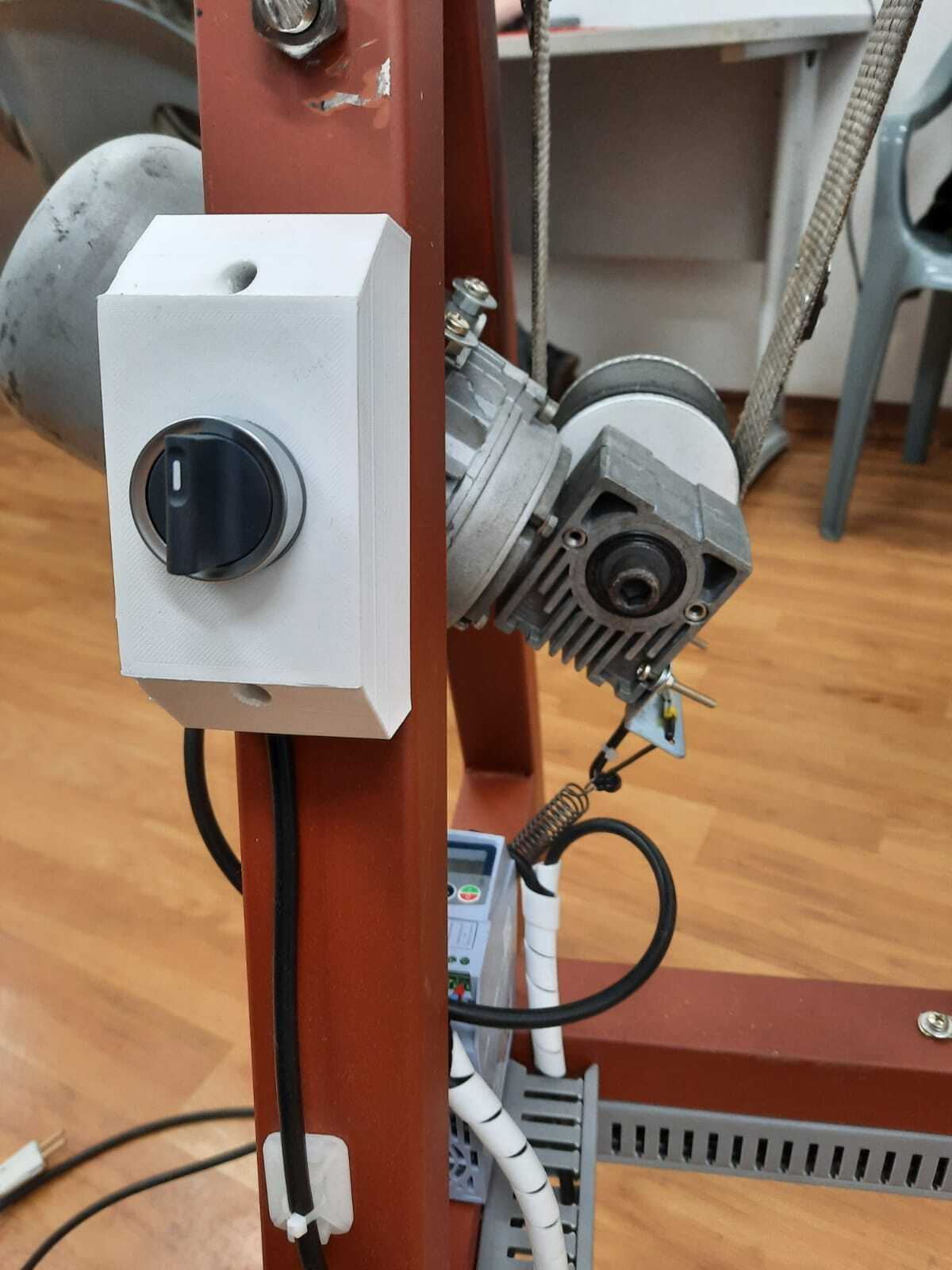

I designed this for a project that i need to make a presentation for investors. Its a realy simple model where i can use two screw to fix this on a metal surface, to hiden the cables and connection.

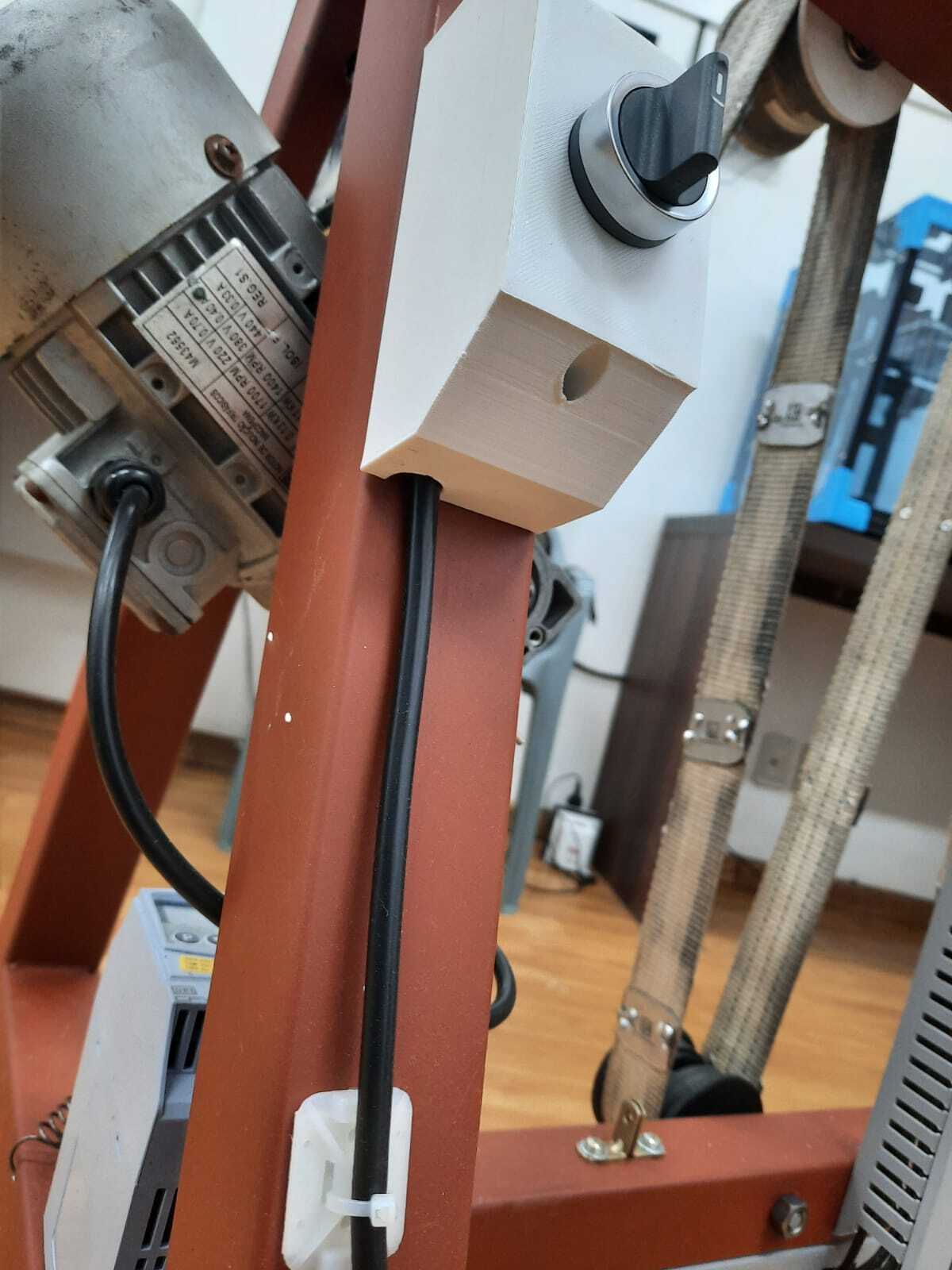

Works on any 22mm Swich knob, button, emergency button or Leds. Already include a cable exit for easy instalation.

  • The designe was made for a M3 screw.

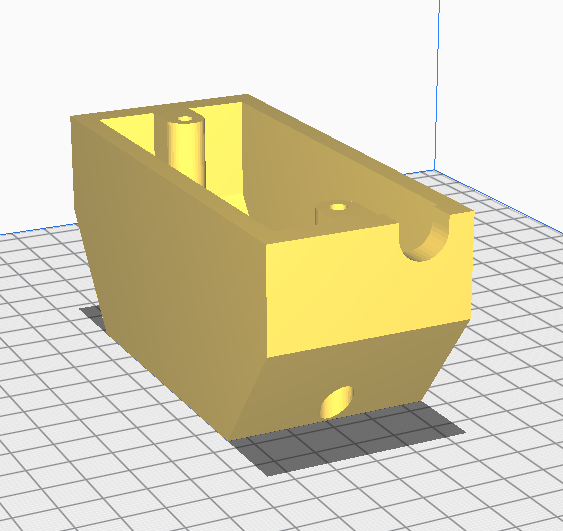

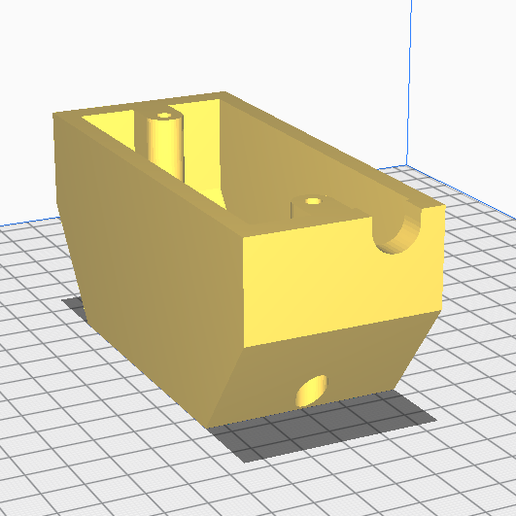

  • Print this upside down so none supports are needed.
  • Realy strong and reliable print.

I designe this using SolidWorks, if you want the Solid file, just message me and i will be happy to share with you.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • Button_Enclosure.STL

    Learn more about the formats

  • 3D model size: X 114 × Y 52.6 × Z 50 mm
  • Publication date: 2021/11/23 at 01:03

License

CC ZERO
