Trinity Planter 2.0

Advertising
Download Open priced
Share
Add to
Make
?
Creation quality: 5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
🏆 Best ?
License
Usages
3D design format
14 files (STL) Close
  • Frame main leg long.stl 25.0 × 9.0 × 227.0 mm
  • Frame main leg short.stl 25.0 × 9.0 × 177.0 mm
  • Frame support bottom joint.stl 124.083306 × 107.825317 × 20.0 mm
  • Frame support double bottom joint.stl 124.083306 × 220.65063400000003 × 20.0 mm
  • Frame support leg hang.stl 25.0 × 13.0 × 150.0 mm
  • Frame support leg long.stl 223.0 × 13.0 × 25.0 mm
  • Frame support leg short.stl 173.0 × 13.0 × 25.0 mm
  • Frame support pot joint.stl 39.0 × 14.0 × 13.0 mm
  • POT 1 inner no holes.stl 138.002532 × 108.700001 × 109.800003 mm
  • POT 1 inner.stl 138.002532 × 108.700001 × 109.500004 mm
  • POT 2 inner A.stl 138.00235 × 55.400001 × 109.500004 mm
  • POT 2 inner B.stl 89.444428 × 58.400001 × 109.500004 mm
  • POT 3 inner.stl 68.401515 × 69.95813 × 109.500004 mm
  • POT Prime.stl 156.602294 × 149.850014 × 114.5 mm

Learn more about the formats
Publication date
Design number 430243
Design author Orispoke
Orispoke

Orispoke

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

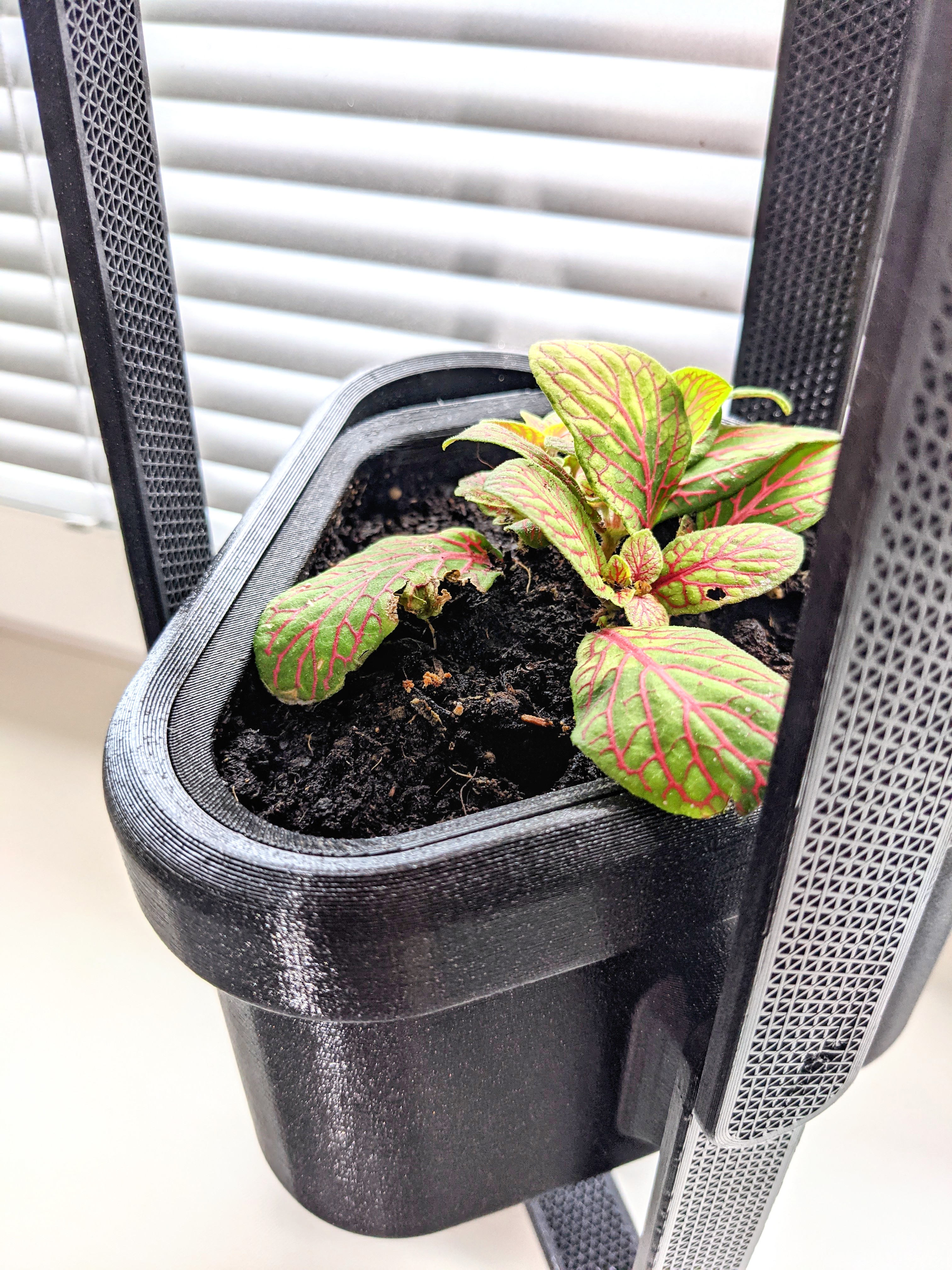

An original planter that is modular, self-watering, and with air pruning design for better growth of the roots. There are endless combinations for assembly. Let's grow something. Have fun.

Upgrade features:

New better, refined design
Joints are more functional
Joints are tested for tolerances for a snug fit

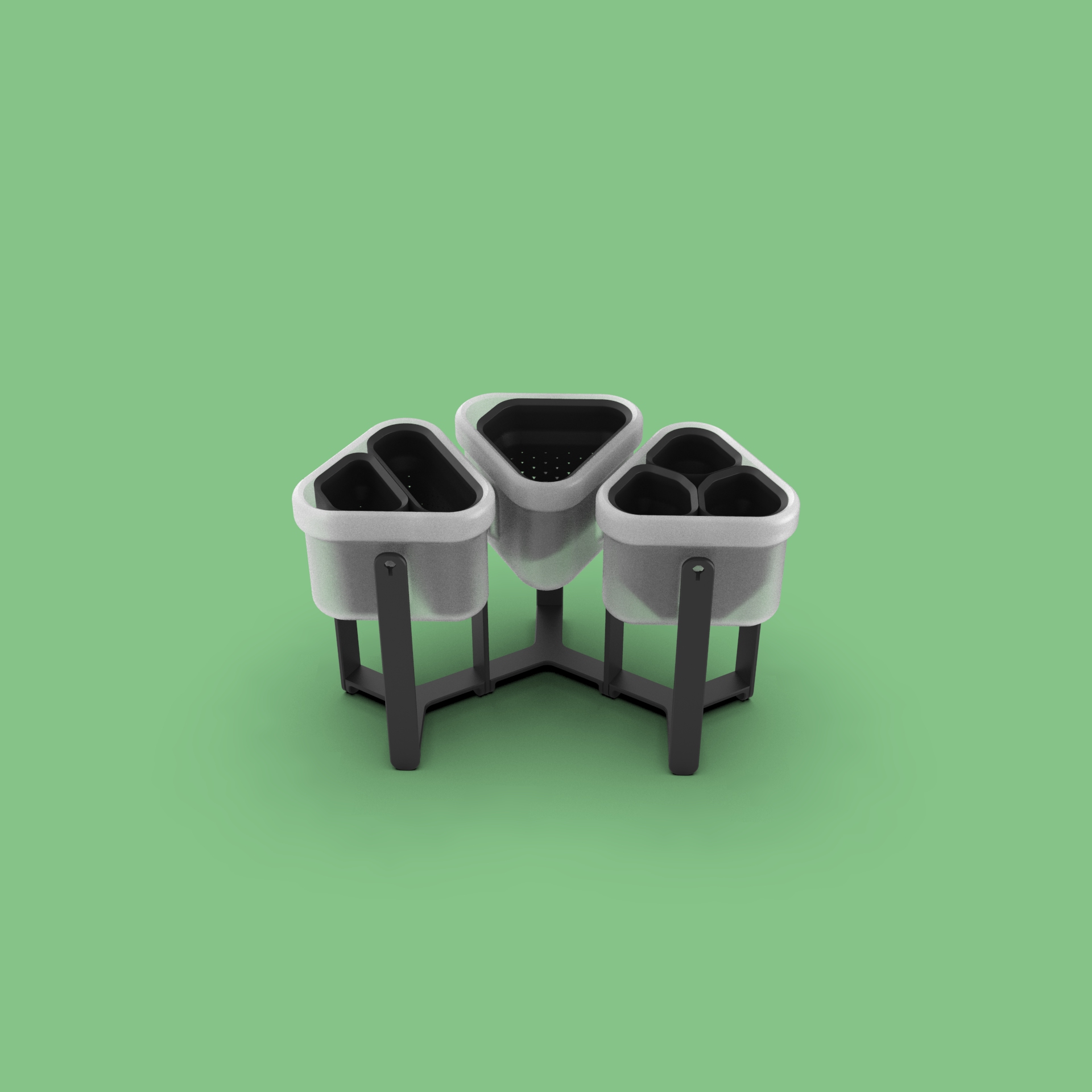

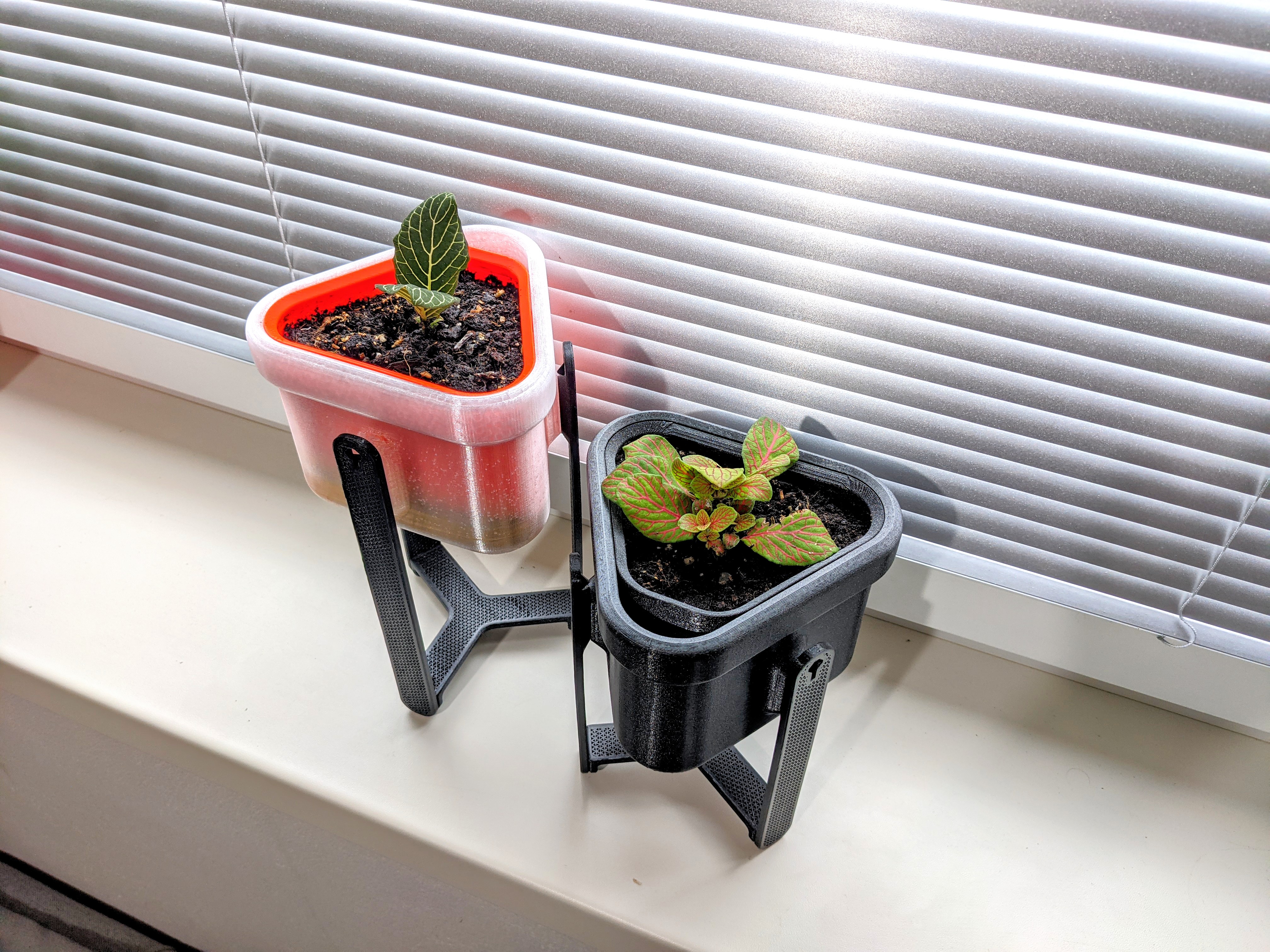

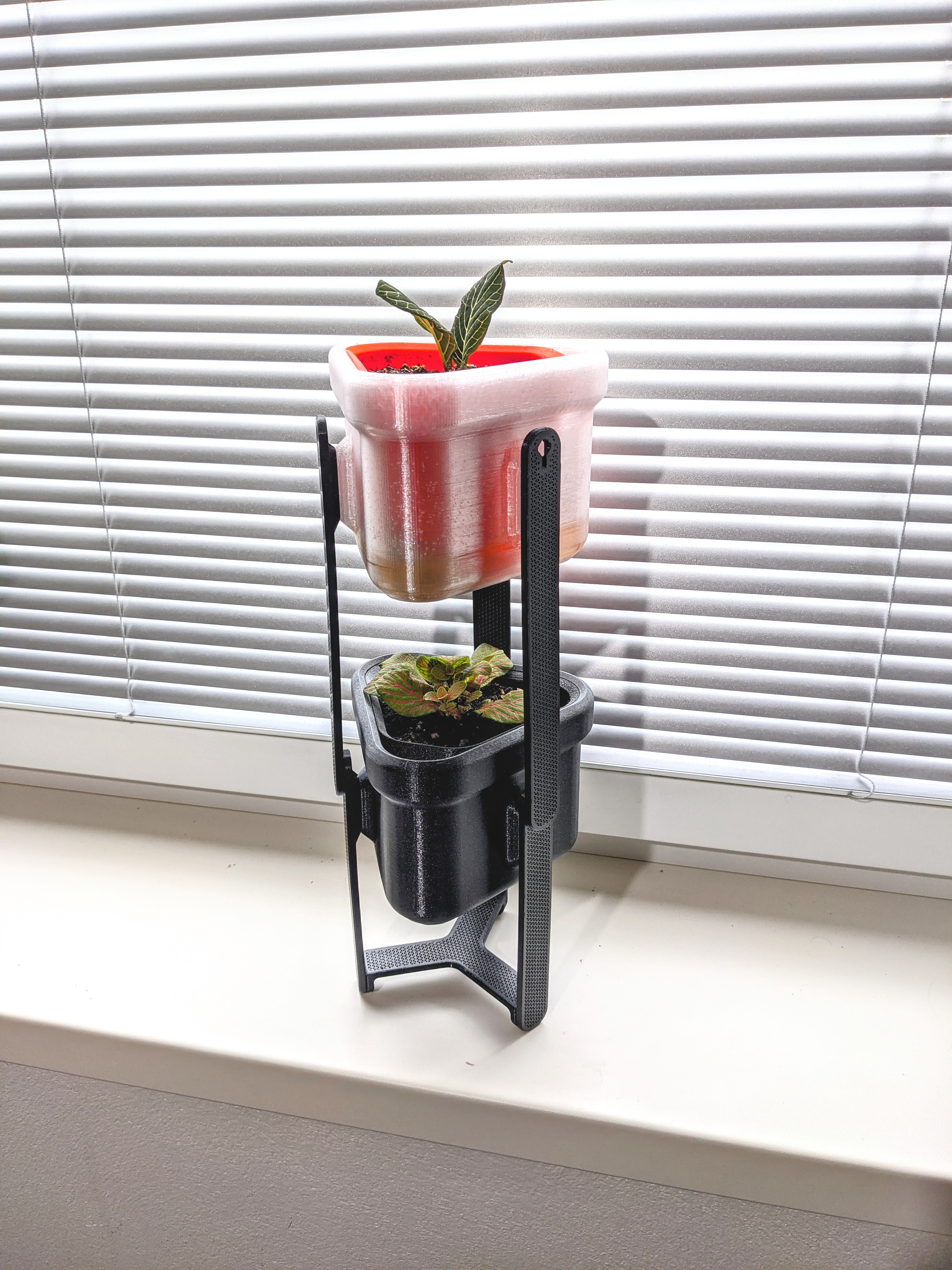

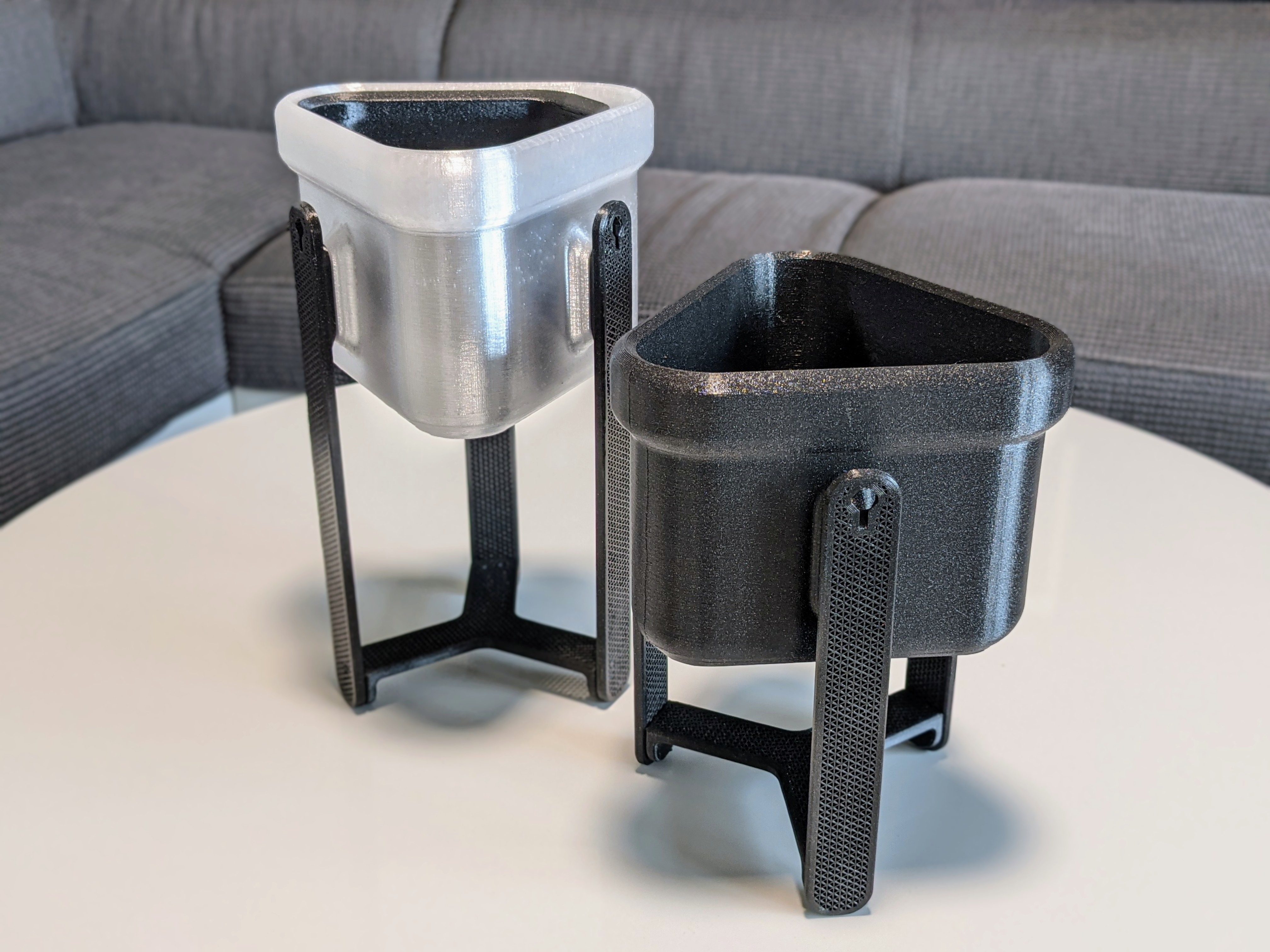

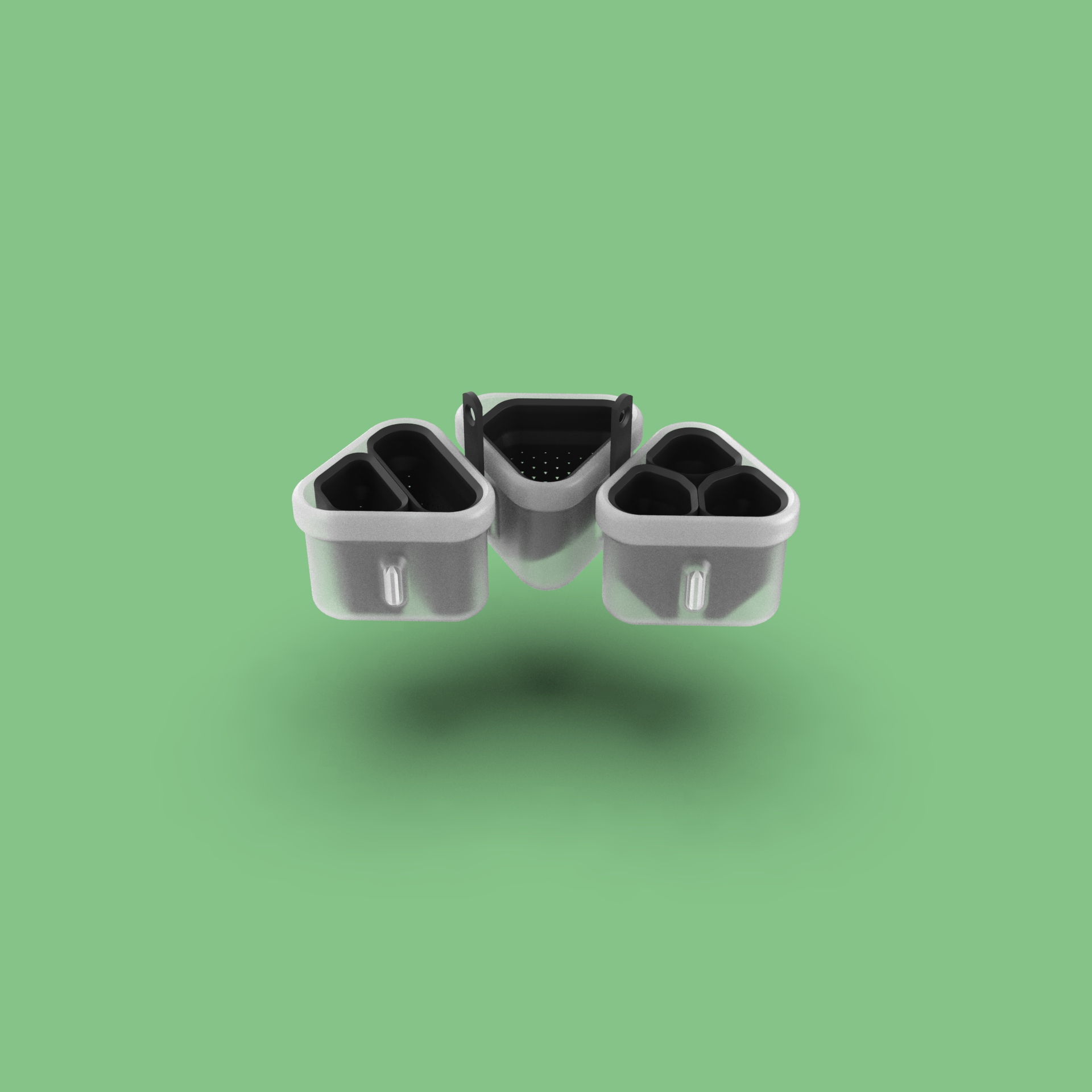

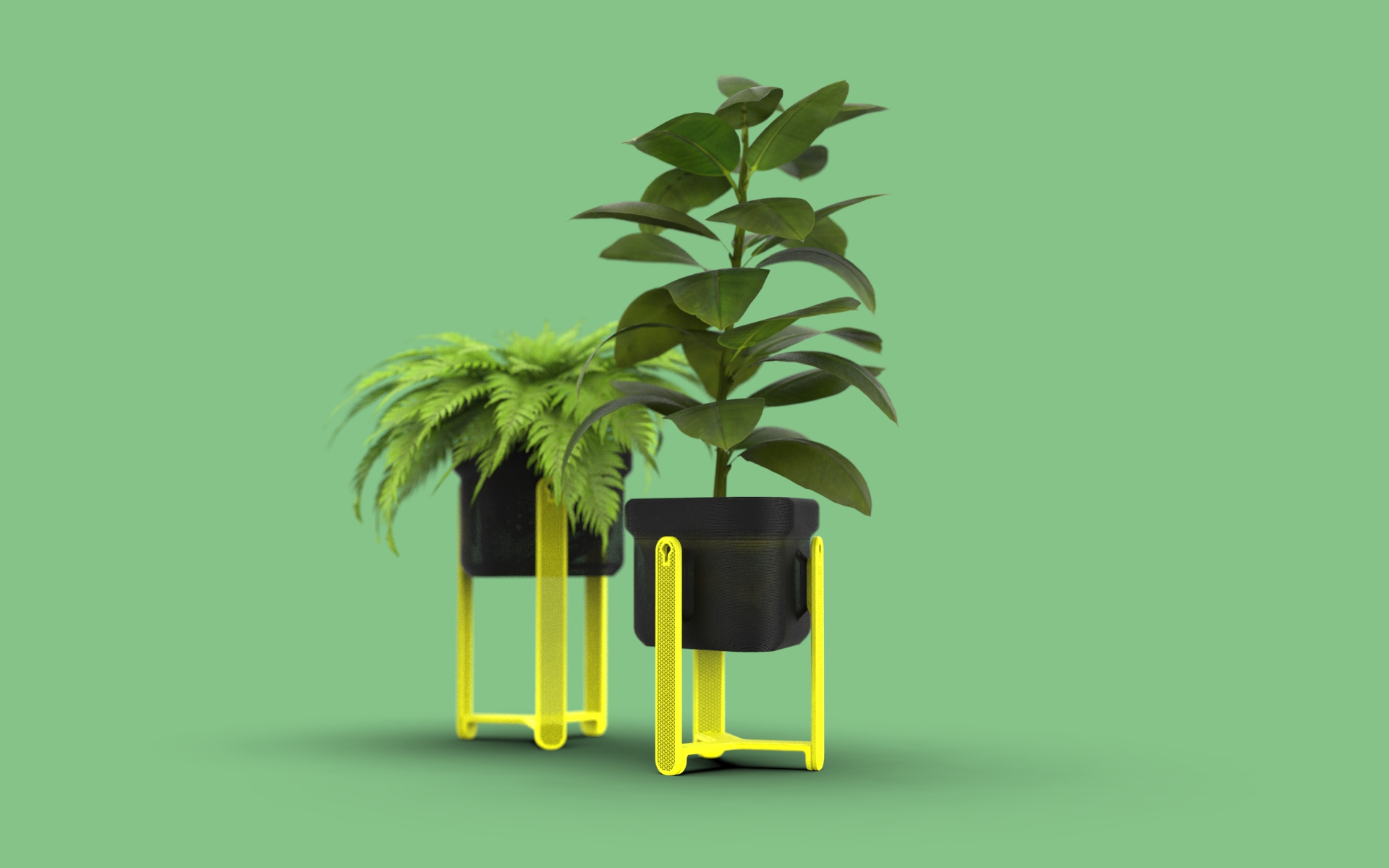

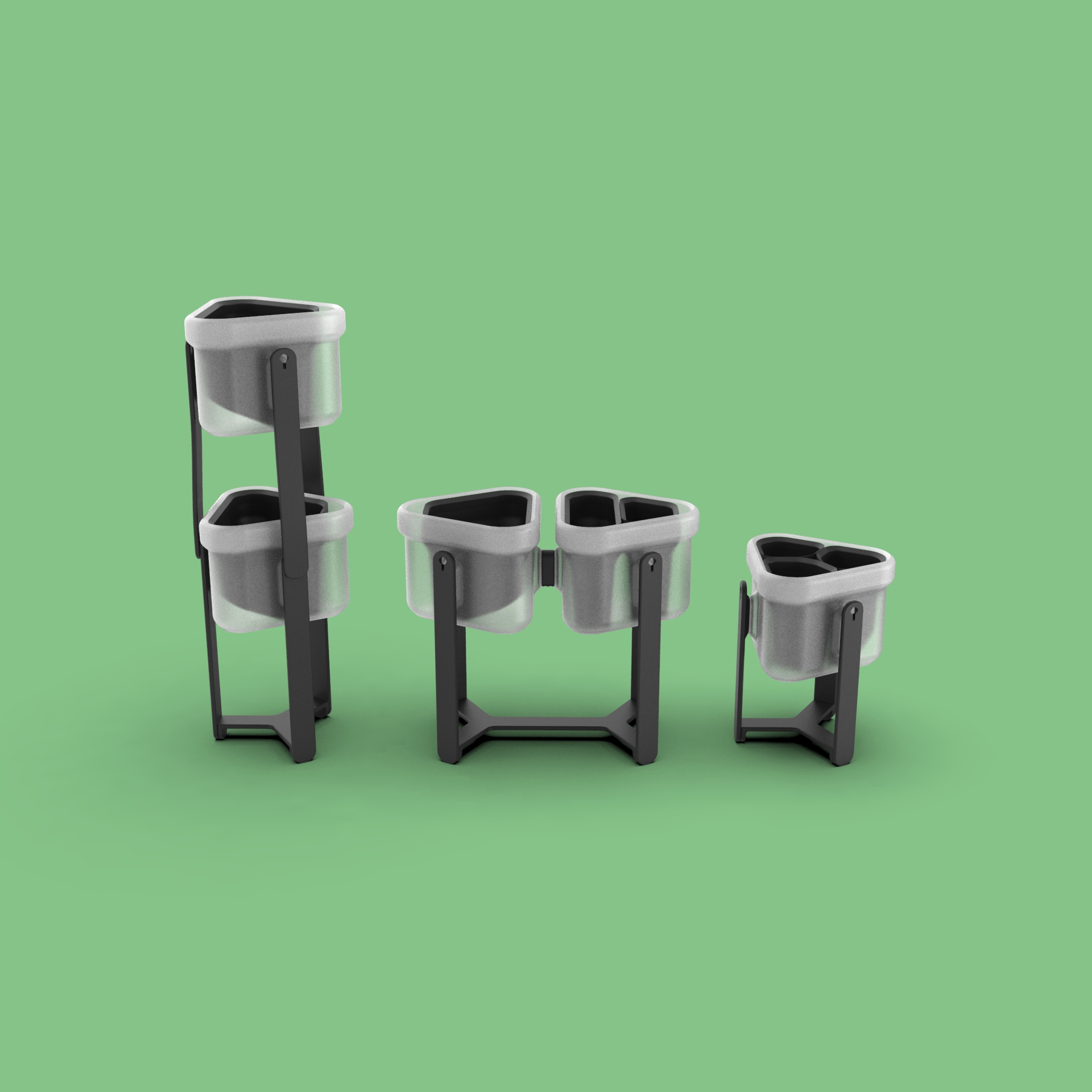

Trinity planters can be built in the towers, in the double towers, or in groups of planters. It is designed to stand or to hang with features of self watering and air pruning. It has multiple inner pots for the optional distribution of plants.

It is designed especially for FDM 3D printing with printable angles, and corners. The main planter needs to be watertight with resin coating but it depends on the printed material, thickness, and perimeters of the wall.

Assembly with some funky beats
https://www.youtube.com/watch?v=_AkuXAb2exA

3D printing settings

  • Printed in PETG

  • For the same perforated look of the legs use only infill (triangles) with 50%

  • Main pot and inner pots are printed at 0,3 layer height for time savings. Probably you need to use epoxy coating from the inside. Test it before use.

  • For the watertight surface of the main POT without epoxy use at least 6 perimeters for the walls and lower layer height to 0,15 (thickness is 2mm) Test it before use.

  • Other parts are printed at 0,2 layer hight

Categories

All categories › Home › Outdoor & Garden / Planters / Home Decor
