Pencil Nacelle

IMG_20200507_152921.jpg Pencil Nacelle
IMG_20200507_152944.jpg Pencil Nacelle
IMG_20200507_152958.jpg Pencil Nacelle
IMG_20200507_153024.jpg Pencil Nacelle
Scaling.png Pencil Nacelle
Pencil_Nacelle.png Pencil Nacelle
Pencil_Nacelle.stl Pencil Nacelle
IMG_20200507_152921.jpg Pencil Nacelle
IMG_20200507_152944.jpg Pencil Nacelle
IMG_20200507_152958.jpg Pencil Nacelle
IMG_20200507_153024.jpg Pencil Nacelle
Scaling.png Pencil Nacelle
Pencil_Nacelle.png Pencil Nacelle
Pencil_Nacelle.stl Pencil Nacelle
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
1 file (STL) Close
  • Pencil_Nacelle.stl 3.619974 × 3.619974 × 4.4009920000000005 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 412783
Design author Sitdamp
Sitdamp

Sitdamp

Issue with this design? Report a problem.

3D printer file info

3D model description

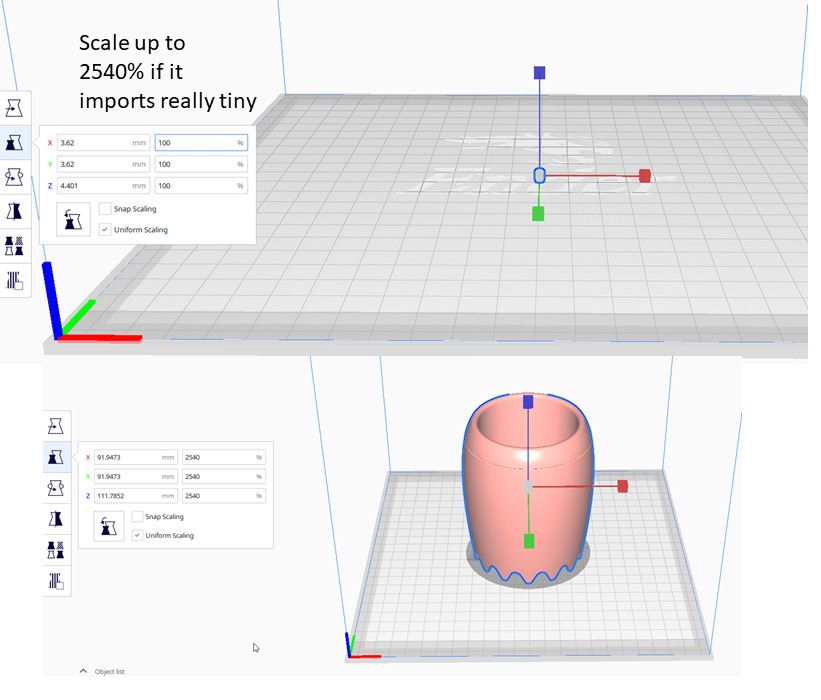

The part was designed in inches so you may have to scale it up when importing into your slicer. I used Cura 4.5. Scale it up by 2540% to get it to the original size.

If you'd like to support my work, I have an updated version available for purchase on Etsy: https://www.etsy.com/listing/1030639920/airplane-engine-nacelle-pencil-holder?ref=listings_manager_grid

3D printing settings

Supports:

Yes

Resolution:

0.2mm

Infill:

100%

Notes:

In order to keep the chevron tips stuck to the build plate I printed with a 3mm wide brim.

I printed with 0.4mm nozzle but set line width to 0.5mm.

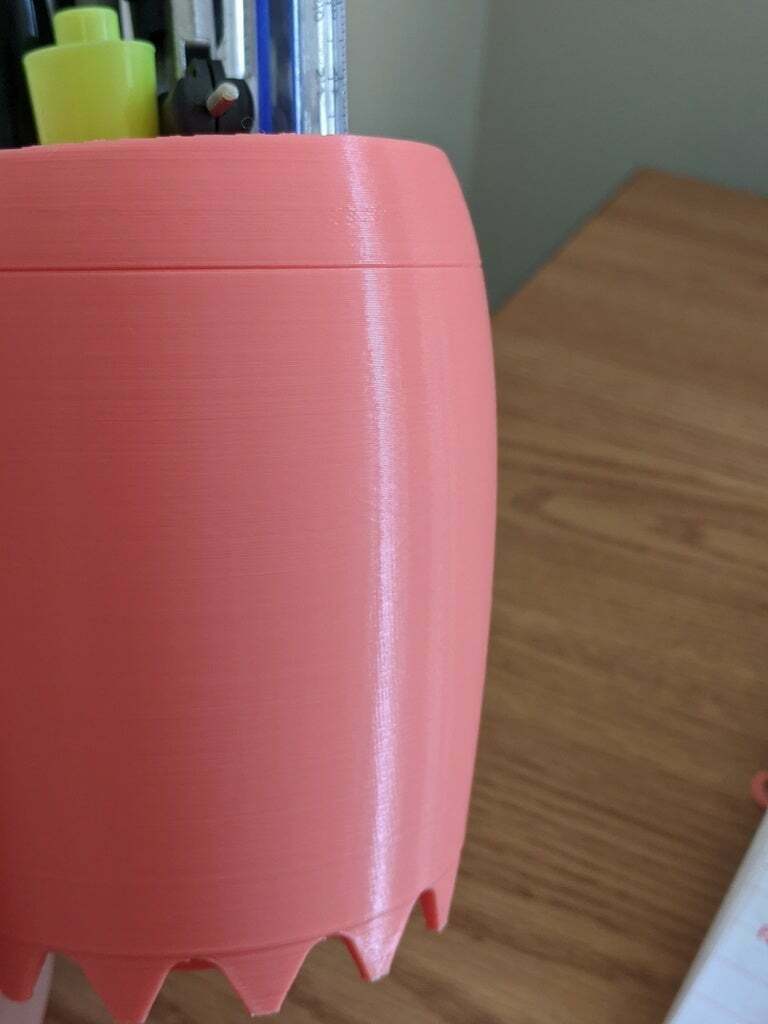

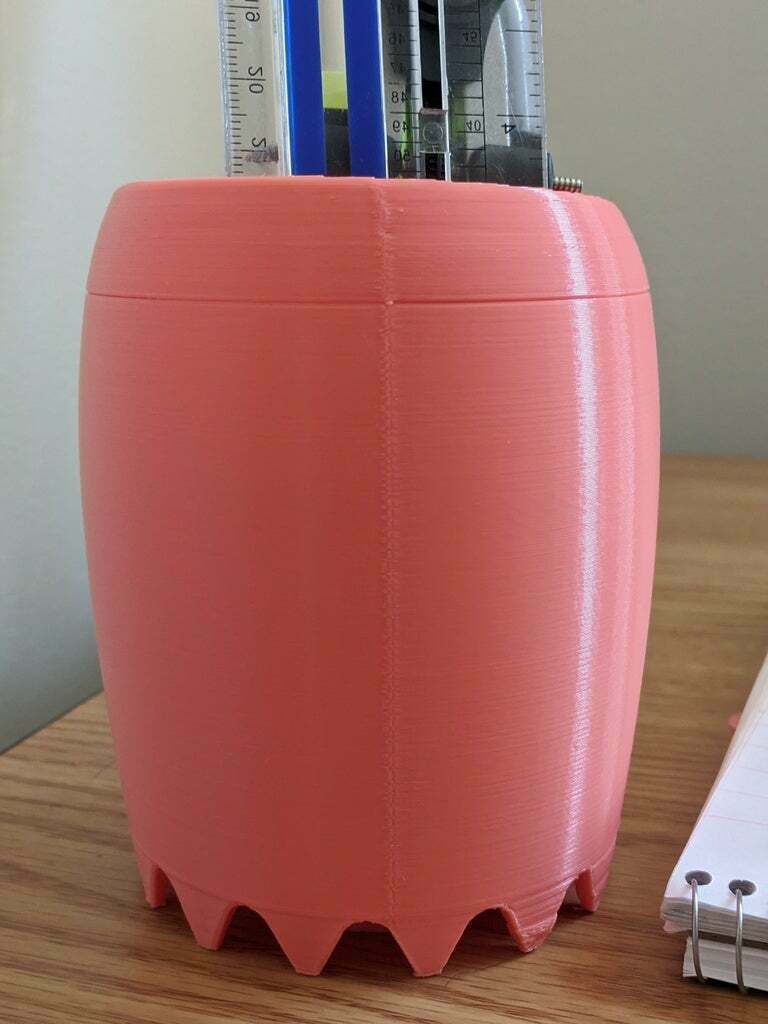

I also set the z seam to a user specified point on the build plate because I like to have each layer start/stop point all in a line so that the rest of the print has a really nice finish.

Post-Printing

The support was fairly difficult to remove so be careful! Helps to get a good grip at one edge with pliers then yank/peal.
