NICHOIR, BIRD SHELTER, BIRD HOUSE WITH FOOD AND BATH

This comfortable nesting box is designed to help our garden birds get through the winter by providing them with water (water collectors) and food.

It can be attached to a tree by a wide strap (to preserve the tree) or by its base on a horizontal surface.

It consists of 4 parts:

-a base


-a wall block (4 in one)


-a roof


-a perch

and can be fitted with (choice of options):

• one or two side troughs with or without perches (short or long stl version)

• a feed trough (two receptacles).

In the absence of an option, the corresponding fixing holes will be obturated.

The options are fastened and held by M4x8 screws (7) from the inside (use a short screwdriver) and the roof by M4x12 screws (2).

The strap used comes from a cardboard folder with adjustable back width.

The "wall block" is forced into the base and glued if necessary (although the absence of glue will make cleaning easier). It will be necessary to adjust the wall block after printing to create the necessary clearance before insertion into the base.

The two printed versions illustrate the various options.

CREALITY ENDER 3 S1 PRO

PLA or PETG

0.16

202°/60°

50 mm.s-1

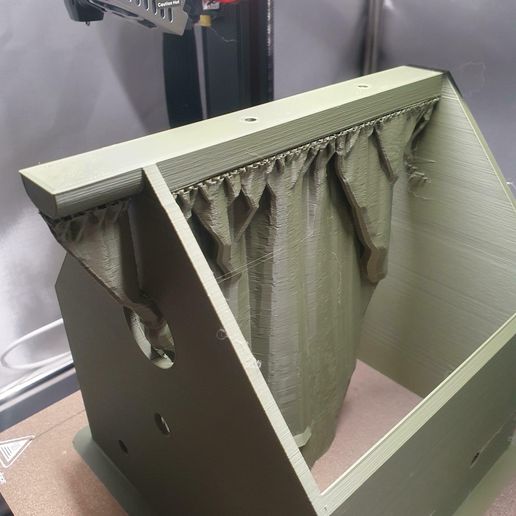

Edging with tree supports

No printing difficulties (see part orientations in photos)
