Mini box: magnetic hinge and closure

Download free STL file Mini box: magnetic hinge and closure, PhiGlDownload free STL file Mini box: magnetic hinge and closure, PhiGlDownload free STL file Mini box: magnetic hinge and closure, PhiGlDownload free STL file Mini box: magnetic hinge and closure, PhiGlDownload free STL file Mini box: magnetic hinge and closure, PhiGlDownload free STL file Mini box: magnetic hinge and closure, PhiGlDownload free STL file Mini box: magnetic hinge and closure, PhiGlDownload free STL file Mini box: magnetic hinge and closure, PhiGl
Download free STL file Mini box: magnetic hinge and closure, PhiGl

Did you 3D print this model?

3D model description

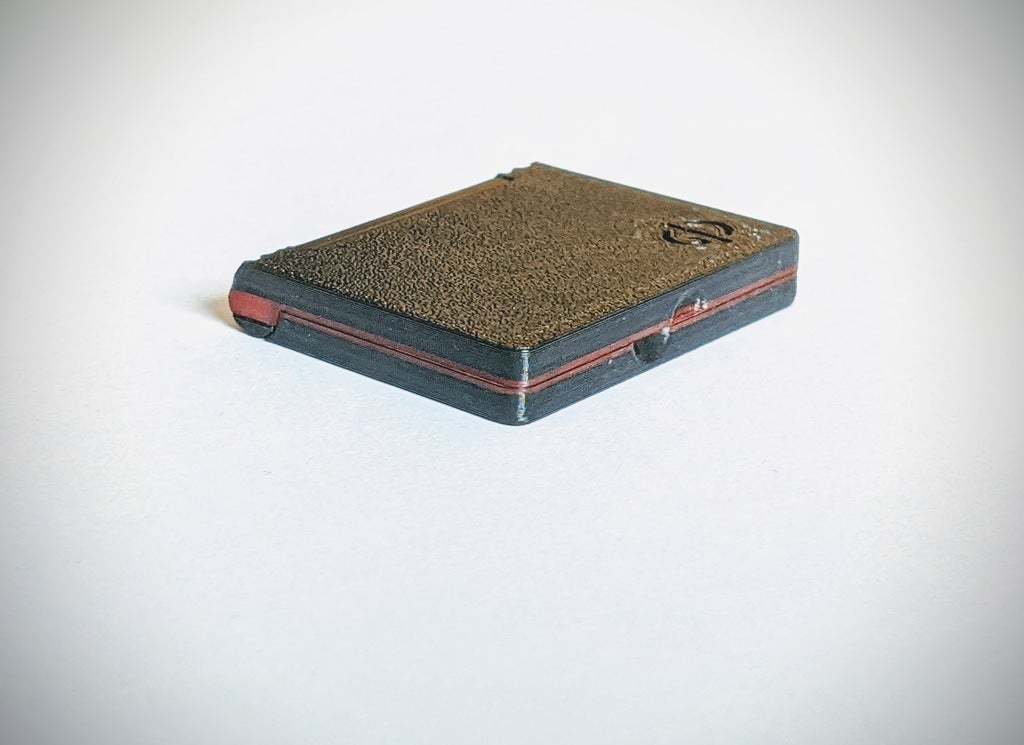

Elegant mini box with hidden hinge thanks to the use of magnets. Can be used for example as a giftbox for a piece of jewelry or to protect small and fragile things, such as SD cards.

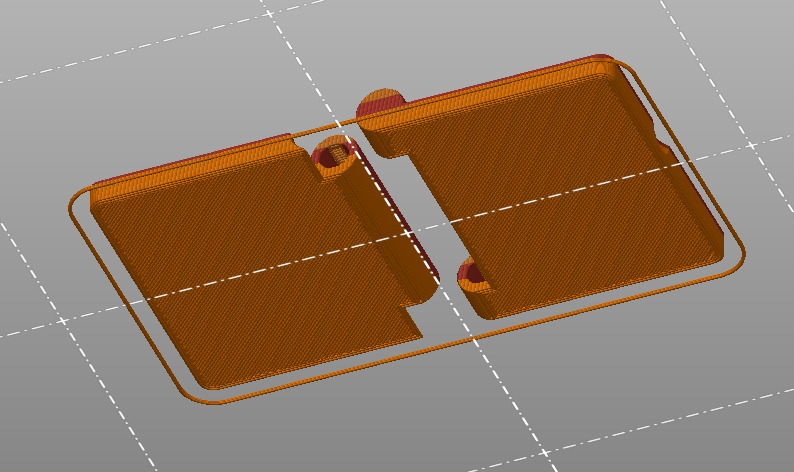

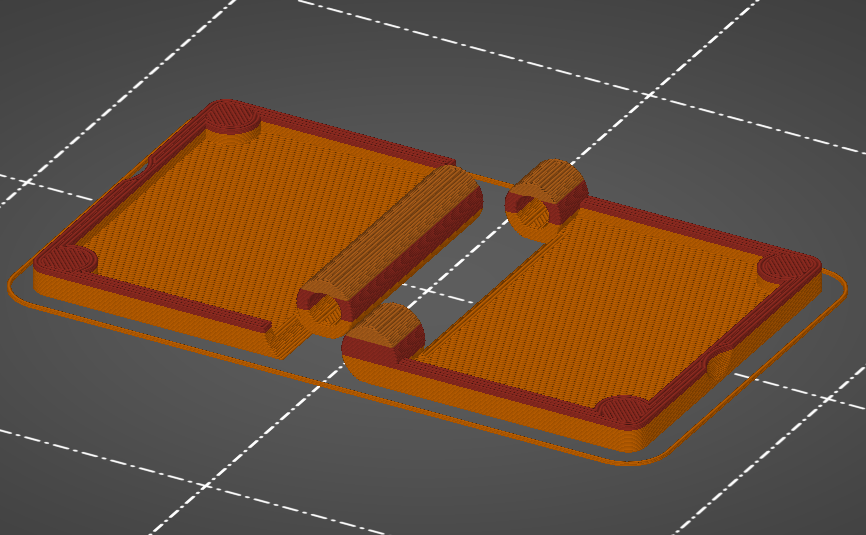

Since you have to interrupt the print twice to insert the magnets, I recommend also changing the filament to achieve the effect of color stripe, that is very aesthetic.

Dimensions: 40 mm x 33 mm x 7 mm
Inner dimensions: 35 mm x 25 mm x 3 mm, but you have to count with the magnets in the corners.

Designed for magnets:

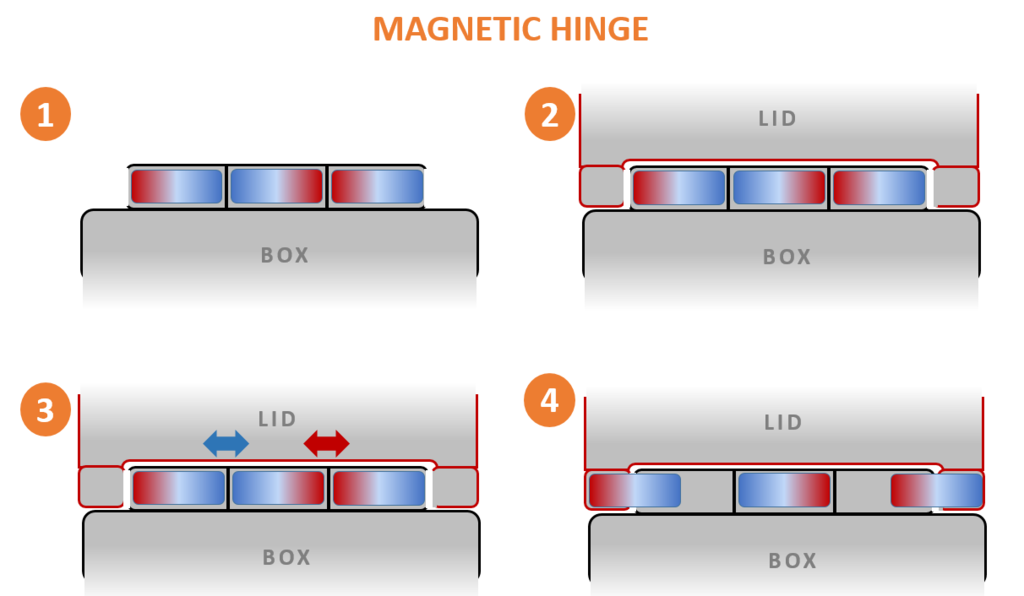

Hinge: 3 mm (diameter) x 8 mm (height), 3 pieces, e-shop (CZ): https://www.unimagnet.cz/301-T-03-08-N.html
Closure: 4 mm (diameter) x 1.5 mm (height), 4 pieces, e-shop (CZ): https://www.unimagnet.cz/638-KT-04-02-N.html

  • 3D file format: 3MF, GCODE, and STL
