3D model description

Upload: February 05, 2024

3D modeler: Tinkercad

Source: none, this is a 100% personal creation!

This 3-combination secret box has the following dimensions: x= 120, y= 80 z= 62.60 mm

It consists of 6 files to be printed once:

  • Box.stl

  • Door frame.stl

  • 2 wedges.stl

  • Door.stl

  • Handle.stl

  • Markers.stl

and 1 file to be printed 3 times :

  • Wheel All.stl

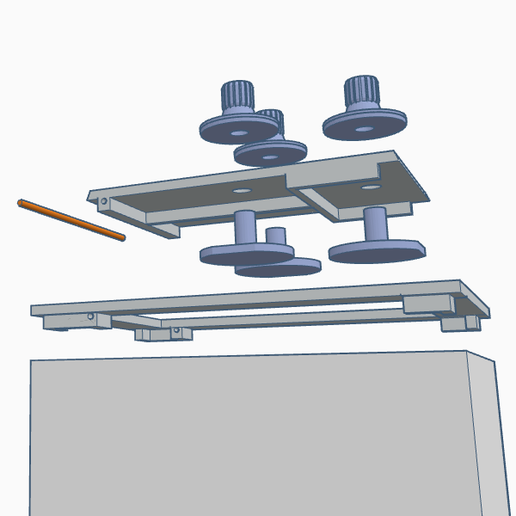

ASSEMBLY :

  • the door is hinged to the door frame using a piece of filament from your printer cut to the right length. It must be able to open and close without snagging (if necessary, use sandpaper fixed with 2 tacks on a board to plane the edges).

  • glue the 2 wedges to the front underside of the door frame, so that the door doesn't fall into the box.

  • the 3 disc-locks fit into the 3 holes below the door.

  • on the top of the door, the 3 knurls fit, for the moment without gluing.

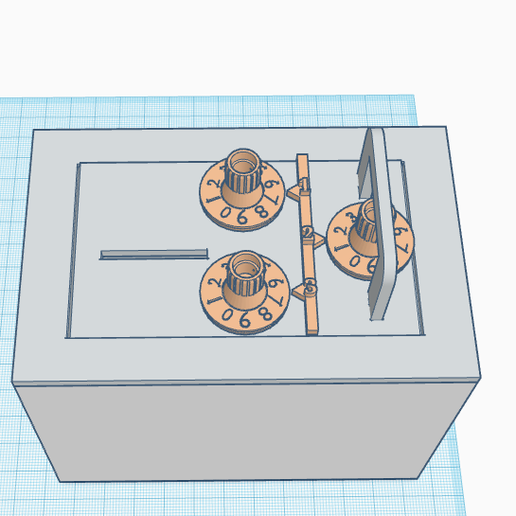

  • on the door top, the marker bar fits between the 3 knurls, see photo.

  • on the door top, the handle is glued in the 2 holes in front of the door.

COMBINATION ADJUSTMENT :

  • place a locking disk in the position that allows the door to open (see photo).

  • on the door top, slide a thumbwheel washer onto the axle, place a drop of strong glue at the top of the axle and thread the thumbwheel, positioning the chosen number in front of the mark.

Repeat the same procedure for the other 2 knobs. Note the 3 digits!

FINAL ASSEMBLY:

After checking that everything is working properly, fit and glue the frame + door assembly to the box.

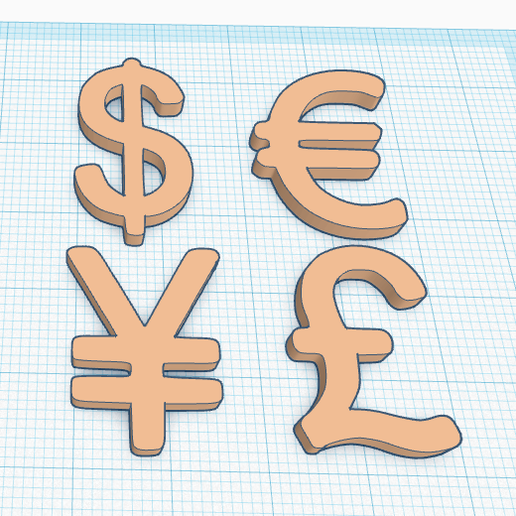

Small decorations (representing the world's major currencies), can be printed and glued to the sides of your piggy bank, according to your whim.

  • -

To see all my creations on cults3d.com, click on my name.

3D printing settings

Printing with 1.75 mm PLA

on 15x15 cm tray

layer : 0.20 to 0.40

no border, no support, just a skirt to start the extrusion.

filling: 20%.

My tools, all free except Photoshop :

  • tinkercad.com : simple 3D modeler

  • fusion360: more powerful modeler, but much more complicated!

  • cura: slicer, cutter

  • picsvg.com: convert an image (jpg, png, bmp, gif...) into SVG

  • photoshop : image processing

  • ideamaker: separate the distinct elements making up a 3D object

  • meshmixer: correct defects in a 3D object, cut an object into 2 parts

  • spin3d: convert 3D files between each other

  • meshlab: lighten a heavy 3D file
