Height Adjustable Bar Stool cnc

Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.


3D model description

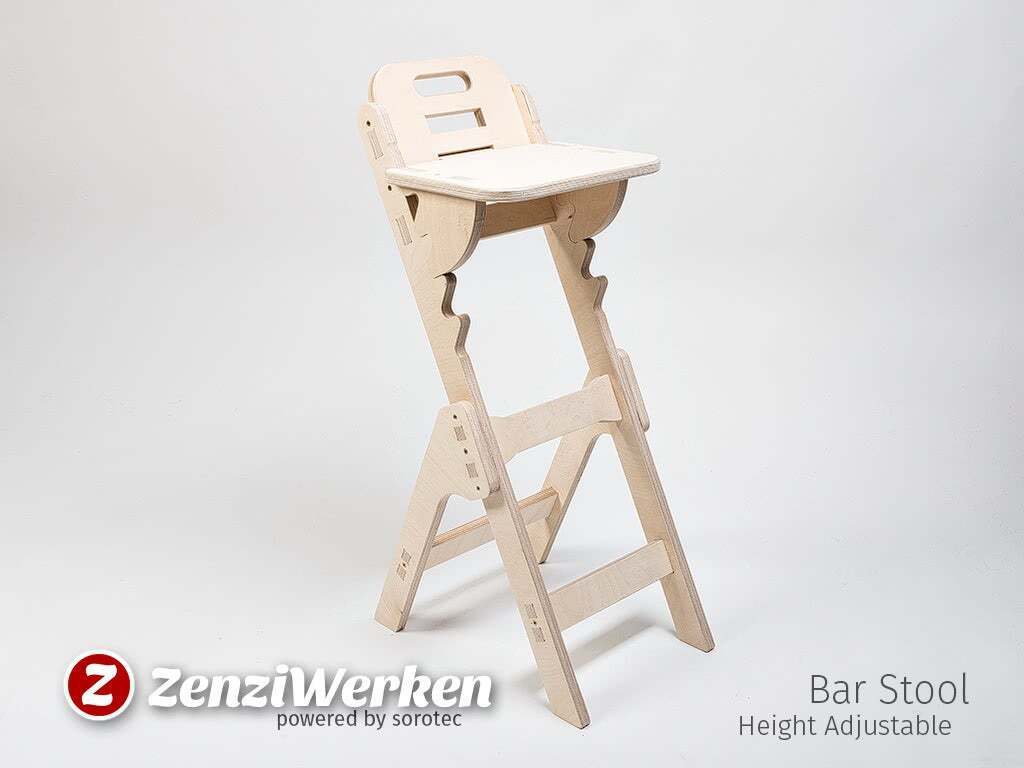

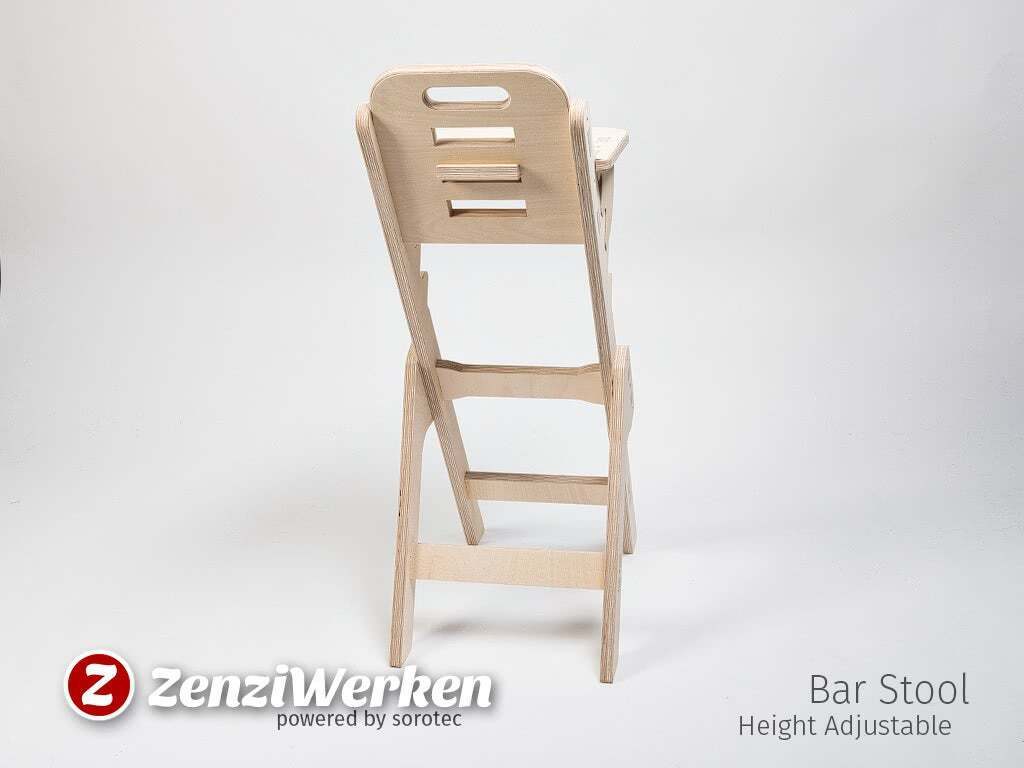

This adjustable height bar stool is the result of my search for a chair I could use in my shop at the computer an d the cnc. Both surfaces are way higher than any desktop so I needed a bar stool of a kind. As I wasn't sure on the exact height I came up with simple method of adjusting the seat height: You just tilt the seat a little and insert it into the appropriate recess. It will fit into the curved 'ladder' of the legs.

After some iterations of cad modeling, I did some first test cuts on the cnc. Some further improvements and a full fledged prototype out of cheap pinewood, showed that the idea was working in general, but the soft wood did bend to much on the seat and the back rest. A friend of mine did a prototype out of baltic birch plywood and this worked out just great.

Other than many of my designs I joined the parts using screws and tenons. I added some marks in the drawing to predrill holes with the cnc. After assembly I drilled the holes into the counterparts.

Please be aware that the stl-file is for viewing purpose only. Don't print this design on a fdm-printer!

Visit for more interesting furniture designs.

3D printer file information

  • Design number: 63848
  • 3D design format: STL Folder details Close
    • Height_Adjustable_Bar_Stool.stl

    Learn more about the formats

  • Publication date: 2019-07-09 at 14:11
    Published to Thingiverse on: 2018-12-08 at 11:51


CC BY-NC-SA - Attribution - Non commercial - Share alike
