Gutter Downspout Rain Diverter

Downspout_diverter_no3.jpg Gutter Downspout Rain Diverter
Downspout_diverter_no3_print.jpg Gutter Downspout Rain Diverter
3D_design_Downspout_diverter_no3_dimensions.jpg Gutter Downspout Rain Diverter
Downspout_diverter_no3_cad.png Gutter Downspout Rain Diverter
Downspout_diverter_no3.png Gutter Downspout Rain Diverter
Downspout_diverter_no3.stl Gutter Downspout Rain Diverter
Downspout_diverter_no3.jpg Gutter Downspout Rain Diverter
Downspout_diverter_no3_print.jpg Gutter Downspout Rain Diverter
3D_design_Downspout_diverter_no3_dimensions.jpg Gutter Downspout Rain Diverter
Downspout_diverter_no3_cad.png Gutter Downspout Rain Diverter
Downspout_diverter_no3.png Gutter Downspout Rain Diverter
Downspout_diverter_no3.stl Gutter Downspout Rain Diverter
Advertising
Share
Add to
Make
?
Creation quality: 4.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
1 file (STL) Close
  • Downspout_diverter_no3.stl 110.0 ร— 110.0 ร— 170.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 571523
Design author Love2HelpU
Love2HelpU

Love2HelpU

Issue with this design? Report a problem.

3D printer file info

3D model description

If this model makes you smile, please consider making a small donation to https://paypal.me/Love2HelpU . We really do love to help and you can help us continue to do so.

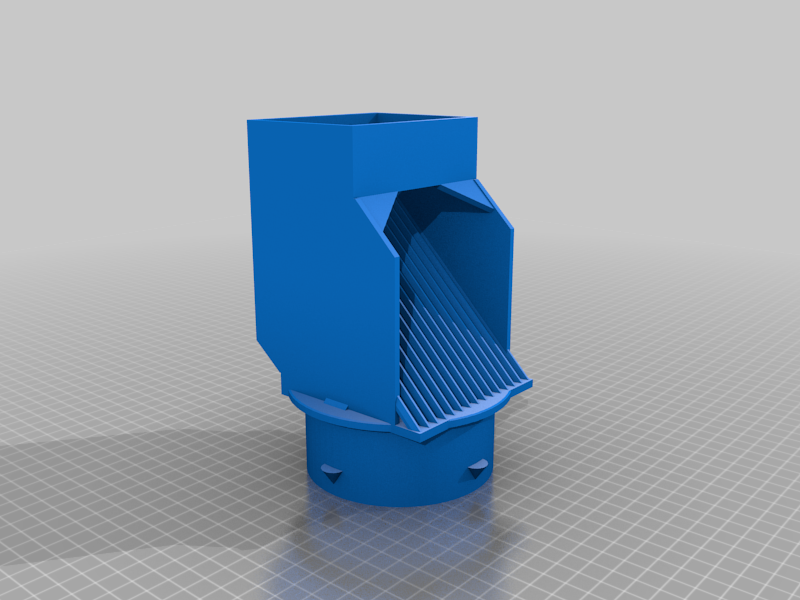

###Those of you with gutter downspouts that carry rain underground can appreciate the mess and problems when leaves and other debris clog up your underground lines. I put together a device that allows the rain to go underground but ejects the leaves and other debris.

####Design Notes:
- The rectangular top is sized to accept the narrowing taper at the end of a downspout. I.D. = 59mm x 82mm (2.32" x 3.22")
- The circular bottom is to be inserted into PVC or corrugated pipe cut to proper length. O.D. = 94mm (3.7")
- Total height = 170mm (6.69")
- Height from bottom to lip (amount inserted into corrugated pipe) = 40mm (1.57")

If there are any modifications or additions that could help you out, please leave a comment and we'll see what we can do. Cheers!

####Printing Notes:
- Requires 'supports' under the circular lip 40mm (1.57") from the bottom.

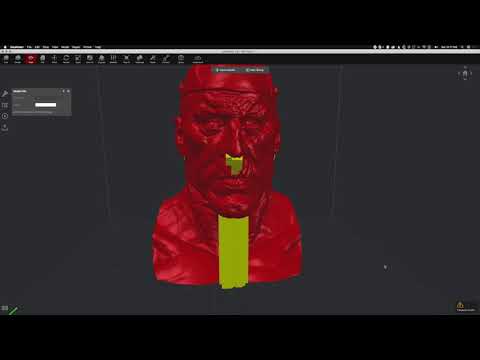

(Angled supports in Ideamaker worked beautifully! https://www.youtube.com/watch?v=WkRVudekCEk)
- Was printed in standard PLA with 0.2mm layer height.
