Glove and boot dryer

Requires a 120mm PC case fan and 1 1/2" ABS pipe as shown. Included is the OpenScad source code in case you want to make changes (like use a different diameter pipe). But note that the file isn't fully parameterized because I wanted to avoid the trigonometry on the angles. So I highly recommend using the 1 1/2" ABS pipe whose outside diameter is 48.75mm or a pipe whose outside diameter is really close to that.

2020-09-12: Updated scad file adds a shoe horn and an option for four airways (two pairs) instead of two airways.

Do this:

/1. Print glove_dryer_v8.stl.
/2. Cut two short sections of 1 1/2" ABS plumbing pipe to fit in the airways.
/3. Fit a 120mm PC case fan into the cavity below. Keep it in with hot melt glue.

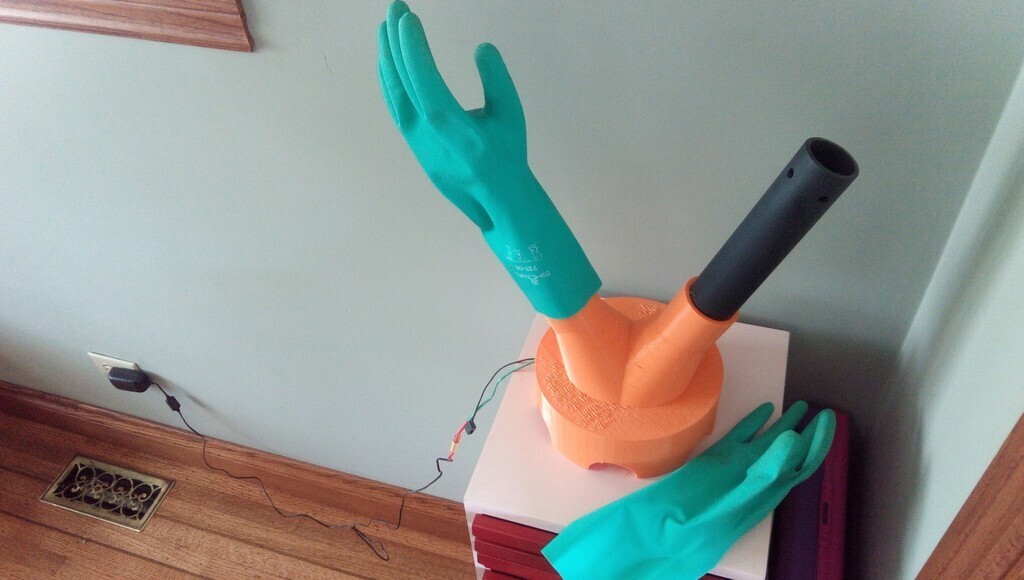

You can dry gloves and shoes with this.

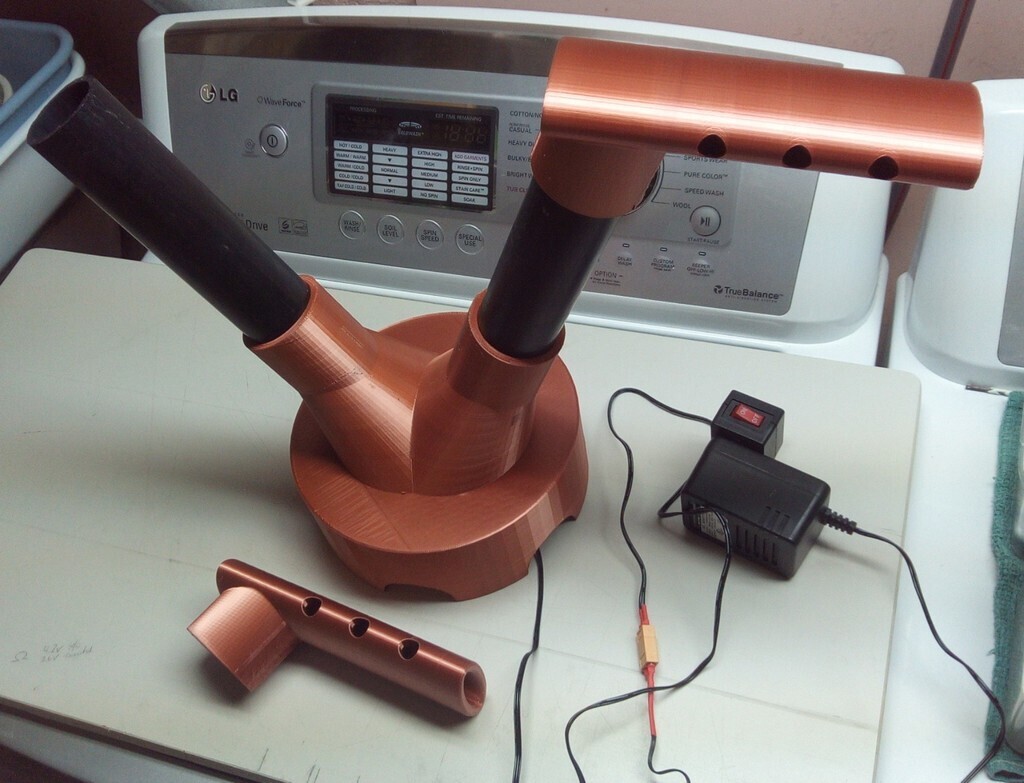

/4. Optionally print two copies of glove_dryer_horn_v12.stl to make shoe drying more effective. They fit on the ends of the ABS pipe.

/5. Optionally run the program in glove_dryer_v12.scad to modify parameters. You can create a four airway model or adjust the sizes of the shoe horns.

-
