Framed Harry Potter movie posters lithophane box

I'm a big fan of Harry Potter and have been for most of my life. I wanted to have a subtle light above my bed at night when I'm just trying to wind down or read before sleeping. So, with that in mind, I thought the best way to do that combining it with something I love would be a Litho of some sort.

I designed the box so it could be glued together in sections and allow for storage of a remote or excess wire from the light strip.

Warm LED light strip used:
https://www.amazon.com/gp/product/B07XGKX327/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1

Cool LED light strip used:
https://www.amazon.com/gp/product/B07XHLGSXN/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1

Suggested connectors to use:
https://www.amazon.com/HitLights-Light-Strip-Connector-Single/dp/B00QJB6FYO/ref=pd_ybh_a_1?_encoding=UTF8&psc=1&refRID=MGTM1C1CFCCHPH57FDC2

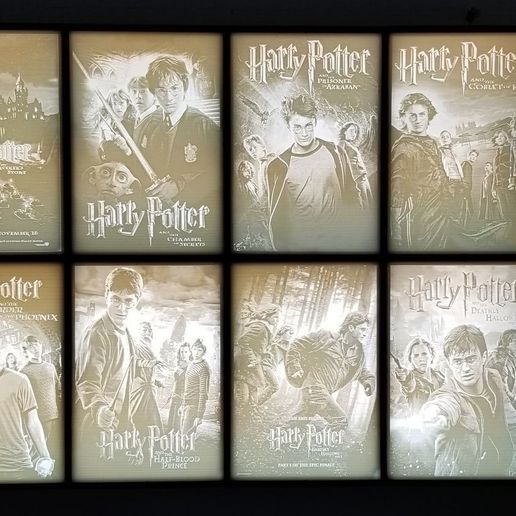

Each litho is 130x188.7x3 mm and can easily be popped out if I, or you, wish to replace them with different lithos of the same size.

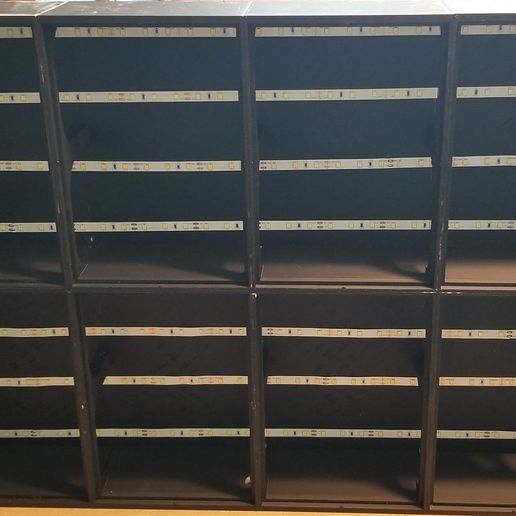

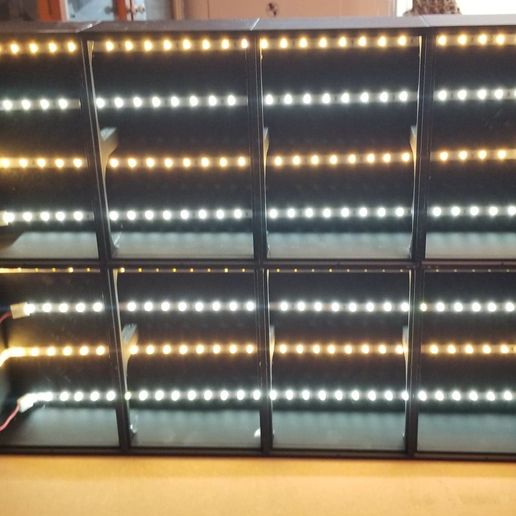

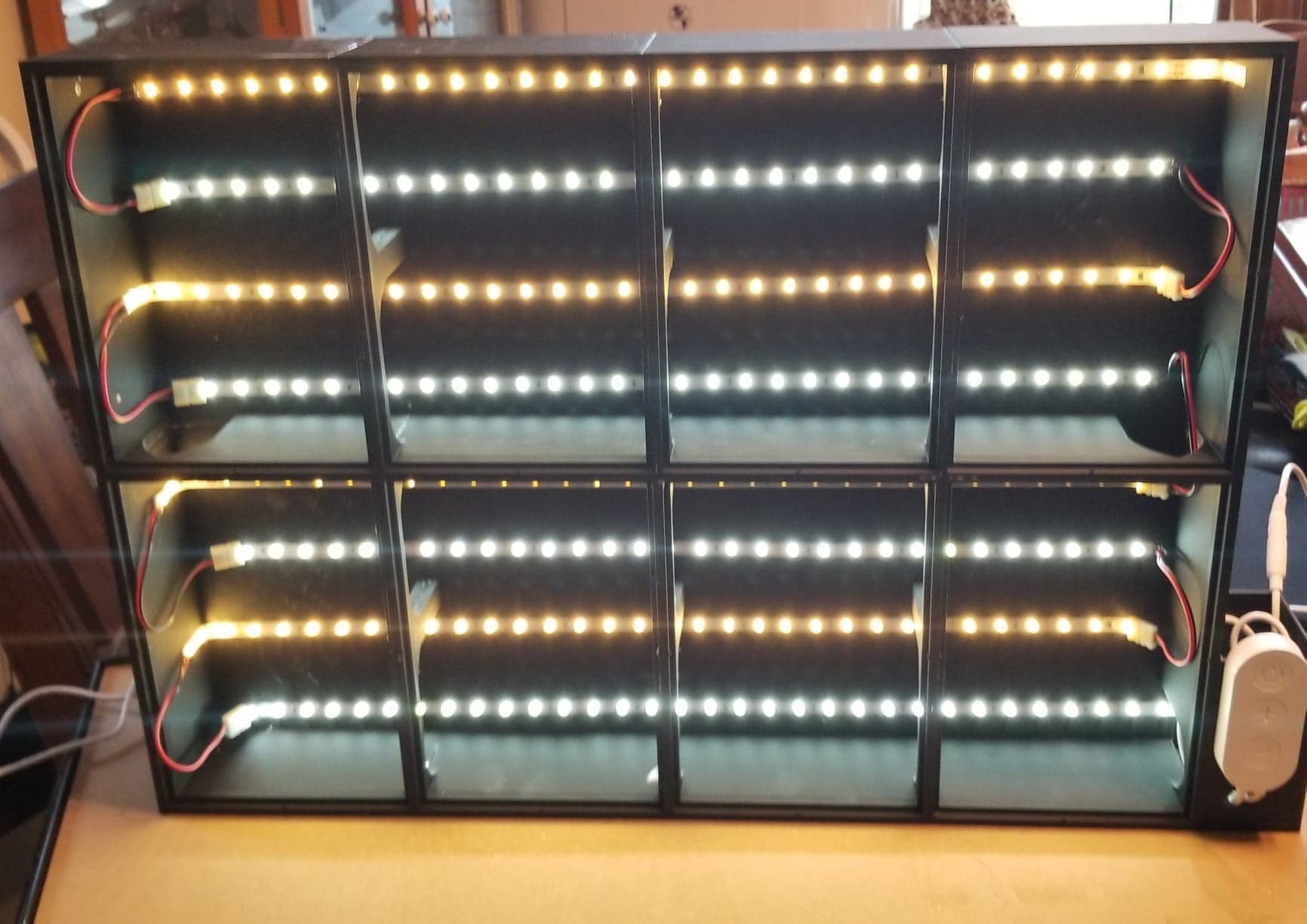

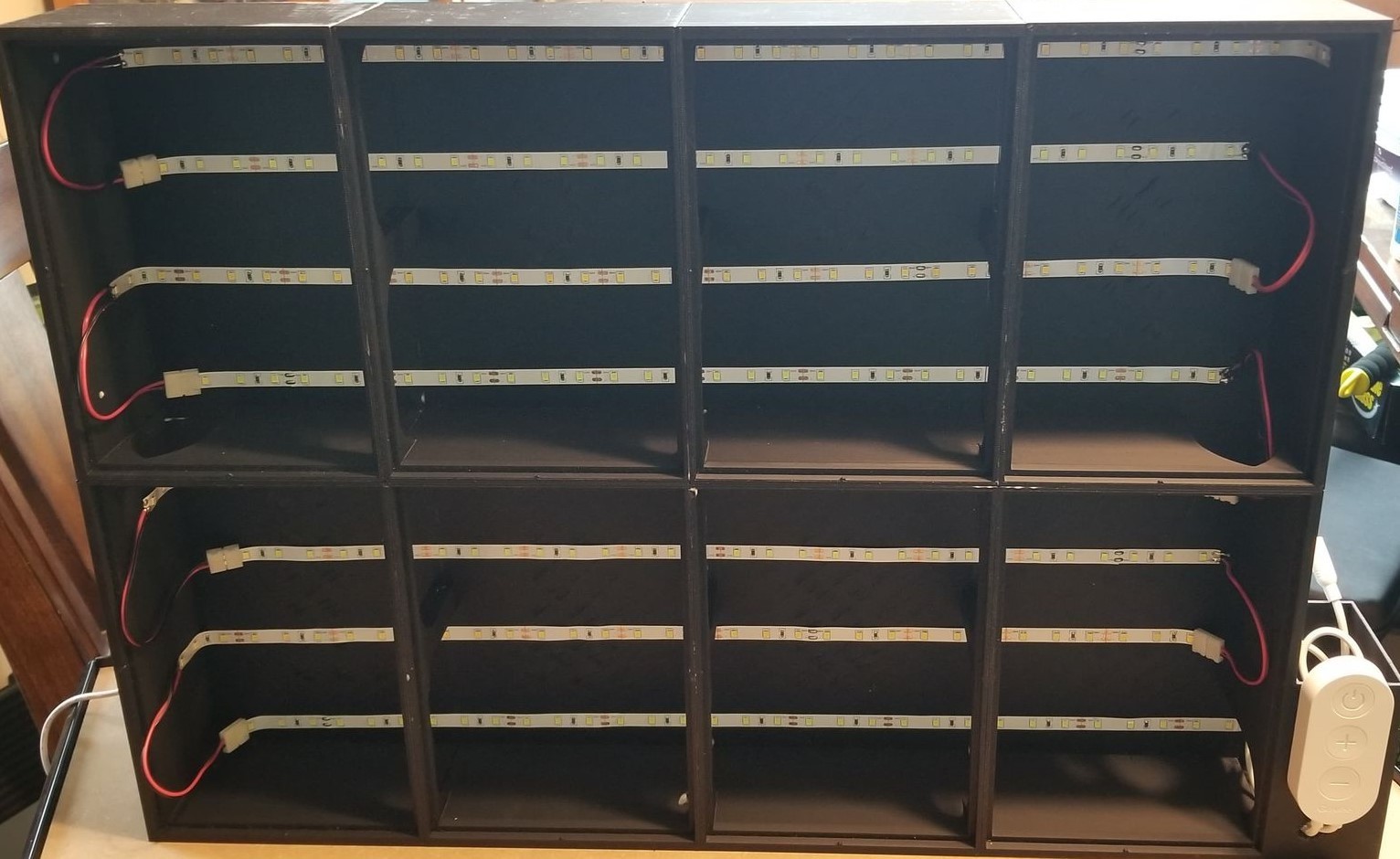

For lighting, I used a alternate between cool and warm LED light strips I found on Amazon, connecting them with connectors also found on Amazon. This just gives it more of a balance in lighting instead of it being too much of cool or warm. Holes were drilled in the back for hanging and one in the front because I decided I wanted to attach the on/off button on the outside instead of house it in the box on the right.

If you would like slight changes made such as dimensional to fit what you need in order to use the light boxes, drop me an email or leave a comment. 3dgenedesigns@gmail.com

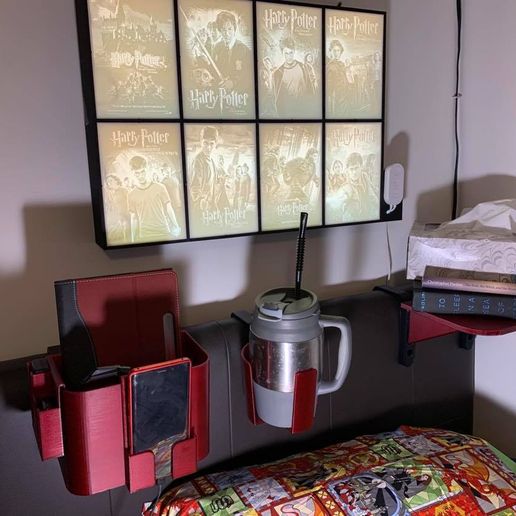

If you're curious about the stuff you see on my headboard, go check it out here!
#FLASHFORGECULTS

Supports needed - NONE if printer can bridge decently for box.
Infill - I'd do 15-20% gyroid on the boxes; 3 parameters. 0%, 7 parameters, no gap fill on the lithos.
Layer height - 0.3 is fine for the boxes. For the lithos, it's best to do based on your printers stepper height. For me, I did 0.12 based on .04 steppers.
Speed - Normal speed for boxes, slower speed for the lithos for better results and less chance of failure.

Note: print the lithos parallel to the y-axis to reduce wobble during the print.

For a 4x2 light box WITH compartment on right you need:

1x top left
1x bottom right
2x bottom left top right
4x middles

If you want it without the right hand compartment, change one of the "bottom left top right" to a top left.
