Bush Homer sponge holder

?
Creation quality: 4.3/5 (19 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Bush Homer sponge holder, have a meme in your kitchen.
You can make it with any 3d printer.

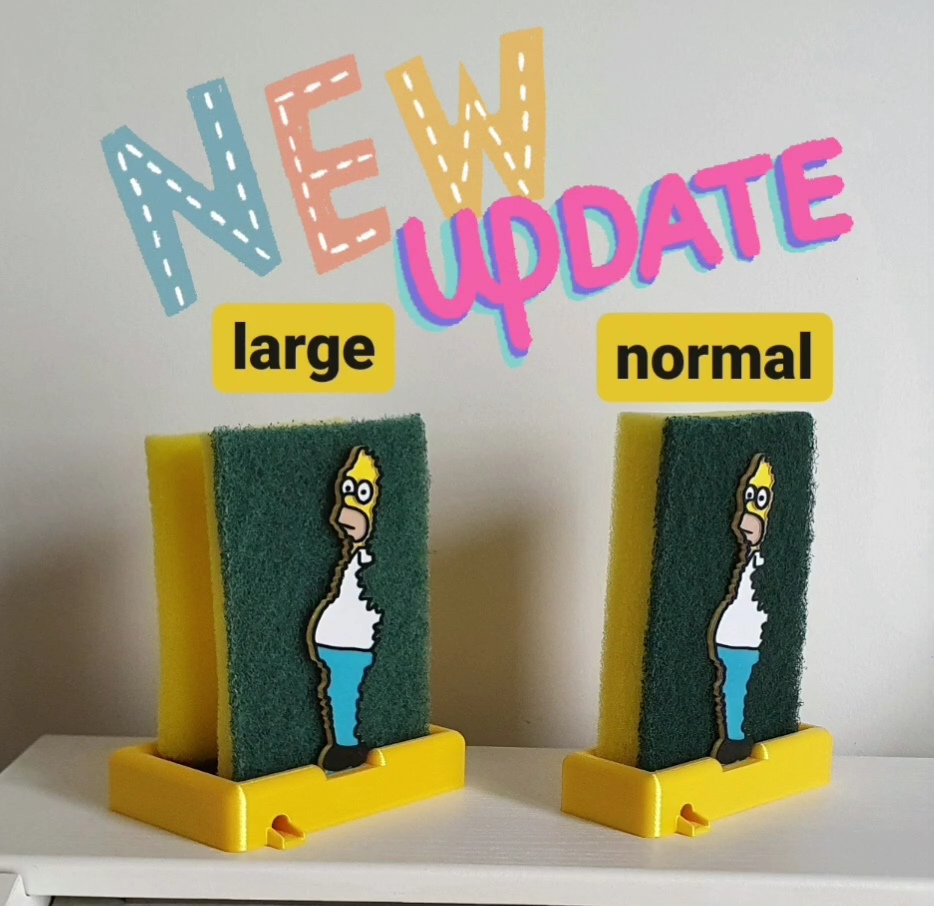

UPDATE 2022/03/21

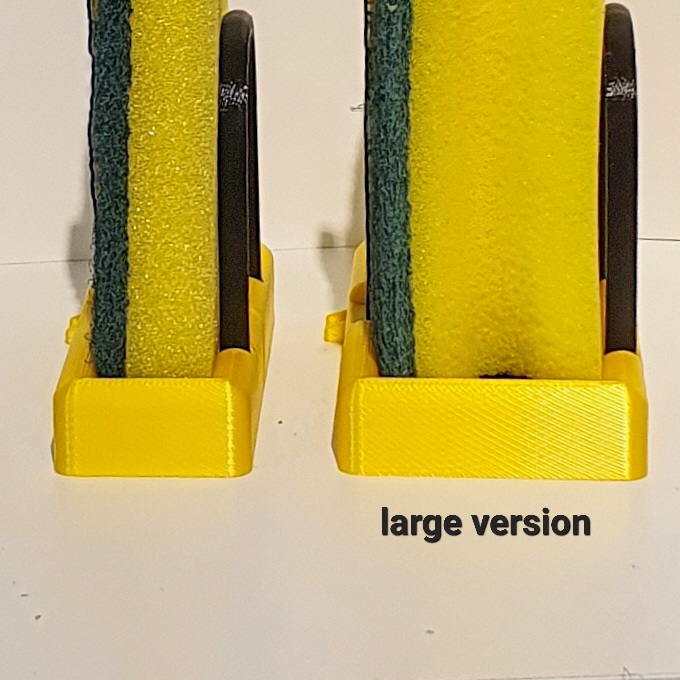

New large version for bigger sponges.

UPDATE 2022/03/23
New BushHomerToleranceTest.stl file, you can print it to test the fit of the parts before printing the whole set.

UPDATE 2022/03/28
Due to some users' difficulties with the model's tight fit tolerances, you now have new _BT files with greater clearance in the base holes. All you need to do is print a new base. We also have a new BushHomerToleranceTest_BT test file to verify these tolerances.

All my designs are protected by Copyright Law. When you purchase, you do not have the right to sell any digital file or printed model of my designs without my consent.
Please help support the creative work of each 3D artist and never share or sell a digital file.


3D printing settings

Before starting I strongly recommend printing the BushHomerToleranceTest and BushHomerToleranceTest_BT to check which base is best to print according to your printer's capabilities.

You will need 4 parts:

Base - Yellow
Two sizes, each one with or without the drain hole, your choice. Print it with your stantard 0.2mm configuration
TIP: use 50% infill to make it heavy and steady.
Select one of these files (3mf or stl):
- BushHomerBase (95x45x18mm)
- BushHomerBaseLarge (95x66x18mm)
- BushHomerBaseNoDrain (95x39x18mm)
- BushHomerBaseLargeNoDrain (95x60x18mm)
IMPORTANT
The files ending with _BT have bigger tolerances.

Grill - Black
Two sizes, print it with your stantard 0.2mm configuration
Select one of these files (3mf or stl):
- BushHomerGrill (76x20x1.6mm)
- BushHomerGrillLarge (76x40.5x1.6mm)

Back - Black
Standard or the suction cup version, your choice. Print it with your stantard 0.2mm configuration
Select one of these files (3mf or stl):
- BushHomerBack (50x73x6mm)
- BushHomerBackSuctionCup (50x73x6mm)

Front - 5 colors - 3 options

Dimensions: 29x105x3mm aprox.

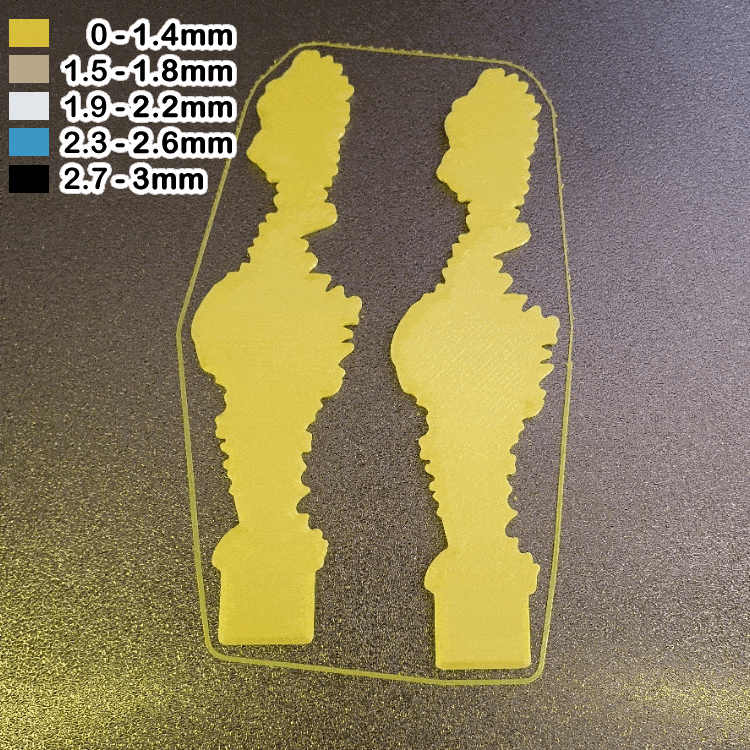

Option 1 (as in the pictures):
Use 0.1mm layer height and 14 top and bottom layers to make a solid piece. The print must be paused at specific heights to change the filament color
Start with yellow
1.5mm - LightBrown
1.9mm - White
2.3mm - Blue
2.7mm - Black
TIP: Color Change in PrusaSlicer:link
File (3mf or stl):
- BushHomerFront

Option 2:
Use a multicolor 3d printer, you will need 5 colors. You can find the files at BushHomerMulticolor.zip (3mf or stl).

Option 3:
Print it with your stantard 0.2mm configuration and paint it at will.
File (3mf or stl):
- BushHomerFrontPaint

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • BushHomer3MF.zip
    • BushHomerMulticolor.zip
    • BushHomerSTL.zip
    • BushHomerToleranceTest.stl
    • BushHomerToleranceTest_BT.stl

    Learn more about the formats

  • Last update: 2022-03-28 at 20:08
  • Publication date: 2022-03-18 at 11:32
