V2 Safety Barrier

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.5k views
  • 5 likes
  • 2 downloads

3D model description

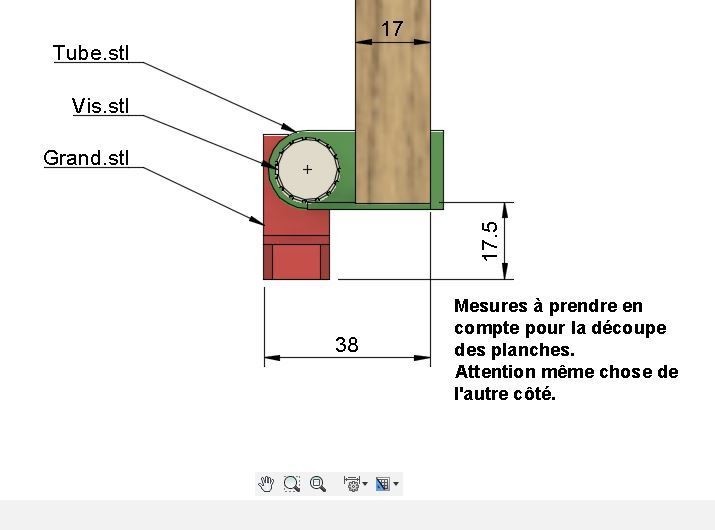

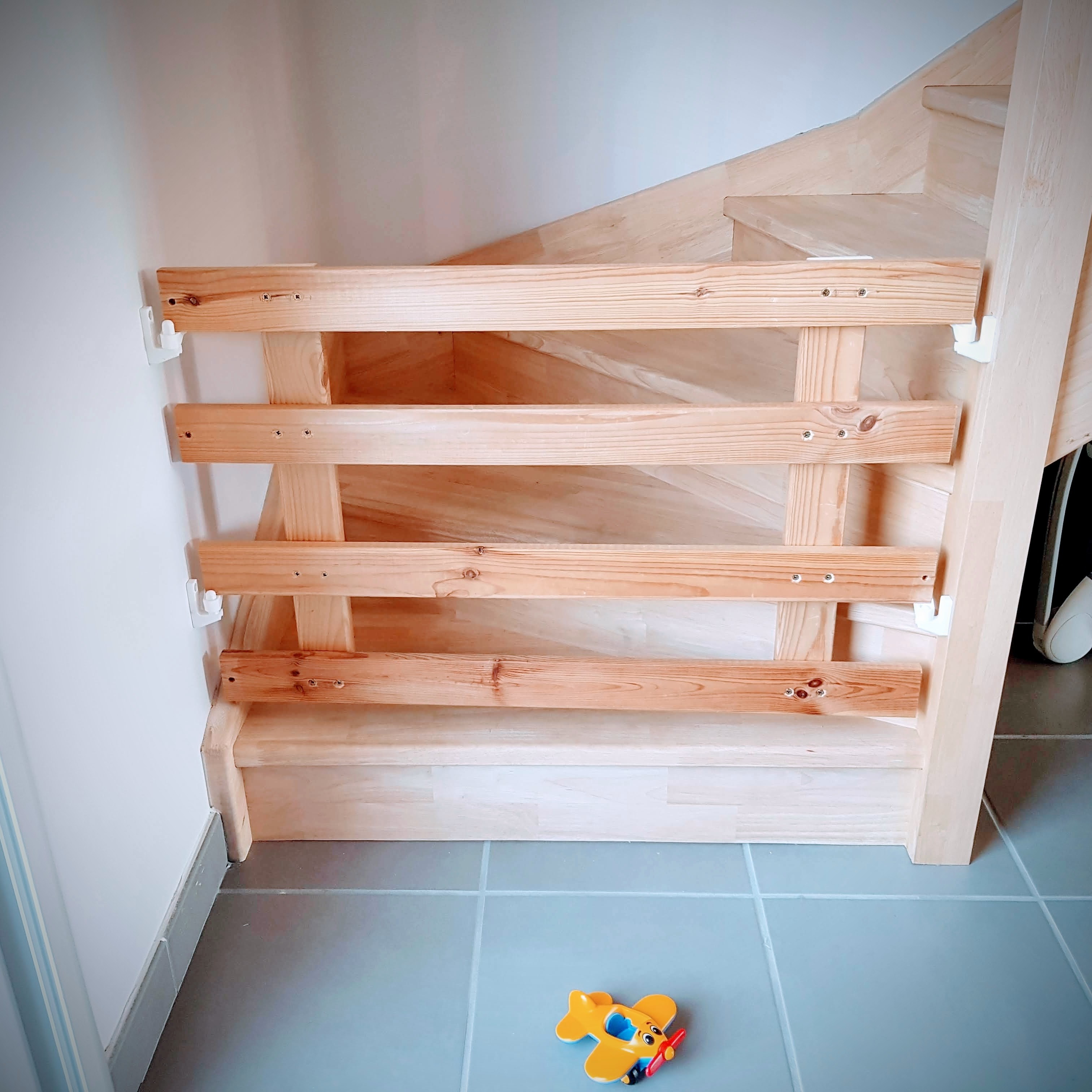

For 17 mm thick boards.

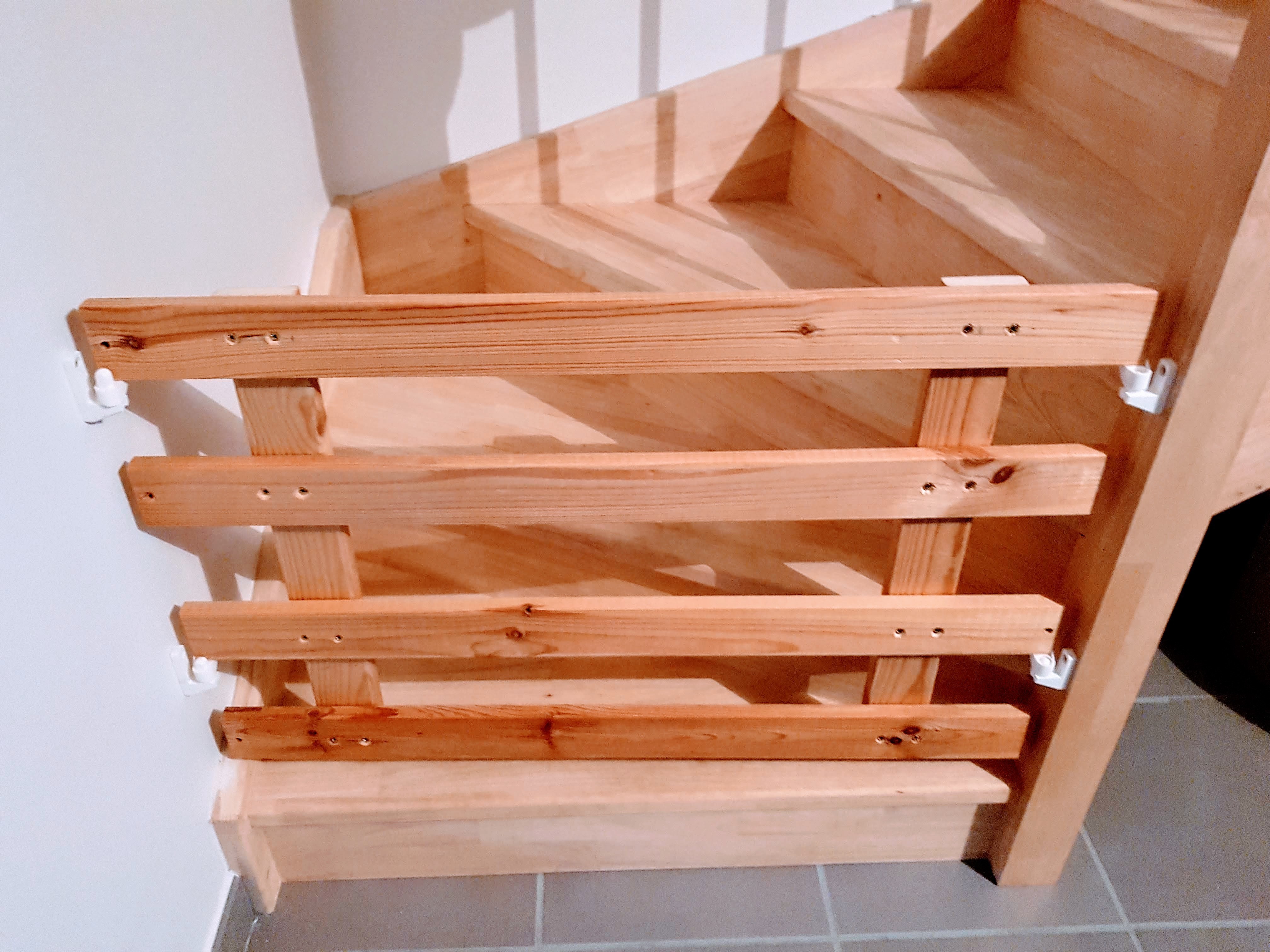

For the realization I started by cutting and fixing the top board.

In this way we have sufficient measures to realize the rest of the barrier.

Take your time, you have to be pretty specific anyway.

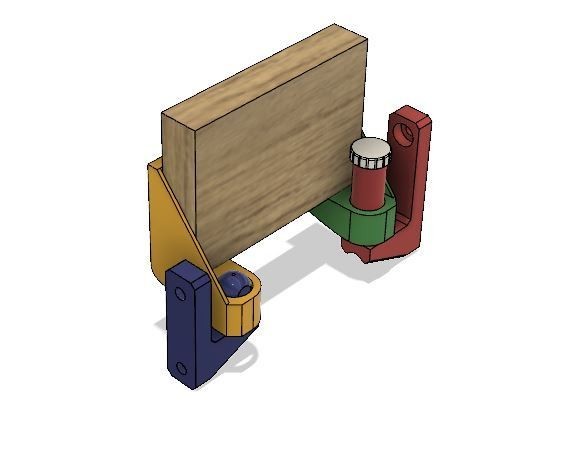

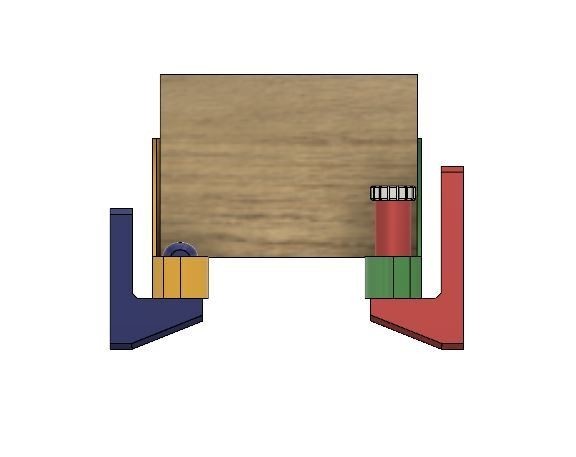

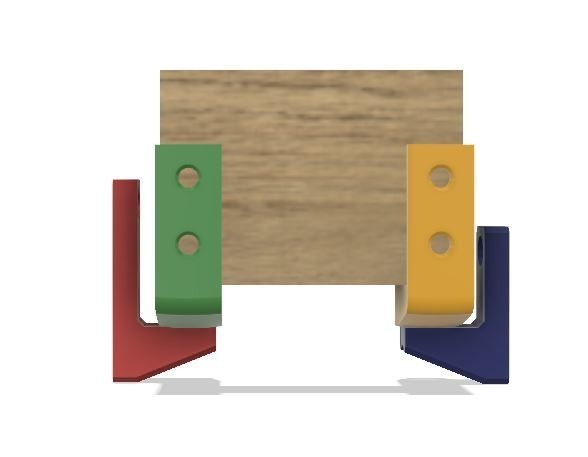

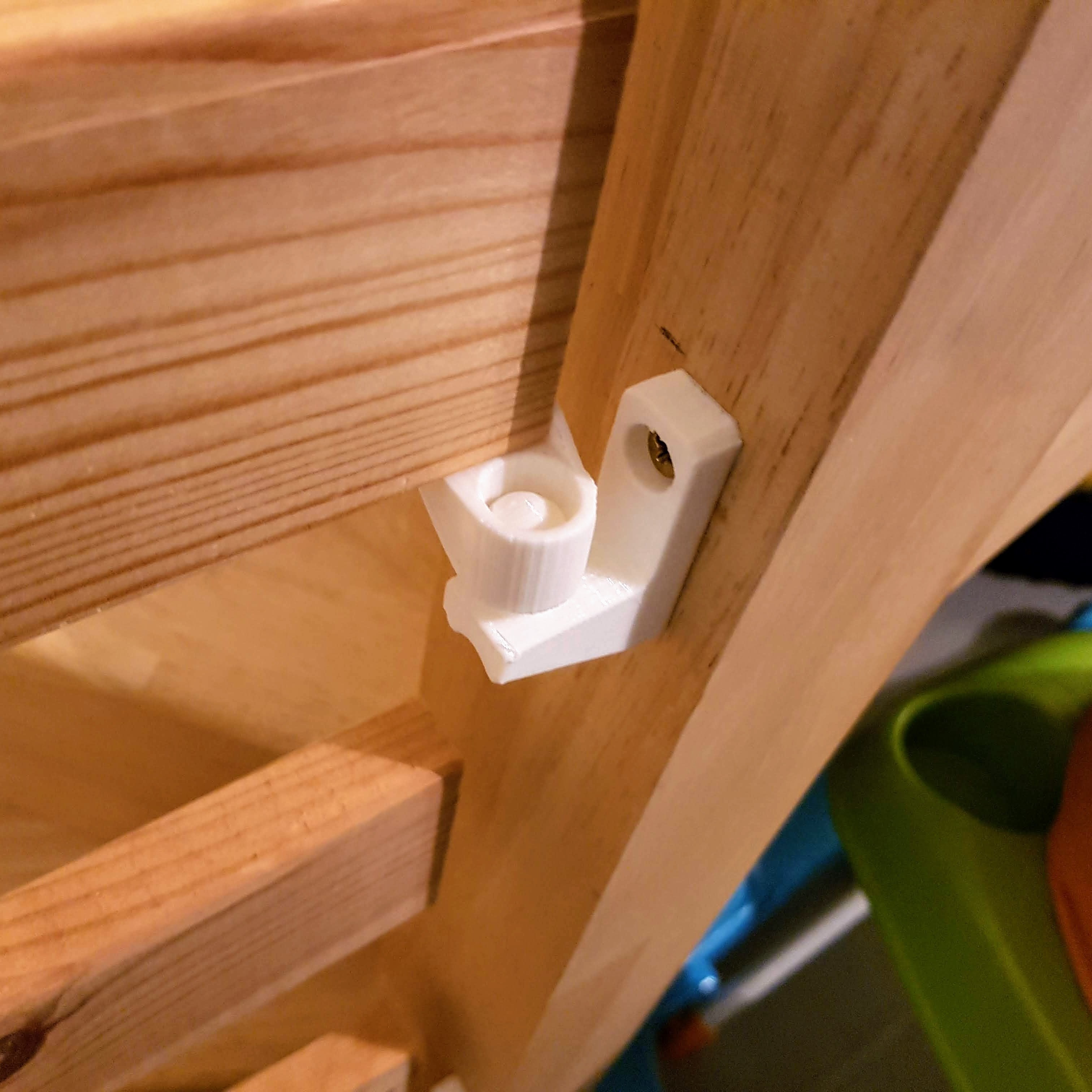

The design imposes opening in one direction only, so think carefully before screwing the "stl tubes".

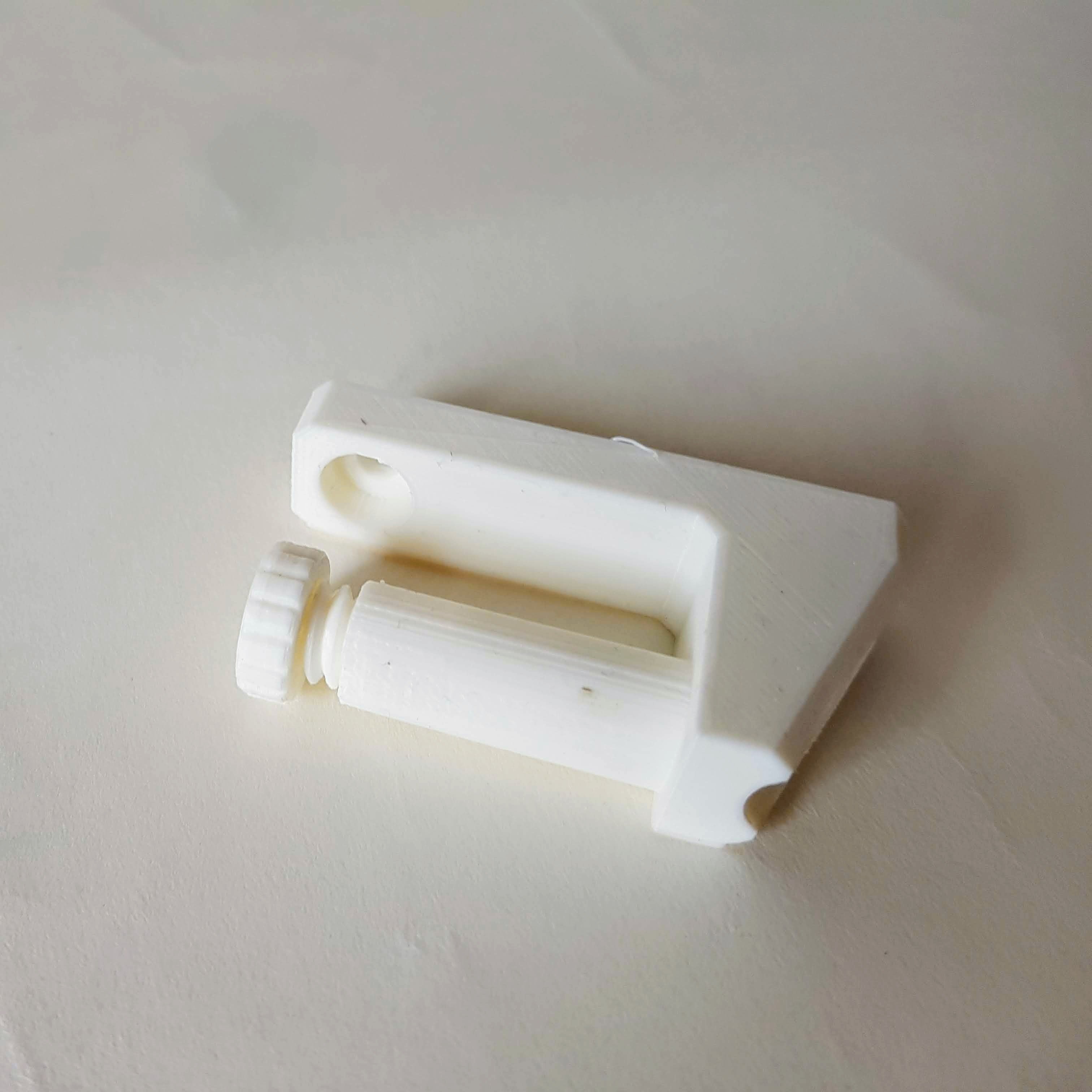

All pieces are to be printed in duplicate (or triple if your child is very strong).

Screw passage designed for M4. Make sure you use the right plugs (self-drilling steel plugs for M4 in my case).

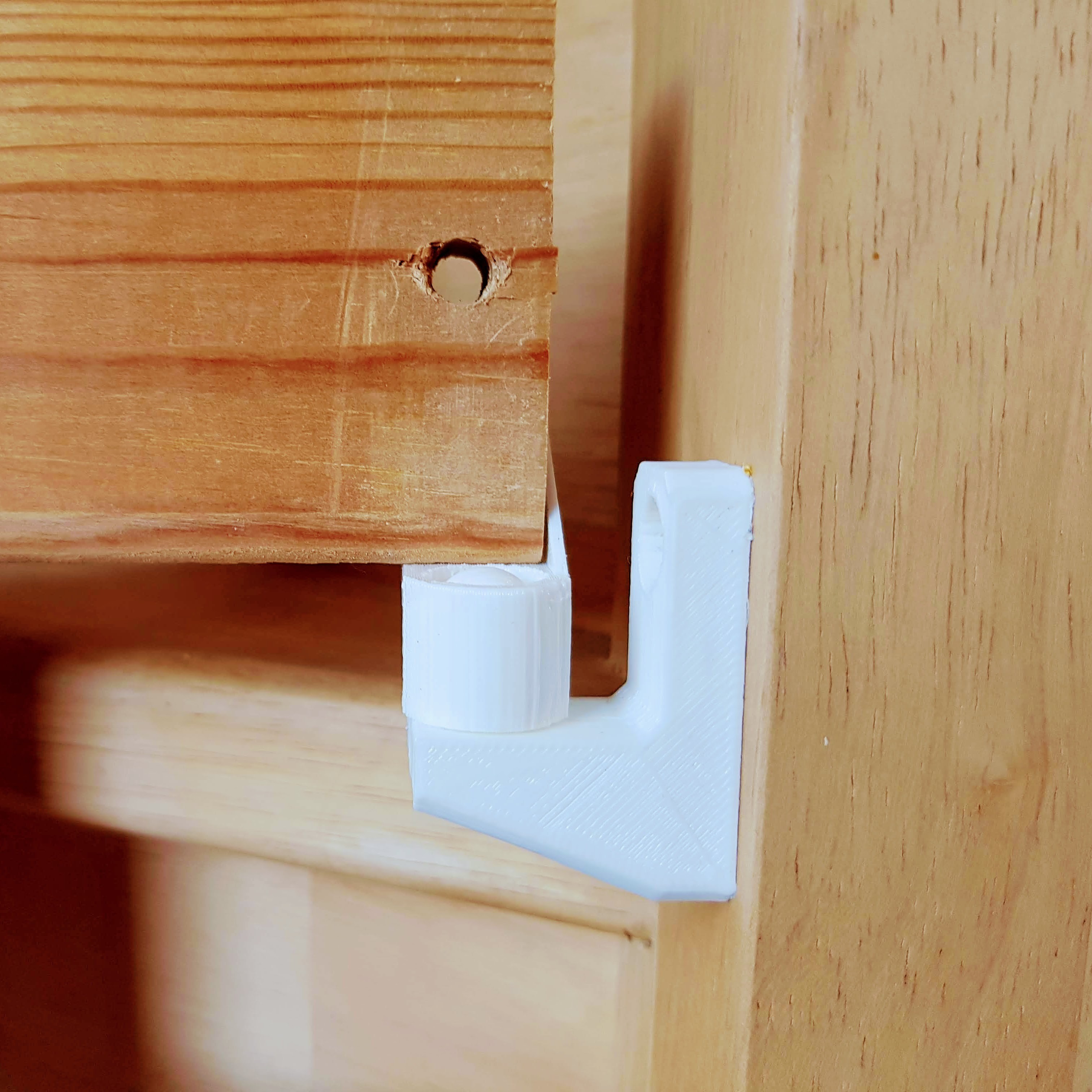

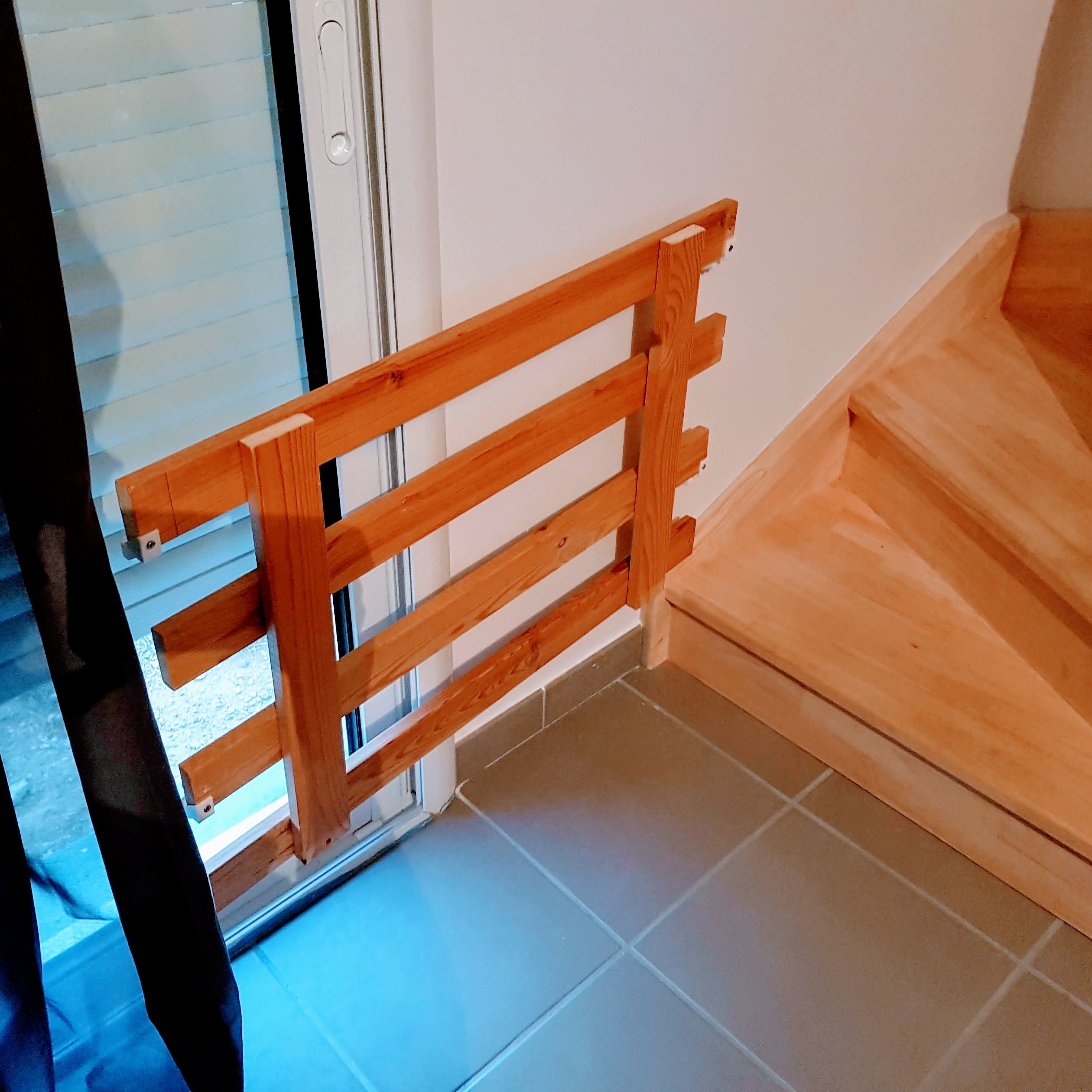

To open the gate-just lift it up and open it at the same time. My nine-month-old daughter can't open it right now.

Yet she tries every day. =)

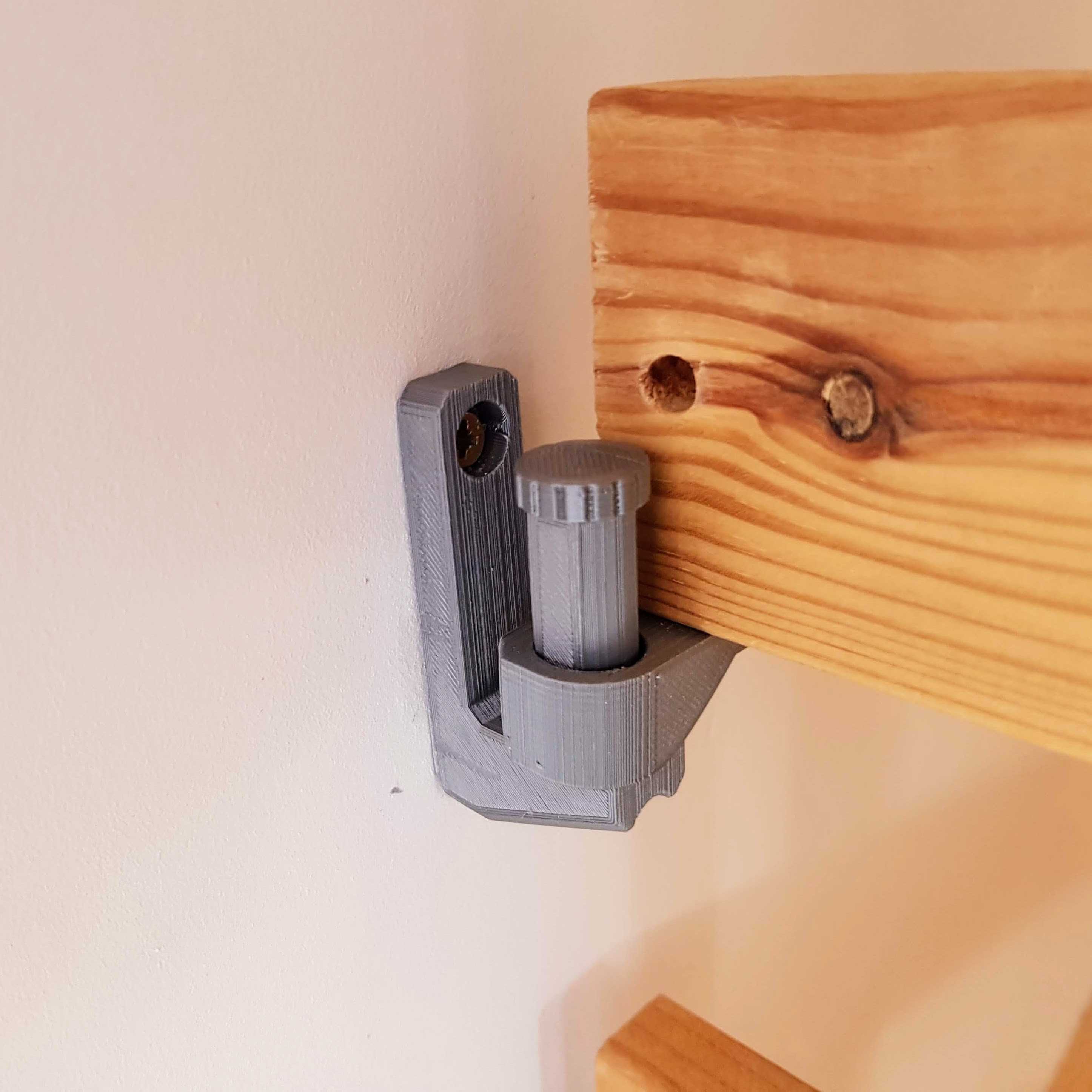

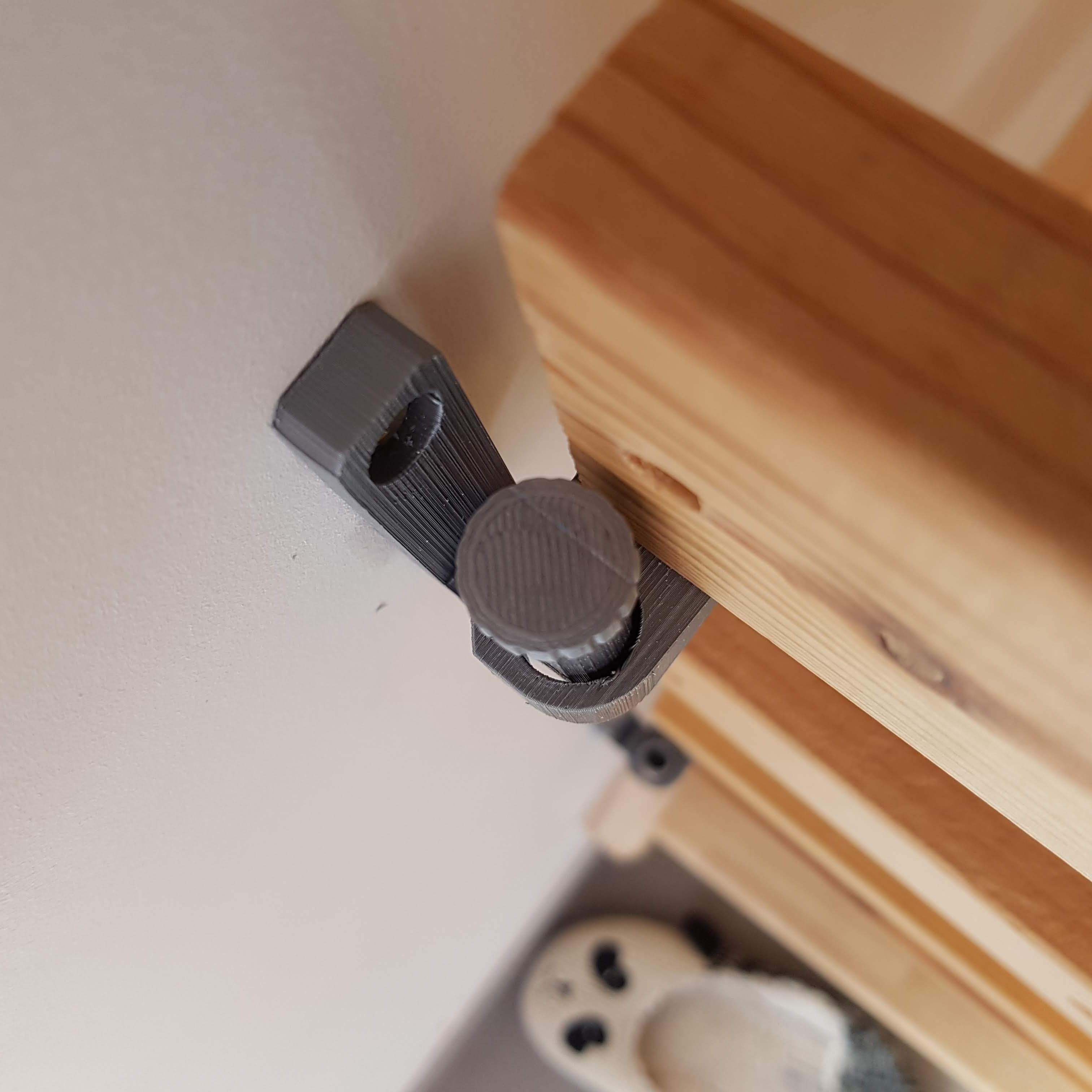

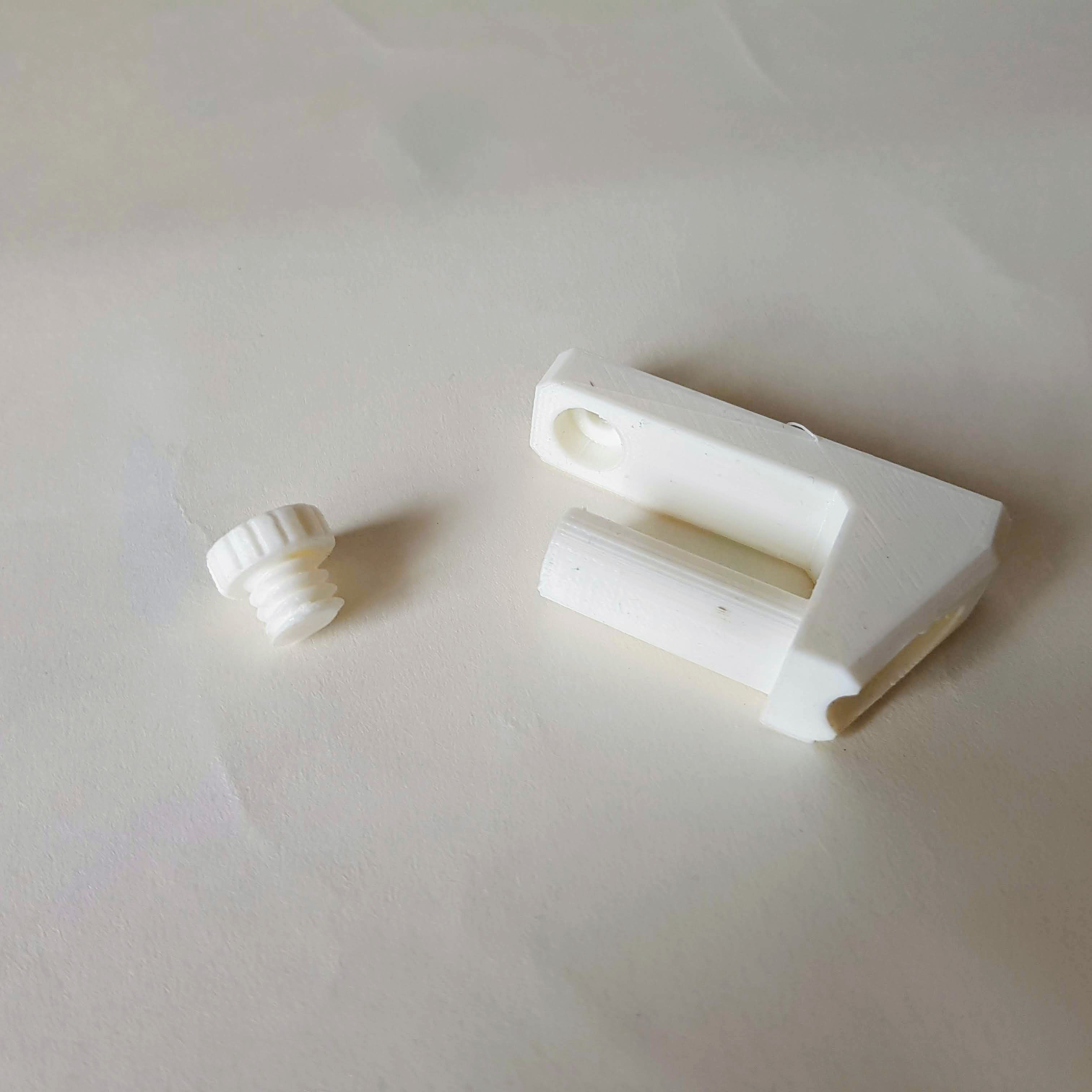

The screw serves as a stop, it is to be mounted last.

Always keep your child under supervision.

Small parts that can be swallowed (vis.stl, tighten it well or even glue it)


3D printing settings

Printing without support

(100% tested. use the number of walls parameter in the slicer at 999).

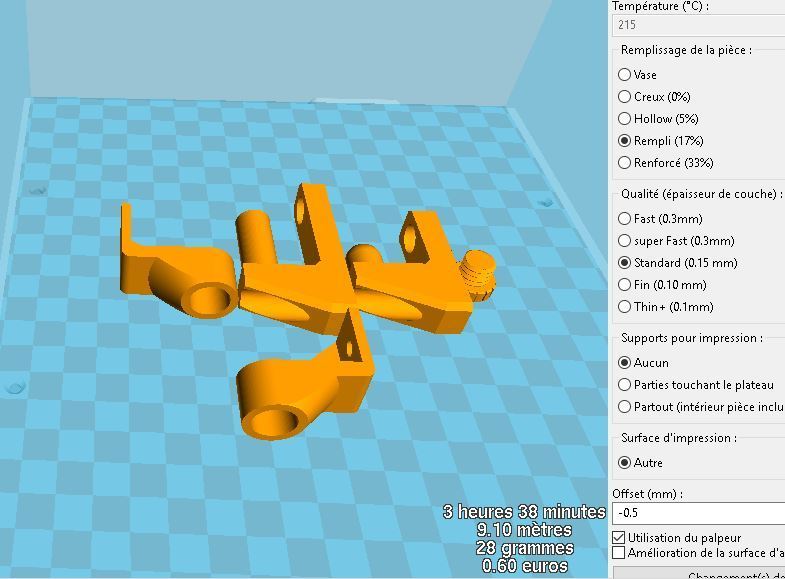

printing direction in Screenshots

3D printer file information

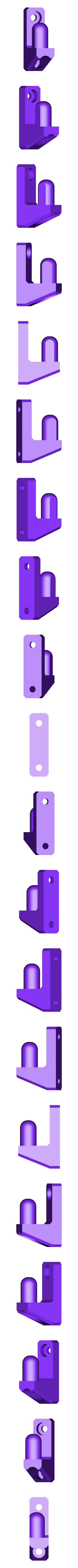

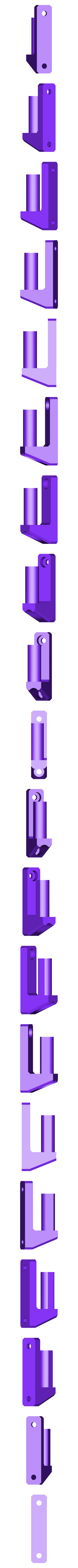

  • 3D design format: STL Folder details Close
    • grand.stl
    • petit.stl

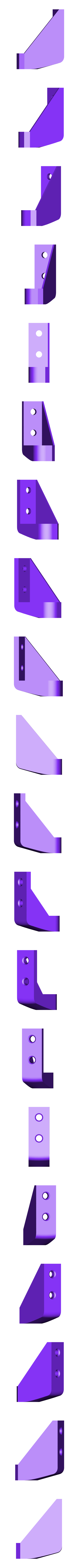

    • tube.stl

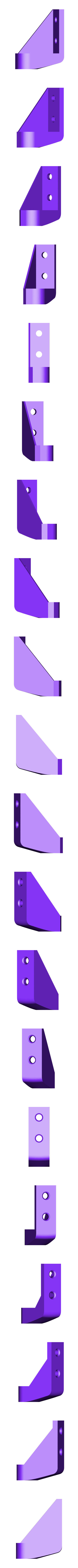

    • tube2.stl

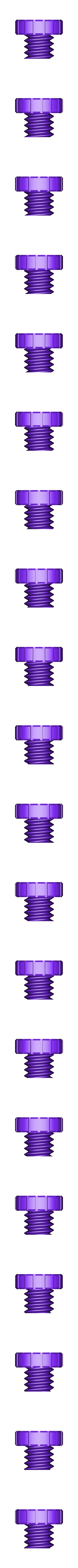

    • vis.stl
