VR aim Stock 3000(Quest2/Quest3)

Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 4.4/5 (9 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
27 files (OBJ) Close
  • backconnect 0.14 clearance.obj 23.72 Γ— 56.53767399999998 Γ— 47.38085199999999 mm
  • backconnect 0.16 clearance.obj 23.68 Γ— 56.519180000000006 Γ— 47.34536700000001 mm
  • backconnect 0.18 clearance.obj 23.64 Γ— 56.500709 Γ— 47.309898000000004 mm
  • backconnect 0.2 clearance.obj 23.6 Γ— 56.48221500000001 Γ— 47.274437000000006 mm
  • backpart.obj 30.0 Γ— 121.347473 Γ— 102.081472 mm
  • bottenpin.obj 4.693 Γ— 4.692581000000018 Γ— 43.10504900000001 mm
  • botton.obj 10.0 Γ— 10.0 Γ— 4.399993999999992 mm
  • cover.obj 7.671452 Γ— 11.810012 Γ— 2.0000019999999985 mm
  • cup_for oldversion.obj 32.051562000000004 Γ— 64.87778899999999 Γ— 83.235412 mm
  • forgrip.obj 43.975801000000004 Γ— 57.11480700000001 Γ— 54.968918 mm
  • frontcon 0.14clearance.obj 23.72 Γ— 68.560812 Γ— 27.719992999999988 mm
  • frontcon 0.16clearance.obj 23.68 Γ— 68.533835 Γ— 27.680008000000015 mm
  • frontcon 0.18clearance.obj 23.64 Γ— 68.50685100000001 Γ— 27.639999000000003 mm
  • frontcon 0.2clearance.obj 23.6 Γ— 68.479871 Γ— 27.59999900000001 mm
  • frontpart.obj 30.0 Γ— 200.54484 Γ— 101.769917 mm
  • gluecup.obj 30.96412 Γ— 63.792004 Γ— 83.235412 mm
  • lever.obj 10.141874 Γ— 36.376052999999985 Γ— 13.8228 mm
  • lever_mag.obj 10.141874 Γ— 33.360825000000006 Γ— 13.8228 mm
  • magcup.obj 30.96412 Γ— 63.792004 Γ— 83.235412 mm
  • mid_glue.obj 30.0 Γ— 154.16570099999998 Γ— 46.942955 mm
  • mid_mag.obj 30.0 Γ— 154.16570099999998 Γ— 46.942955 mm
  • shoulderpart.obj 49.995526 Γ— 136.04863 Γ— 99.999995 mm
  • slidarm_0.16clearance.obj 23.48 Γ— 87.507614 Γ— 27.426216000000004 mm
  • slidarm_0.18clearance.obj 23.44 Γ— 87.47982800000001 Γ— 27.386218999999997 mm
  • slidarm_0.22clearance.obj 23.36 Γ— 87.424271 Γ— 27.306216999999997 mm
  • slidarm_0.2clearance.obj 23.4 Γ— 87.45204100000001 Γ— 27.346220999999993 mm
  • stopper.obj 15.6 Γ— 4.680008000000015 Γ— 3.6999970000000033 mm

Learn more about the formats
Last update
Publication date
Design number 535339
Design author NiceRGuy
NiceRGuy

NiceRGuy

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

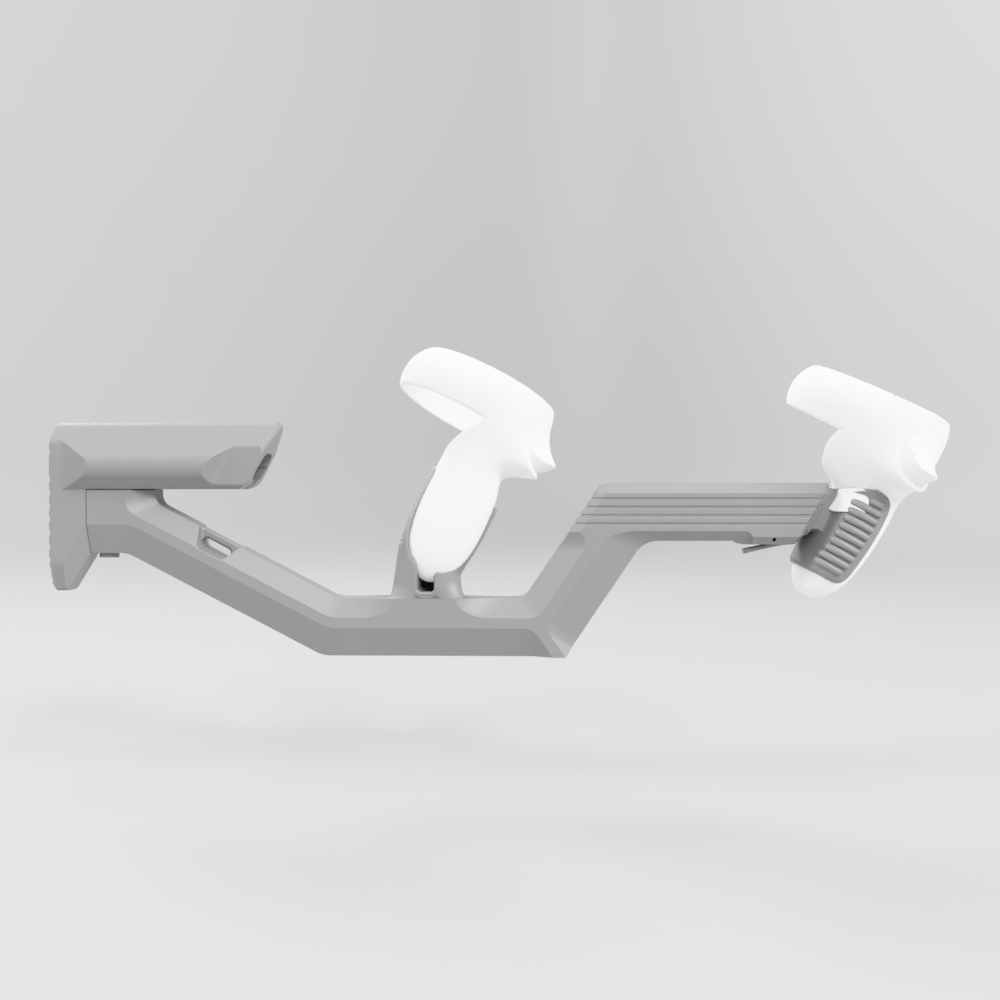

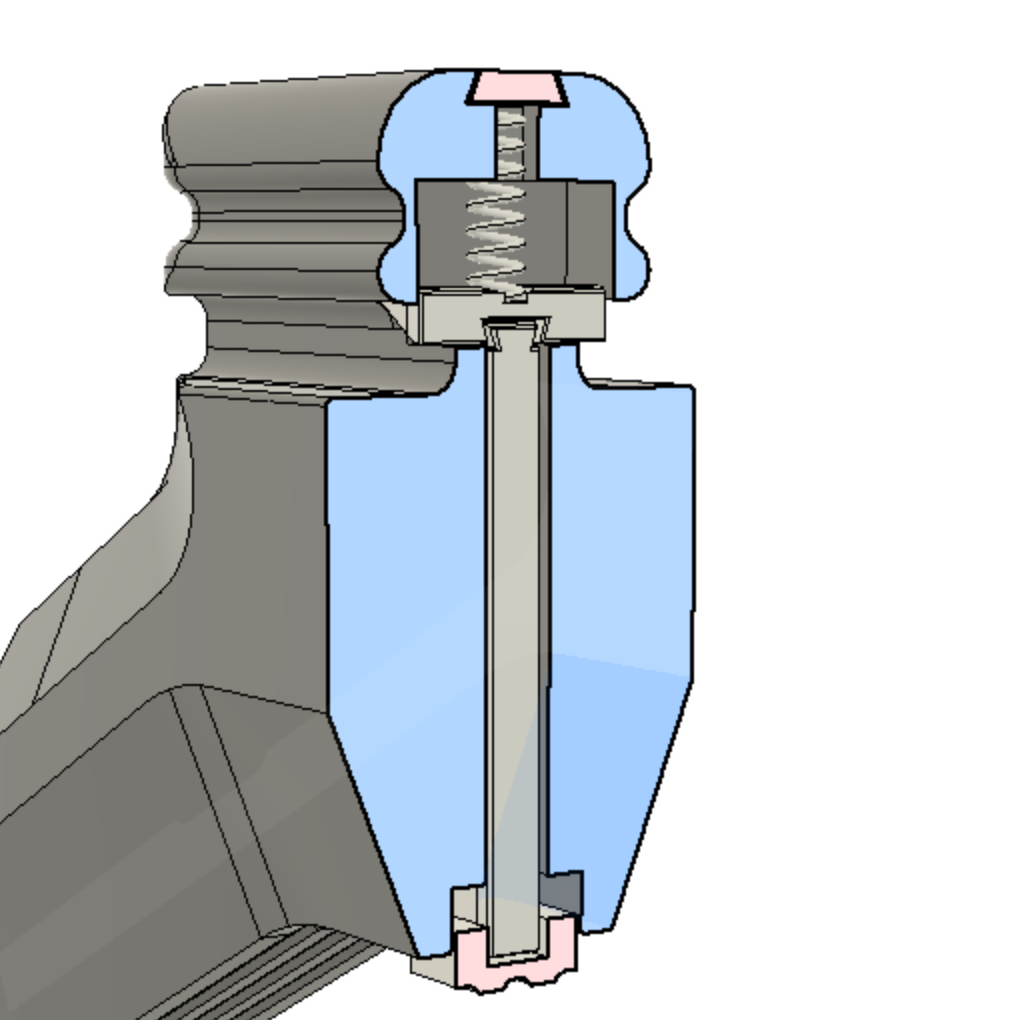

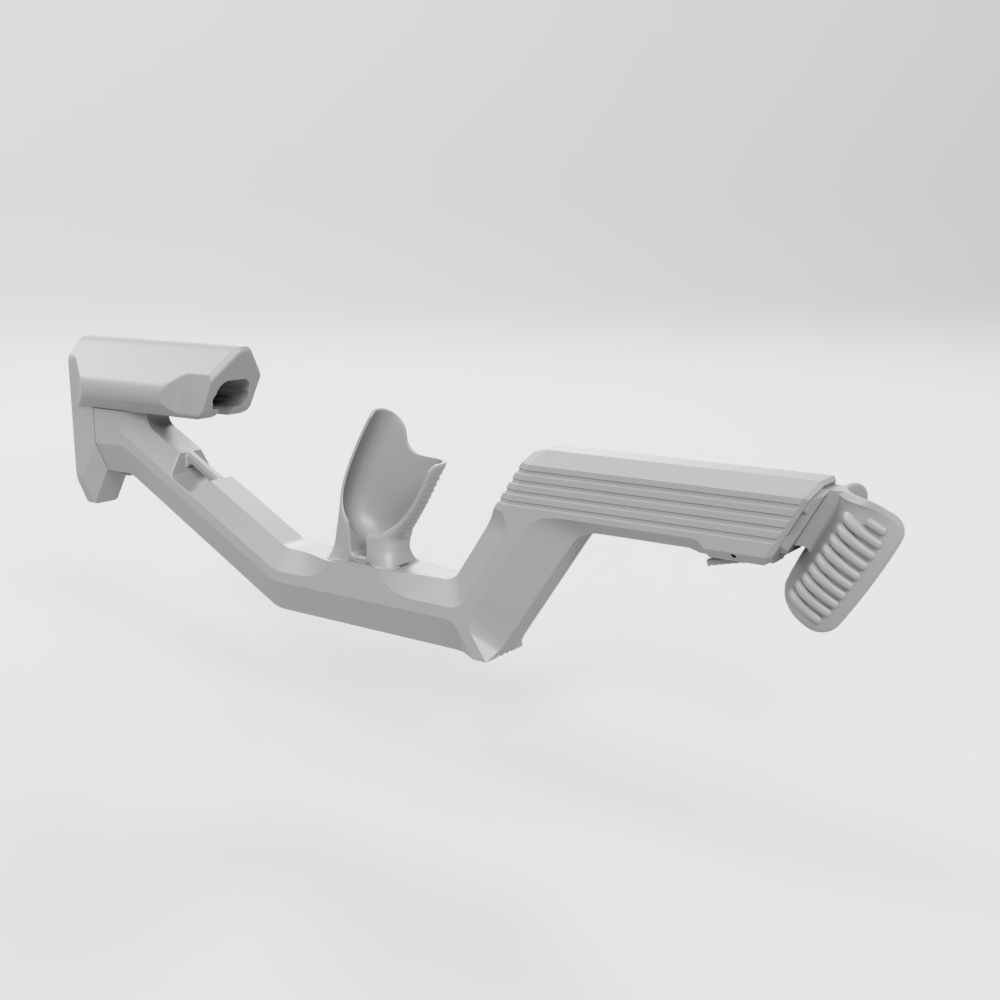

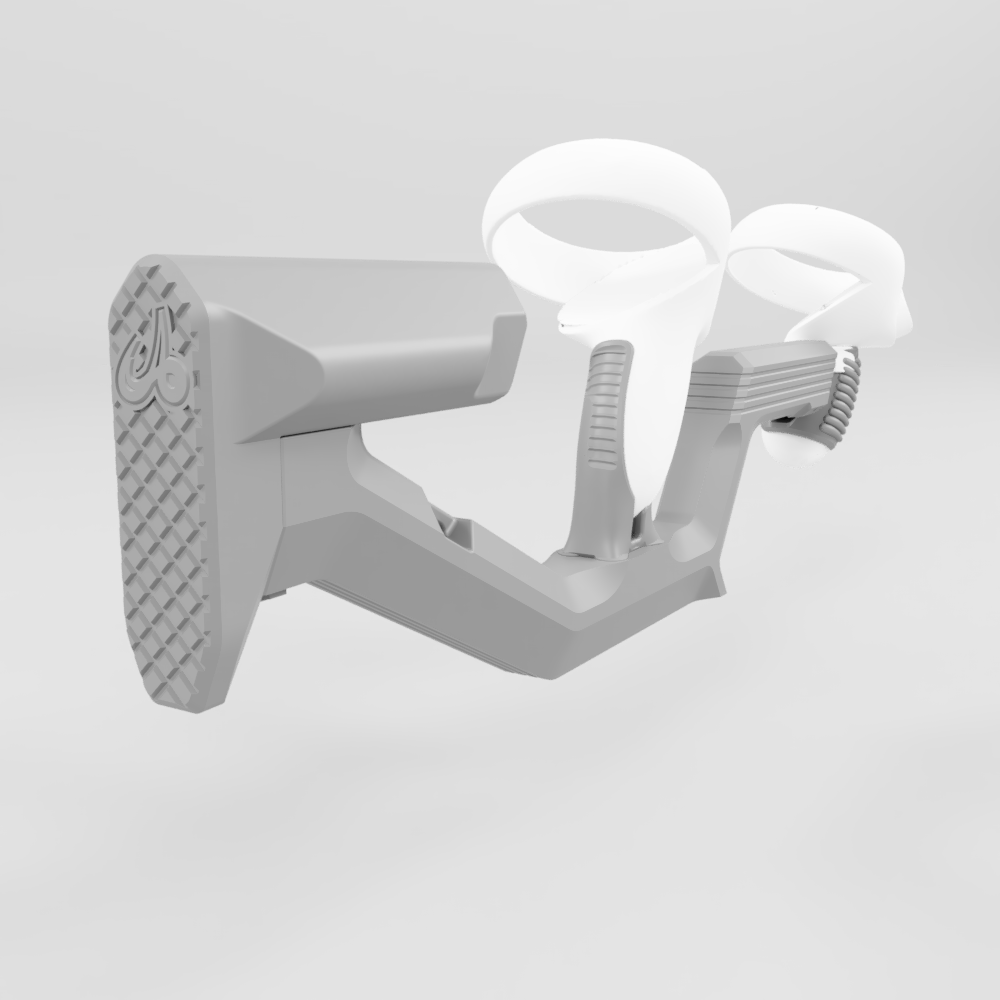

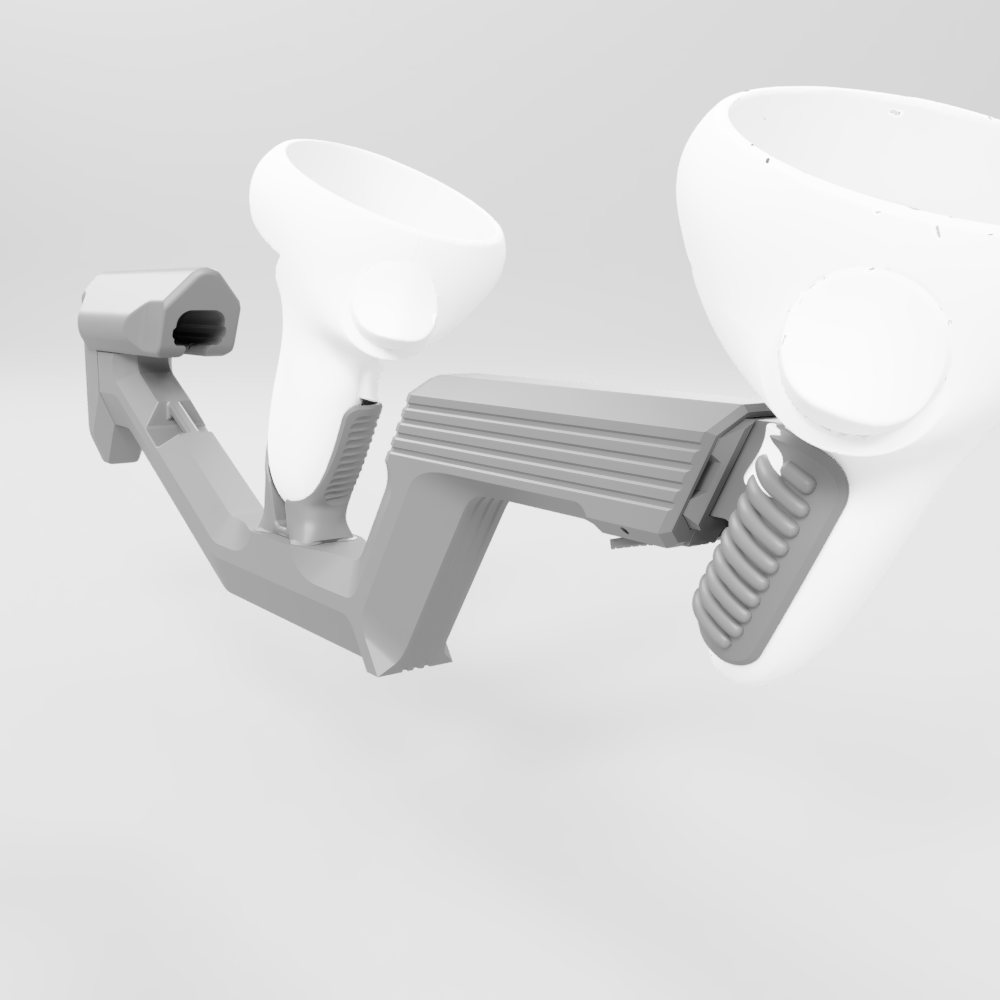

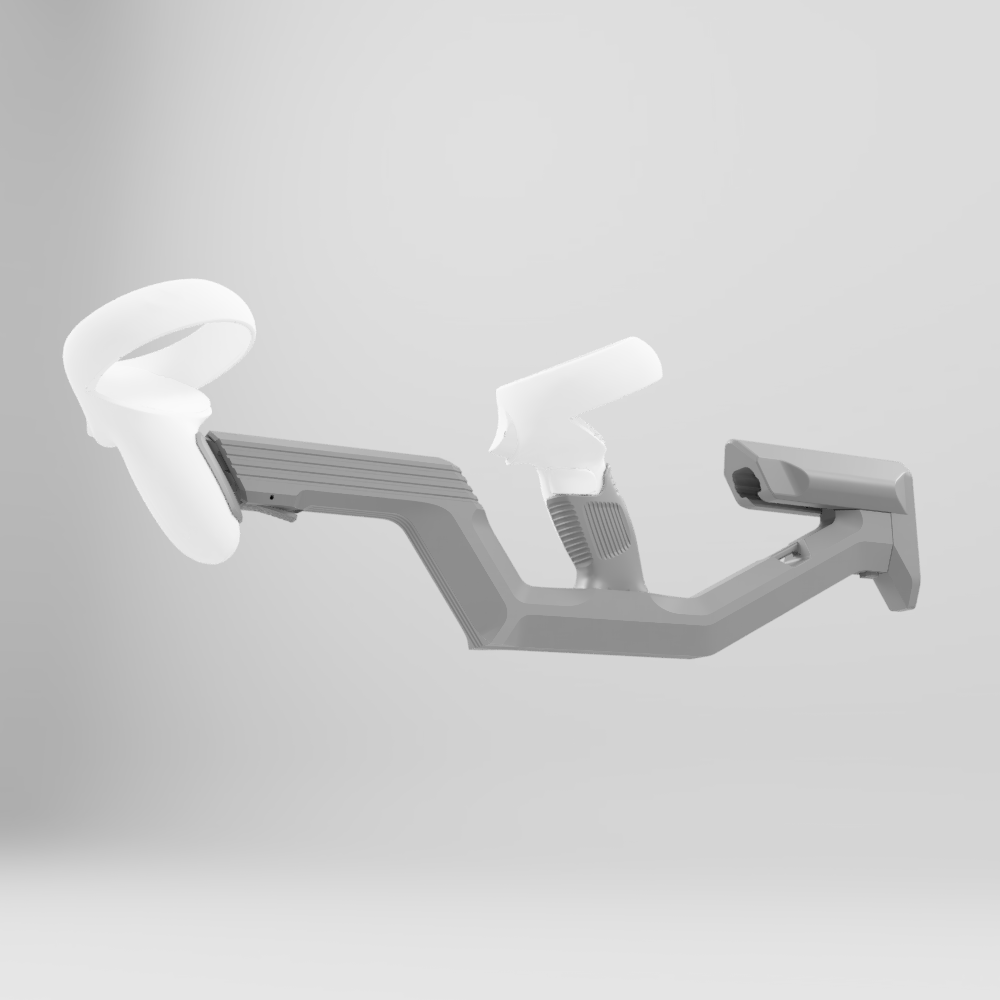

gun stock for oculus quest 2 and 3. the shoulder part and the front hand park is adjustable. the stopper lever can be uses with magnets that repel each or you can print it with a spring. use short piece of filament as a hinge for the lever. You need a ball pen spring for the stopper in the shoulder part. the main body comes is in three parts for better printing and is stacked and glued together with big connecters. the controller cup is held with 10 magnets or can be glued.

magnets 10mm x 2mm
glue
ball pen spring

3D printing settings

14 parts
0.2 layer height
7-10% infill grid
wall count 2
top layer 4
bottom layer 4
bed temp 60c for the slidarm
support only for magcup

Categories

All categories β€Ί Game β€Ί Mechanical Toys
