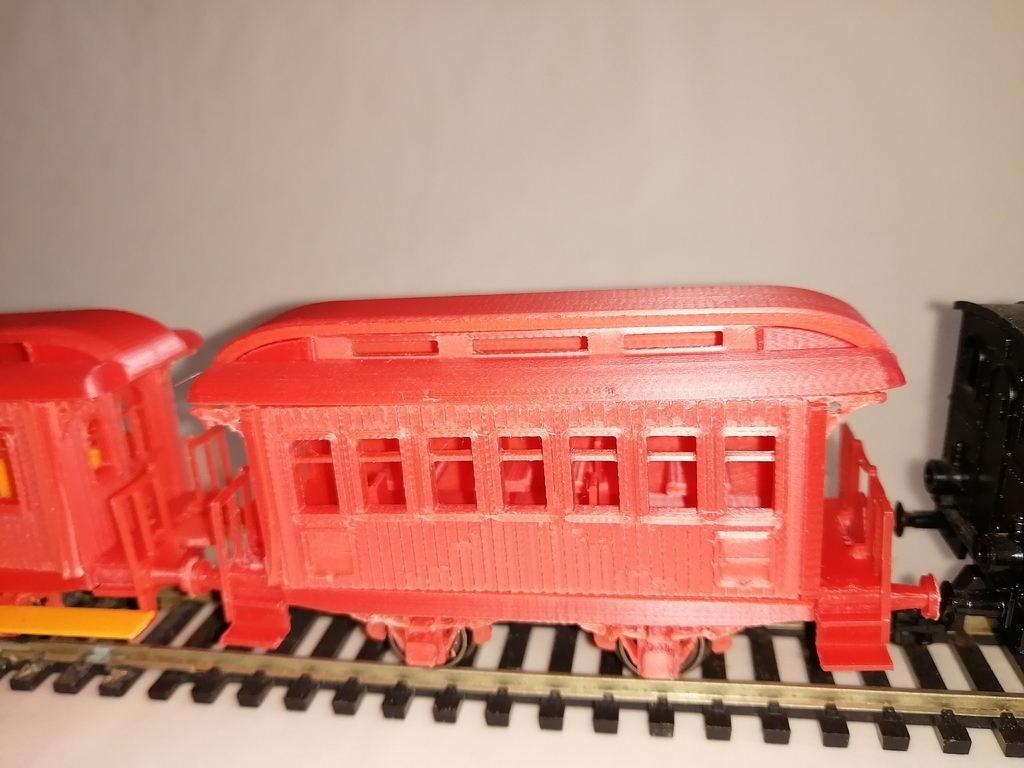

Country tramway open platform wooden car for winding track normal gauge in H0 format

This is the basic model of my normal gauge country tramway,

I imagined a wagon (Era III), running slowly, on very long routes through the European countryside, serving a lot of small stations, (of course a Europe without borders and without wars), a bit like the trains of the new world. Of course, it has all the facilities known at the time.

Eventually, I want to add a luggage van, and many other types of passenger and freight cars, if you have ideas, or wishes, do not hesitate to tell me in the comments, the goal is not to reproduce a train that existed, but a train that could have existed. If you publish models related to this project (same era, same curve radius and same width of materials), let me know in the comments, I will add them to the list.

Some models (the basic ones) are free of charge, the particular ones have to be paid

Are available for the moment

  • Wooden car with open platform.

  • Fitting 2nd class for the Wooden car with open platform. (0,65 €).

to come

  • Luggage van

  • Mail car

  • Restaurant car

** Assembling**

Start by assembling the axles.

The axles are made up of 21 x 1.75 watch band "spacers", some people call them "pumps", "strap pin", Chinese mail order sites call them "strap pins" or "link pin" or "watch pins", I found them here : AliExpress

Remember to match the diameter of the center hole of your wheels to the diameter of your axles based on the accuracy of your printer,

You can replace the printed axles with metal ones, I buy mine here: AliExpress

Think to adapt the position of the hub holders by modifying the .stl file

Then, assemble the chassis.

My couplers are from AliExpress, but all NEM couplers are suitable

Clip the NEM couplers into the NEM boxes

The NEM housings should be fixed to the chassis, using M3 x 6 screws with a metal washer in between.

The M3 x 6 screws are from AliExpress.

The washers are from AliExpress.

Clip on one of the hubboxes, put the axles on and hold them with the second hubbox, slide the brakes into their slots.

**Installation of the windows

Glue acetate film on the inside of the walls and ends

The film is from AliExpress.

Case assembly (see below)

Then you have to clip the ends and install the walls

**Roof assembly

Glue acetate film to the inside of the canopies and slide the canopies into their slots

Clip the ridge cap to the top of the roof, and clip the roof to the ends

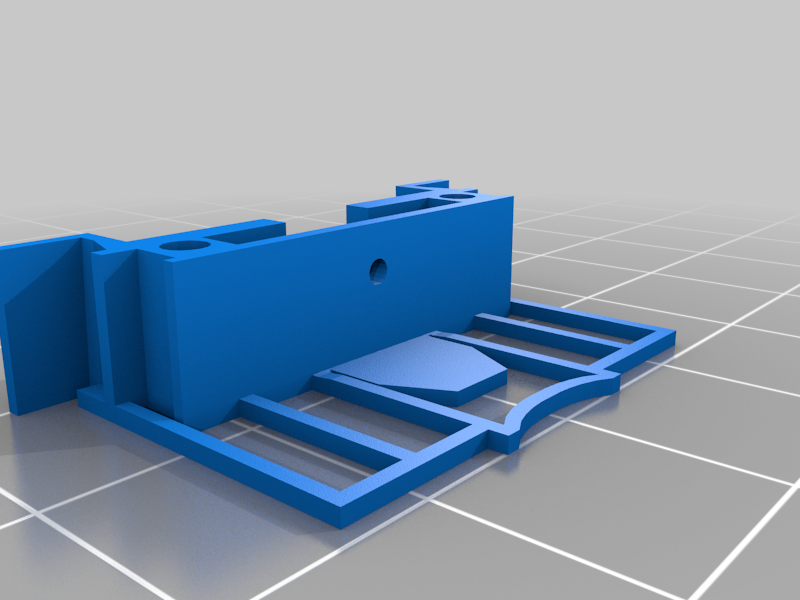

Assembling the platforms

Glue the pads in the slots provided for this purpose

Clip the platforms onto the ends of the frame

Good impression

By any chance, I share my Gcode for my KP3S printer, feel free to offer your corrections in comments

If you print this wagon, please upload your pictures in a Make on Thingiverse or in Make on Cult3d : it's my best compensation.

And, if you want to help me pay for the PLA used for the prototypes of this scale model, I accept donations at buymeacoffee.com.
