Very Customizable Fidget Spinner

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.1k views
  • 44 downloads

3D model description

Very Customizable Fidget Spinner
Customize:
type of weights: 5/16", 3/8", 1/2" nut, M8, M10, M12 nut, 608 bearing, 5/16", 3/8", 1/2", 5/8" loose ball bearing, US penny, nickel, dime or quarter, M4 square nut
number of rays
number of weights per ray
edge roundness (radius)
tapering of rays
glue grooves
Update 2017-08-17
Added "minimal" ray style that just consists of the weight frame. If using an extended ray with one weight per ray, a thin bar will connect the weight to the center.

Update 2017-05-03
added M4 square nuts as suggested by nattrassj12

Update 2017-04-25
added the option to use 5/16" (8mm) loose ball bearings
added the option for horizontal glue grooves for center 608 bearing and ray weights
Update 2017-04-11

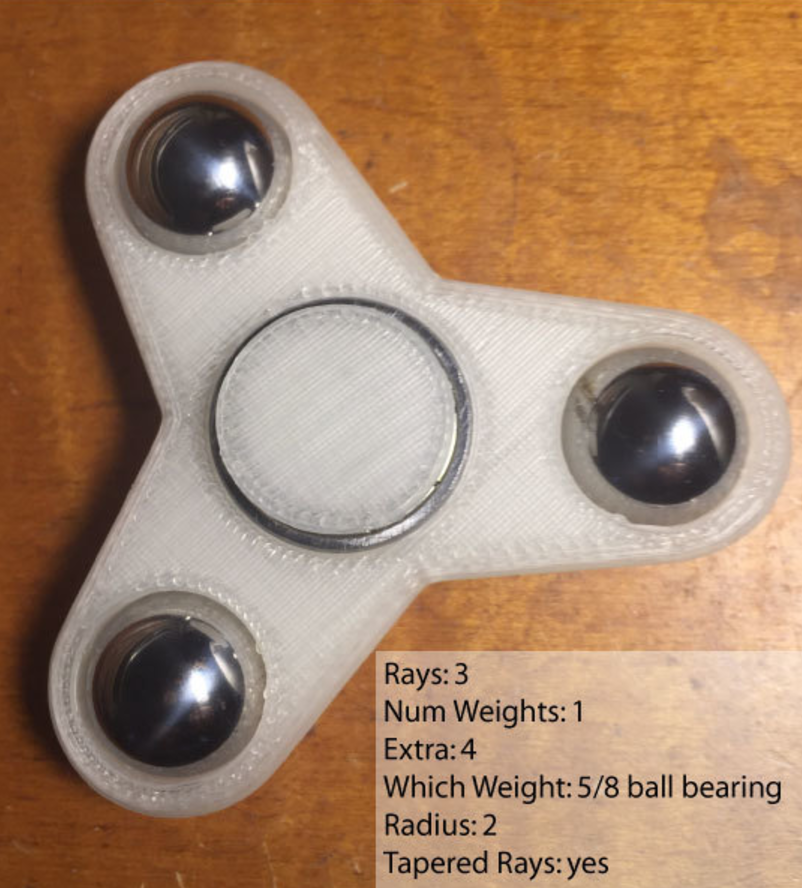

added the option to use loose ball bearings: 3/8", 1/2", and 5/8" (tested with 1/2" and 5/8"); for a heavy, long spinning spinner. Thanks to stolli666 for the suggestion.

Update 2017-03-27
added option to taper rays or not; without tapering, the ray will be more rectangular and less triangular

Update 2017-03-02
added M10 and M12 nut sizes
fixed low resolution bug
Update 2017-02-23
added 3/8" and 1/2" nut choices for weights
nuts will protrude but didn't want to require supports or have an asymmetrical frame
Update 2017-02-15
added the ability to extend the ray length when using only 1 weight per ray
added coins to type type of weights: 4 quarters, 5 dimes, 3 nickels or 4 pennies. But I prefer nuts or bearings for weights.
Notes:
A 4 ray, 1 weight per ray, 5/16" nut, 2.5mm radius version is very compact (easy one-handed spin) and fun! Give it a try.
Customizer might time out but the Create Thing button still works
I like using vise grips to install hardware
Cheap 5/16" hex nuts from Amazon
if a nut is loose in a PLA frame, dip nut in frame into hot water to shrink frame around nut
See my collection of all of my fidget spinner designs.

3D printer file information

  • 3D design format: STL Folder details Close
    • 2-simple_bearing-caps.stl
    • 2x1_7e_516_2r.stl
    • 2x1_bearing_r3.stl
    • 2x2_M8_r2.stl
    • 3x1_5e_516_2r.stl
    • 3x2_516_r2.5.stl
    • 4x1_516_r2.5.stl
    • 4x2_M8_r2.stl
    • 5x1_516_r2.5.stl
    • 6x2_516_2.5.stl
    • bearing-pin.stl
    • ray-spin-3x1-M10-2.5r-4e.stl
    • ray-spin-3x58ball-2r-4e.stl
    • ray-spin-4x2-516ball-2r.stl
    • ray-spin-4x2-M4square-2r.stl
  • Publication date: 2017/08/21 at 18:38
